Standard Tilt Trailer Features

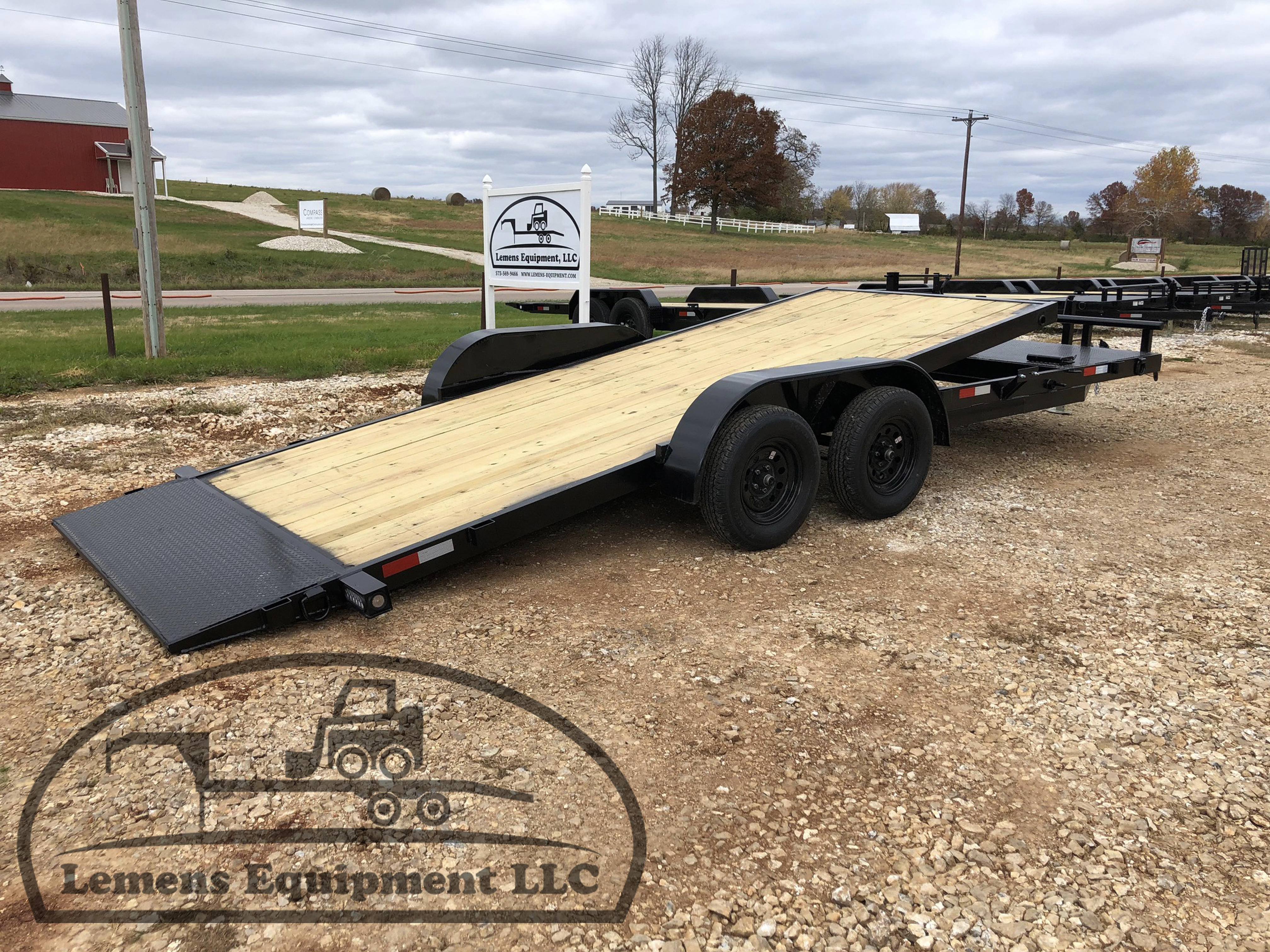

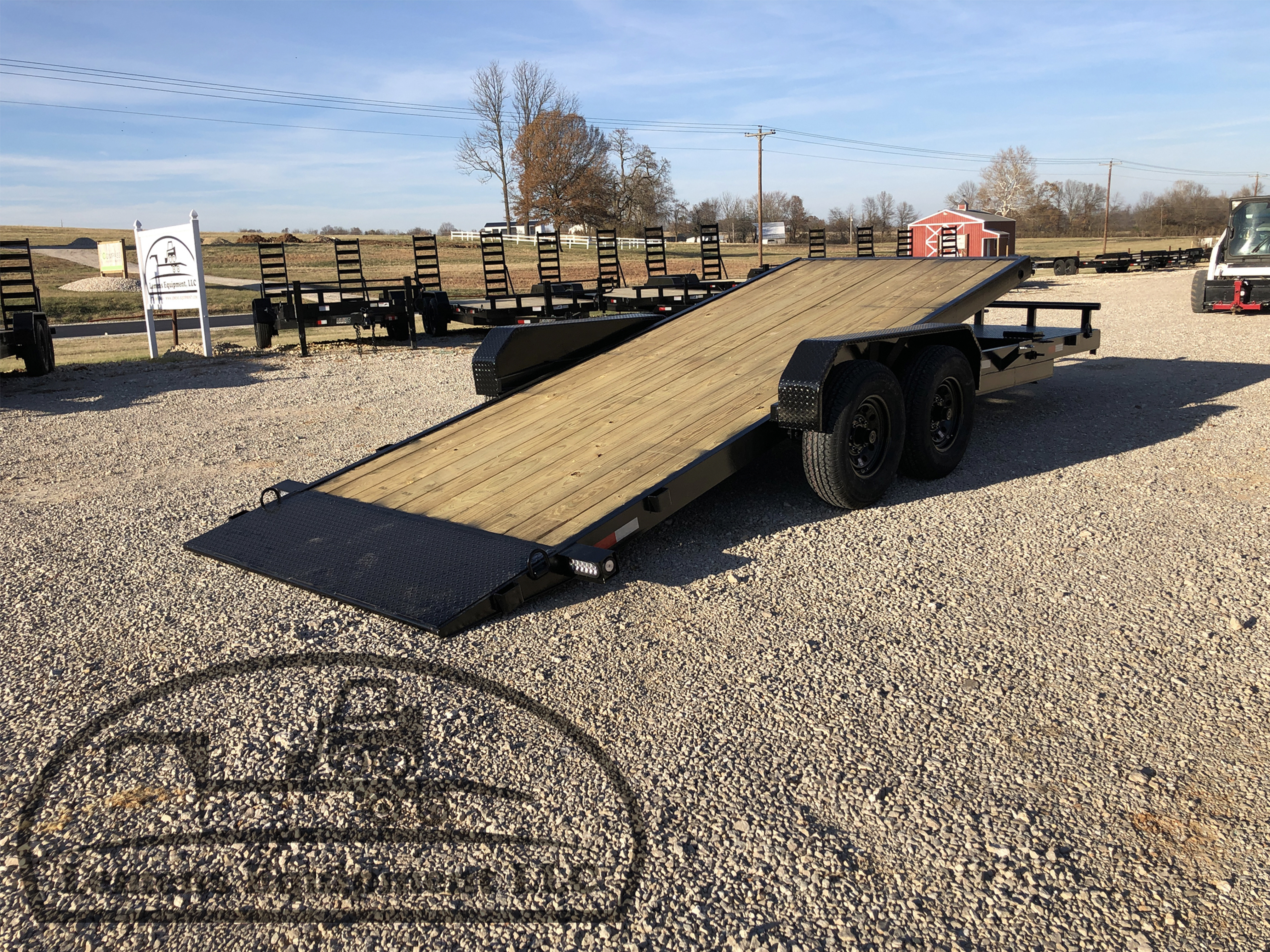

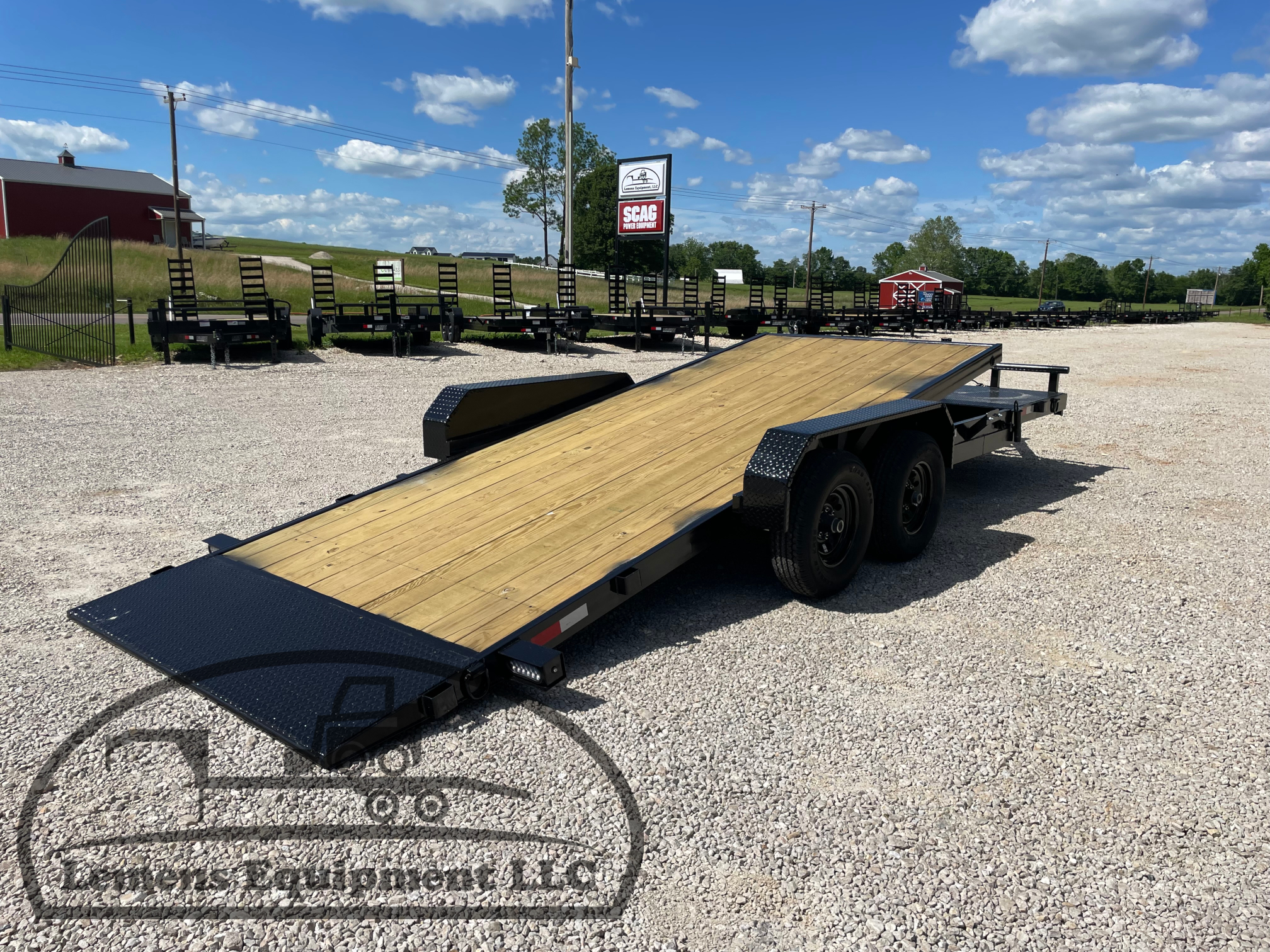

| 7K Trailer | 10K Trailer | 12K Trailer | |
 |
 |
 |
|

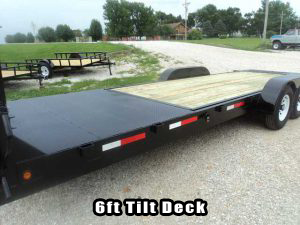

| Length | 22ft (18+4) or 24ft (18+6) | 22ft (18+4) or 24ft (18+6) | 22ft (18+4) or 24ft (18+6) |
| Width | 82" between fenders | 82" between fenders | 82" between fenders |
| Frame | 5" 6.7# main frame | 5" 6.7# main frame | 6" 8.2# channel main frame |
| Tongue | 4" 5.4# channel | 5" 6.7# channel | 5" 6.7# channel |
| Cross members | 2x3x3/16 angle cross members on 16" centers | 2x3x3/16 angle cross members on 16" centers | 3" 4.10# channel cross members on 16" on centers |

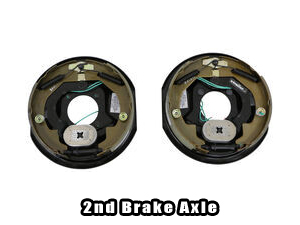

| Axles | 3500lb Easy Lube Axles (One brake axle) | 5000lb Easy Lube Axles (One brake axle) | 6000lb Easy Lube Axles (One brake axle) |
| Tires | New 205/75 R15 6ply radial tires | New 225/75 R16 10ply radial tires | New 235/80 R16 10ply radial tires |
| Wheels | 15" - 5 on 4.5 bolt pattern | 15" - 6 on 5.5 bolt pattern | 16" - 8 on 6.5 bolt pattern |
| Coupler | 2" 8k coupler | 2 5/16" coupler | 2 5/16" adjustable height coupler |
| Jack | 8k drop leg jack | 8k drop leg jack | 8k drop leg jack |
| Fenders | 11ga tread plate with supports | 11ga tread plate with supports | 11ga tread plate with supports |
| Lumber | #1 treated 2x8 lumber(screwed down) | #1 treated 2x8 lumber(screwed down) | #1 treated 2x8 lumber(screwed down) |
| Front rail | Tube | Tube | Tube |
| Lights | All led | All led | All led |

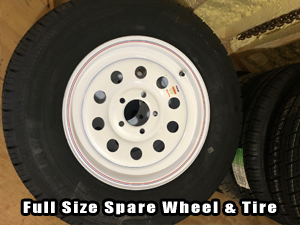

| Spare tire mount | On passenger side | On passenger side | On passenger side |

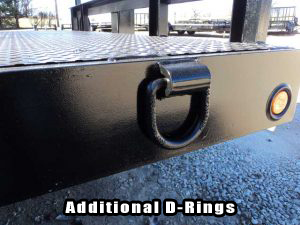

| Tie downs | 4 d-rings and stake pockets | 4 d-rings and stake pockets | 4 d-rings and stake pockets |
| Plug | 7 way round rv plug | 7 way round rv plug | 7 way round rv plug |
| Warranty | Lifetime on welds, 6 years on axles, 2 years on tires | Lifetime on welds, 6 years on axles, 2 years on tires | Lifetime on welds, 6 years on axles, 2 years on tires |

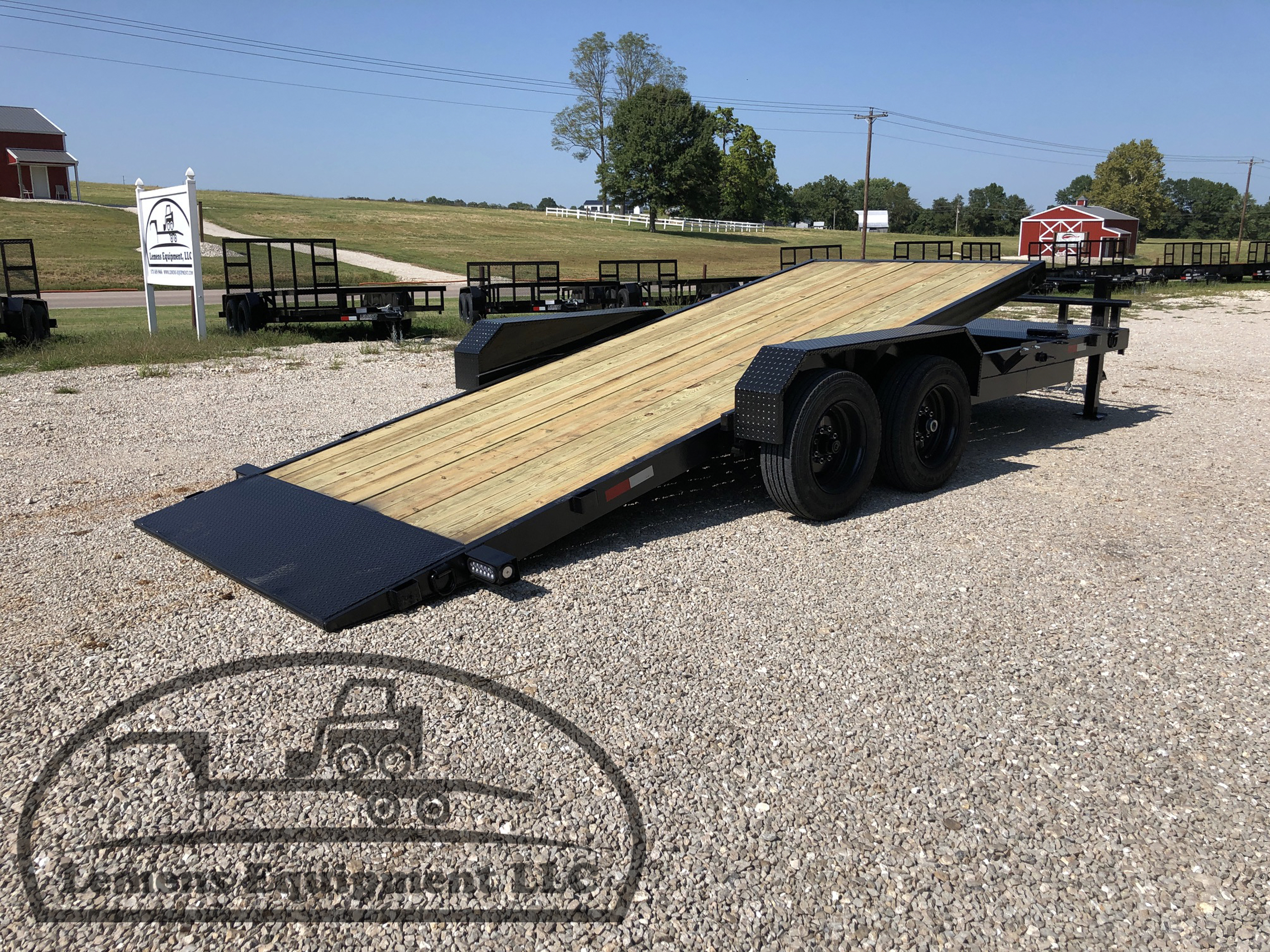

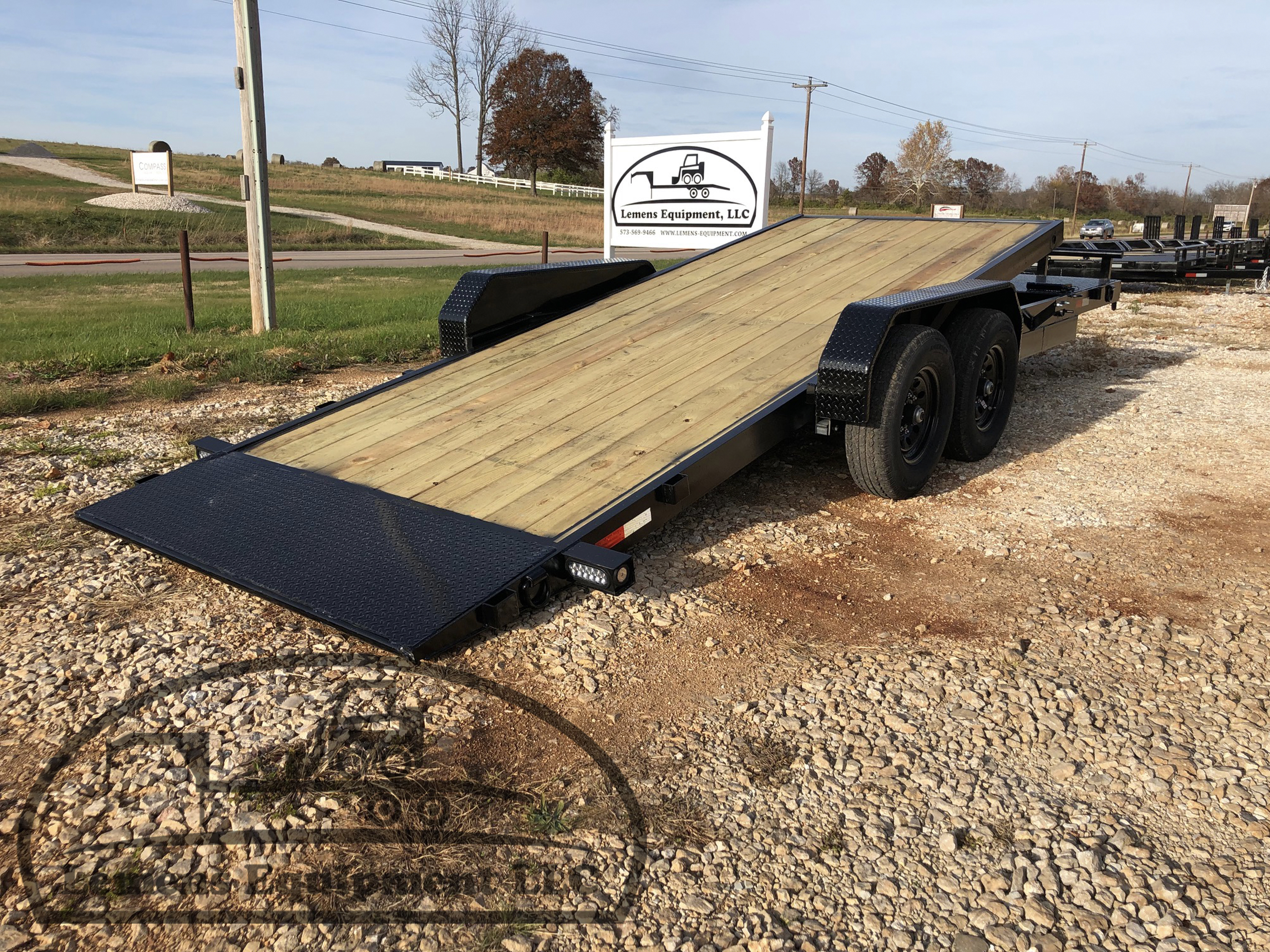

| 14K Trailer | 16K Trailer | ||
 |
 |
||
| Length | 22ft (18+4) or 24ft (18+6) | 22ft (18+4) or 24ft (18+6) | |
| Width | 82" between fenders | 82-84" between fenders | |
| Frame | 6" 10.5# heavy channel main frame | 6" 10.5# heavy channel main frame | |
| Tongue | 6" 8.2# channel | 6" 10.5# heavy channel main frame | |
| Cross members | 3" 4.10# channel cross members on 16" on centers | 3" 4.10# channel cross members on 16" on centers | |
| Axles | 7000lb Easy Lube Axles (Two brake axles) | 8000lb Easy Lube Axles (Two brake axles) | |
| Tires | New 235/80 R16 10ply radial tires | New 215/75R17.5 16ply radial tires | |
| Wheels | 16" - 8 on 6.5 bolt pattern | 17.5" - 8 hole wheels | |
| Coupler | 2 5/16" adjustable height coupler | 2 5/16" adjustable height coupler | |

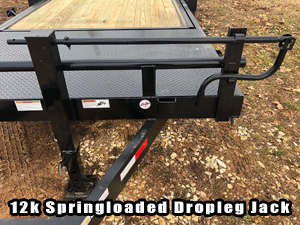

| Jack | 12k spring loaded drop leg jack with side crank | Tandem 12k spring loaded drop leg jacks with side crank | |
| Fenders | 11ga tread plate with supports | 11ga tread plate with supports | |
| Lumber | #1 treated 2x8 lumber(screwed down) | #1 treated 2x8 lumber(screwed down) | |
| Front rail | Tube | Tube | |
| Lights | All led | All led | |
| Spare tire mount | On passenger side | On passenger side | |
| Tie downs | 4 d-rings and stake pockets | 4 d-rings and stake pockets | |
| Plug | 7 way round rv plug | 7 way round rv plug | |
| Warranty | Lifetime on welds, 6 years on axles, 2 years on tires | Lifetime on welds, 6 years on axles, 2 years on tires |
Additional Tilt Trailer Options

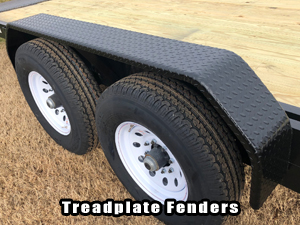

We can mix and match standard features such as put a 2 5/16" coupler on a 7k trailer, put tread plate fenders on a 7k trailer, etc along with these additional options.
Colors
We have several colors that you can choose from, some of them can be seen below. Ask us if you need a different color. Colors other then black are an additional cost.

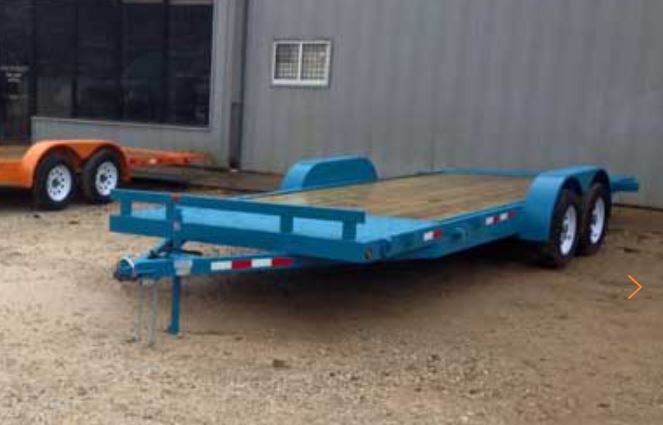

Blue

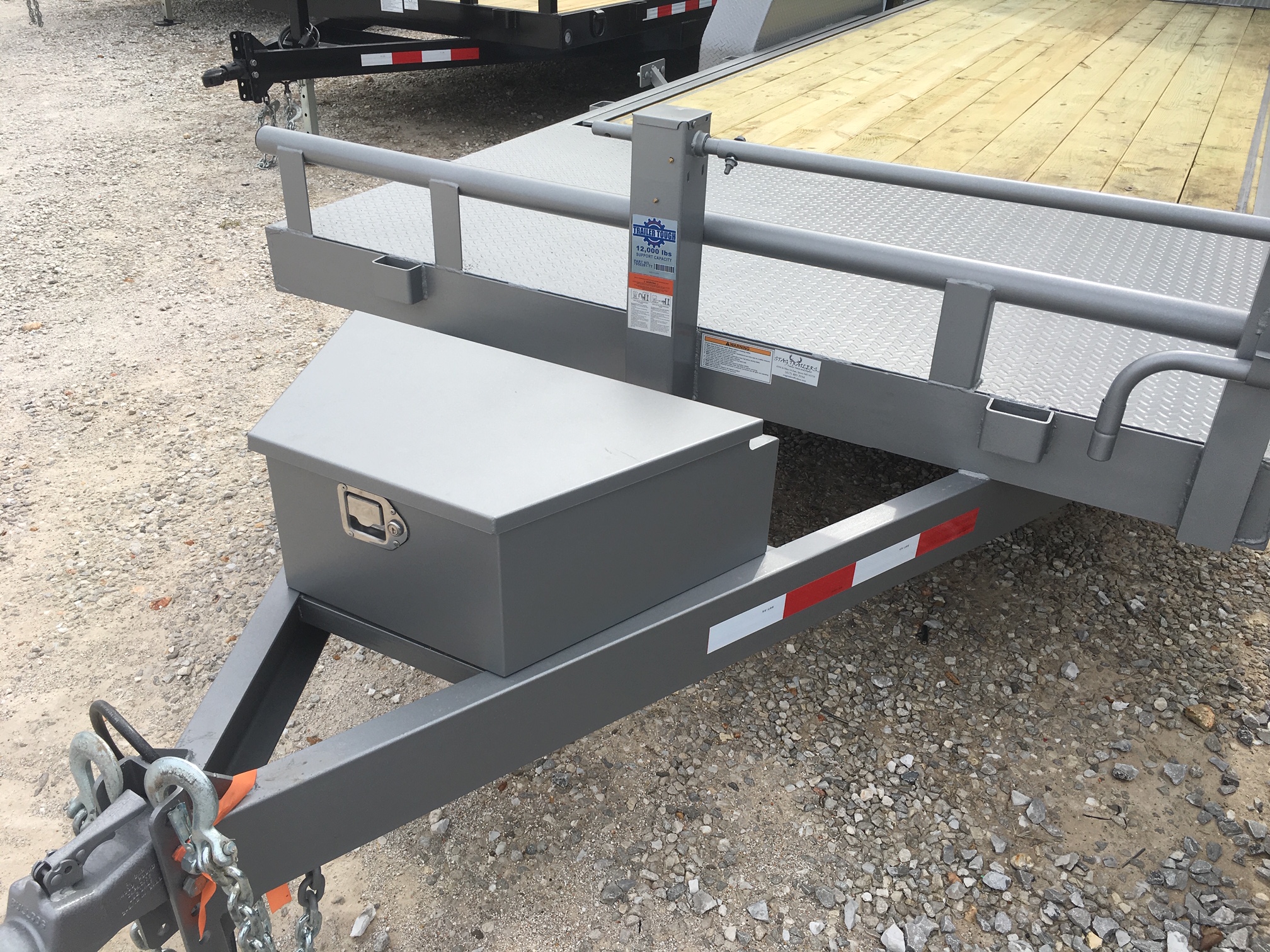

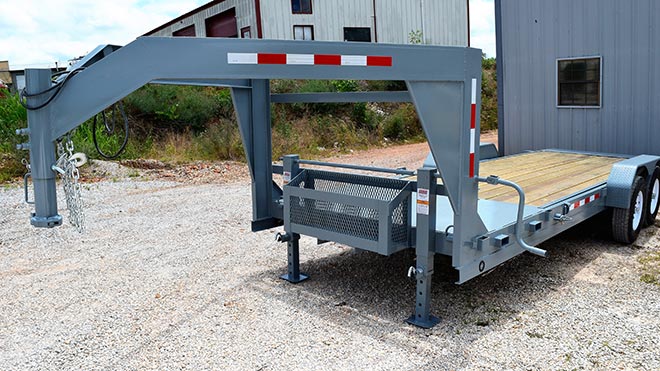

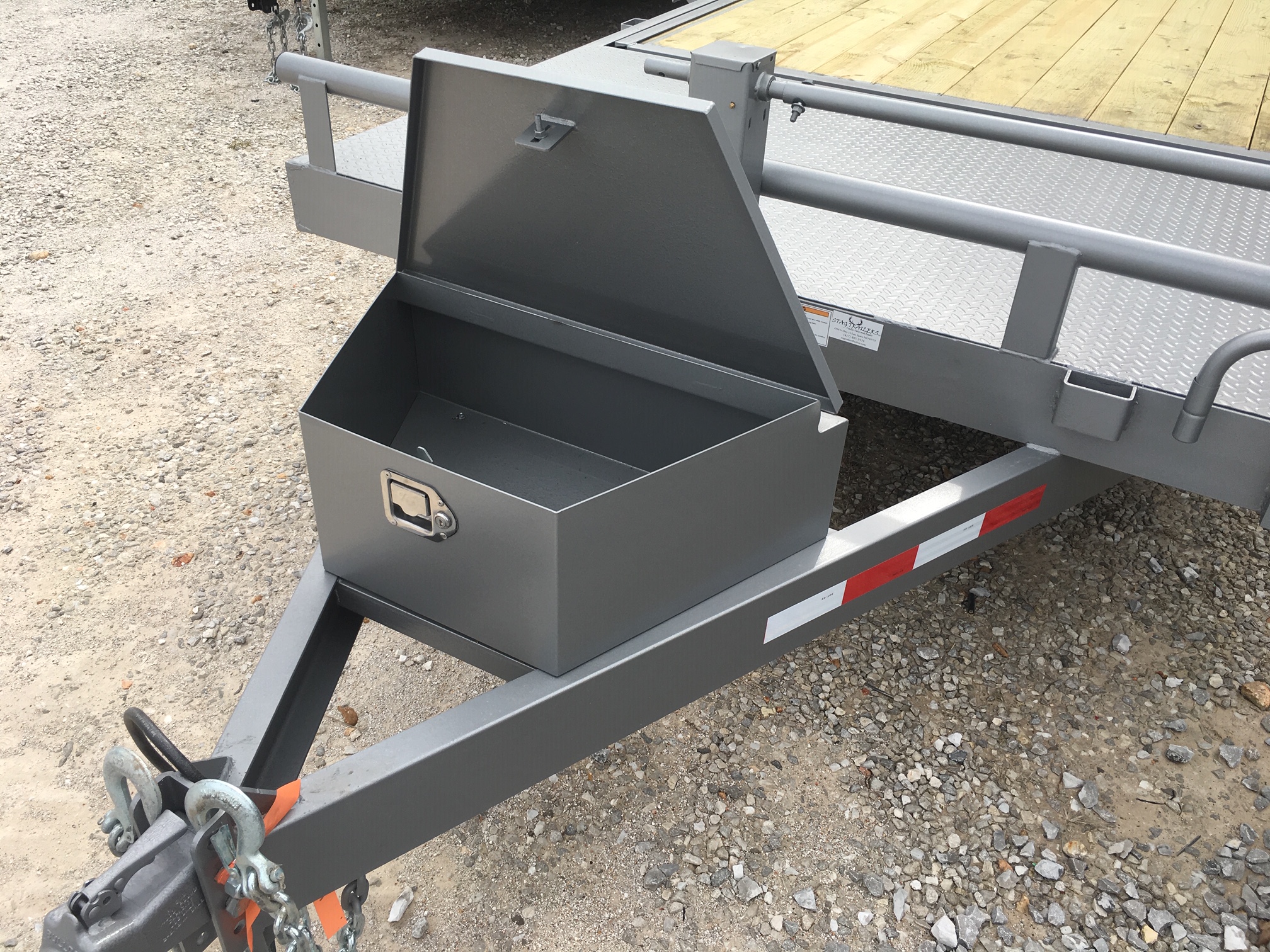

Gray

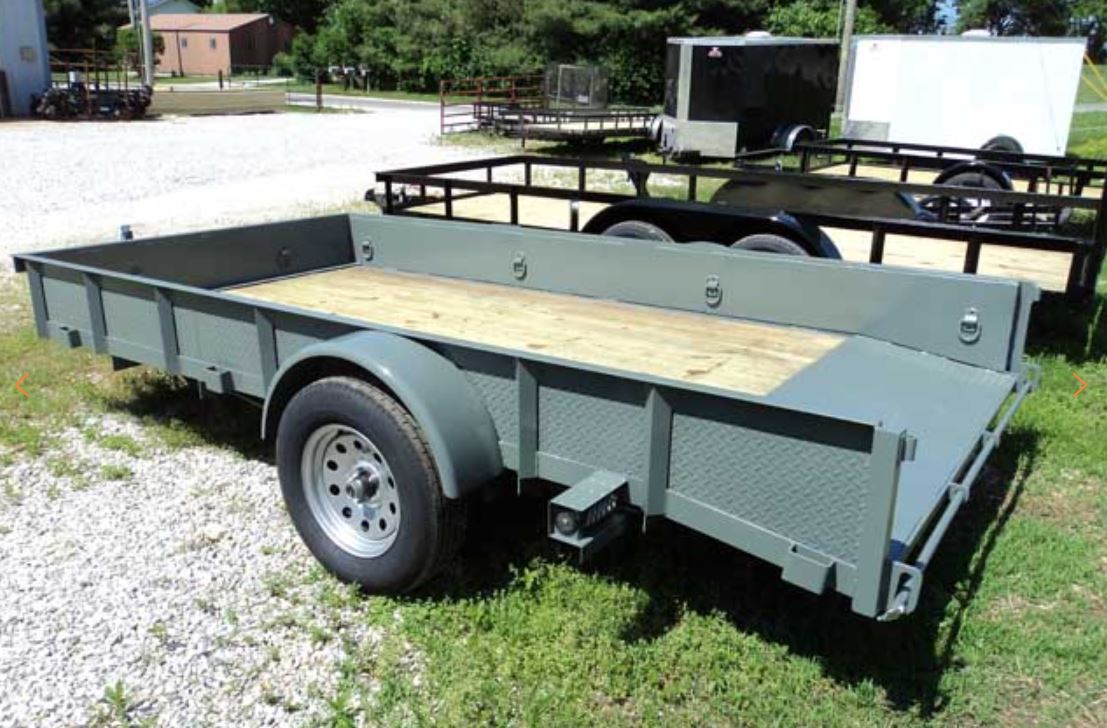

Army Green

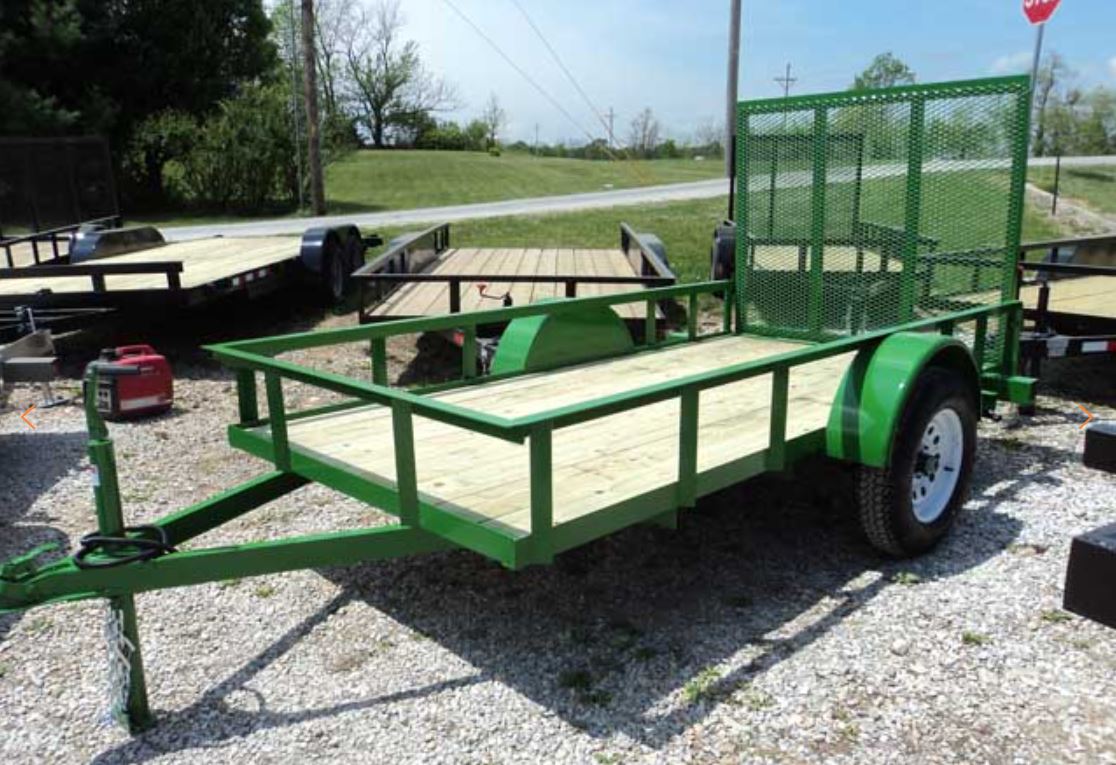

John Deere Green

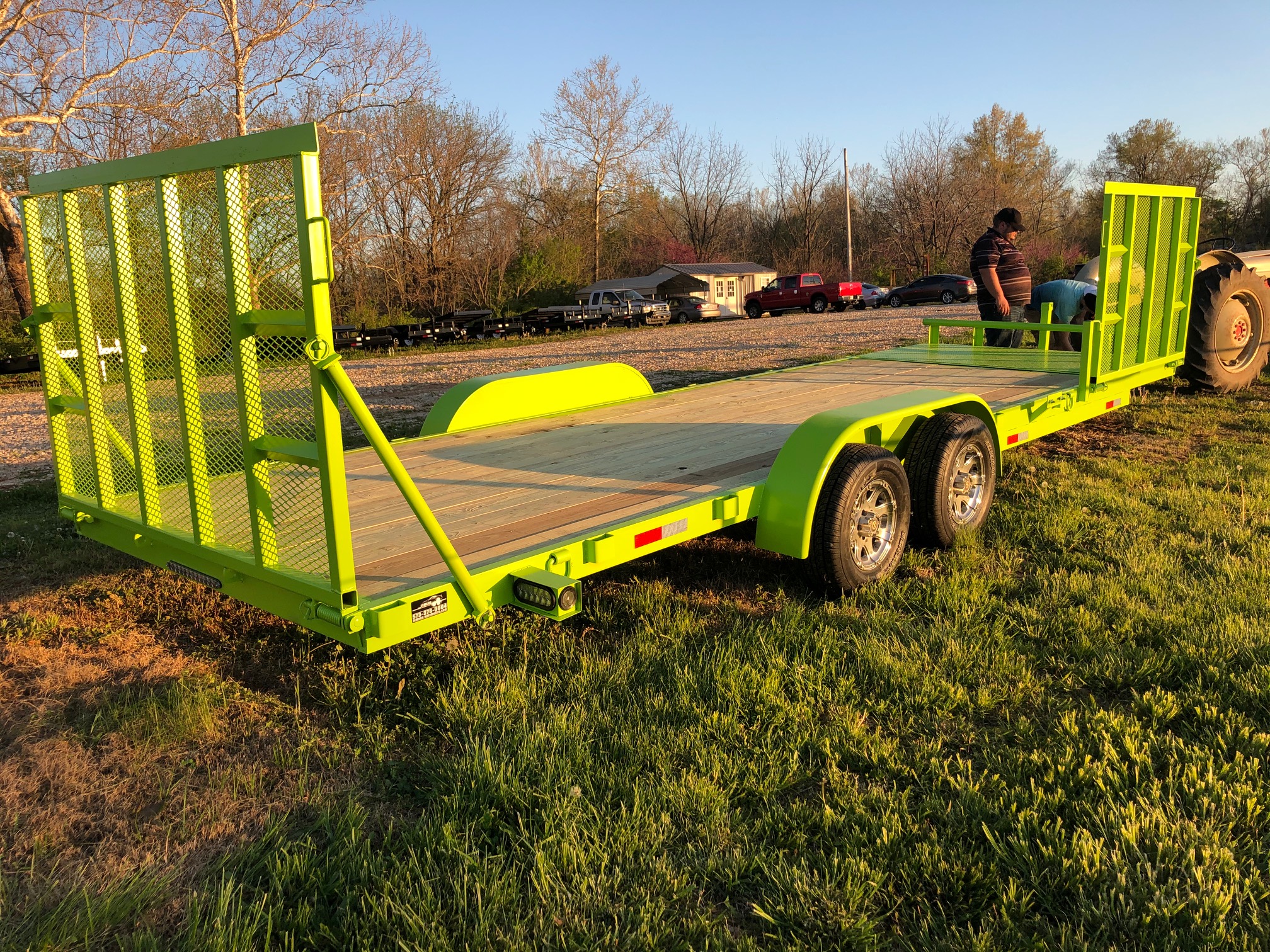

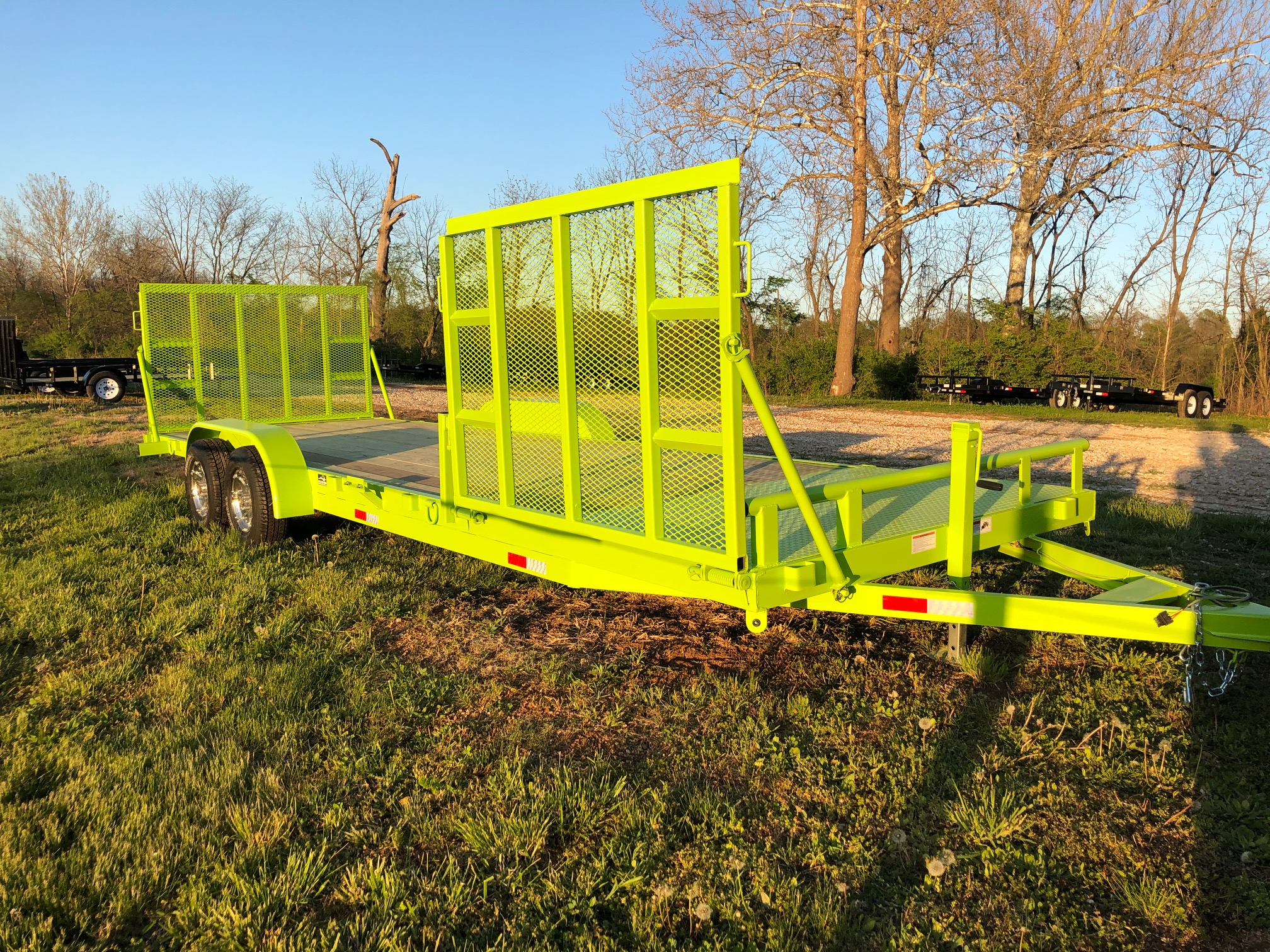

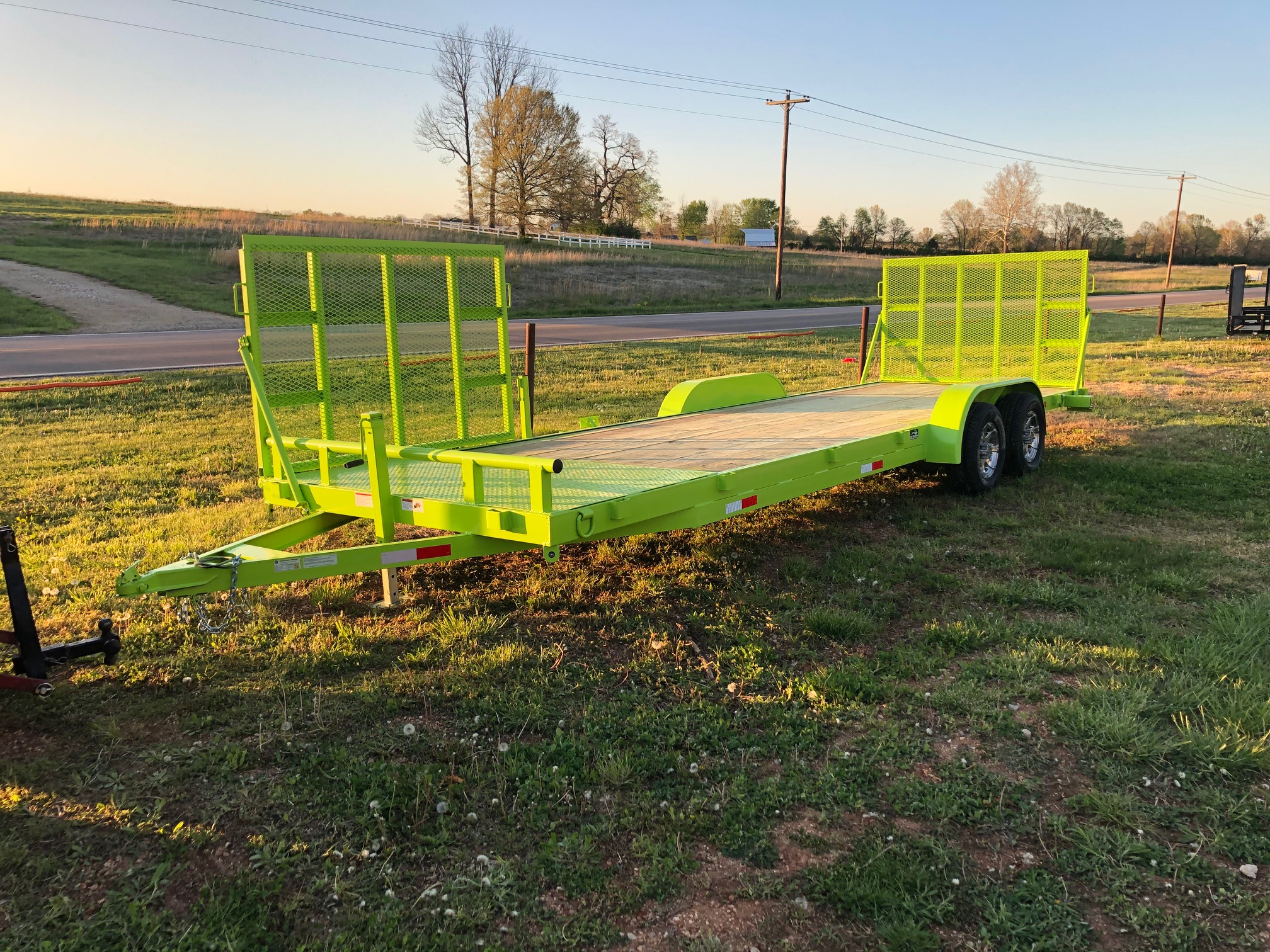

Lime Green

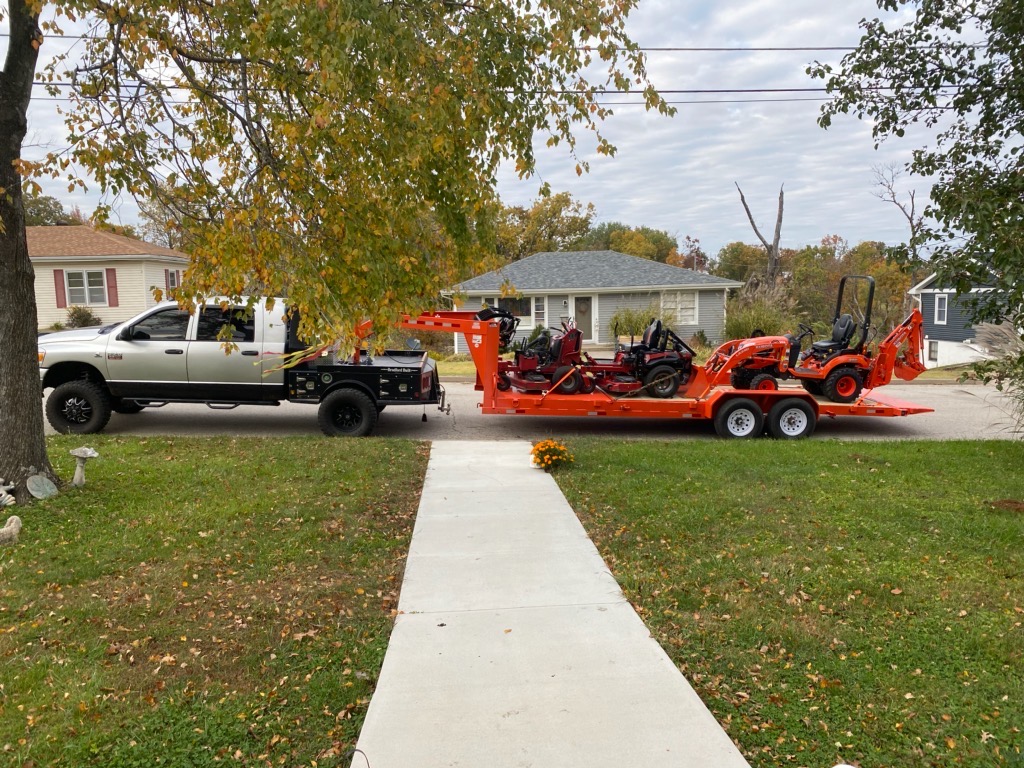

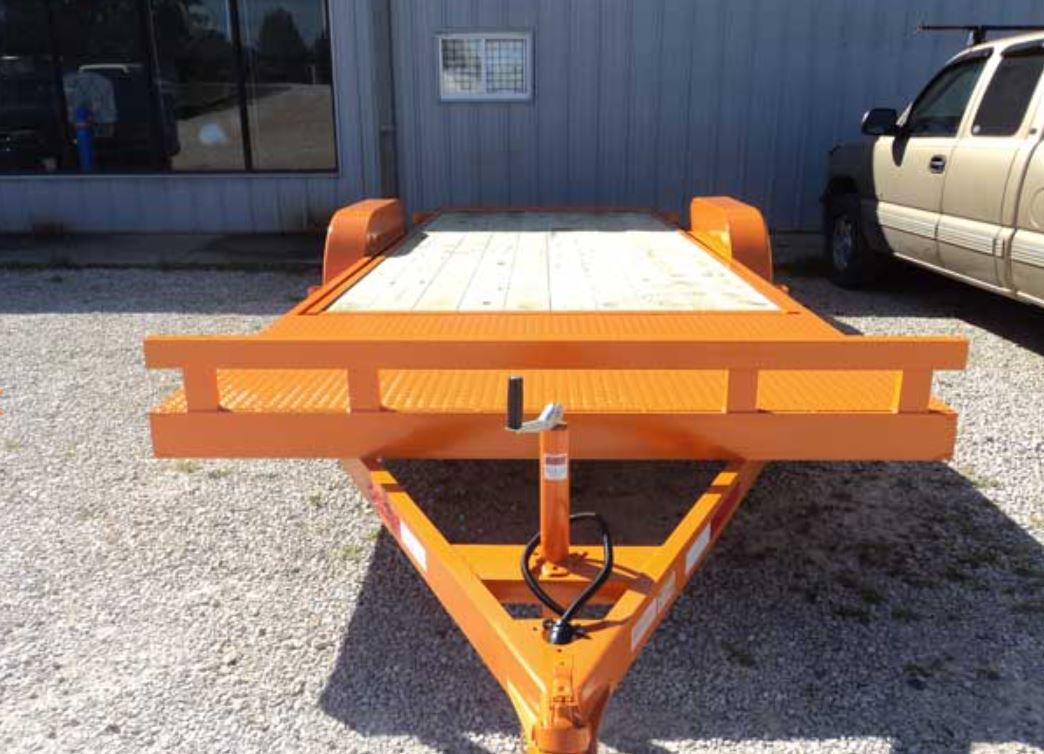

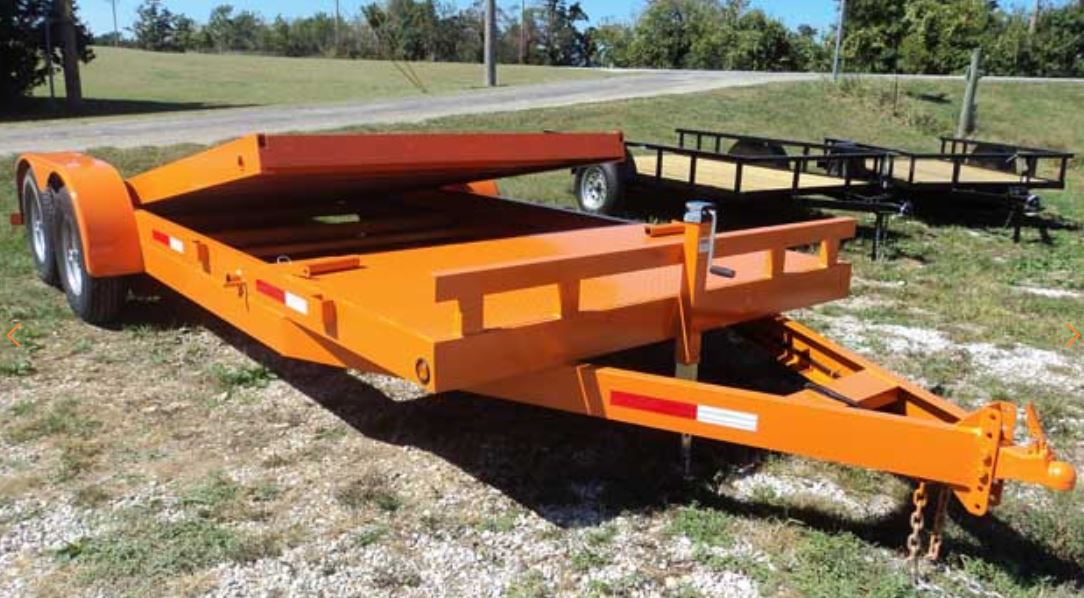

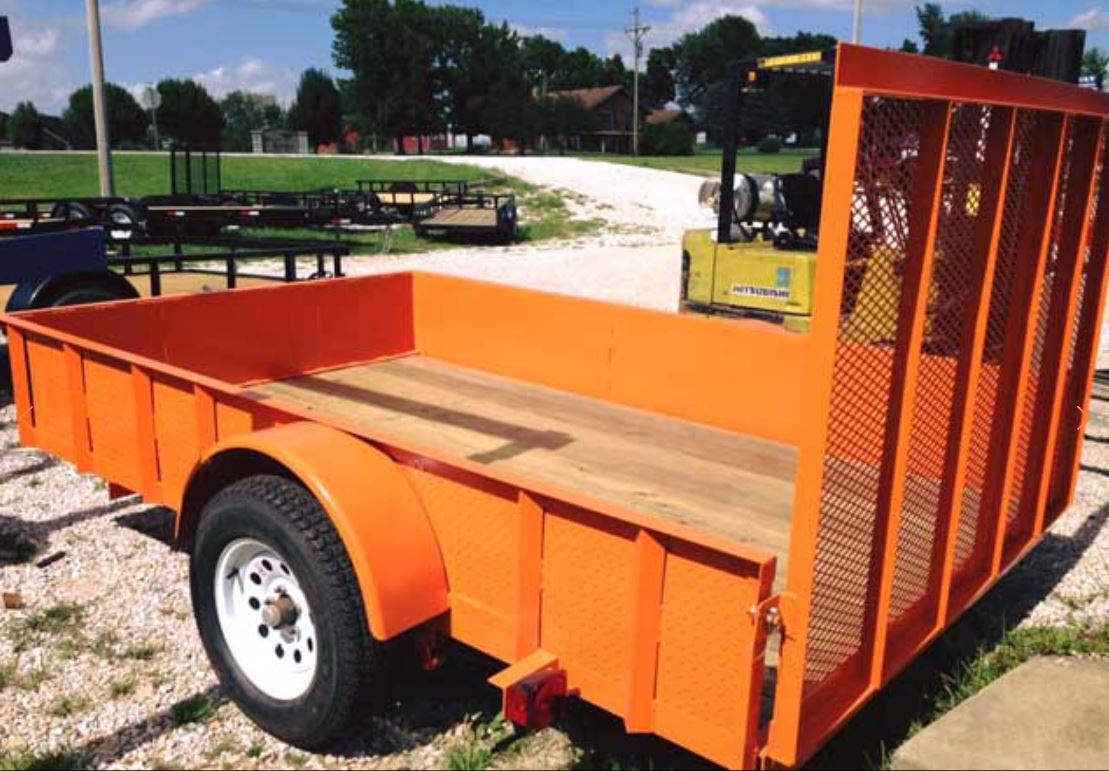

Orange

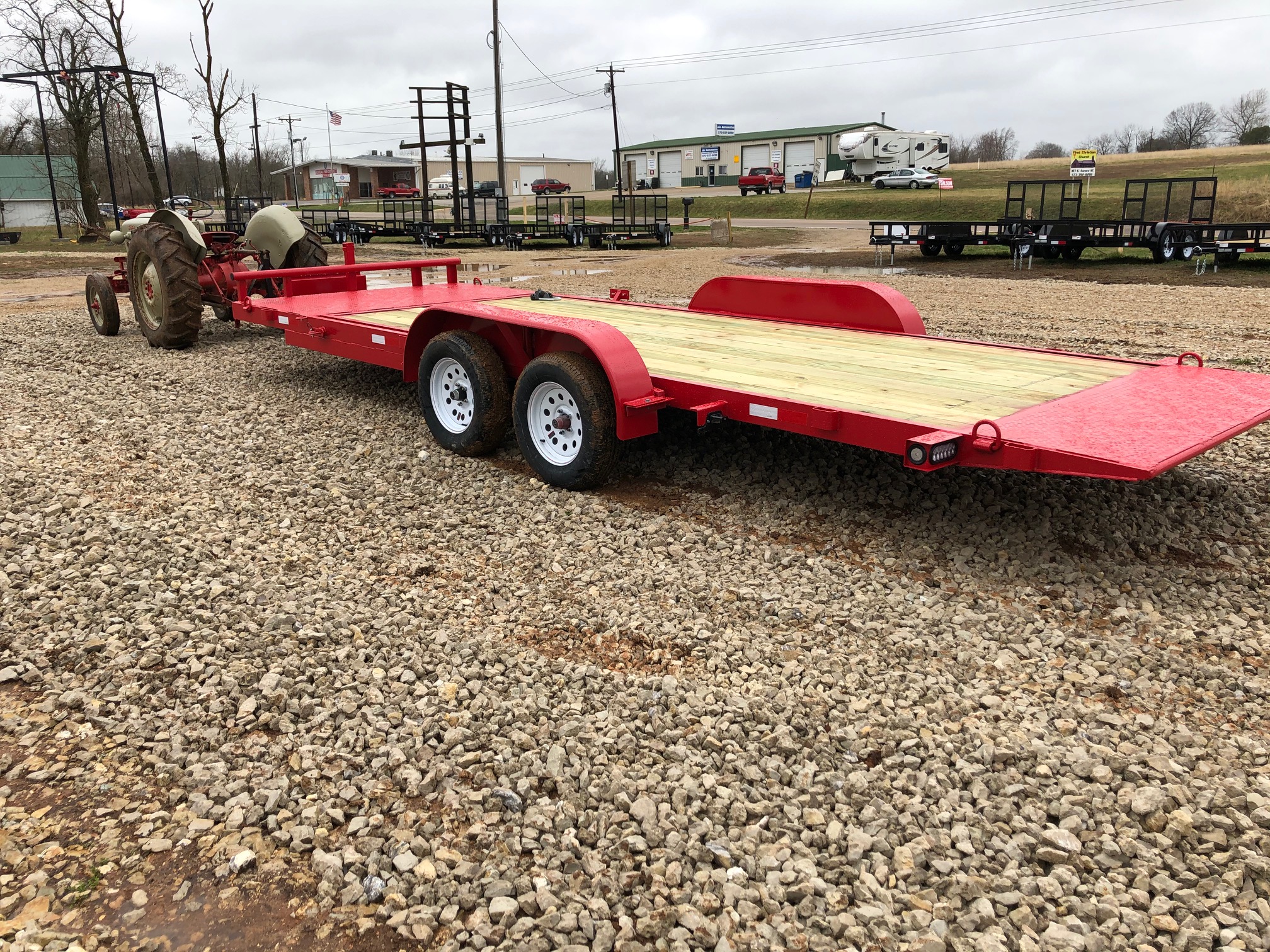

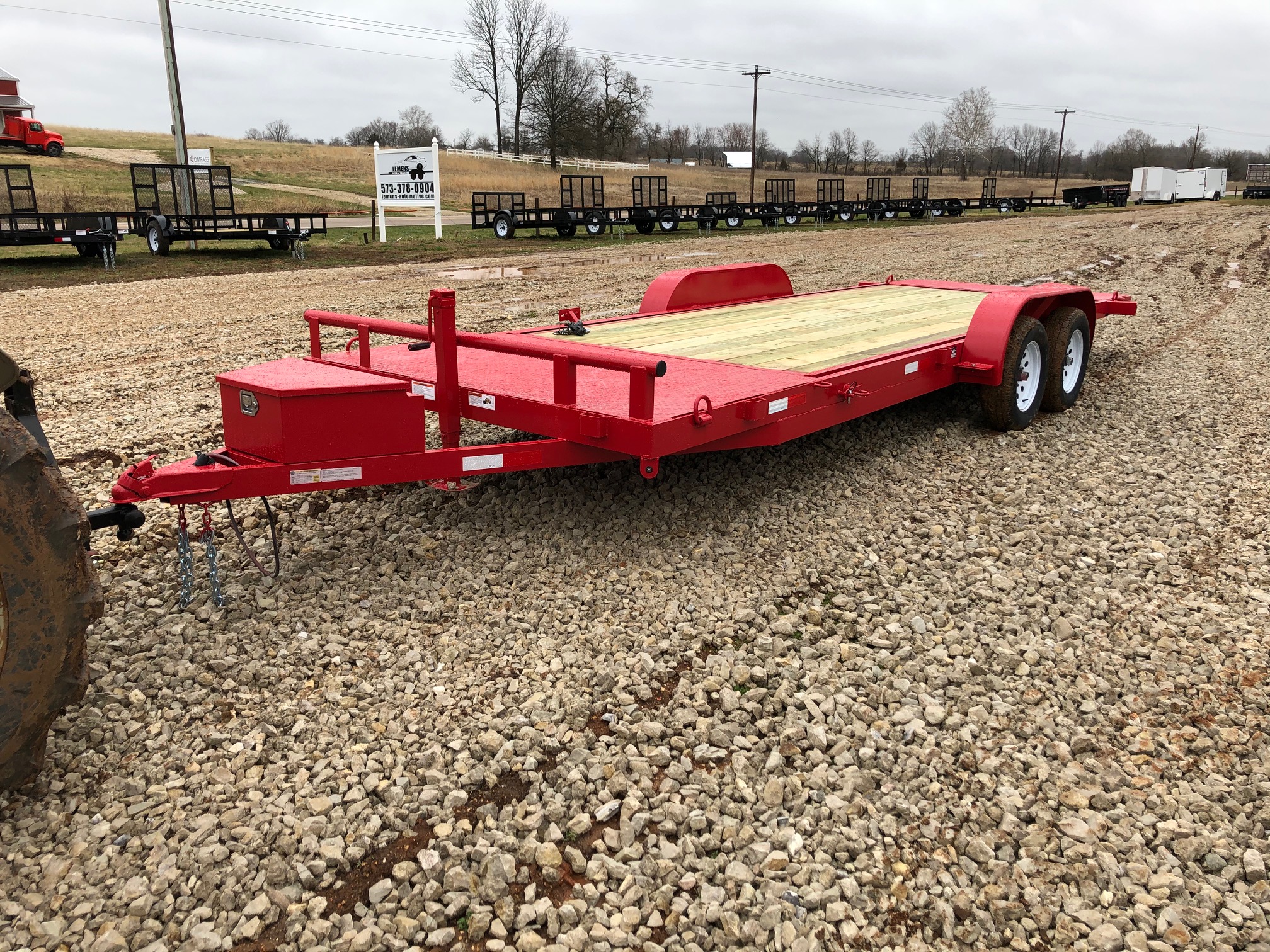

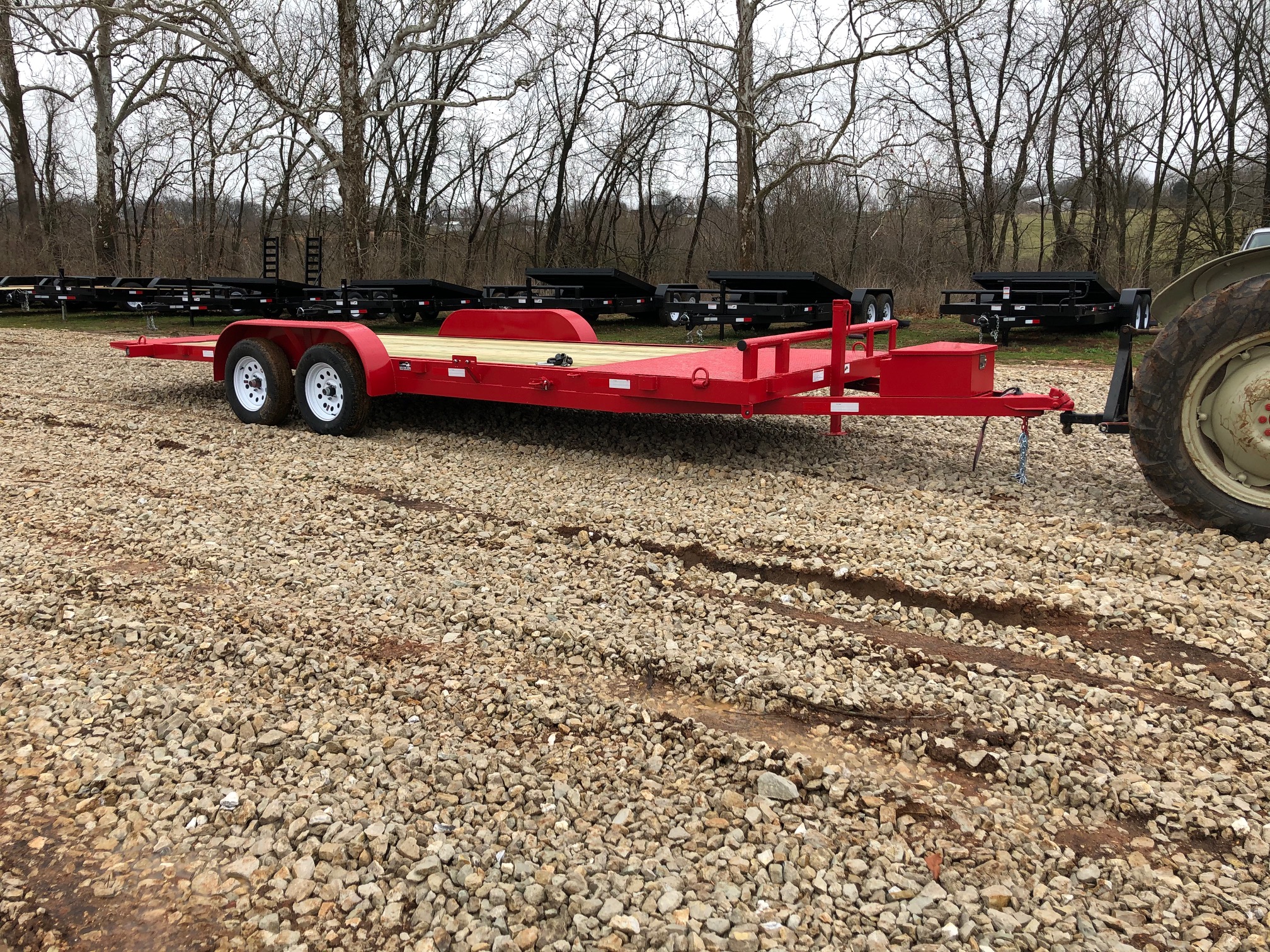

Red

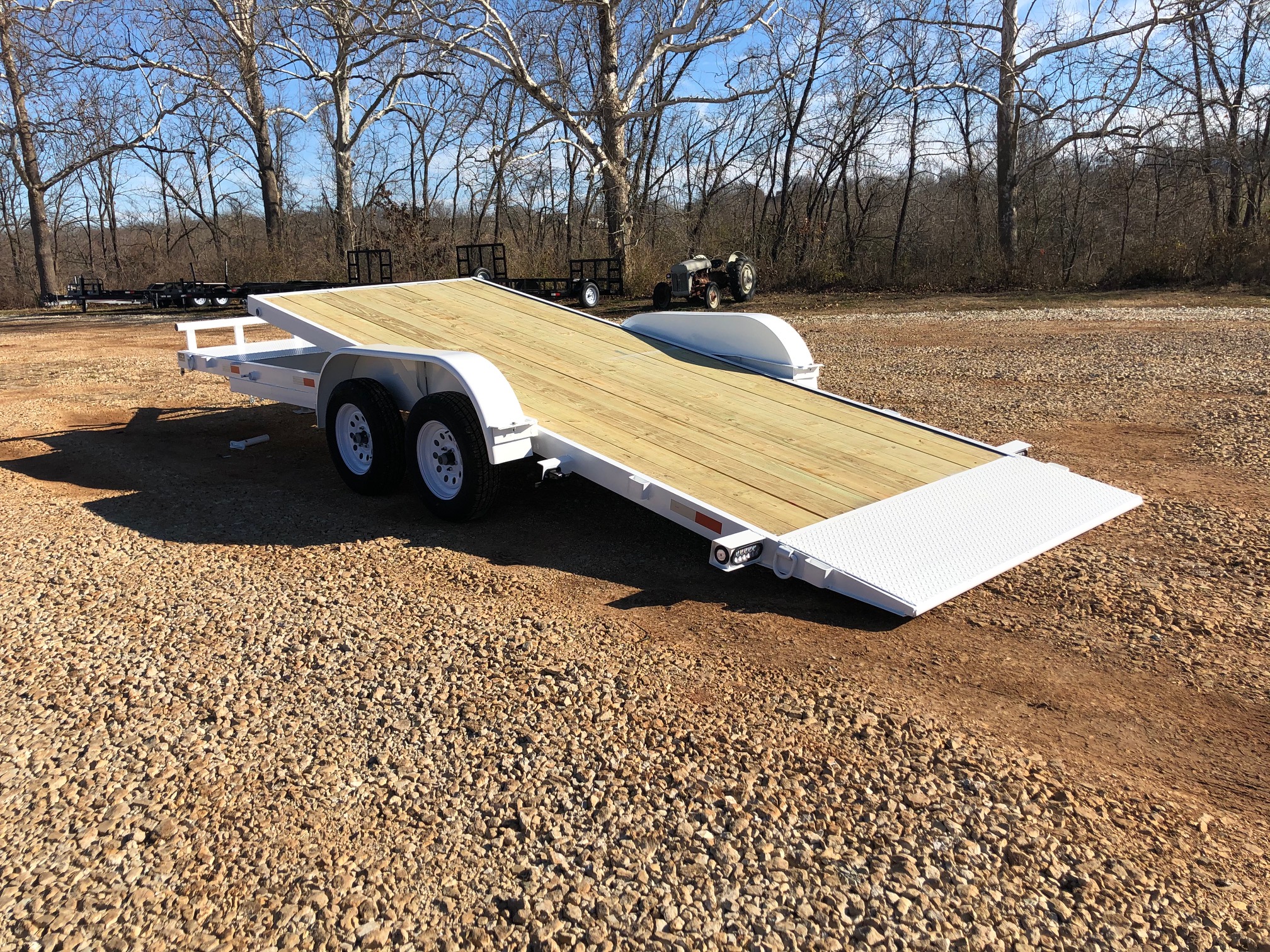

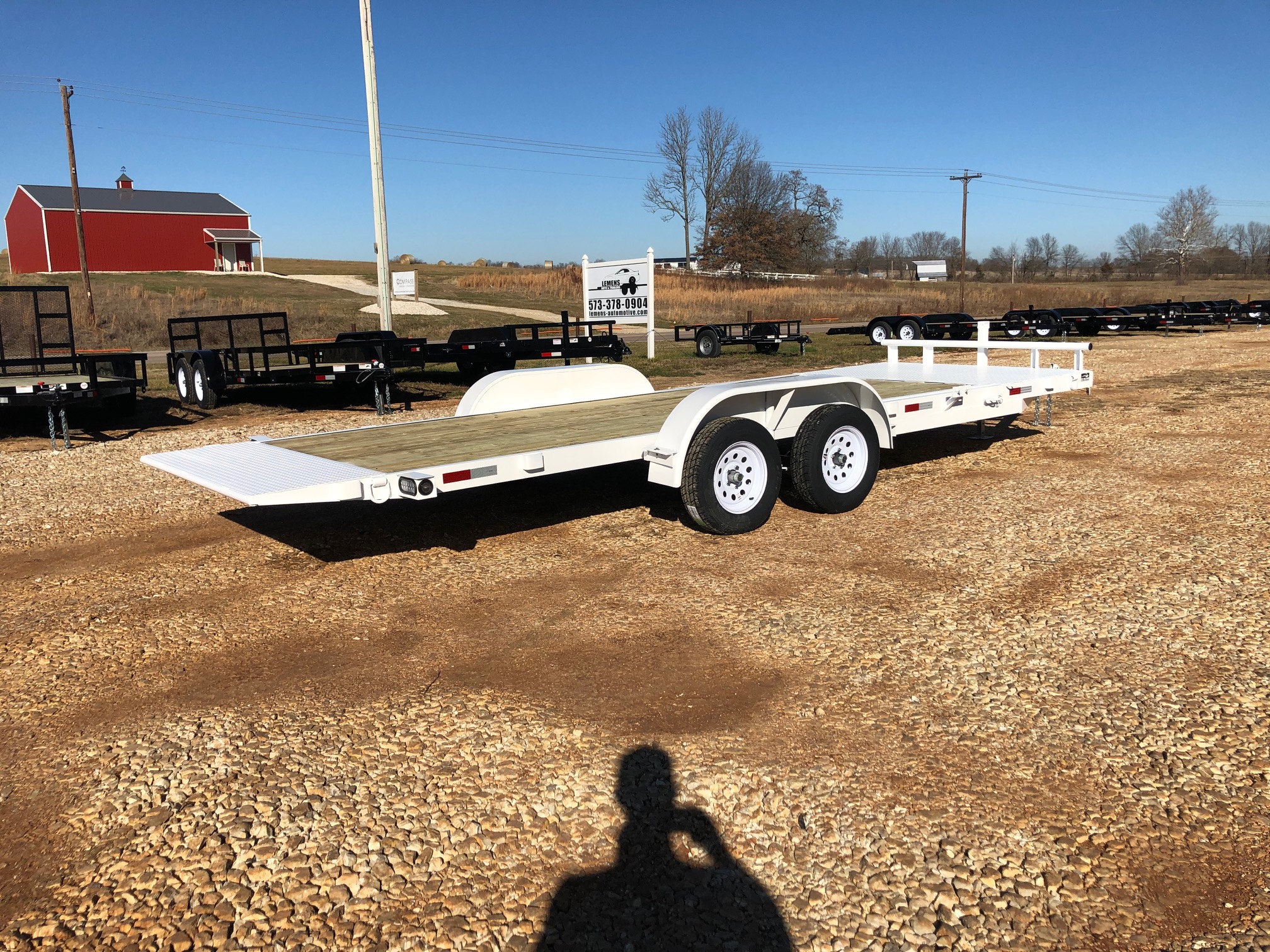

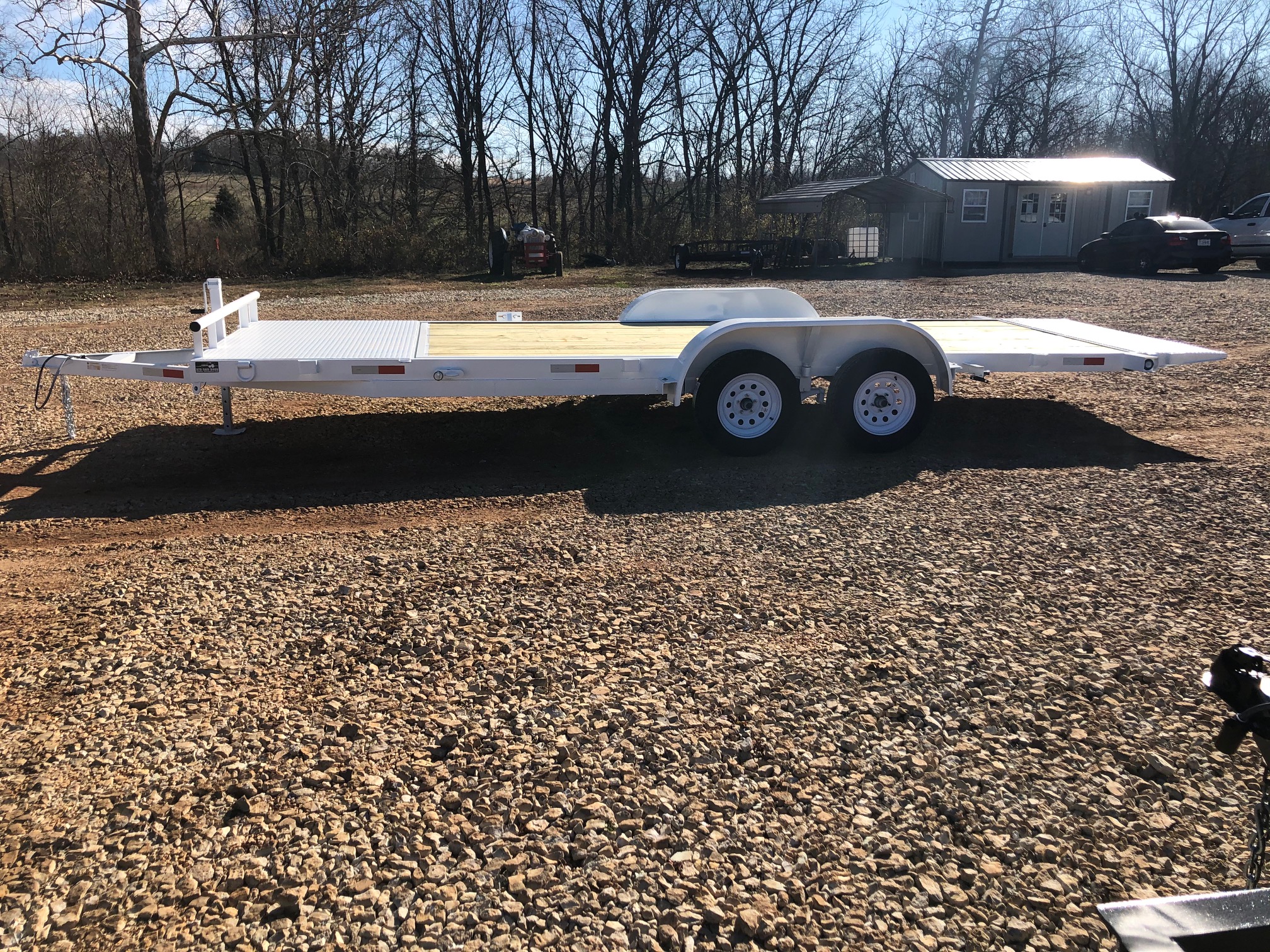

White

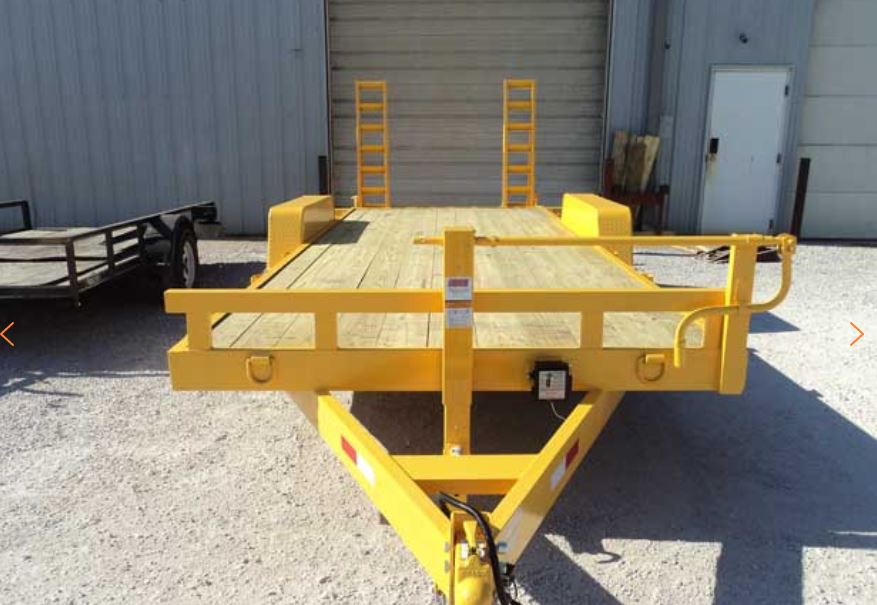

Yellow
