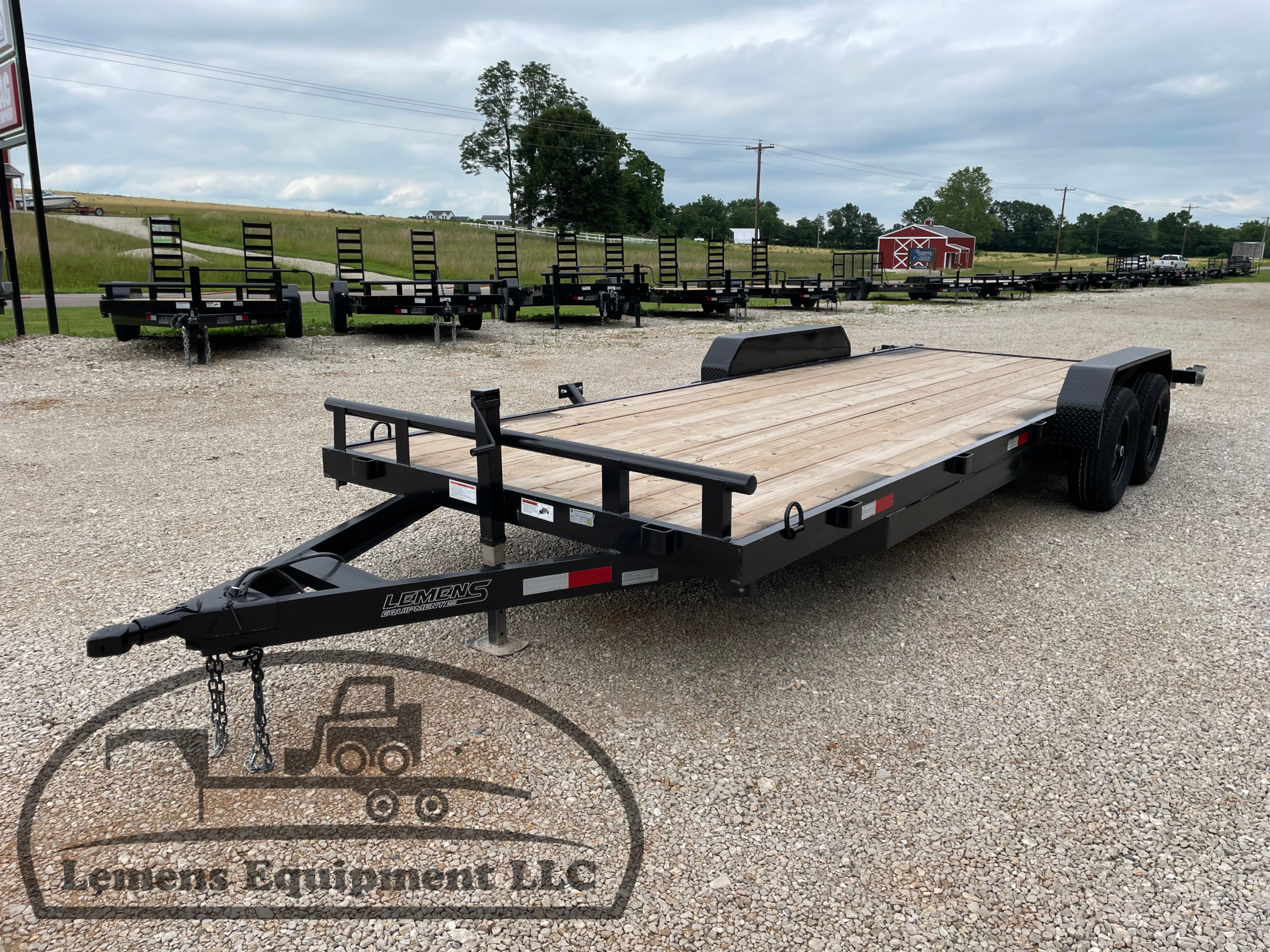

Standard Flatbed Trailer Features

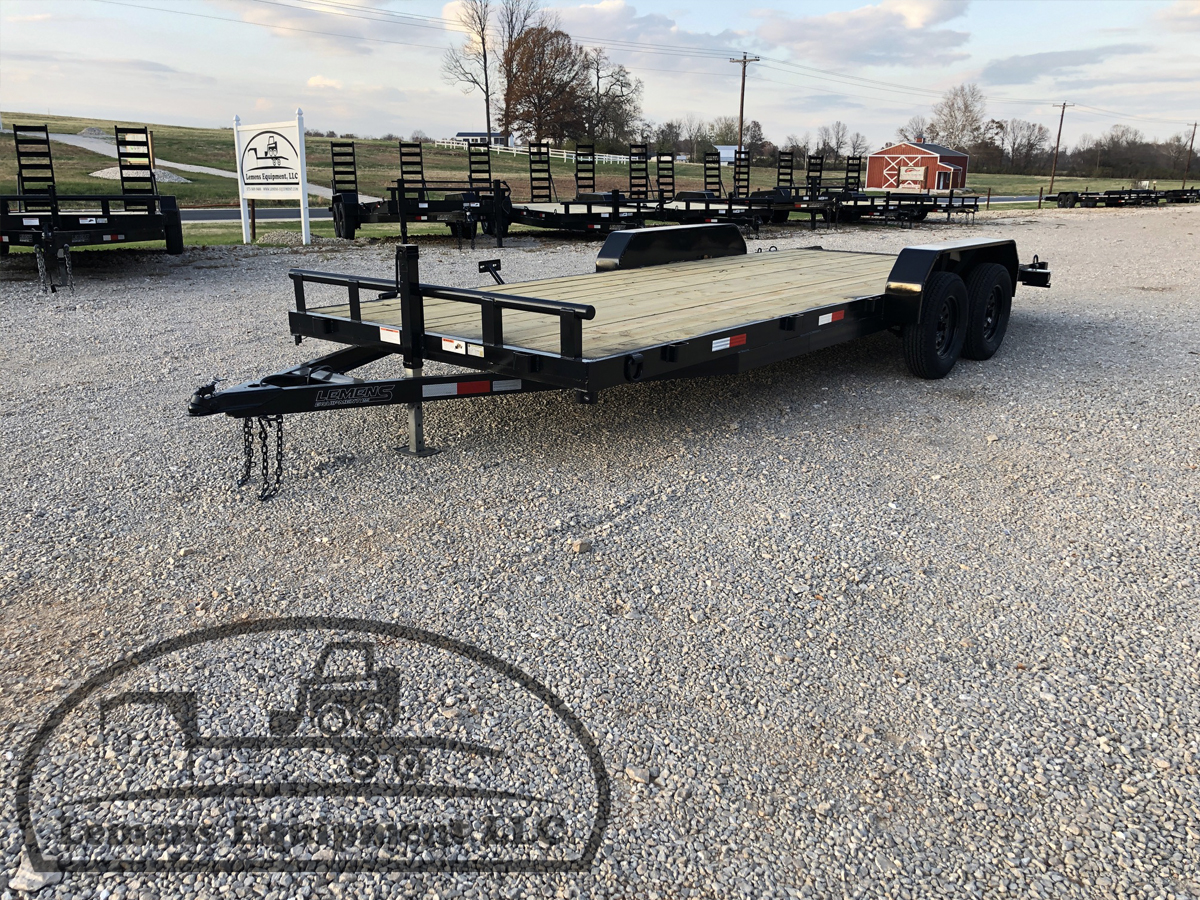

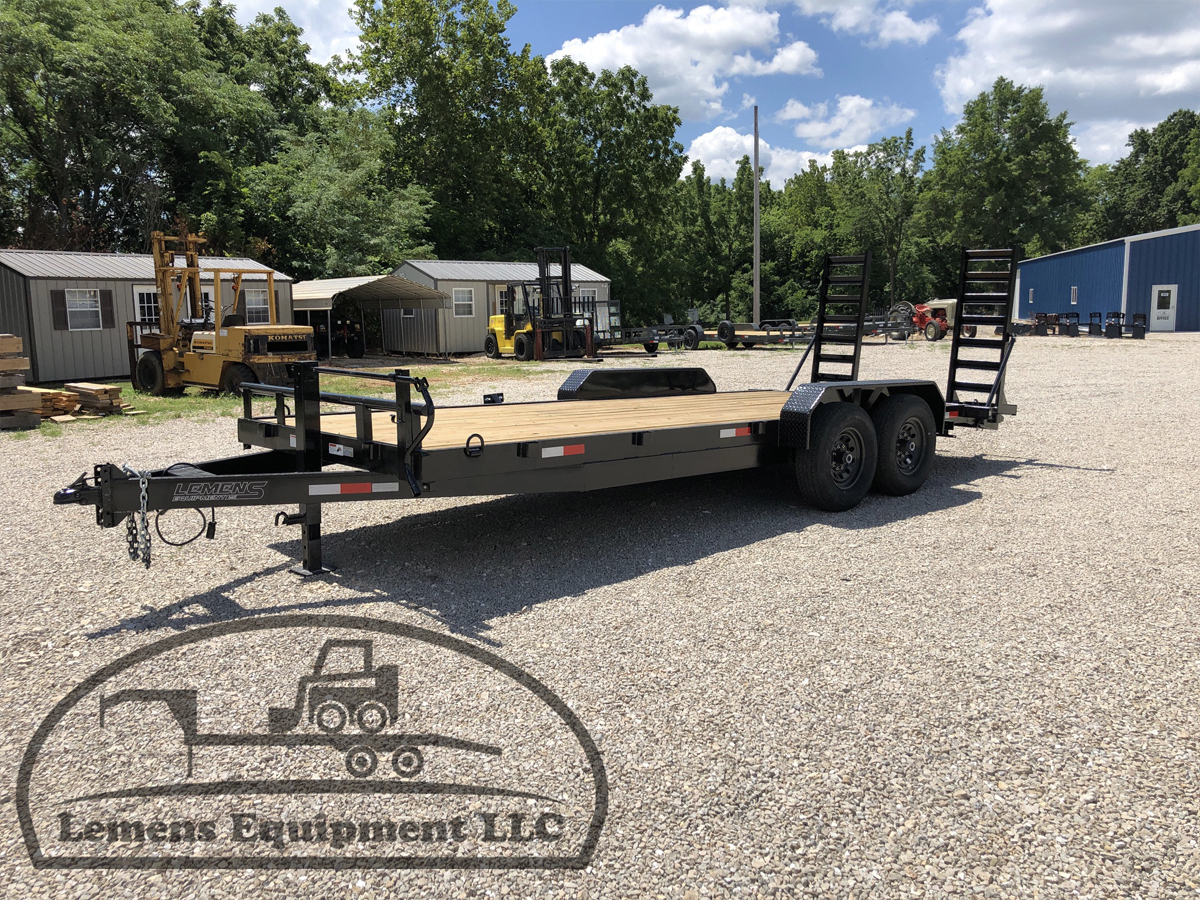

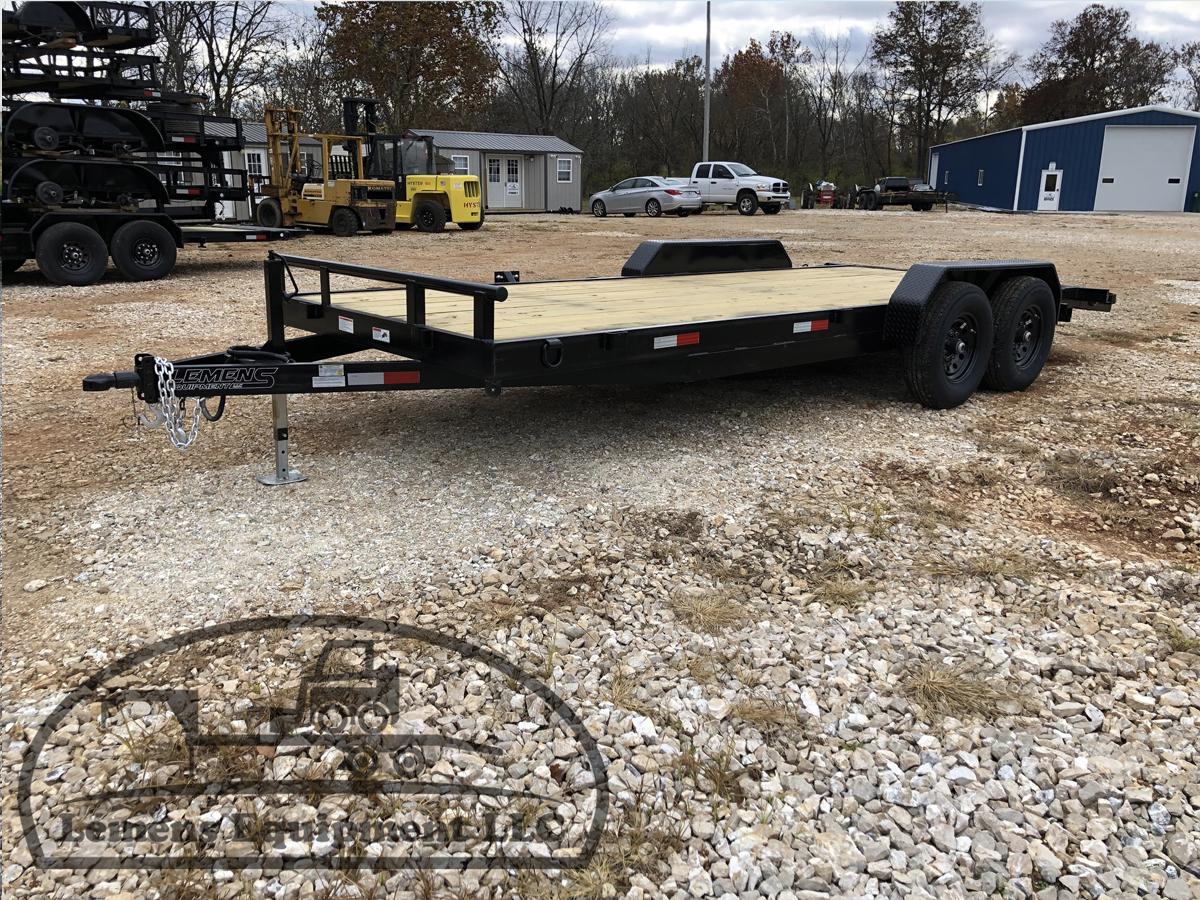

| 7K Trailer | 12K Trailer | 14K Trailer | |
 |
 |
 |
|
| Length | 14ft-24ft | 14ft-24ft | 14ft-24ft |
| Width | 82" between fenders | 82" between fenders | 82" between fenders |
| Frame | 5" 6.7# main frame | 6" 8.2# channel main frame | 6" 10.5# heavy channel main frame |
| Tongue | 4" 5.4# channel | 5" 6.7# channel | 6" 8.2# channel |
| Cross members | 2x3x3/16 angle cross members on 16" centers | 3" 4.10# channel cross members on 16" on centers | 3" 4.10# channel cross members on 16" on centers |
| Axles | 3500lb Easy Lube Axles (One brake axle) | 6000lb Easy Lube Axles (One brake axle) | 7000lb Easy Lube Axles (Two brake axles) |
| Tires | New 205/75 R15 6ply radial tires | New 235/80 R16 10ply radial tires | New 235/80 R16 10ply radial tires |
| Wheels | 15" - 5 on 4.5 bolt pattern | 16" - 8 on 6.5 bolt pattern | 16" - 8 on 6.5 bolt pattern |
| Coupler | 2" 8k coupler | 2 5/16" adjustable height coupler | 2 5/16" adjustable height coupler |
| Jack | 8k drop leg jack | 8k drop leg jack | 12k spring loaded drop leg jack with side crank |
| Fenders | 11ga tread plate with supports | 11ga tread plate with supports | 11ga tread plate with supports |
| Lumber | #1 treated 2x8 lumber(screwed down) | #1 treated 2x8 lumber(screwed down) | #1 treated 2x8 lumber(screwed down) |
| Front rail | Tube | Tube | Tube |
| Lights | All led | All led | All led |

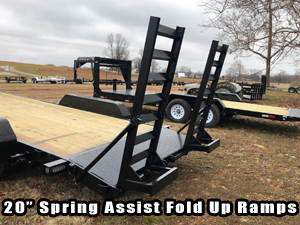

| Ramps | Angle ramps with storage underneathe, or spring assisted fold up ramps with supports | Channel ramps with storage underneathe, or spring assisted fold up ramps with supports | Channel ramps with storage underneathe, or spring assisted fold up ramps with supports |
| Spare tire mount | On passenger side | On passenger side | On passenger side |
| Tie downs | 4 d-rings and stake pockets | 4 d-rings and stake pockets | 4 d-rings and stake pockets |
| Plug | 7 way round rv plug | 7 way round rv plug | 7 way round rv plug |
| Warranty | Lifetime on welds, 6 years on axles, 2 years on tires | Lifetime on welds, 6 years on axles, 2 years on tires | Lifetime on welds, 6 years on axles, 2 years on tires |
 |
|||

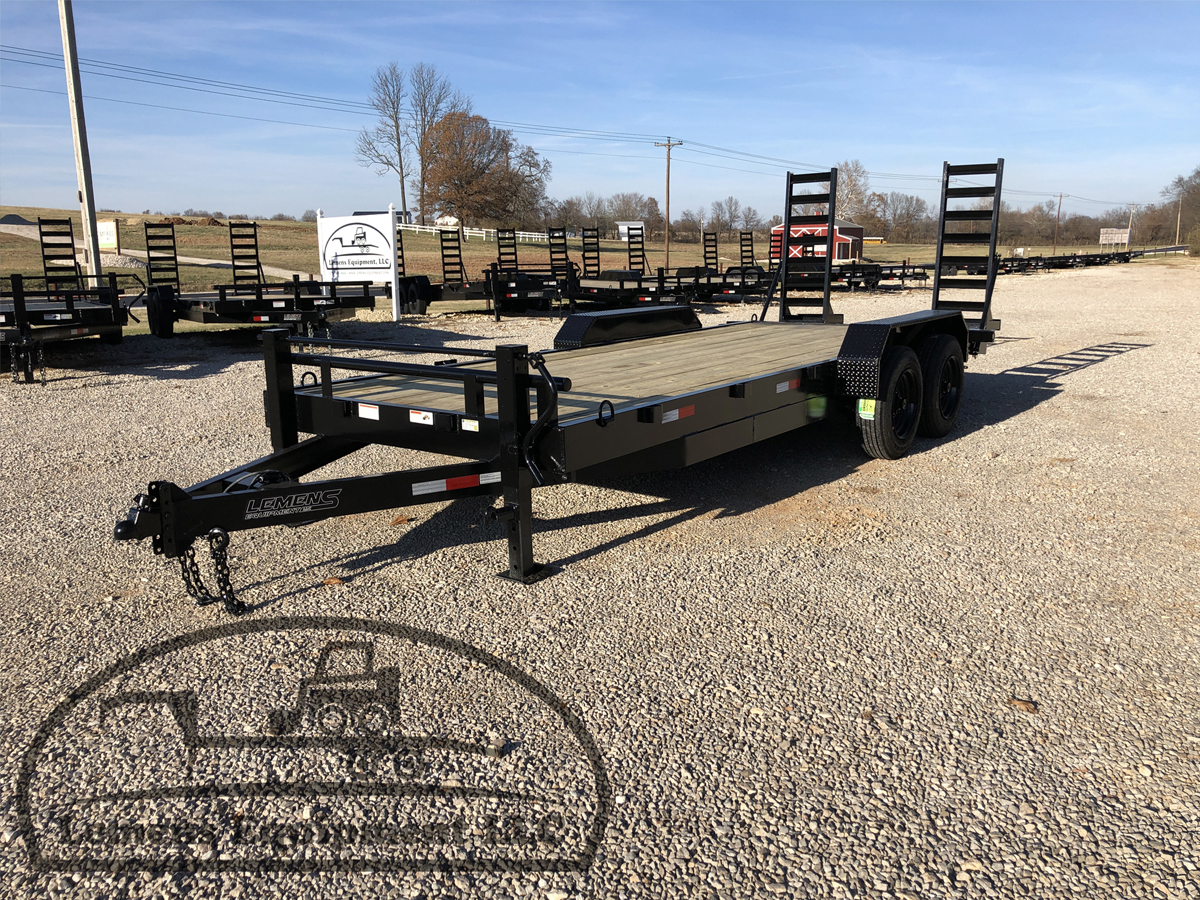

| 16K Trailer | |||
| Length | 14ft-24ft | ||
| Width | 84" between fenders | ||
| Frame | 8" main frame | ||
| Tongue | 6" 10.5# heavy channel | ||
| Cross members | 3" 4.10# channel cross members on 16" on centers | ||
| Axles | 8000lb Easy Lube Axles (Two brake axles) | ||
| Tires | New 215/75R17.5 16ply radial tires | ||
| Wheels | 17.5" - 8 hole wheels | ||
| Coupler | 2 5/16" adjustable height coupler | ||
| Jack | Tandem 12k spring loaded drop leg jacks with side crank | ||
| Fenders | 11ga tread plate with supports | ||
| Lumber | #1 treated 2x8 lumber(screwed down) | ||
| Front rail | Tube | ||
| Lights | All led | ||
| Ramps | Channel ramps with storage underneathe, or spring assisted fold up ramps with supports | ||
| Spare tire mount | On passenger side | ||
| Tie downs | 4 d-rings and stake pockets | ||
| Plug | 7 way round rv plug | ||
| Warranty | Lifetime on welds, 6 years on axles, 2 years on tires |

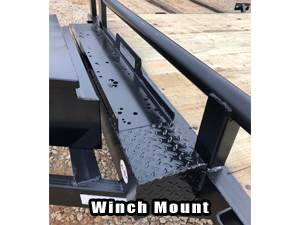

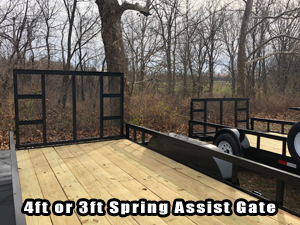

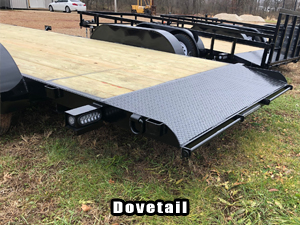

Additional Flatbed Trailer Options
We can mix and match standard features such as put a 2 5/16" coupler on a 7k trailer, put tread plate fenders on a 7k trailer, etc along with these additional options.
Colors
We have several colors that you can choose from, some of them can be seen below. Ask us if you need a different color. Colors other then black are an additional cost.
Blue
Gray
Army Green
John Deere Green
Lime Green
Orange
Red
White
Yellow
