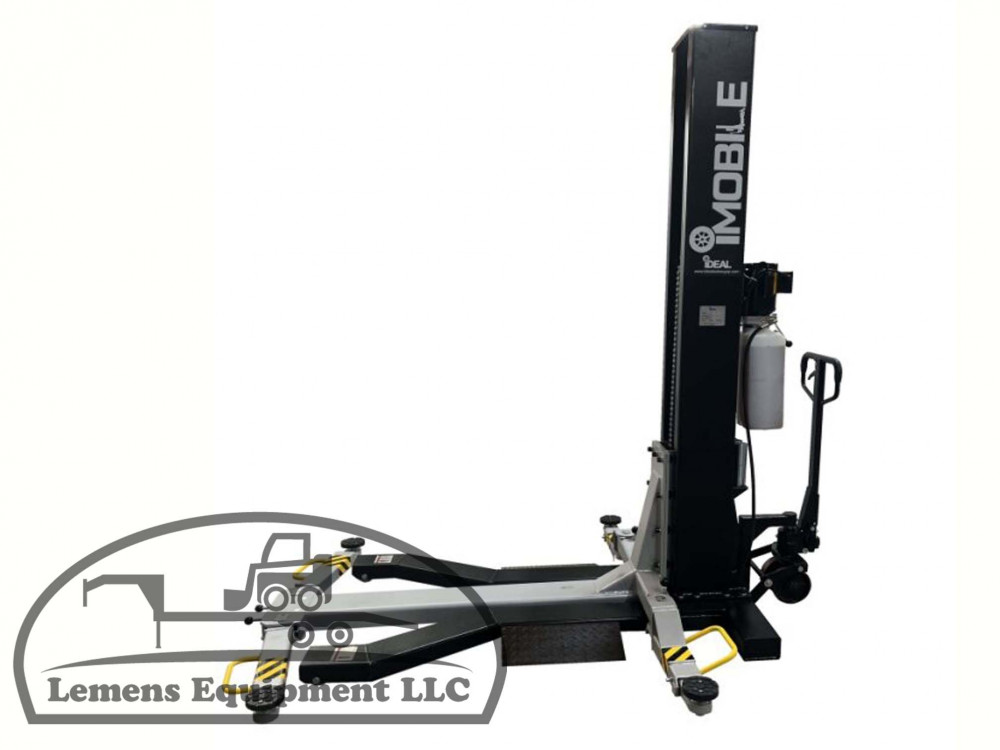

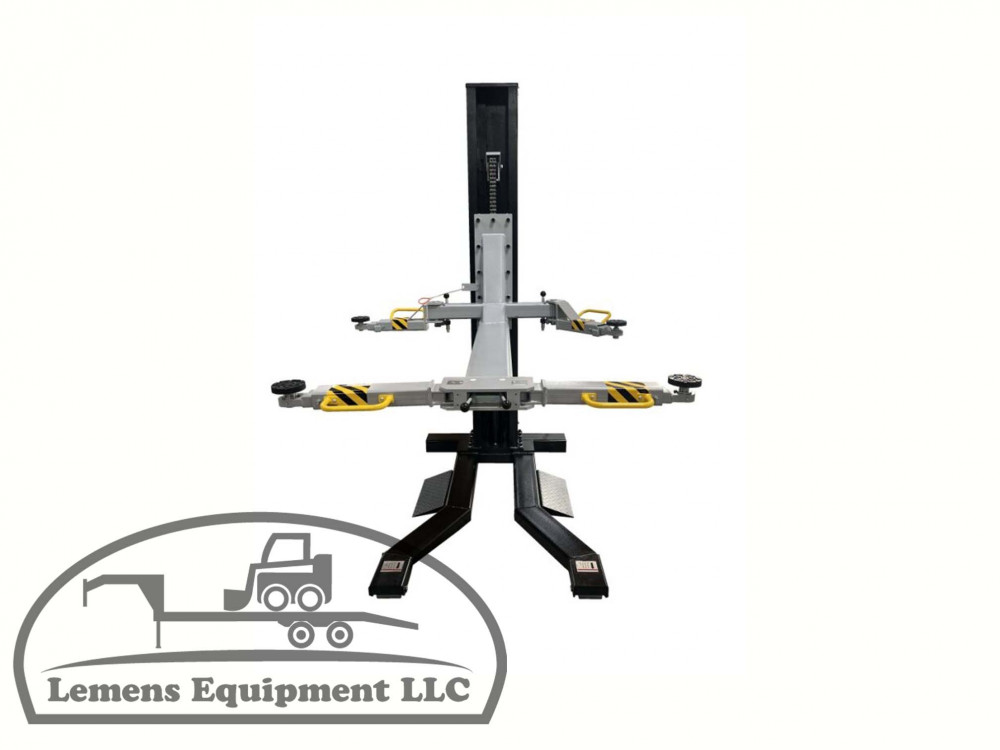

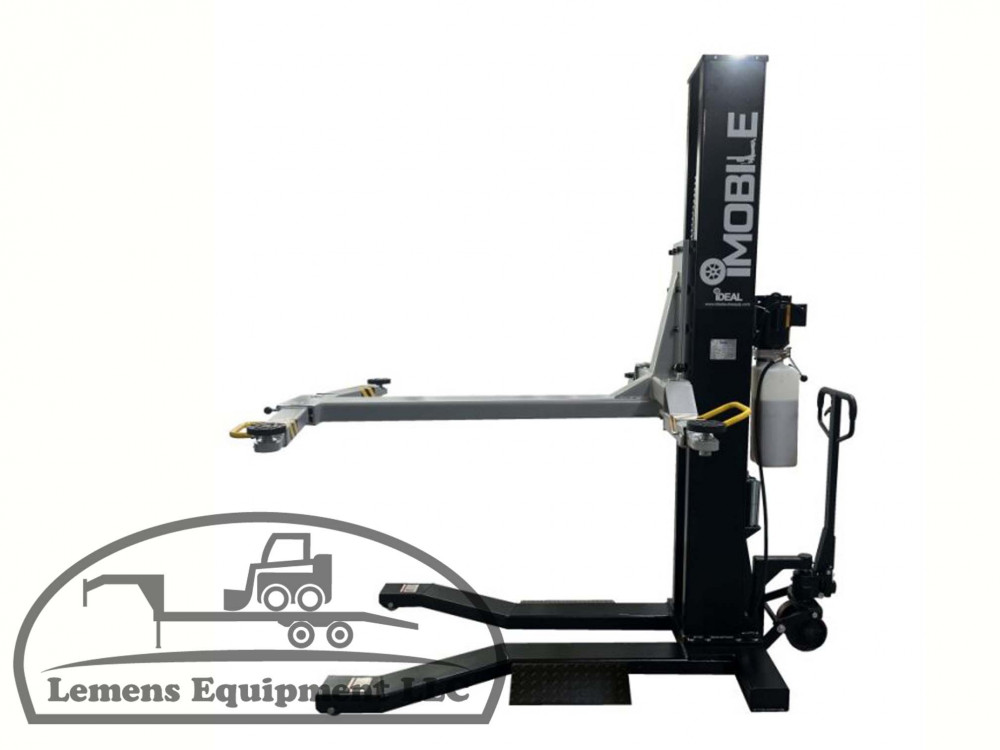

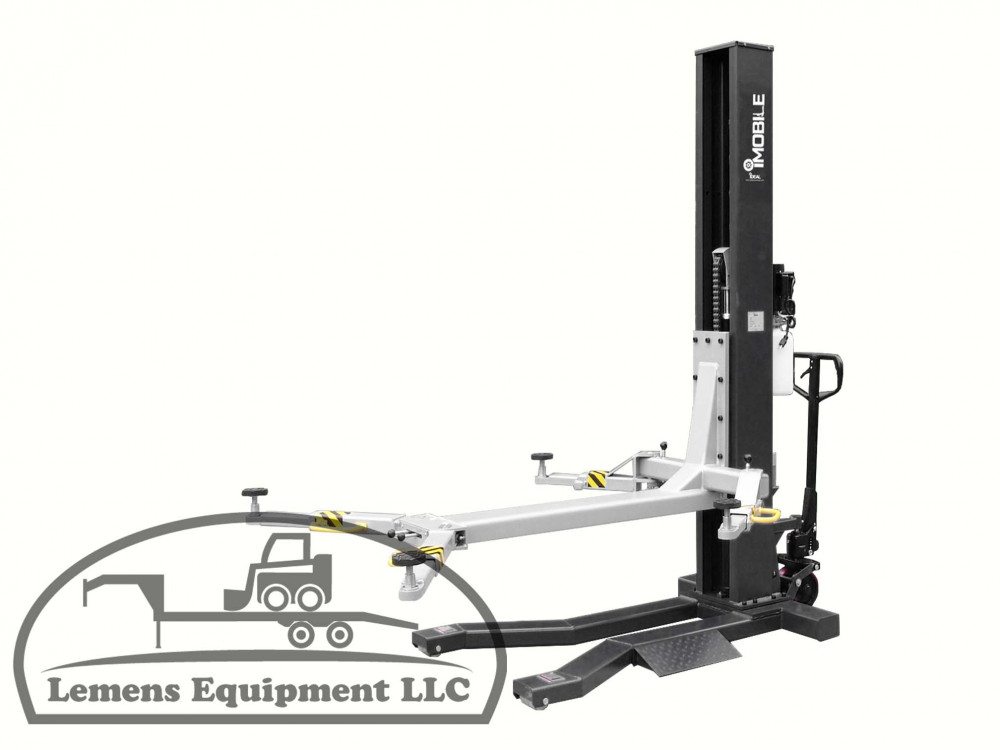

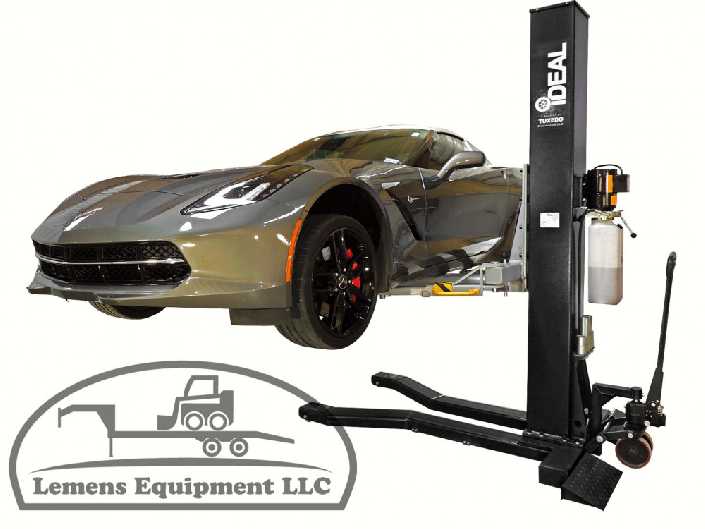

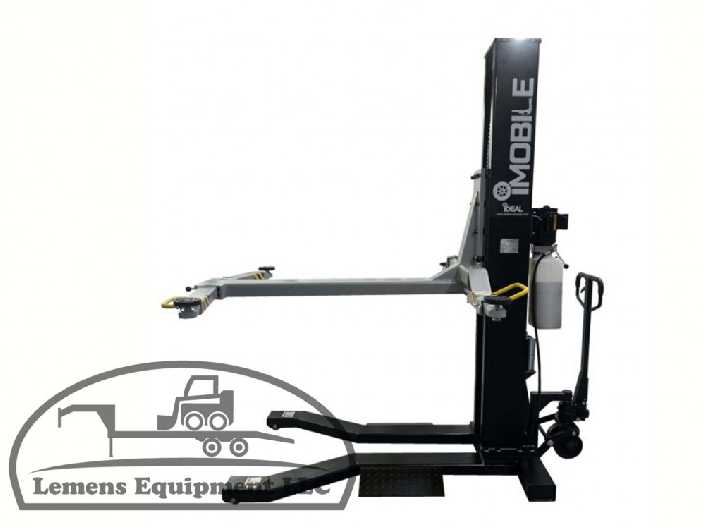

The iMOBILE MSC-6KLP 6,000 lb. Low Profile Mobile Single Column Lift is the perfect lift for limited space and situations where lift portability is more important than a floor mounted two post lift. The low profile design and drive-over ramps make ‘drive-over’ vehicle loading possible, while the pallet jack feature also allows the lift to be positioned under the vehicle for loading.

With a lifting height of 72" the iMOBILE MSC-6KLP’s design allows access to the underside of most vehicles making it ideal for pre-service inspections or maintenance, while also providing outer vehicle access around most vehicles for wheel service repairs. Due to the unique design and portability feature, the iMOBILE MSC-6KLP is the perfect solution for a homeowner with limited space or a shop looking to improve work flow or gain additional revenue from previously unusable space.

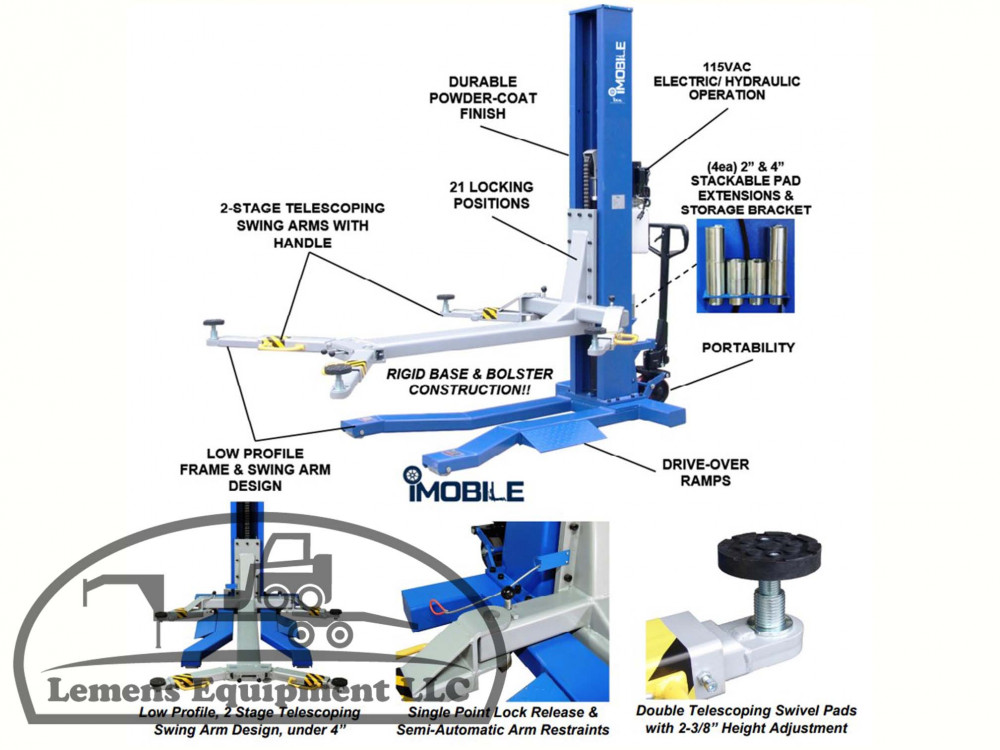

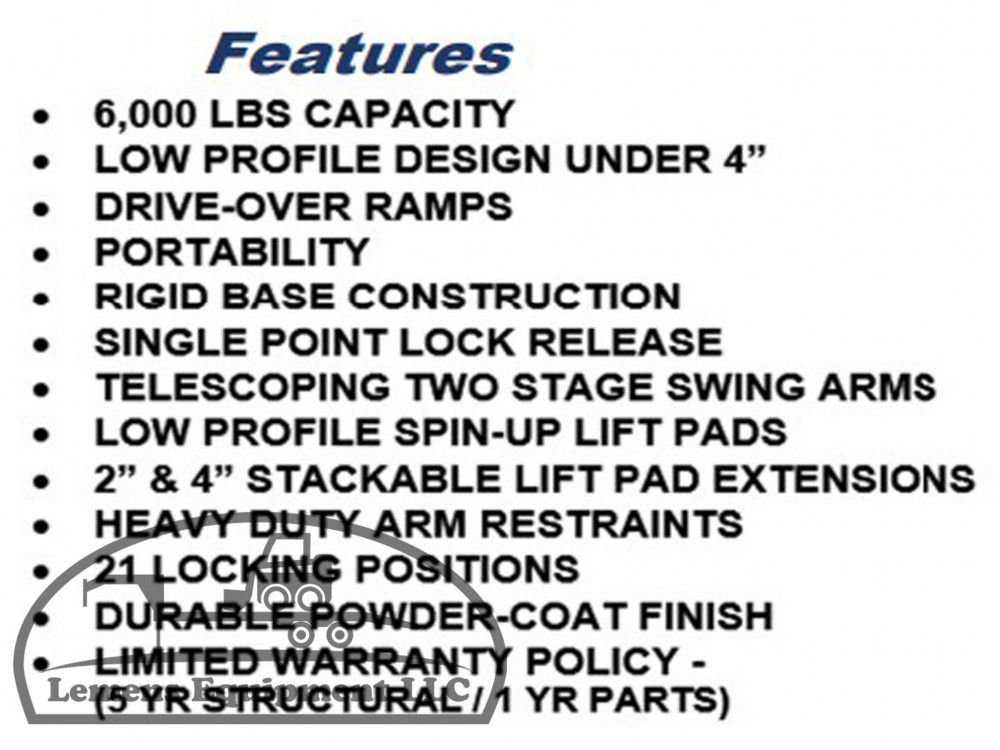

GENERAL

- Capacity: 6,000 lbs
- Low profile design under 4"

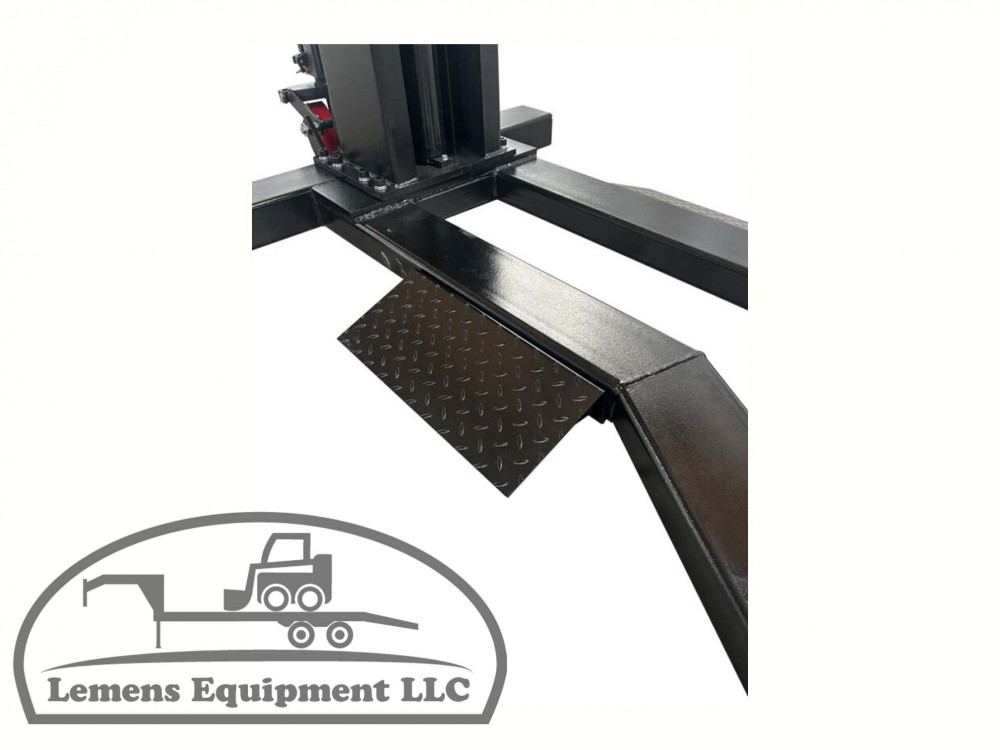

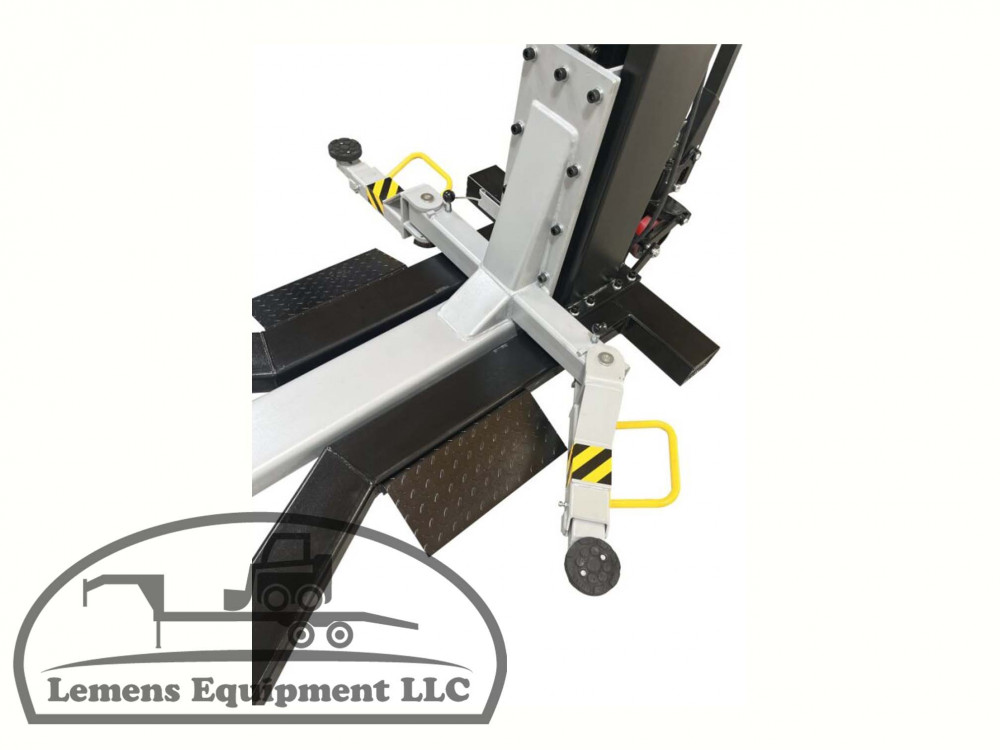

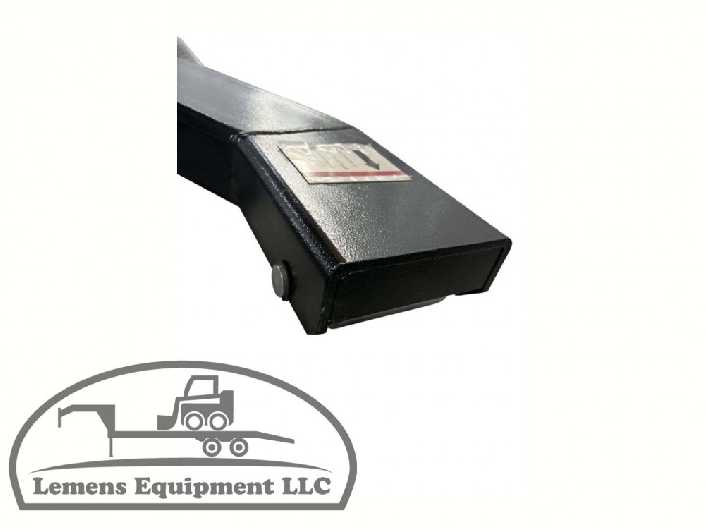

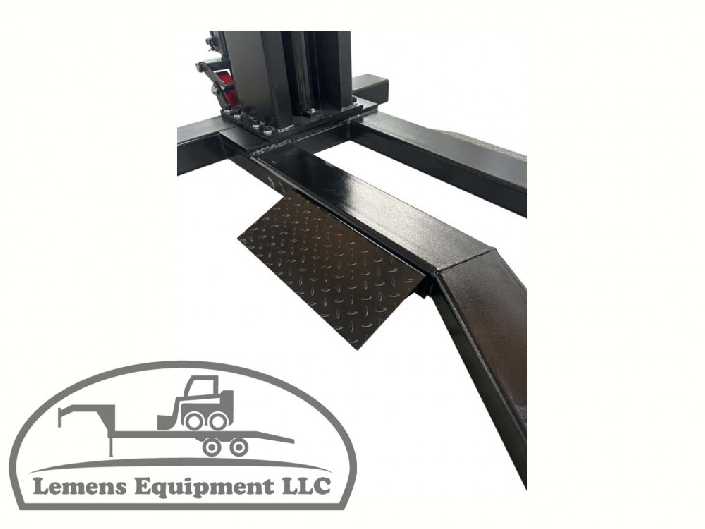

- Drive-over ramps
- Portability
- Rigid base construction

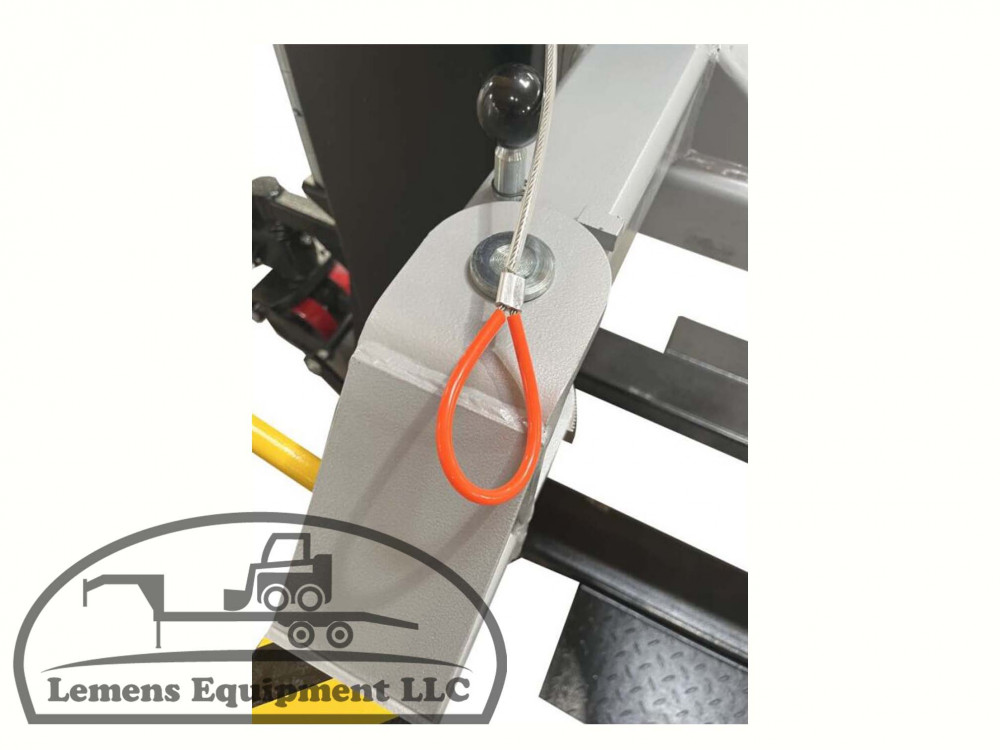

- Single point lock release

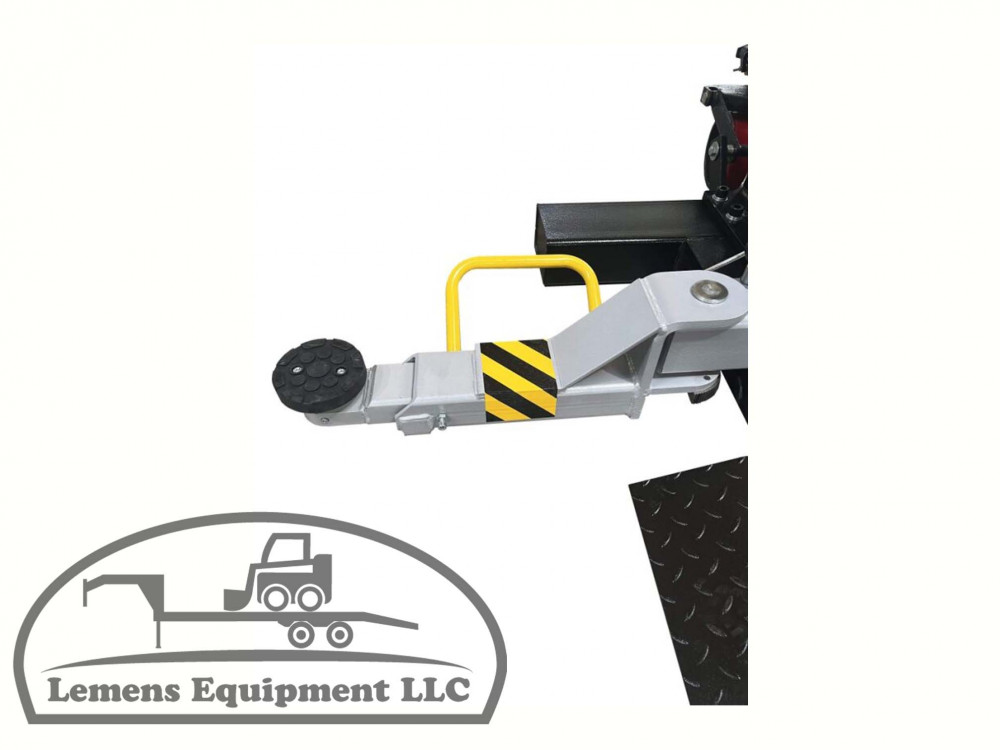

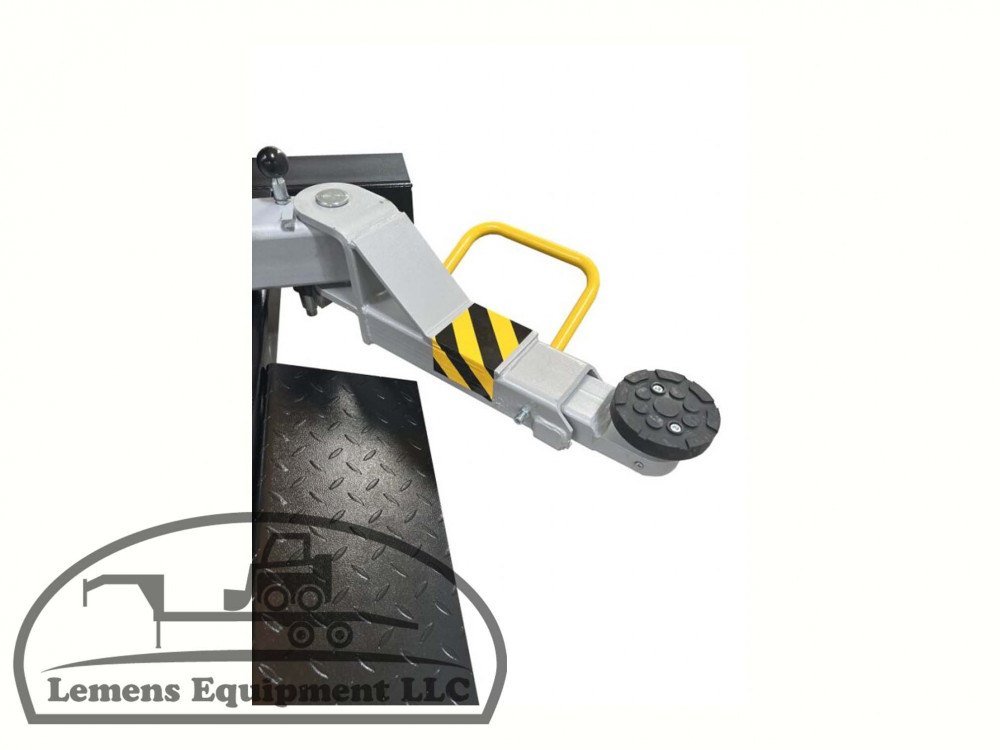

- Telescoping two stage swing arms

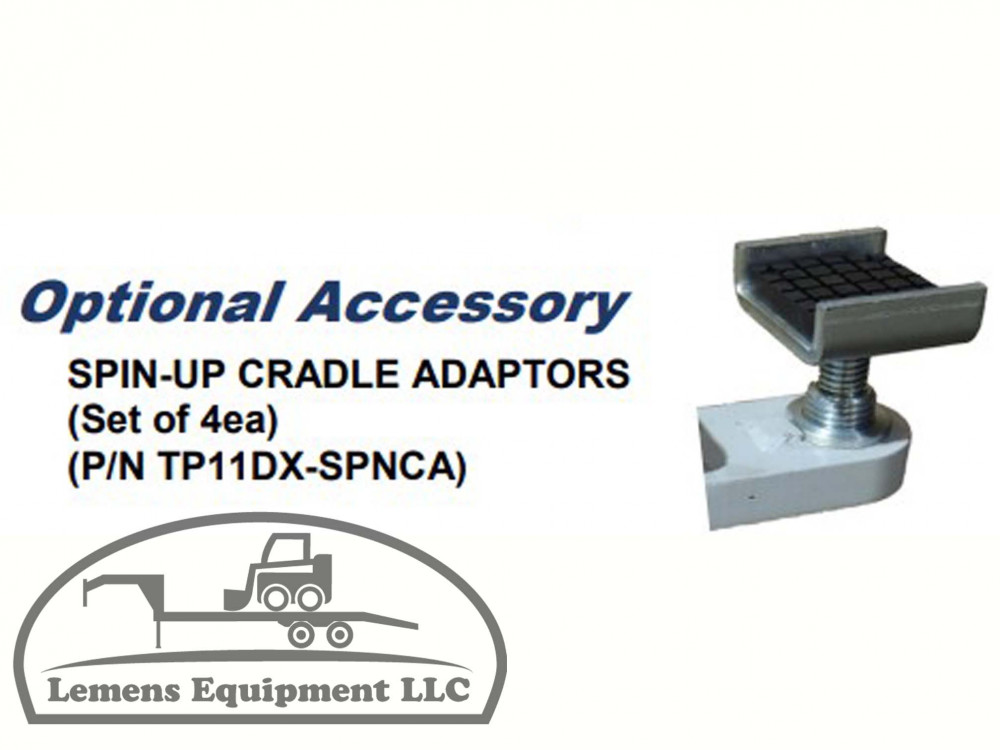

- Low profile spin-up lift pads

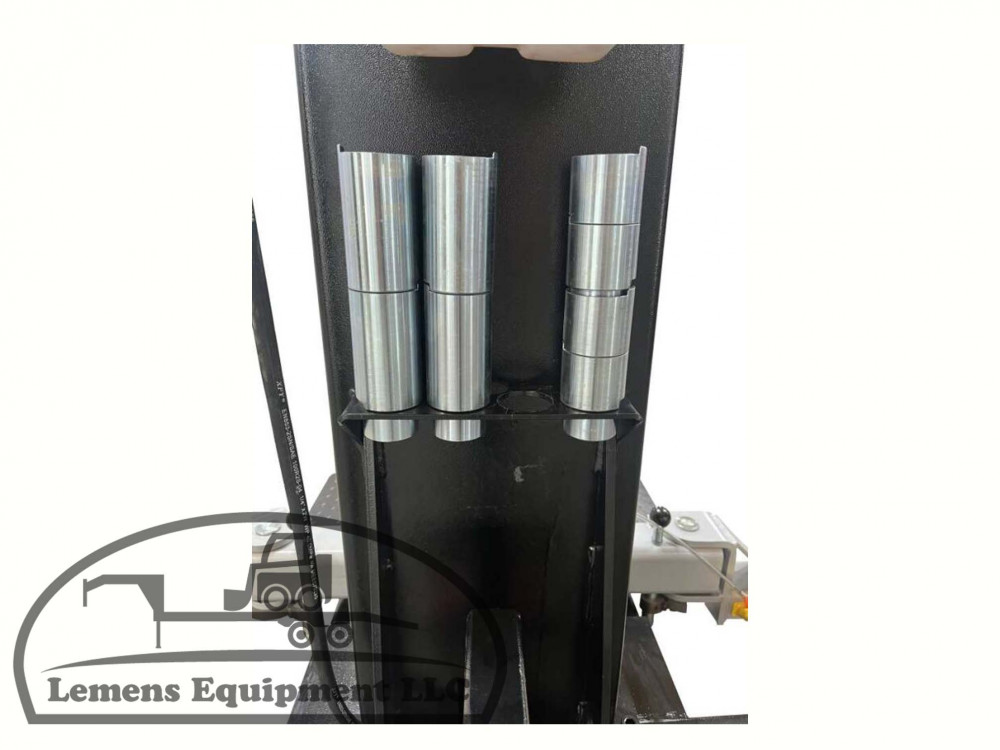

- 2" & 4" stackable lift pad extensions
- Heavy duty arm restraints

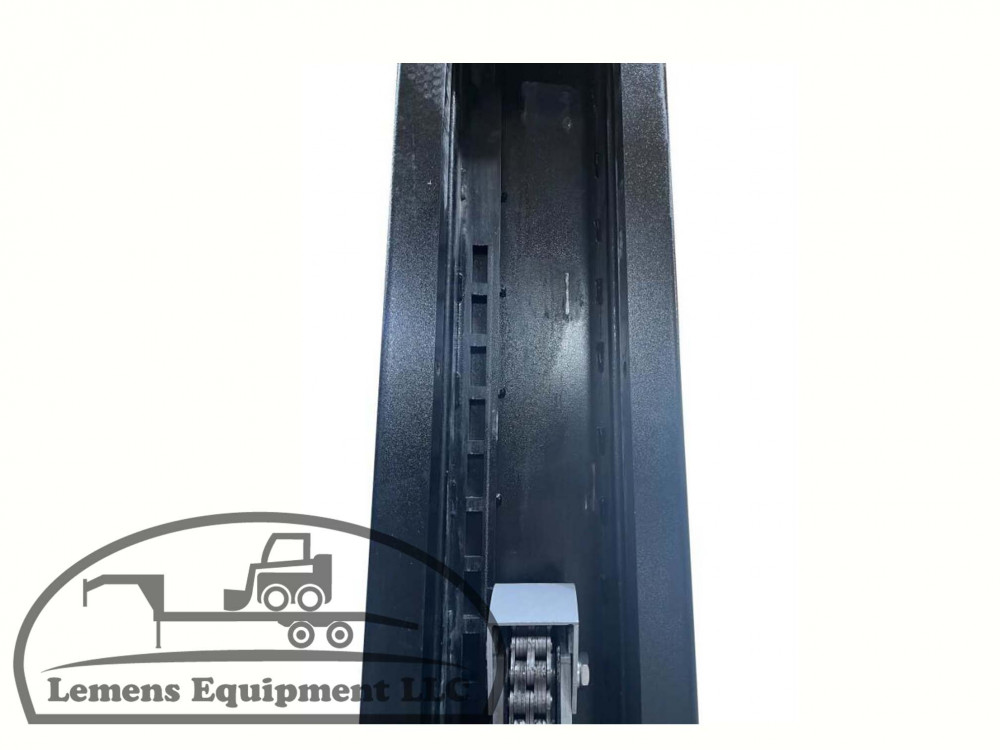

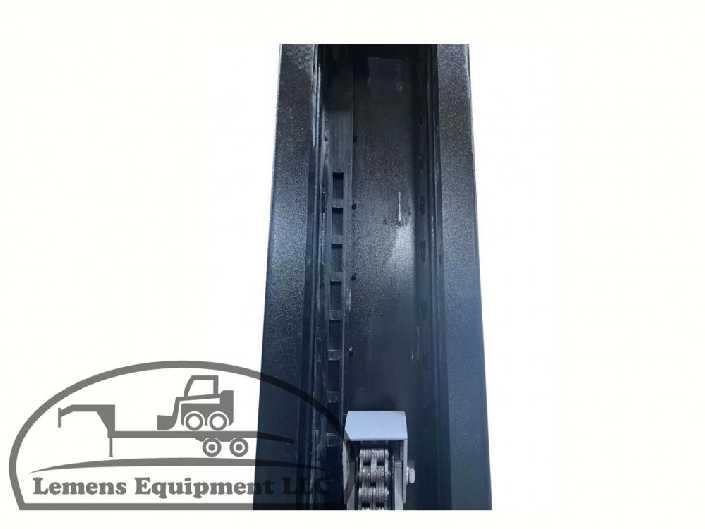

- 21 locking positions
- Durable powder-coat finish

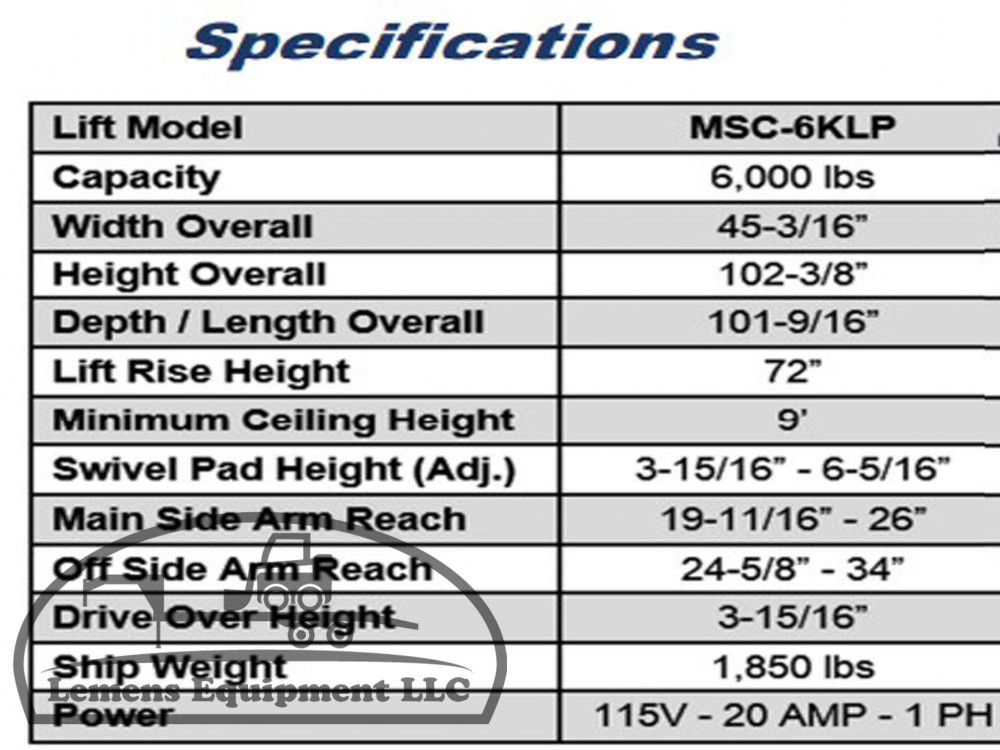

CONSTRUCTION

- Width overall: 45-3/16"
- Height overall: 102-3/8"
- Depth/Length overall: 101-9/16"
- Lift rise height: 72"
- Minimum ceiling height: 9’
- Swivel pad height (adjustable): 3-15/16" - 6-5/16"
- Main side arm reach: 19-11/16" - 26"
- Off side arm reach: 24-5/8" - 34"
- Drive over height: 3-15/16"
- Ship weight: 1,850 lbs

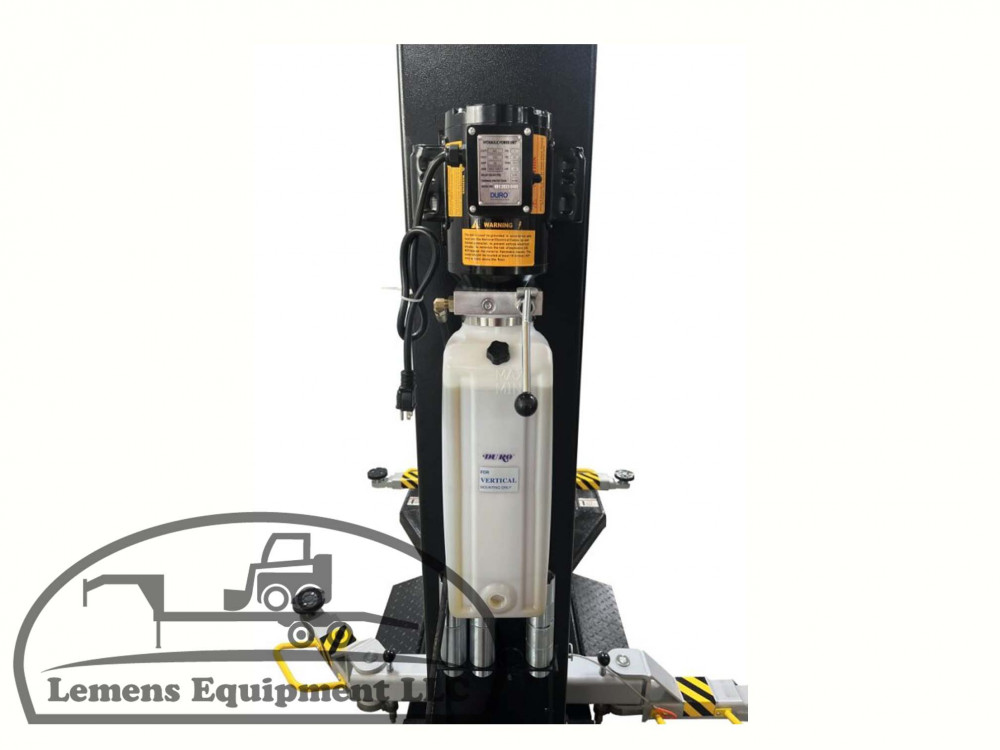

- Power: 115V - 20 AMP - 1 PH

WARRANTY

- 5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
- Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
- The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

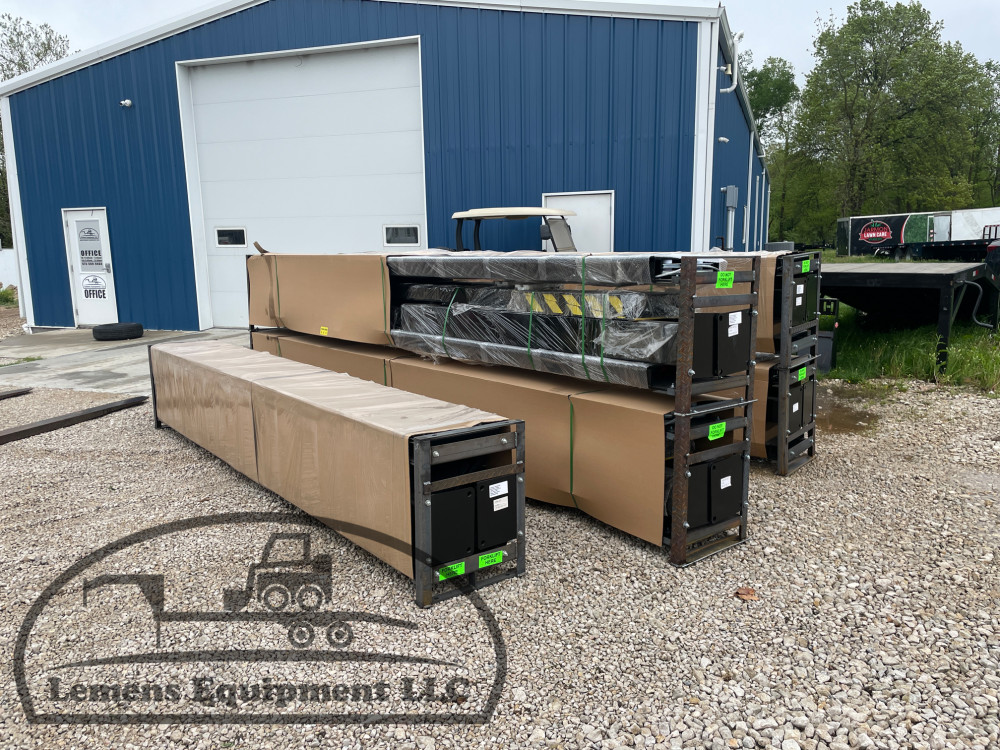

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselfs via LTL.
