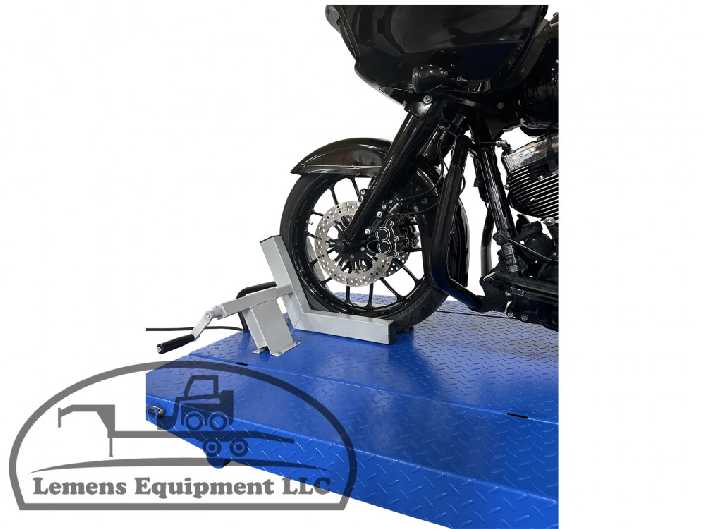

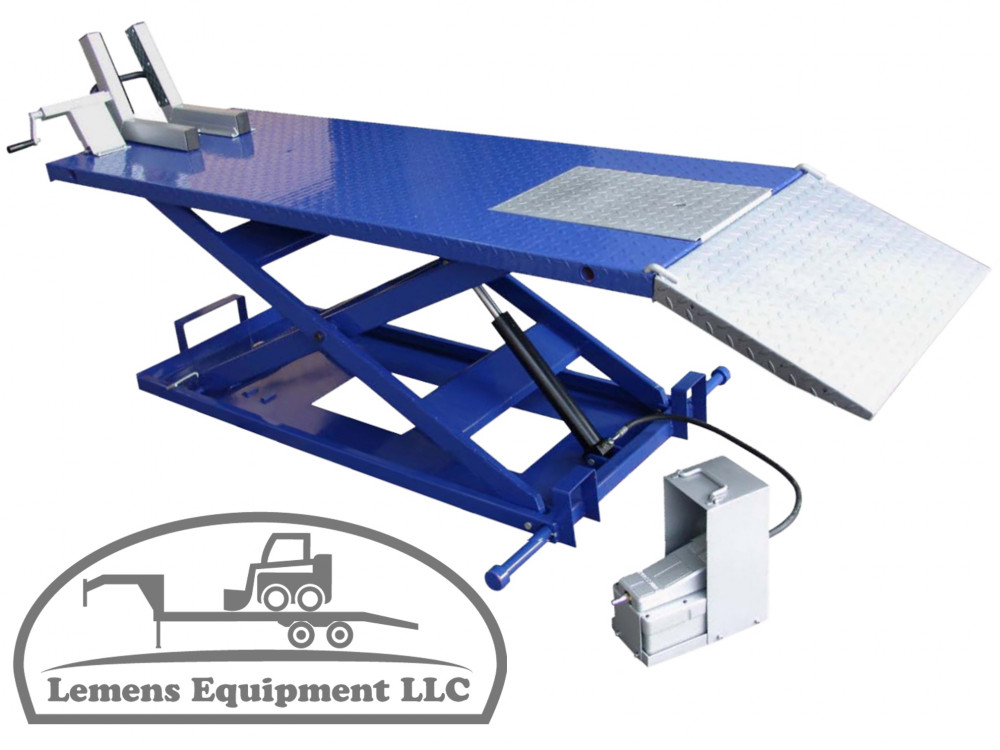

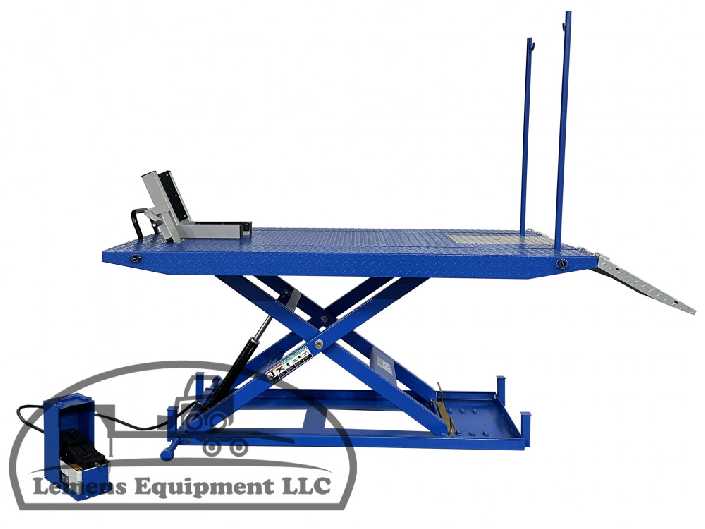

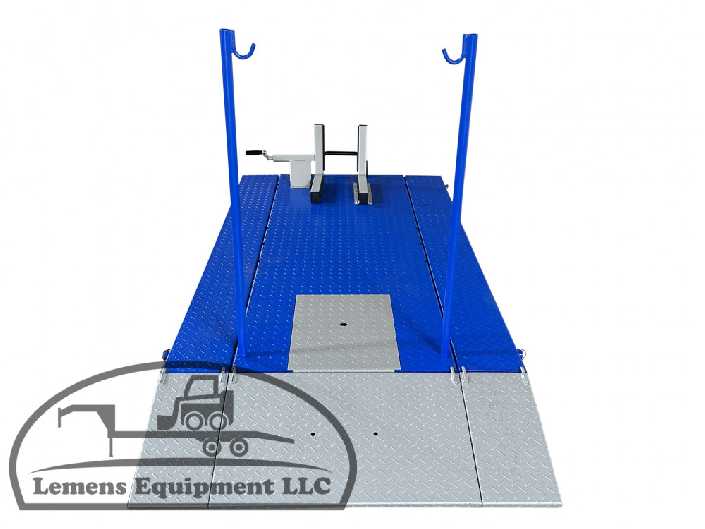

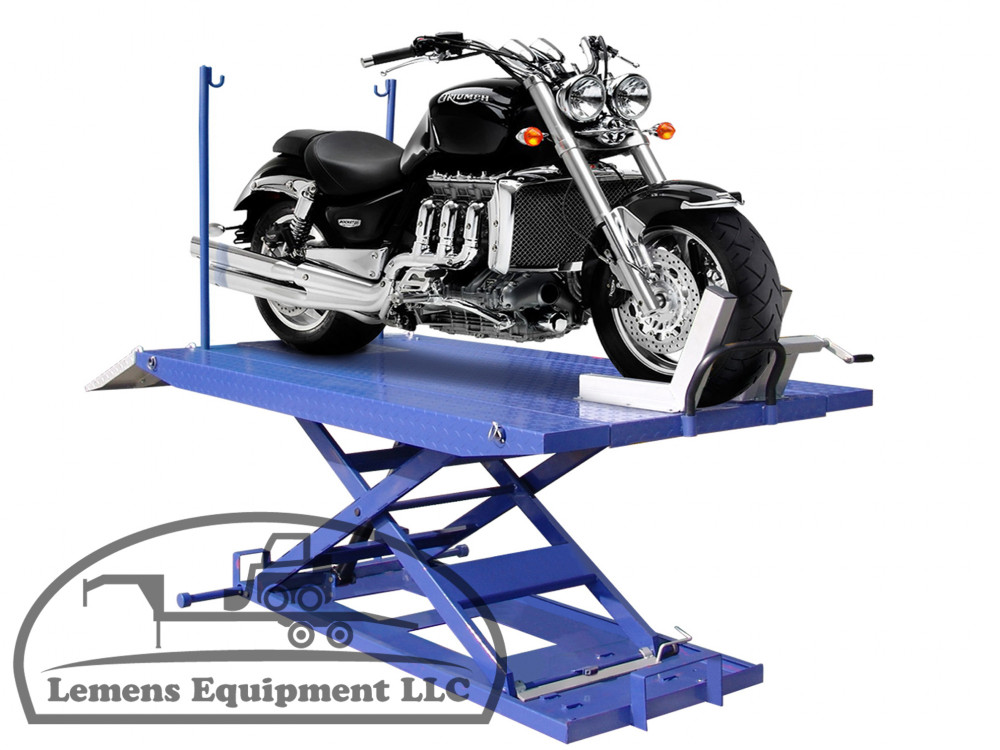

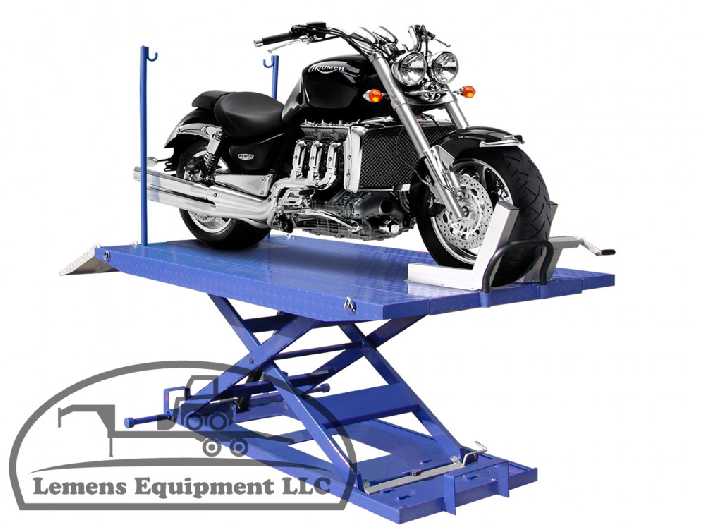

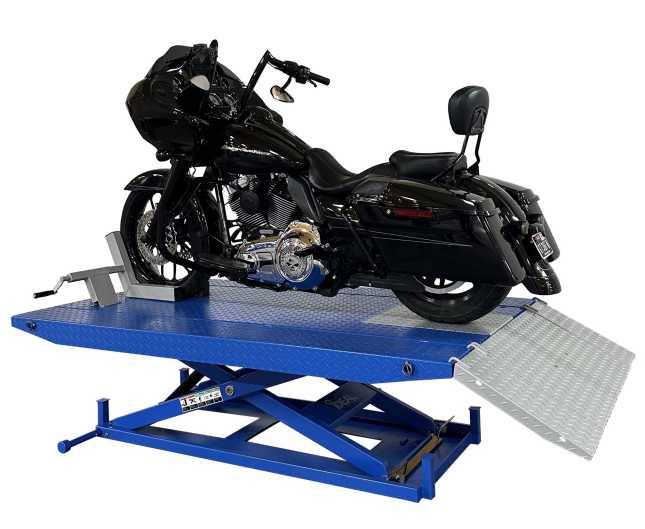

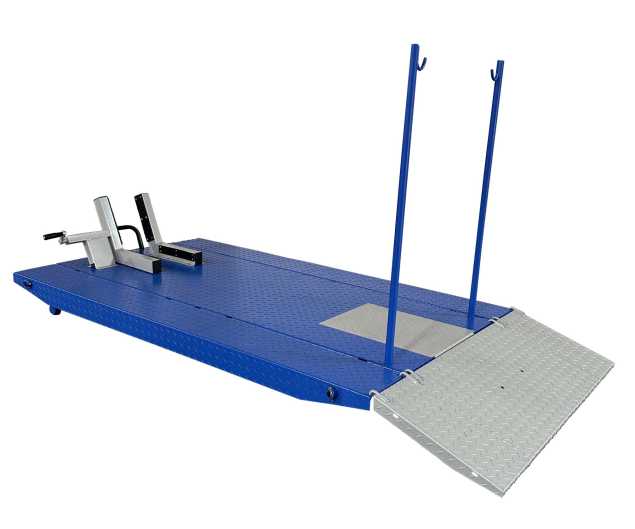

The M-1500C-HR (High Rise) is a professional air-over-hydraulic motorcycle and ATV lift table designed for heavy-duty powersport service. It offers a higher maximum lifting height than standard models, making it ideal for full-size cruisers, side-by-sides, and snowmobiles.

General
-Lifting Capacity: 1,500 lbs

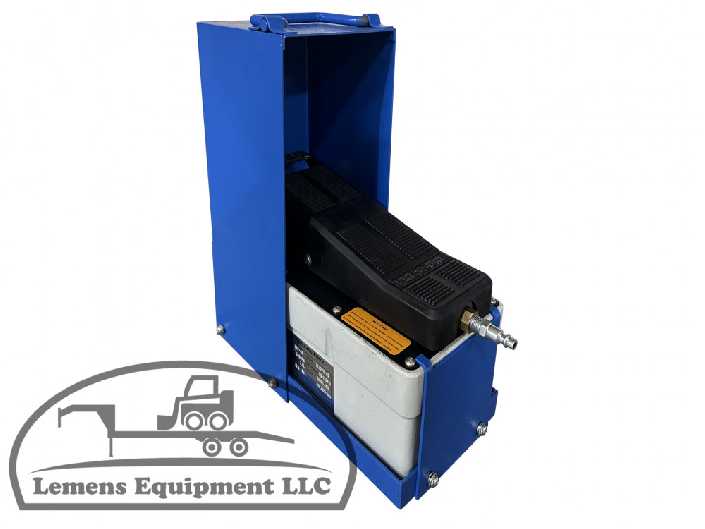

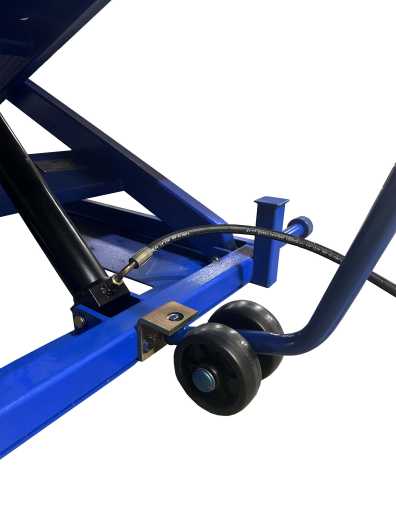

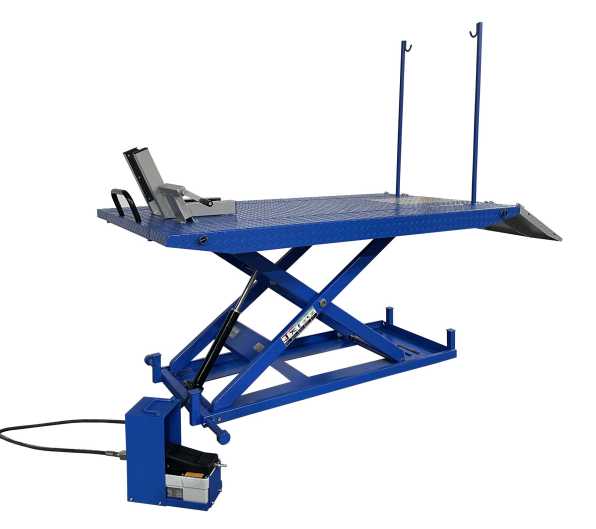

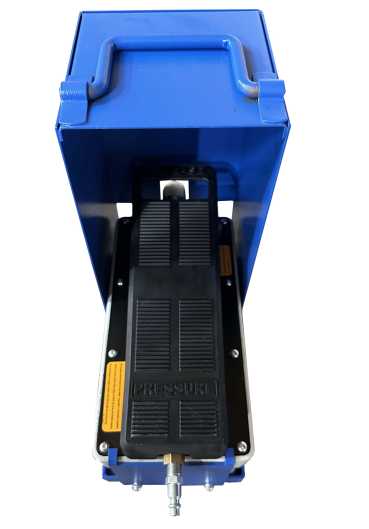

-Air/hydraulic pump
-Ideal for motorcycles, snowmobiles, ATVs, jet skis, etc.
-Extra-large platform
-38" working height

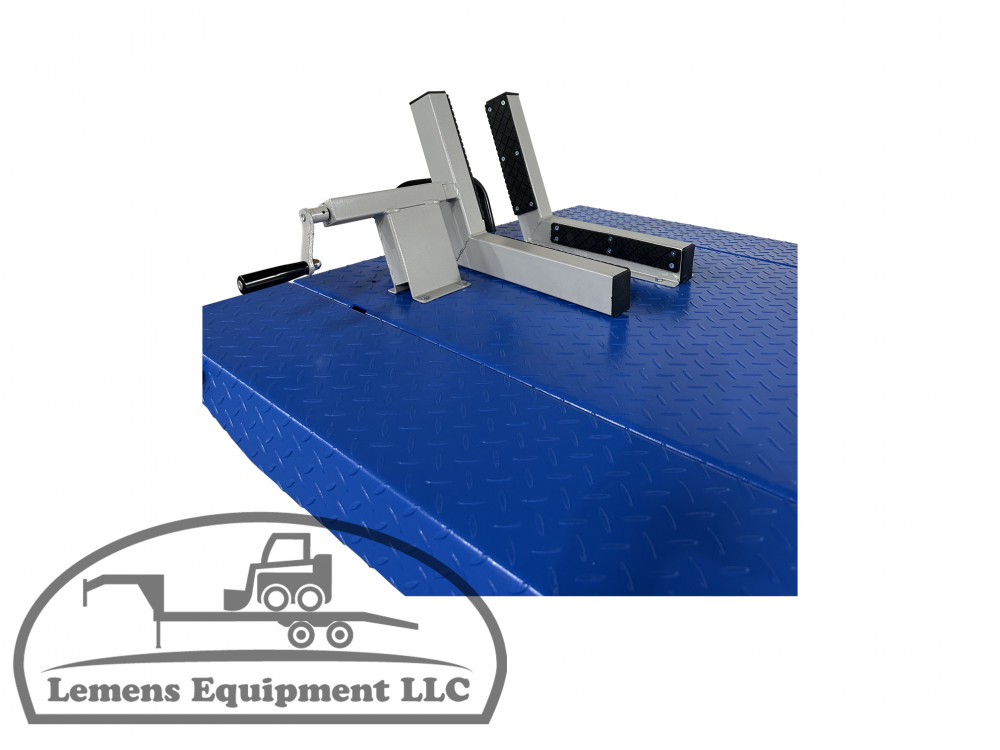

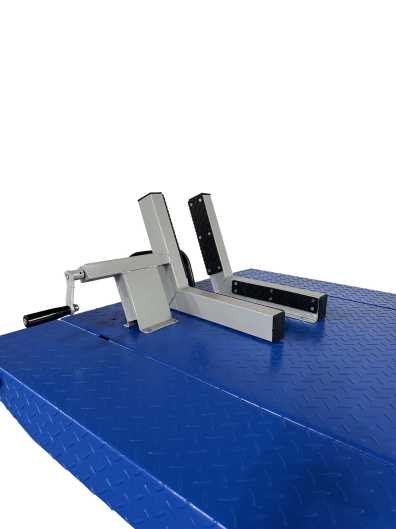

-Side extensions and vise come standard
-Built in drop-out panel

Construction
-Min Height: 6-3/4"
-Max Lifting Height: 38-1/2"
-Overall Length w/ Ramp: 109-1/2"
-Overall Width: 50"

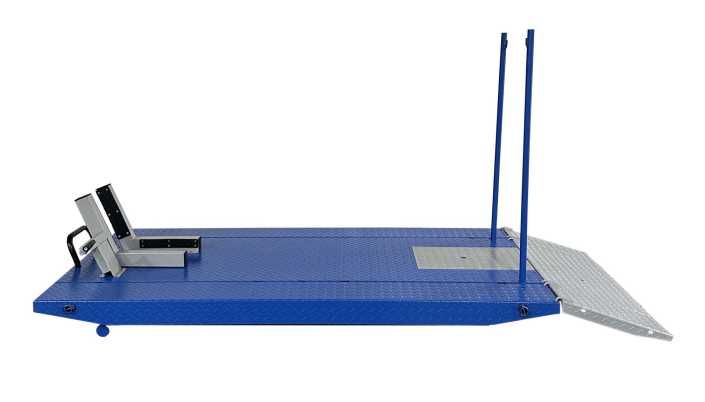

-Table Dimensions: 88-1/2"L x 31-1/2"W

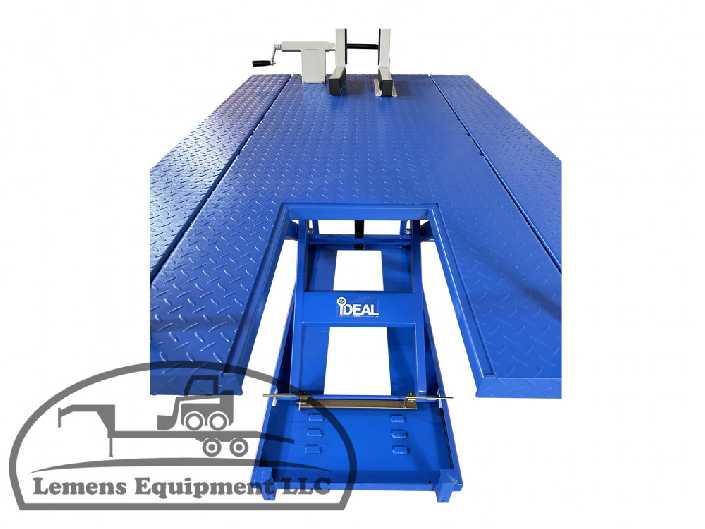

-Table Dimensions (with side extension): 88-1/2"L x 50"W

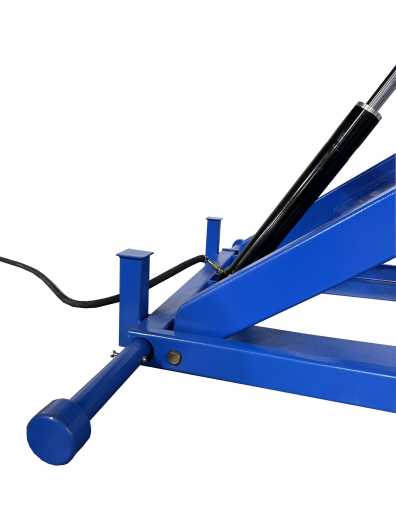

-Power: Air/Hydraulic (90-100 PSI)
-Shipping Weight: 765 lbs

Optional Accessories
-Mini Jack - Lifting range 3-3/4" to 15-3/4". Spin-up adapters
-13" Front Extension: If you need to work on a long bike. This extends the table to 93"

Warranty
-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

Thank You!
We do high volume at low prices, take lots of pictures and videos, and give detailed descriptions and specs so you KNOW you are getting a quality lift. Thank you to all current and future customers who appreciate the hard work we have put into this and choose to do business with us. Spend less time figuring out what you are buying, and more time enjoying it!

Delivery

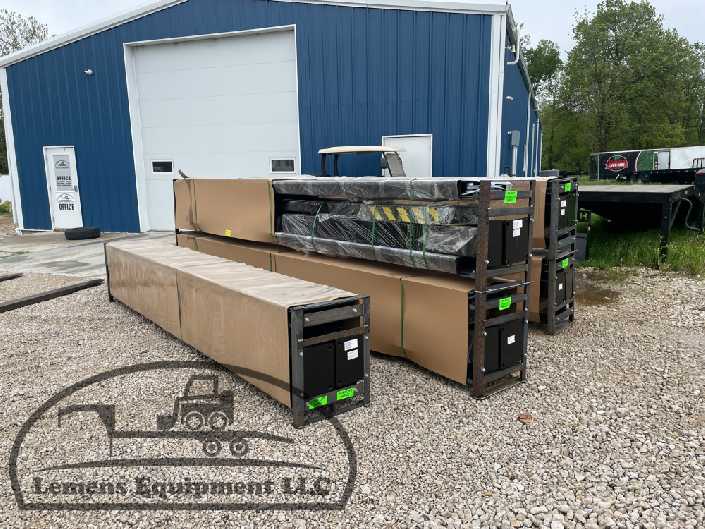

We can deliver to you, anywhere in the USA! Forklift or skid steer with forks will be required to unload, optionally we can bring that also and unload it for you. If you pick it up from us here in Eldon MO, we can load it on your trailer, then you could unassemble it at home off your trailer piece by piece without the need for a fork lift.
