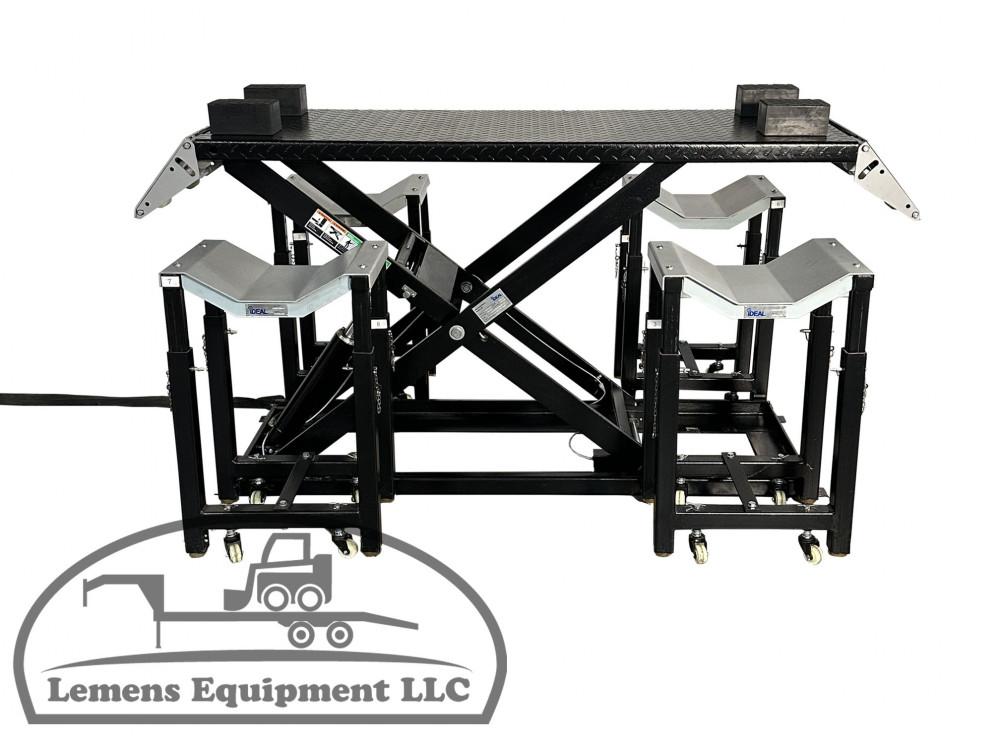

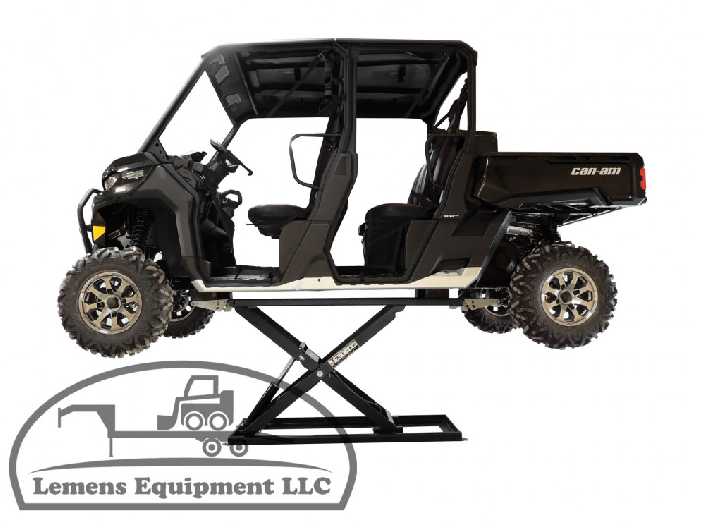

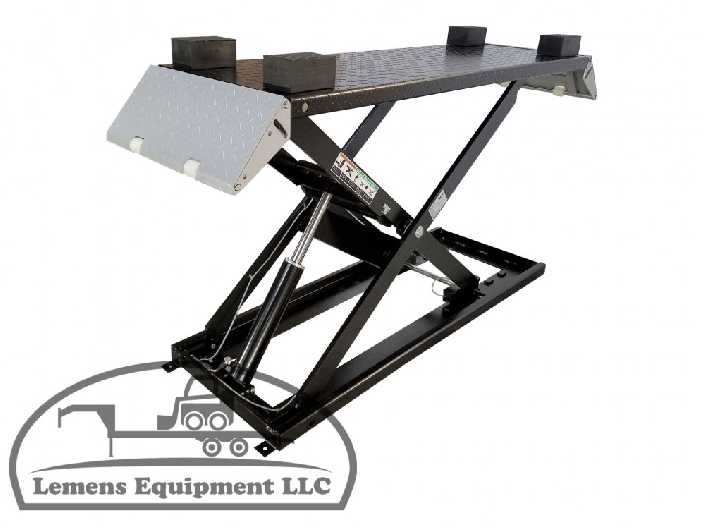

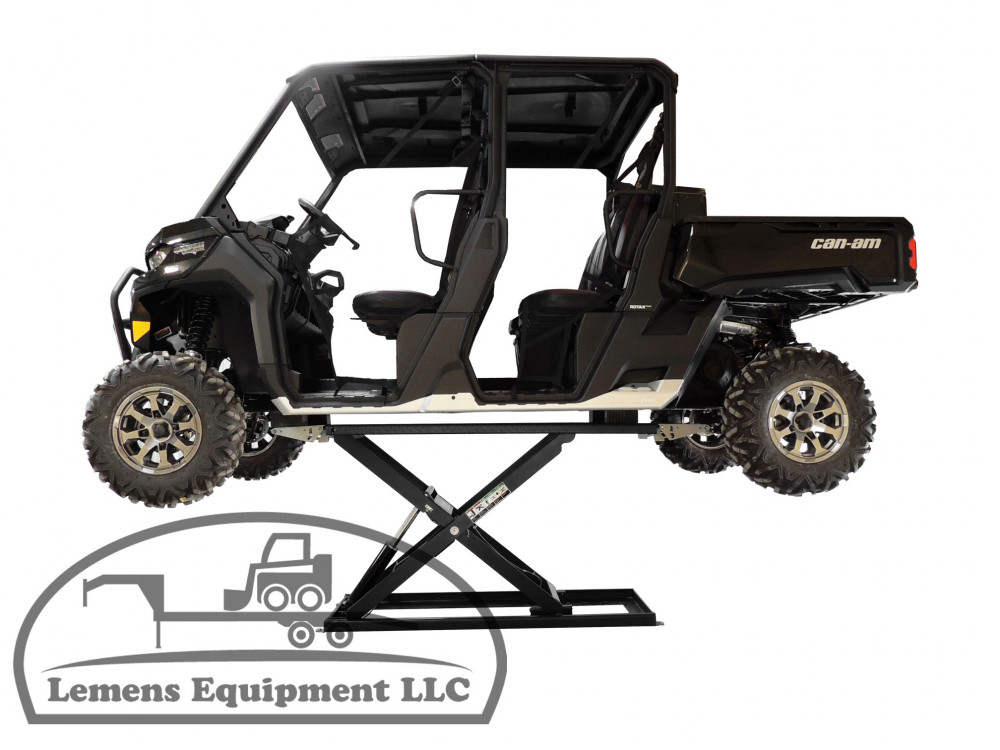

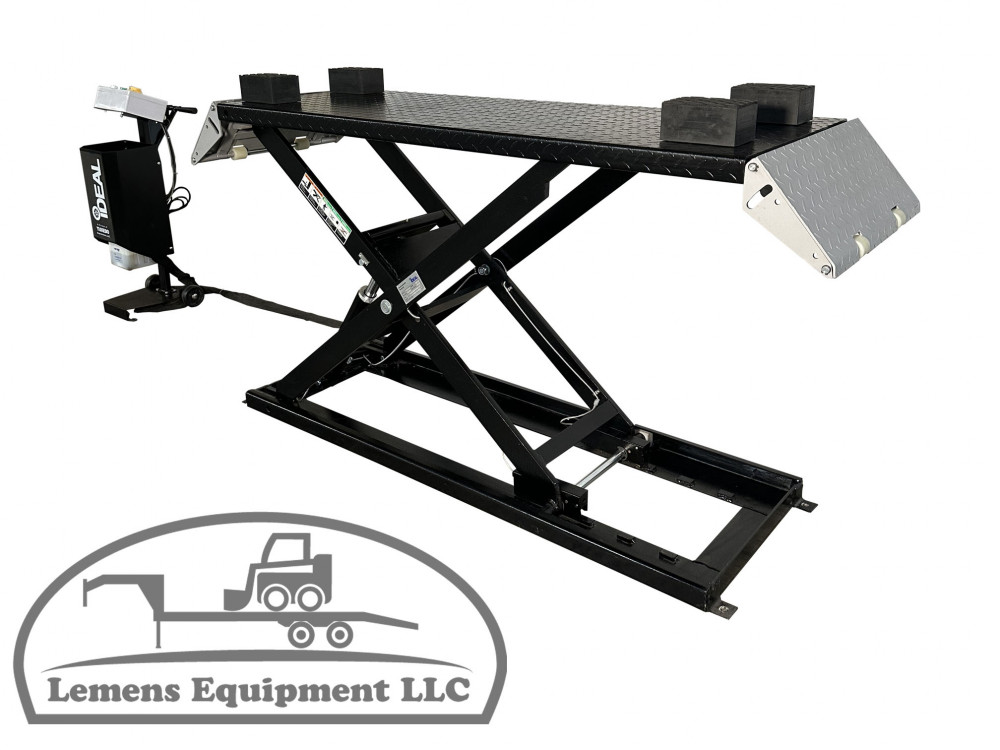

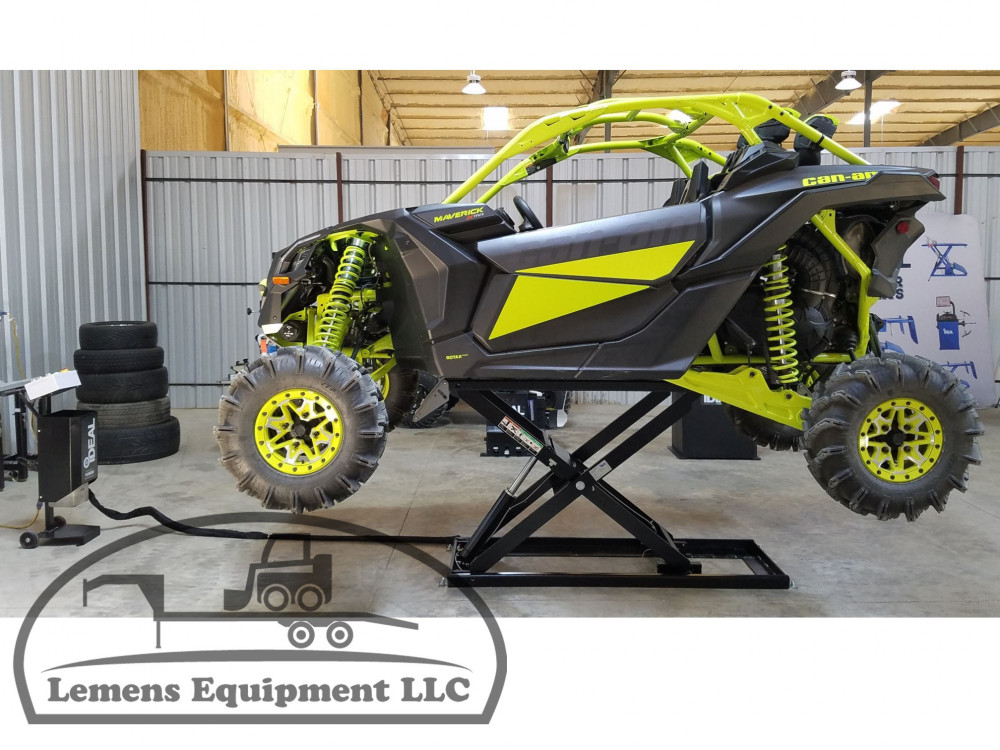

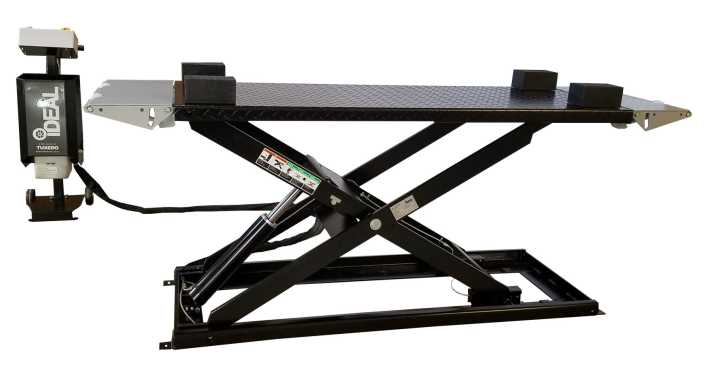

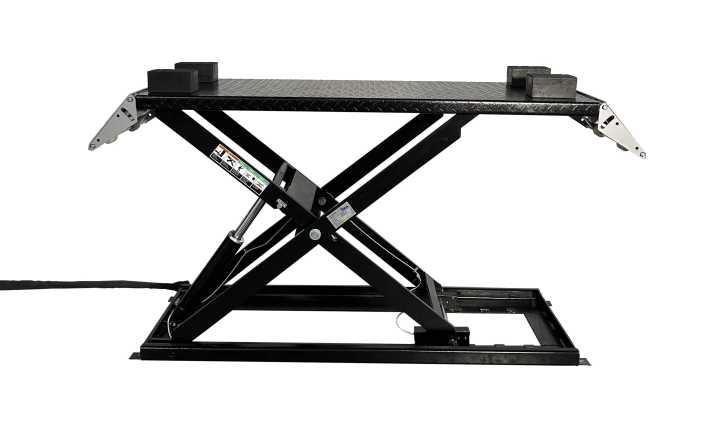

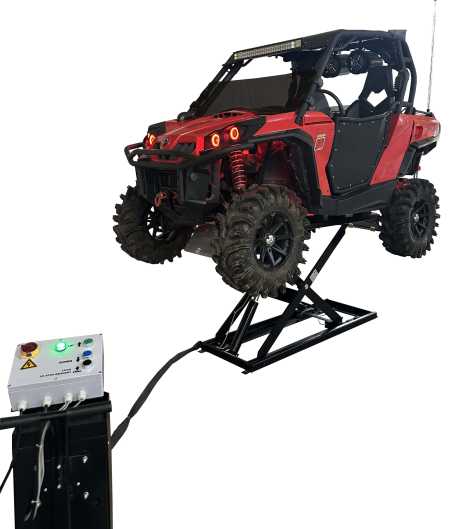

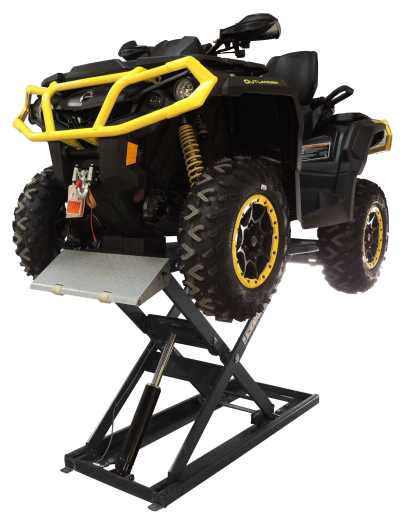

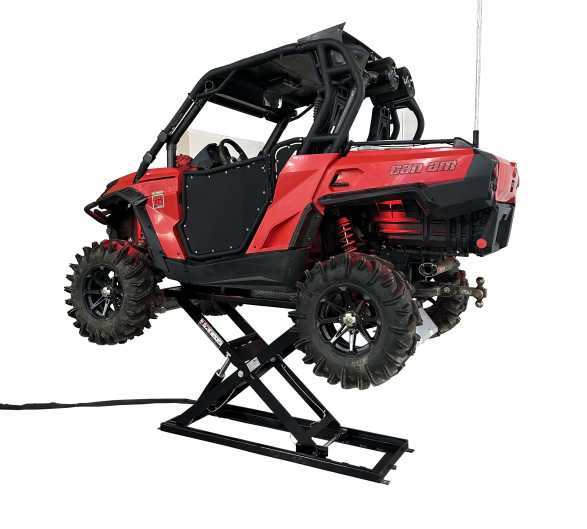

Engineered specifically for the demands of high-volume power sports technicians, the UF-2500EH-X-BLK eliminates the limitations of traditional platform lifts. By utilizing an innovative frame-engaging design, this lift allows for immediate, unobstructed access to wheels, brakes, and suspension components on everything from compact ATVs to the industry's largest 2026 UTVs. With a massive 2,500 lb lifting capacity and a sleek black-and-grey finish, it combines professional muscle with a modern aesthetic.

General
-Capacity: 2,500 lbs
-Innovative ‘frame engaging’ lift design, allowing for wheel and suspension service for the largest utility and all-terrain power sport vehicles
-Load bearing ‘flip-up’ platform extensions for the largest UTVs
-Small lift footprint provides additional workspace for a safe and clean work area

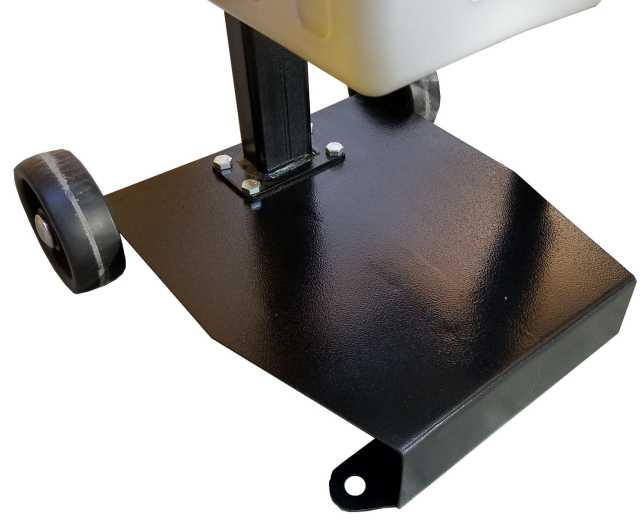

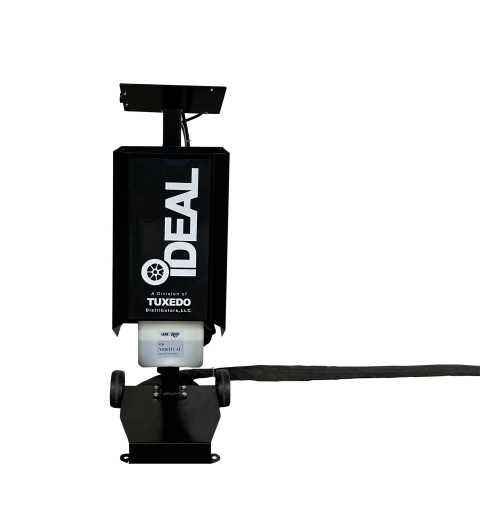

-Portable or fixed pedestal control stand

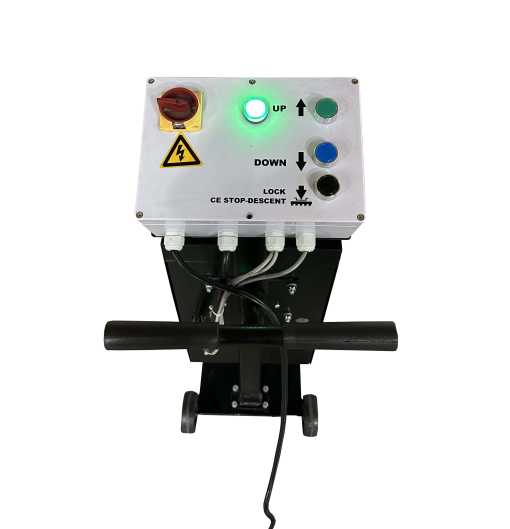

-Fully operational control panel with electro-magnetic lock release

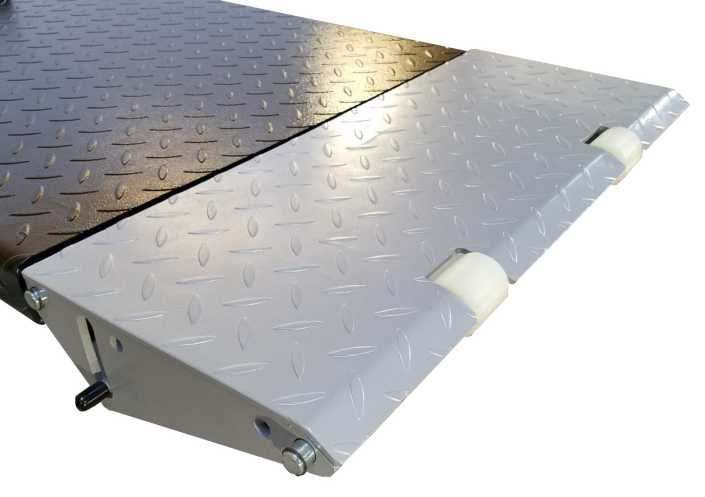

-Heavy duty diamond plate platform and extensions
-Smooth and quiet 110V electric/hydraulic operation - no air compressor required
-High quality construction with durable powder-coat finish
-Magnetic lock release
-3 locking positions
-Rubber contact lift pads - 4.75" x 6.5" (4ea)

Construction
-Min. Lifting Height: 4.75"
-Max Lifting Height: 43" to 49.25" with adaptor
-Locking Heights: 28" - 36.5" - 42"
-Overall Length w/ Ramps: 67" to 89"
-Overall Width: 24.8"

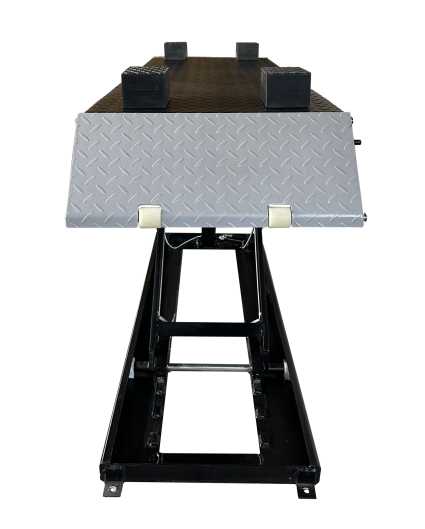

-Platform Size: 67"L x 24" W
-Pedestal/Platform Max Distance: 96"
-Lifting Time: 25 sec
-Lowering Time: 25 sec
-Power: 110V, 60Hz, 1 PH-18A
-Ship Weight: 740 lbs

Warranty
-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

Thank You!
We do high volume at low prices, take lots of pictures and videos, and give detailed descriptions and specs so you KNOW you are getting a quality lift. Thank you to all current and future customers who appreciate the hard work we have put into this and choose to do business with us. Spend less time figuring out what you are buying, and more time enjoying it!

Delivery
We can deliver to you, anywhere in the USA! Forklift or skid steer with forks will be required to unload, optionally we can bring that also and unload it for you. If you pick it up from us here in Eldon MO, we can load it on your trailer, then you could unassemble it at home off your trailer piece by piece without the need for a fork lift.

Location
Lemens Equipment LLC
1206 N Business 54
Eldon MO 65026
573-569-9466
www.lemens-equipment.com

Call or text!

Hours
Mon-Fri 8am to 5pm
Sat 8am to 12pm

Thank you!

Tags: UTV lift, ATV lift, golf cart lift, snowmobile lift, jet ski lift, four wheeler lift, mower lift, zero turn lift, lawn mower lift, vehicle lift, single post lift, cable lift, storage lift, service lift, inspection lift, portable lift, adjustable lift, low-profile lift, power sports lift, all-terrain lift
