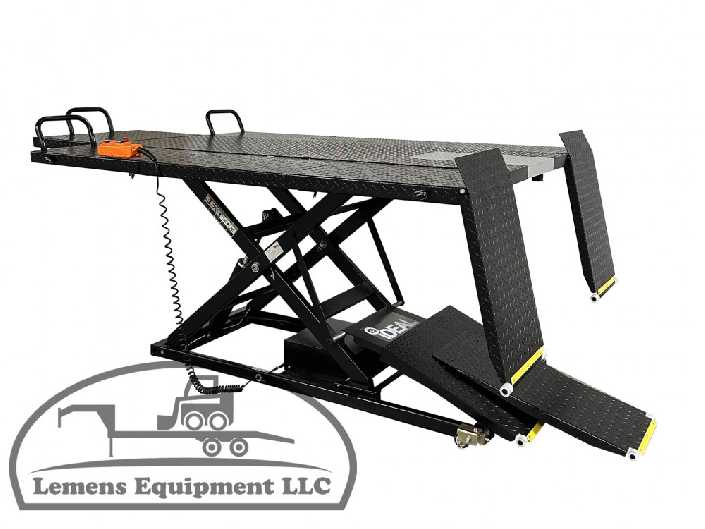

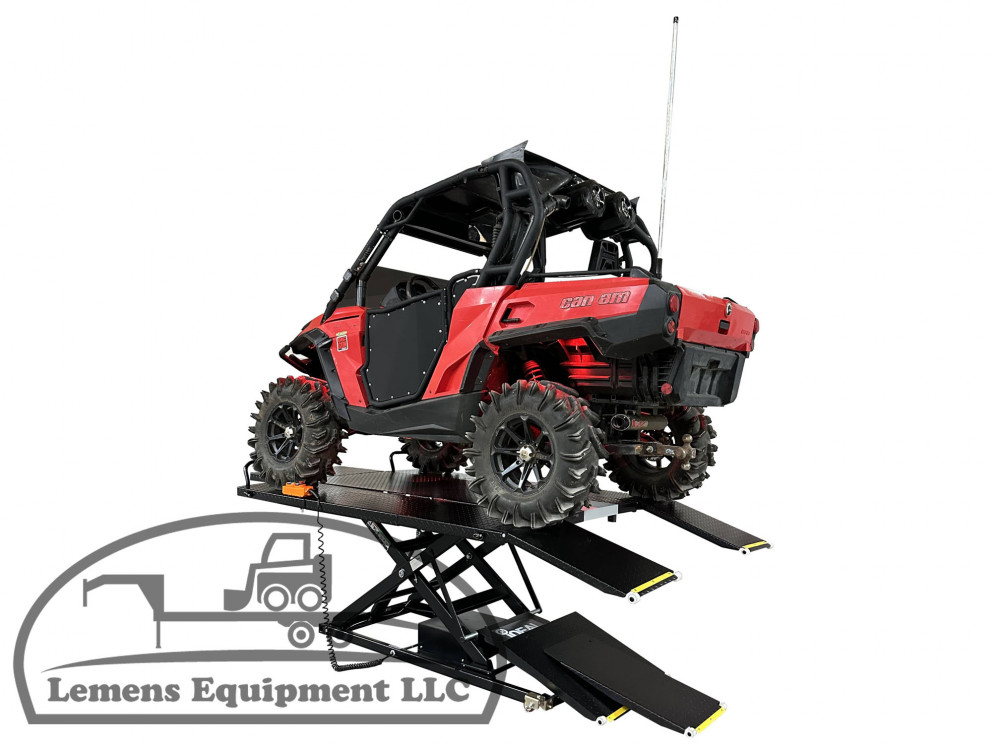

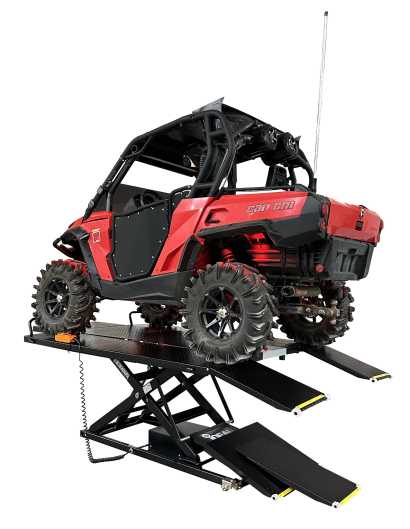

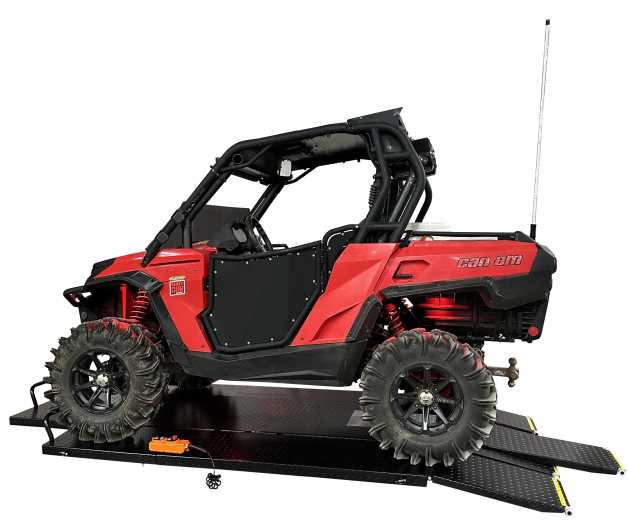

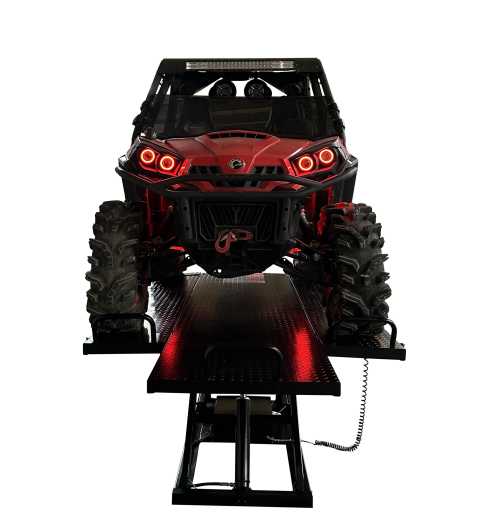

Elevate your service shop with the ultimate in power sports maintenance technology. The U-2200IEH-XR-BLK isn’t just a tool; it’s a productivity powerhouse finished in a sleek, black design. Ideal for working on large and small UTVs, ATVs, trikes, golf carts, and more!

General
-Capacity: 2,200 lbs

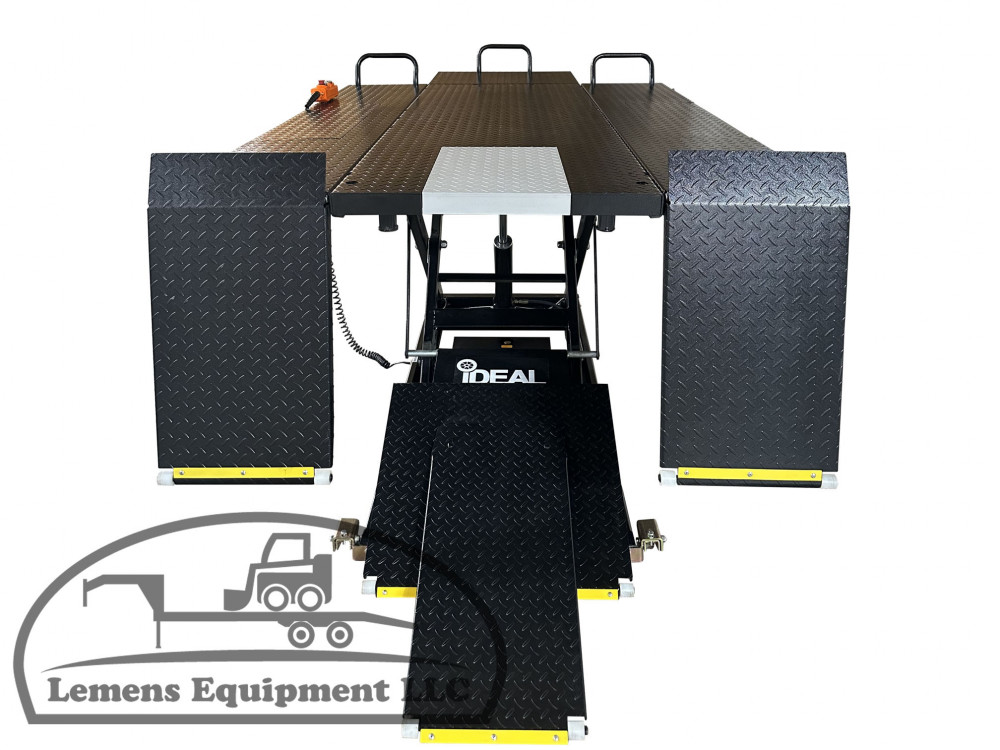

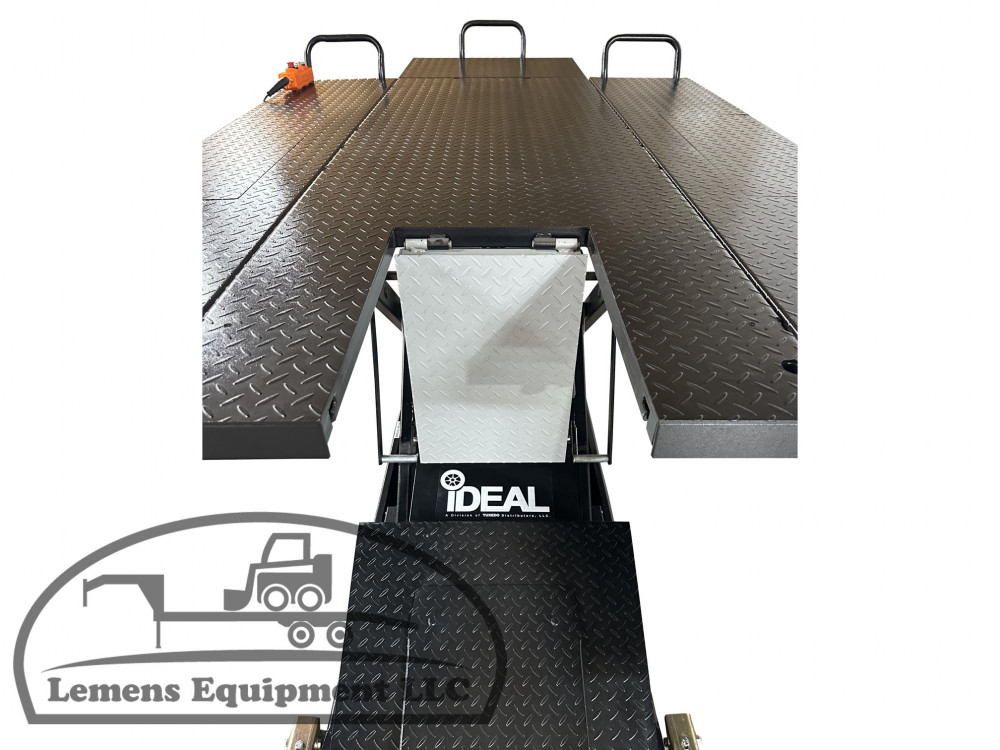

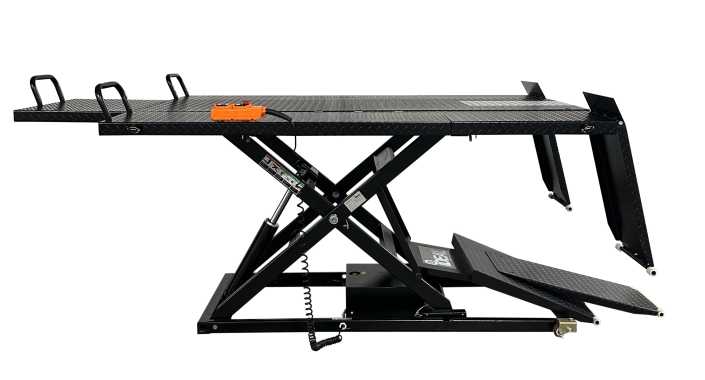

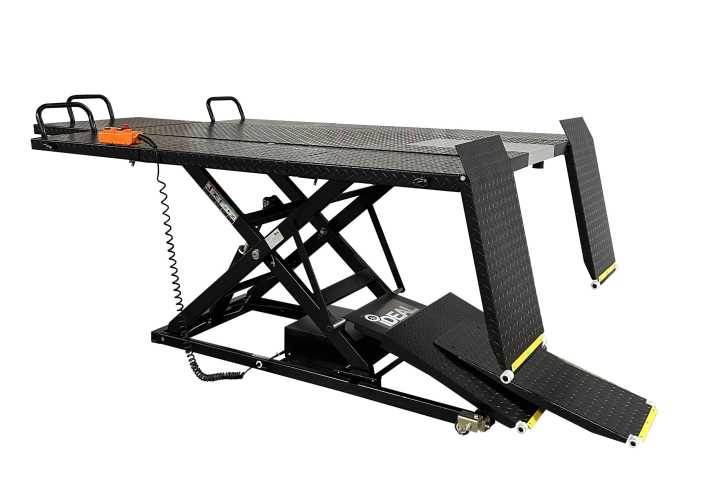

-Innovative retractable ramp system automatically provides additional workspace for a safe and clean work area

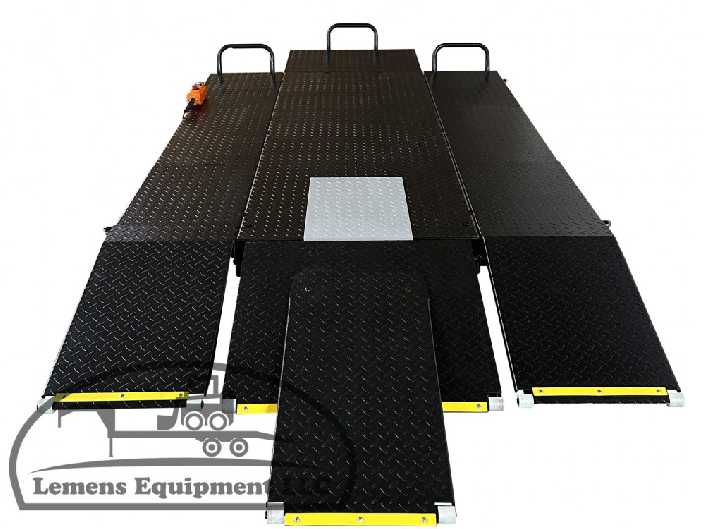

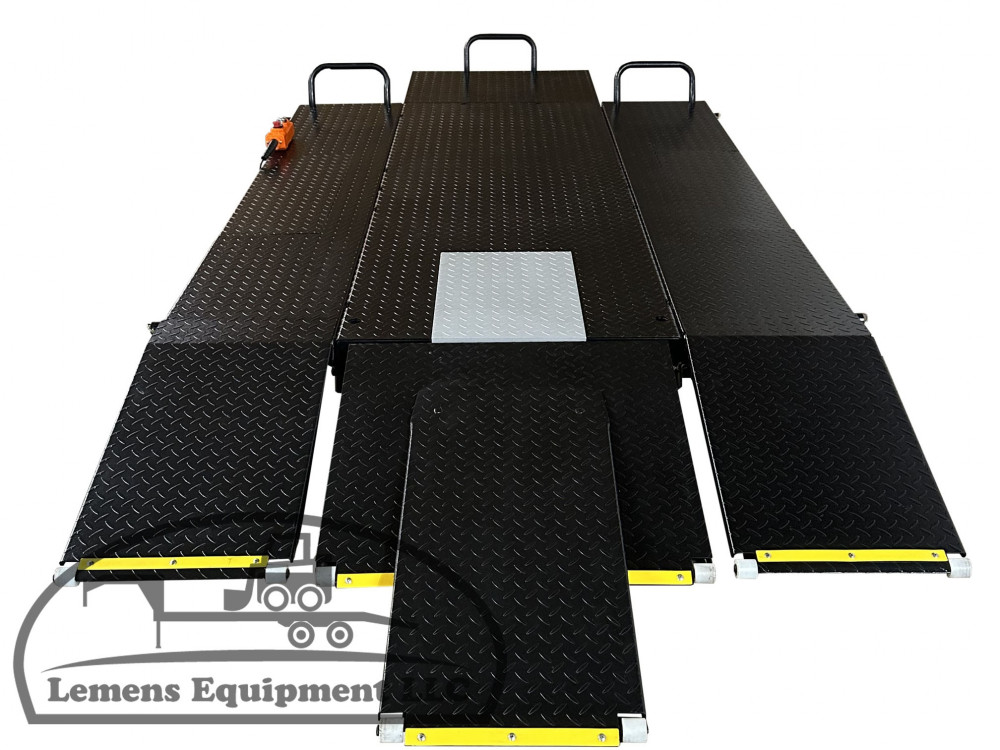

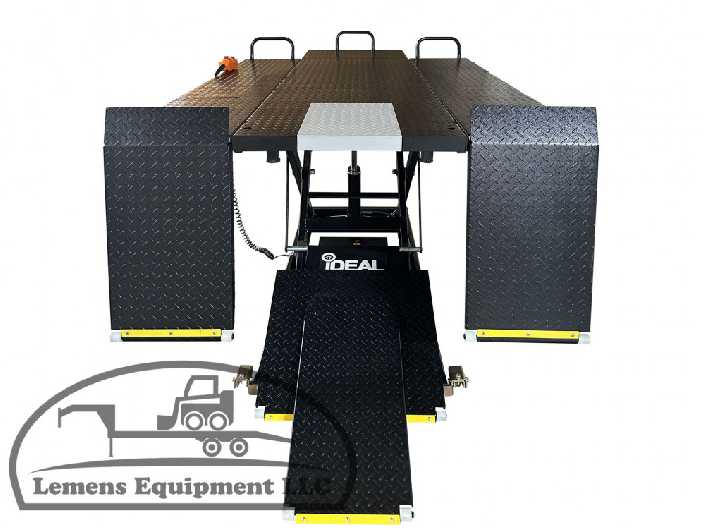

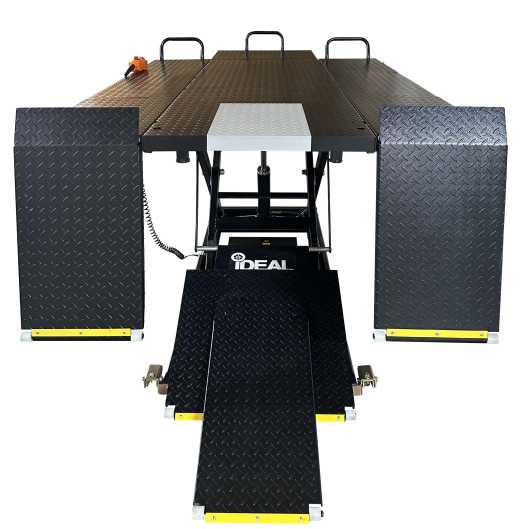

-UTV side extensions incorporate innovative center drop panels to provide versatile service access, including servicing motorcycles without having to remove side extensions

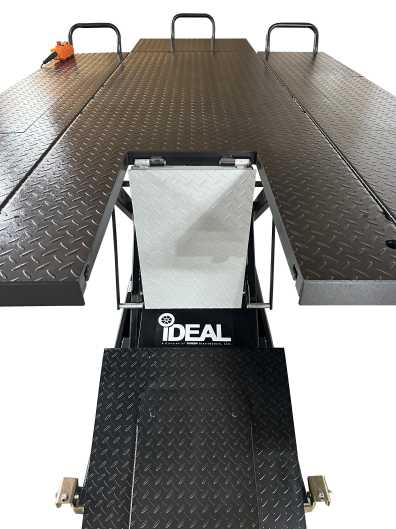

-Spring loaded ‘quick-release’ rear service panel provides rear wheel service access
-Diamond plate platform designed to attach either cycle vise or cycle chock in 2 different positions
-Smooth and quite integrated 110V electric/hydraulic operation - no air compressor required
-High quality construction with durable powder-coat finish
-65"W, 88.6"L platform size

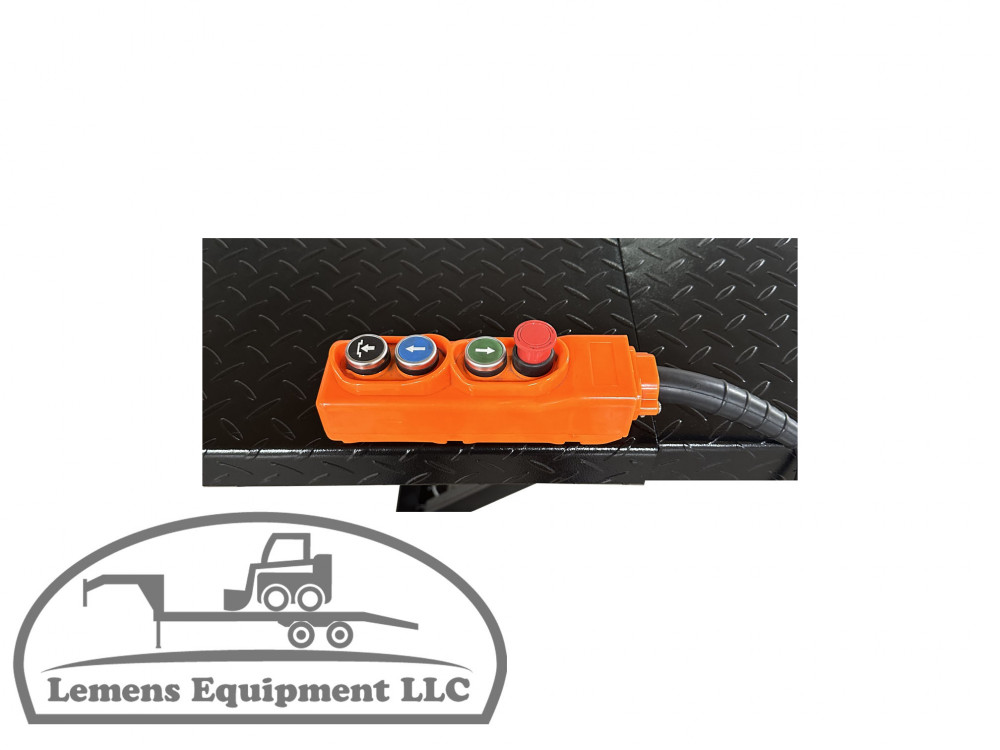

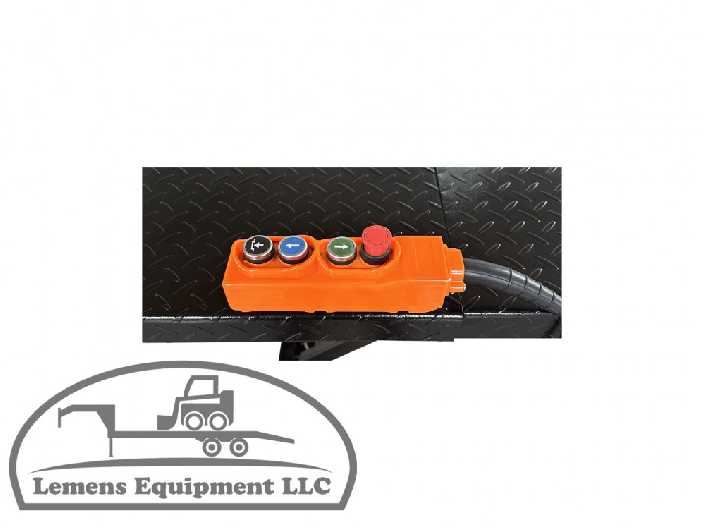

-Handheld remote-control pendant

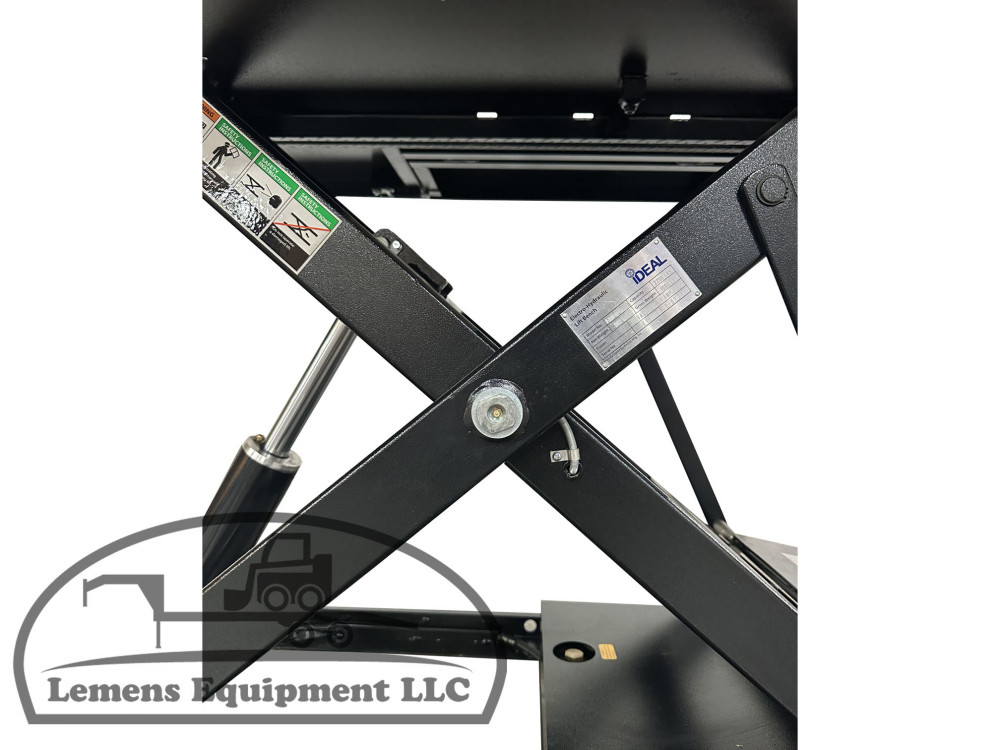

-Magnetic lock release with 6 locking positions
-Stabilizer Bar
-Tie-down anchor eye bolts and wheel stop included
-Platform designed to mount optional M-Vise or M-Chock

Construction

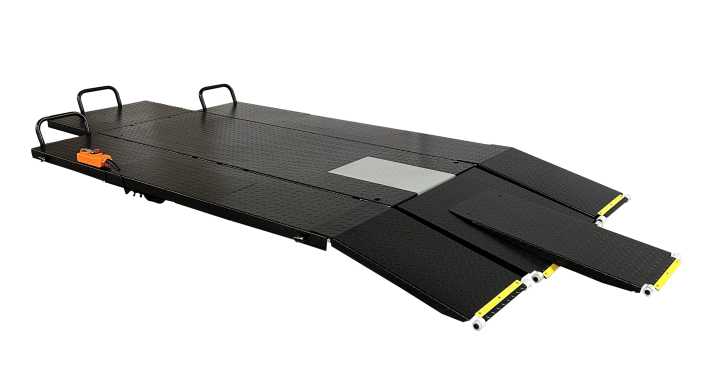

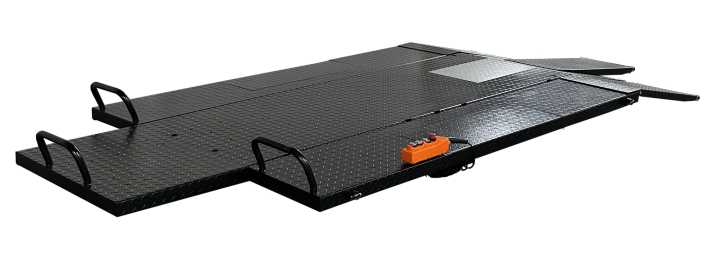

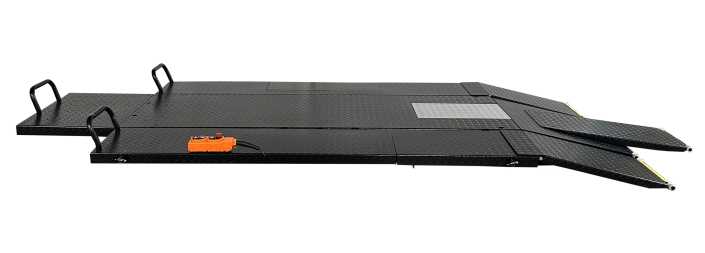

-Min Lifting Height: 7"
-Max Lifting Height: 47-¼"
-Locking Heights: 25.5" - 30.5" - 35" - 39" - 43.5" - 47"
-Overall Length w/ Ramp: 116-1/2"
-Overall Width: 65"
-Platform Size: 88-5/8"L x 65"W
-Lifting Time: 30 sec
-Lowering Time: 30 sec
-Power: 110V, 60Hz, 1 PH-18A
-Ship Weight: 970 lbs

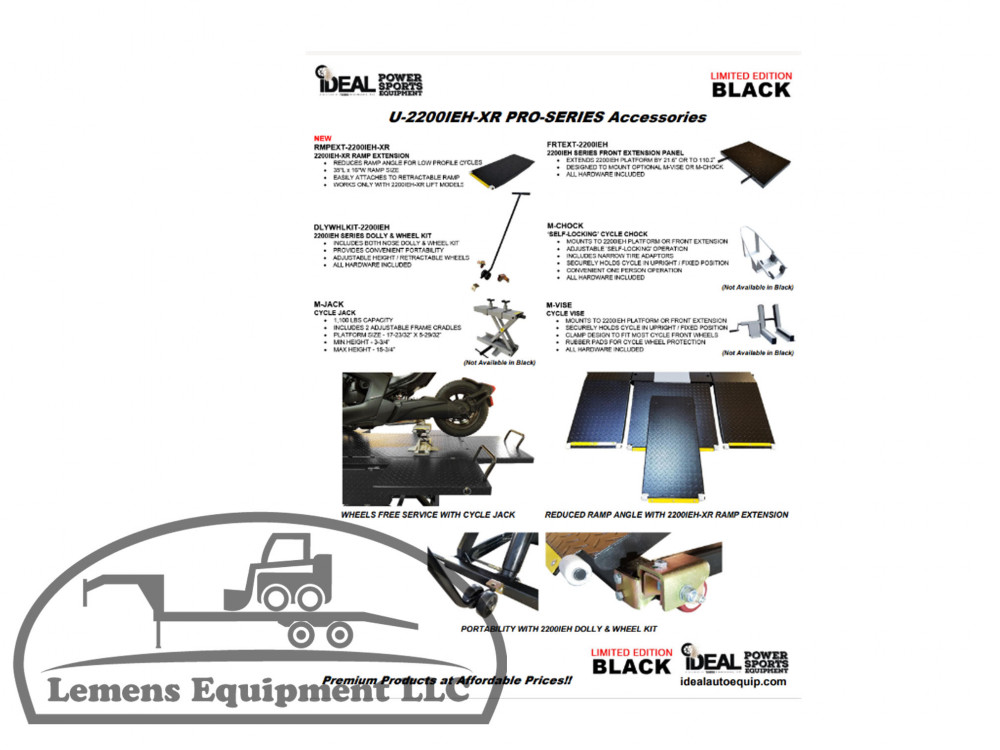

Optional Accessories

RMPEXT-2200IEH-XR Ramp Extension
-Reduces ramp angle for low profile cycles
-35"L x 16"W ramp size
-Easily attaches to retractable ramp
-Works only with 2200IEH-XR lift models

FRTEXT-2200IEH Front Extension Panel
-Extends 2200IEH platform by 21.6" or to 110.2"
-Designed to mount optional M-Vise or M-Chock
-All hardware included

DLYWHLKIT-2200IEH Dolly & Wheel Kit
-Includes both nose dolly & wheel kit
-Provides convenient portability
-Adjustable height/retractable wheels
-All hardware included

M-Chock ‘Self-Locking’ Cycle Chock (not available in black)
-Mounts to 2200IEH platform or front extension
-Adjustable ‘self-locking’ operation
-Includes narrow tire adaptors
-Securely holds cycle in upright/fixed position
-Convenient one person operation
-All hardware included

M-Jack Cycle Jack (not available in black)
-1,100 lbs capacity
-Includes 2 adjustable frame cradles
-Platform size: 17-23/32" x 5-29/32"
-Min Height: 3-3/4"
-Max Height: 15-3/4"

M-Vise Cycle Vise (not available in black)
-Mounts to 2200IEH platform or front extension
-Securely holds cycle in upright/fixed position
-Clamp design to fit most cycle front wheels
-Rubber pads for cycle wheel protection
-All hardware included

Warranty
-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

Thank You!
We do high volume at low prices, take lots of pictures and videos, and give detailed descriptions and specs so you KNOW you are getting a quality lift. Thank you to all current and future customers who appreciate the hard work we have put into this and choose to do business with us. Spend less time figuring out what you are buying, and more time enjoying it!

Delivery

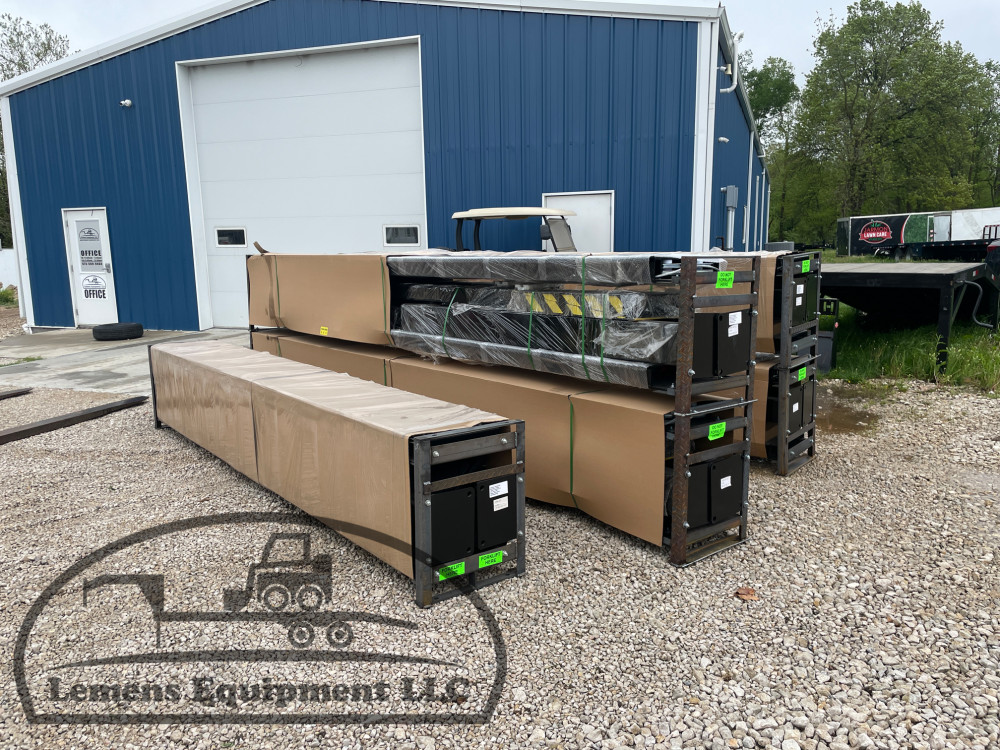

We can deliver to you, anywhere in the USA! Forklift or skid steer with forks will be required to unload, optionally we can bring that also and unload it for you. If you pick it up from us here in Eldon MO, we can load it on your trailer, then you could unassemble it at home off your trailer piece by piece without the need for a fork lift.
