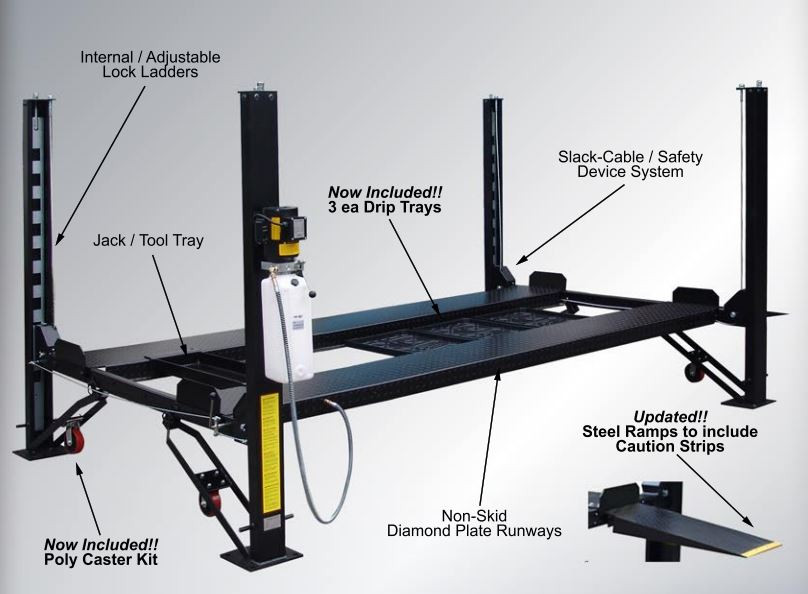

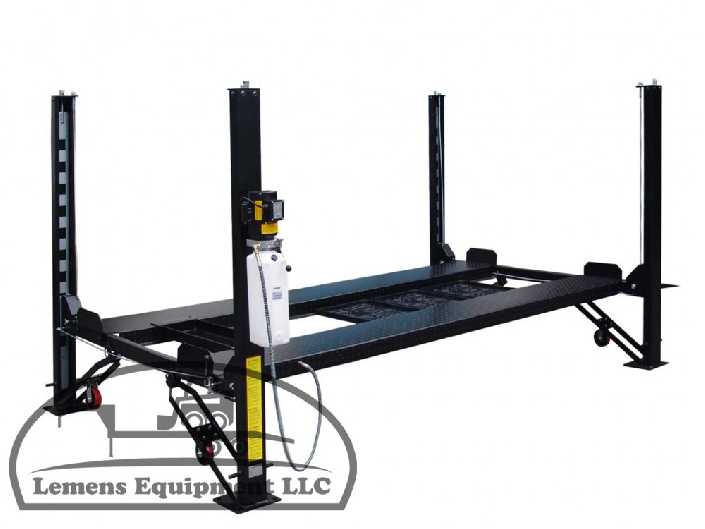

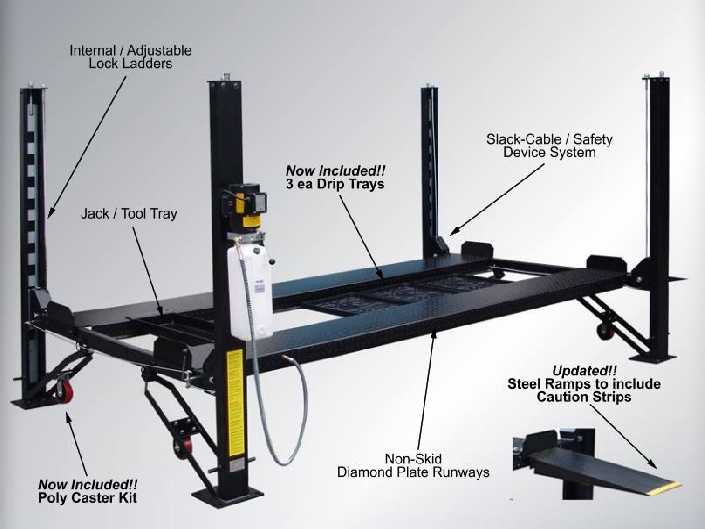

The Tuxedo FP8K-DX-XLT 8,000 lb. deluxe four post lift is a durable high quality, cable pull vehicle lift, designed for storing, inspecting & servicing most cars, suv’s, vans & trucks, while also providing space-saving parking solutions for most residential garages & shops.

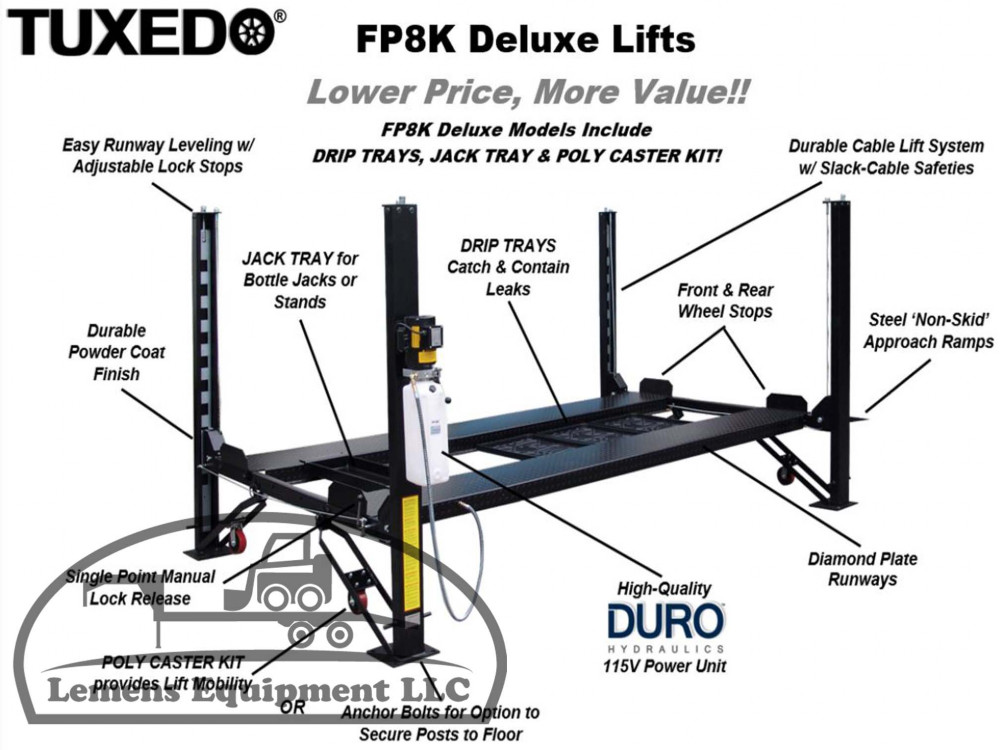

The FP8K deluxe model includes drip trays, a jack tray & a poly caster kit for moving the lift around on wheels. It incorporates the latest in design & safety features with reliable hydraulic operation, durable mechanical cable lift system with a slack-cable safety device and cable pulley shaft design with grease fittings to assist extending the life of the lift. The FP8K lift comes in two model sizes, the FP8K-DX ‘standard’ for small to mid-sized vehicles, while the FP8K-DX-XLT ‘extended’ provides additional lift height, width & length for larger vehicles. Easy lift operation is provided with single point mechanical lock release and a 115V electric / hydraulic high-quality power unit, while also having the option either to anchor the posts to the floor or keep mobile, using the poly caster kit. With durable powder coat finish, wide diamond plate runways, front & rear wheel stops & adjustable lock stops for easy runway leveling, the FP8K lifts are economically priced with all the features, all for an unmatched value!

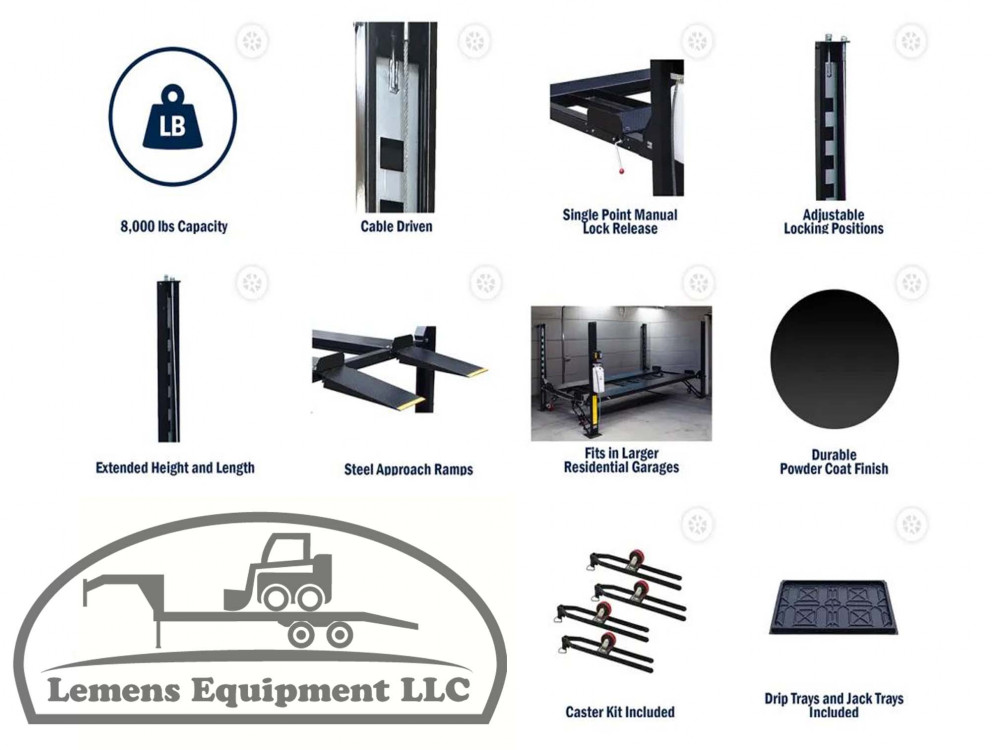

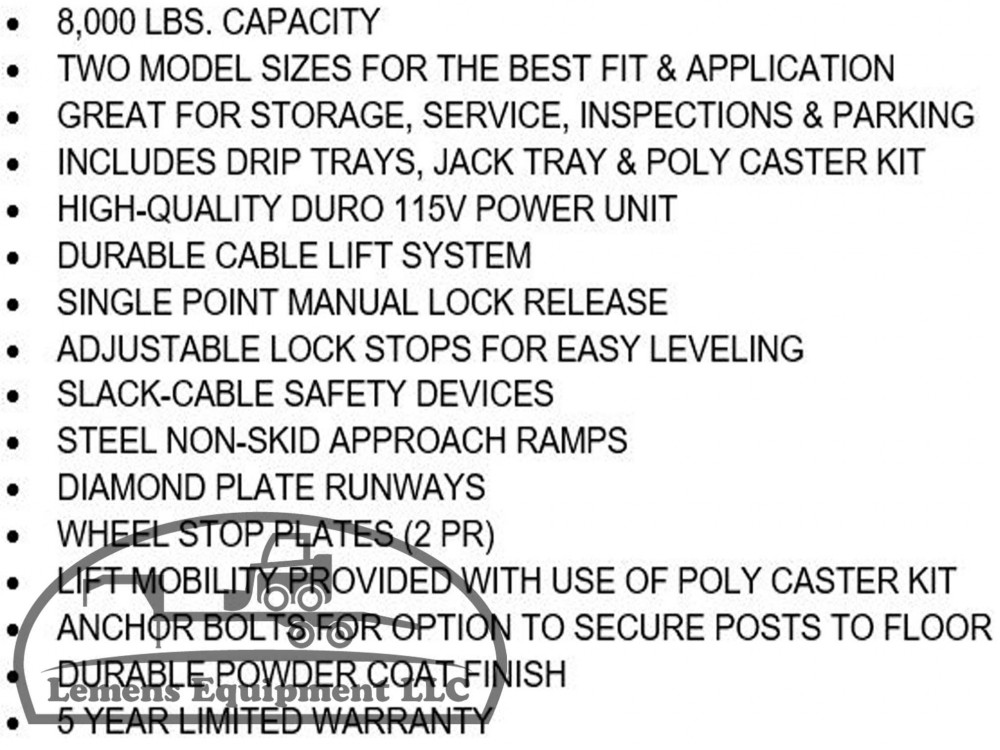

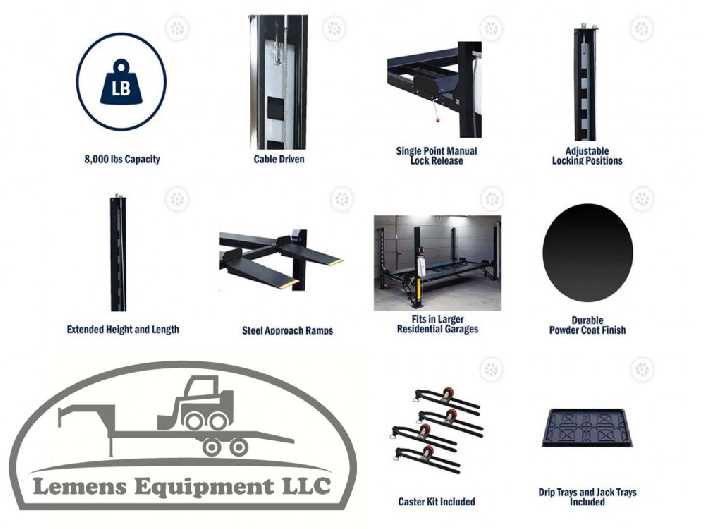

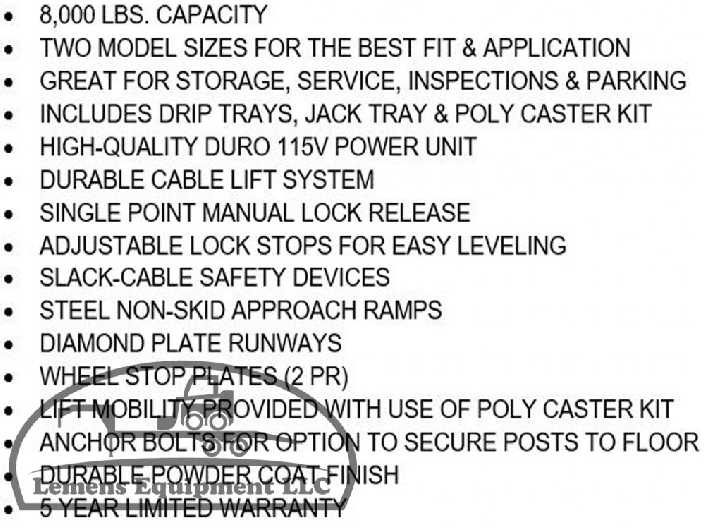

GENERAL

-Capacity: 8,000 lbs
-Extended model for larger vehicles
-Great for storage, service, inspections, and parking!

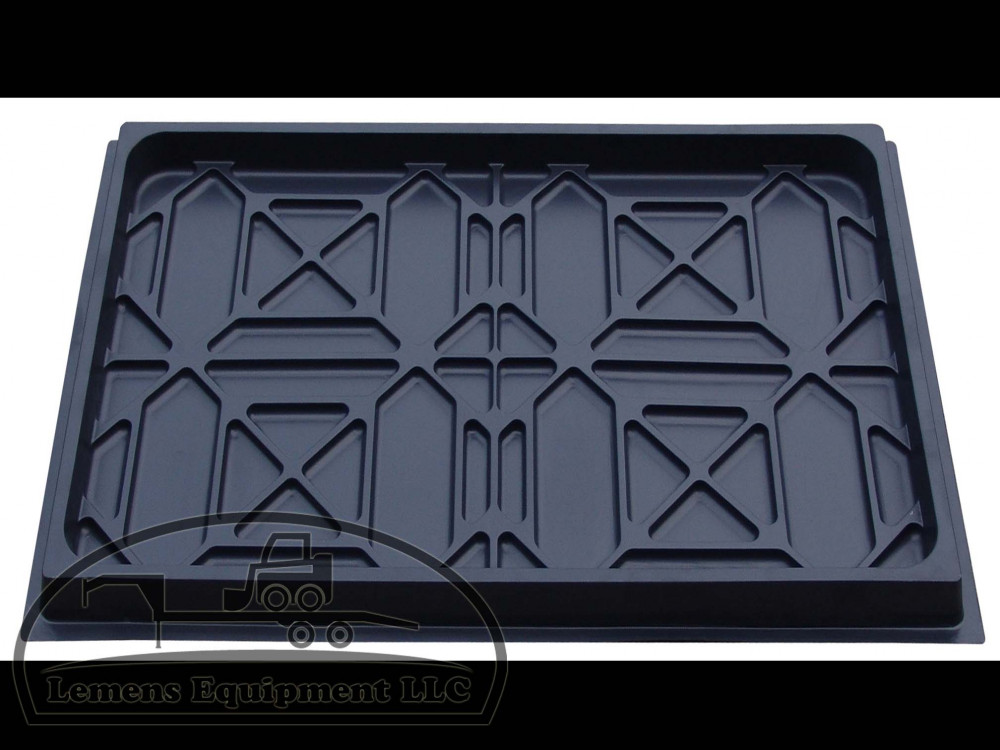

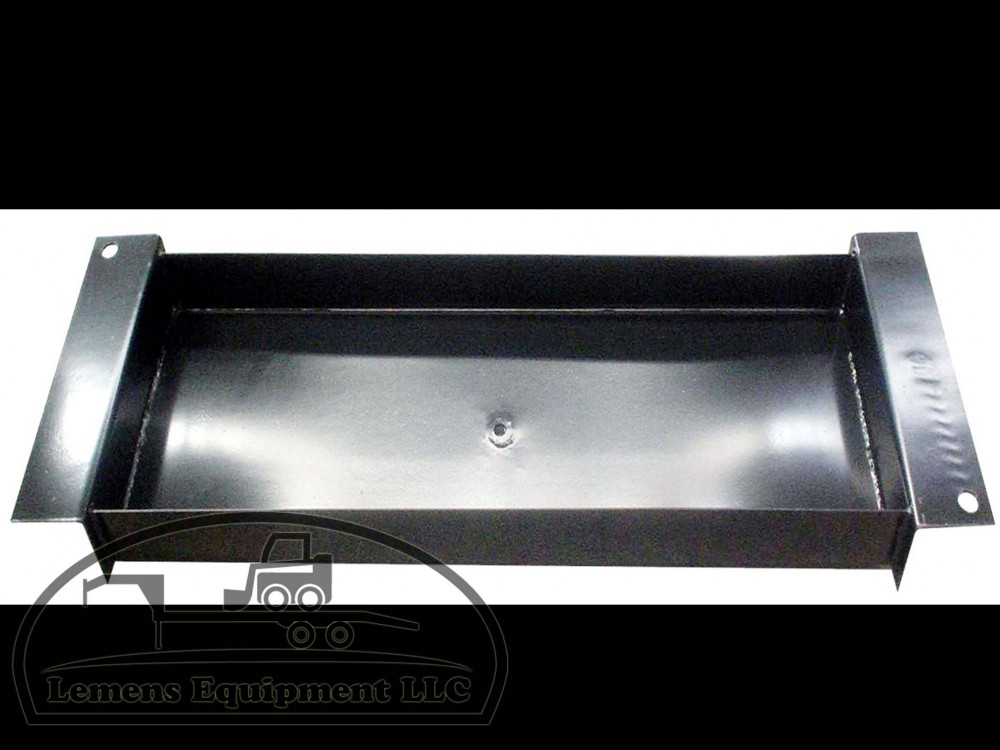

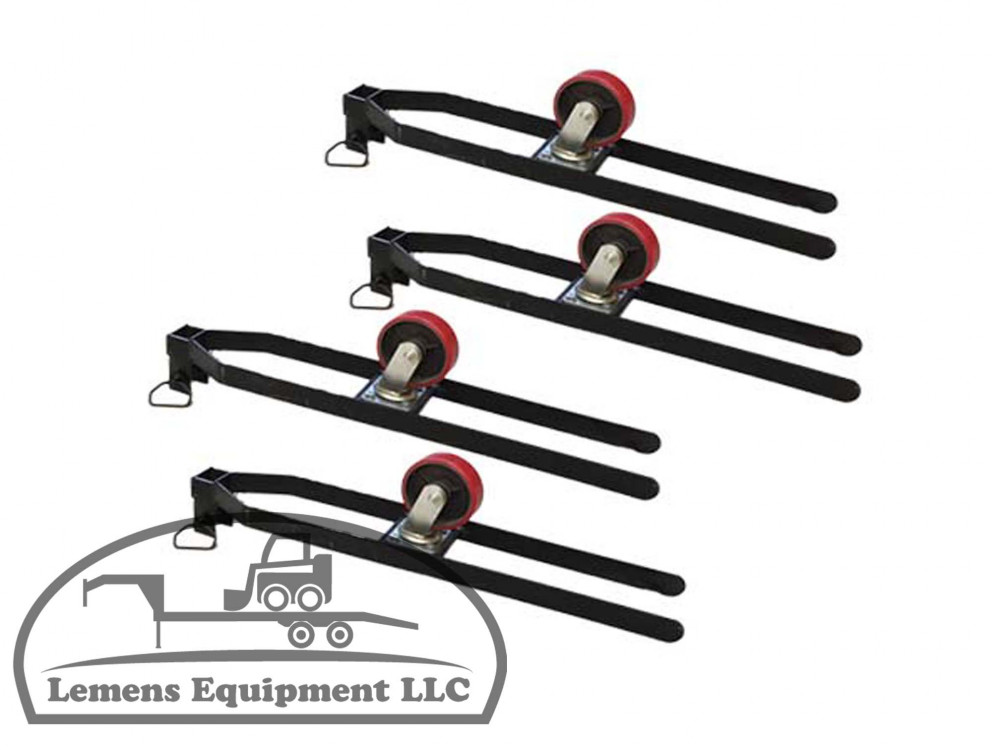

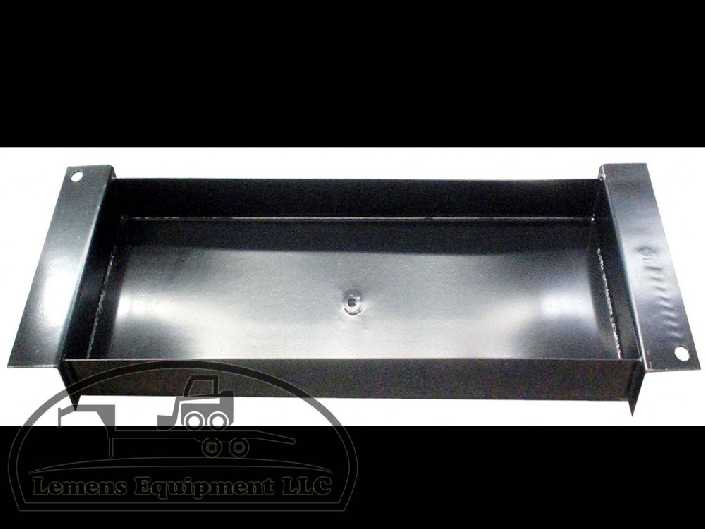

-Includes: Drip Tray, Jack Tray, and a Poly Caster Kit
-High-Quality Duro 115V power unit
-Durable cable lift system
-Single point manual lock release
-Adjustable lock stops for easy leveling
-Slack-Cable safety devices

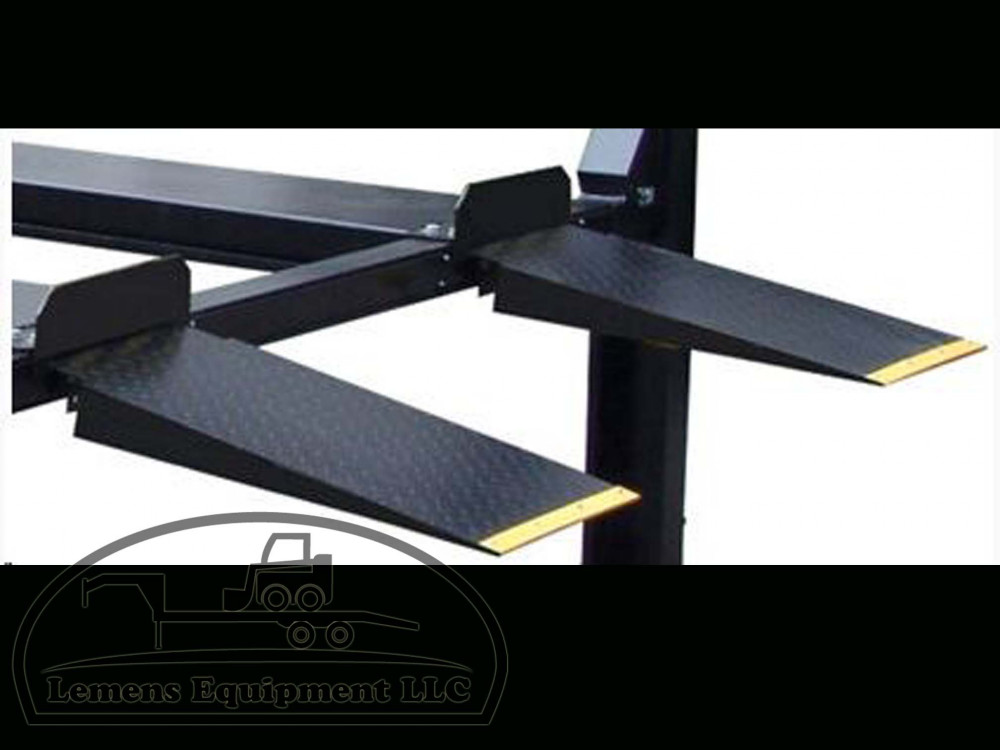

-Steel non-skid approach ramps
-Diamond plate runways
-Front and rear wheel stop plates (2 pair)
-Durable powder coat finish

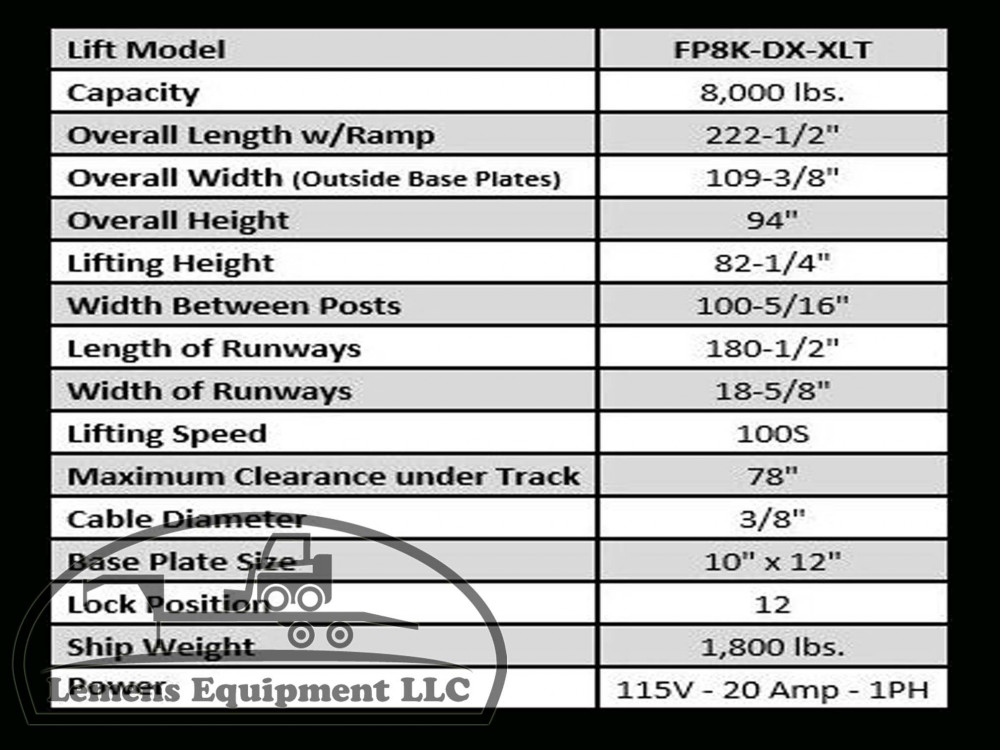

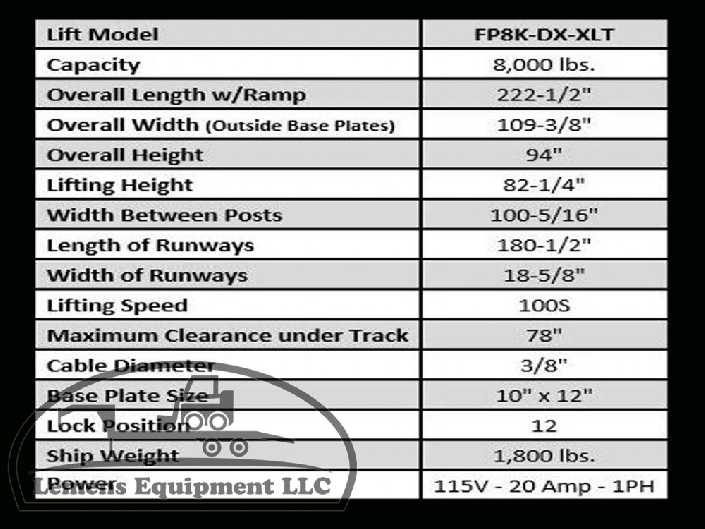

CONSTRUCTION

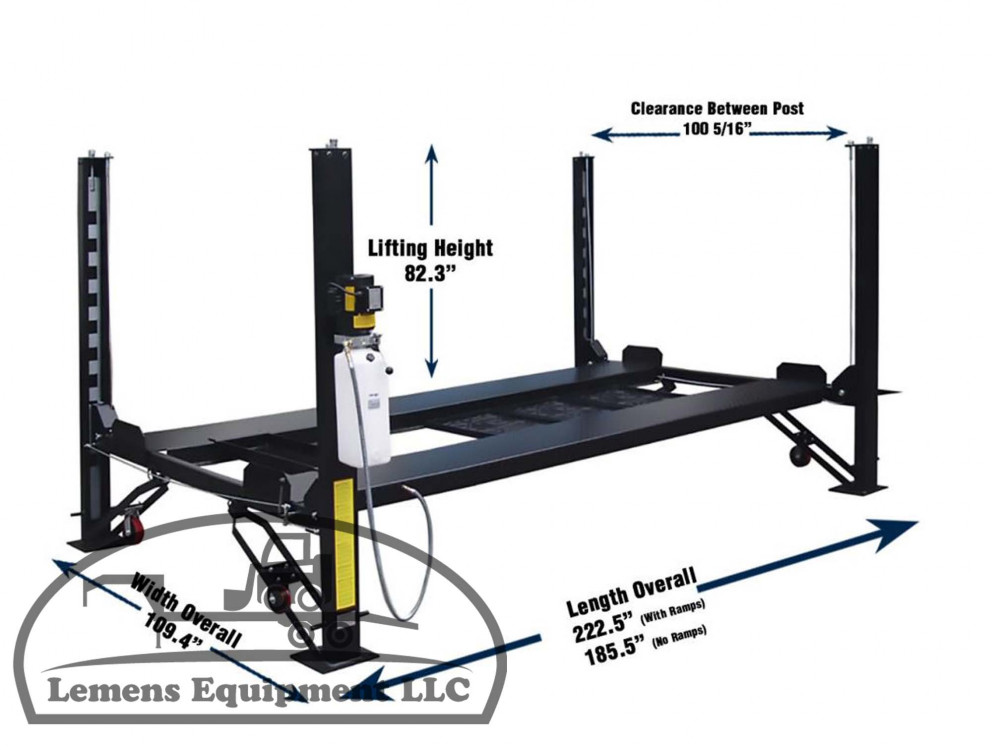

-Overall length with ramp: 222-1/2"
-Overall width (outside base plates): 109-3/8"
-Overall height: 94"
-Lifting height: 82-1/4"
-Width between posts: 100-5/16"
-Length of runways: 180-1/2"
-Width of runways: 18-5/8"
-Lifting speed: 100 seconds
-Maximum clearance under track: 78"
-Cable diameter: 3/8"
-Base plate size: 10" x 12"
-Lock position: 12
-Ship weight: 1,800 lbs
-Power: 115V - 20 Amp - 1PH

OPTIONAL

-Comes with anchor bolts to optionally secure posts to floor

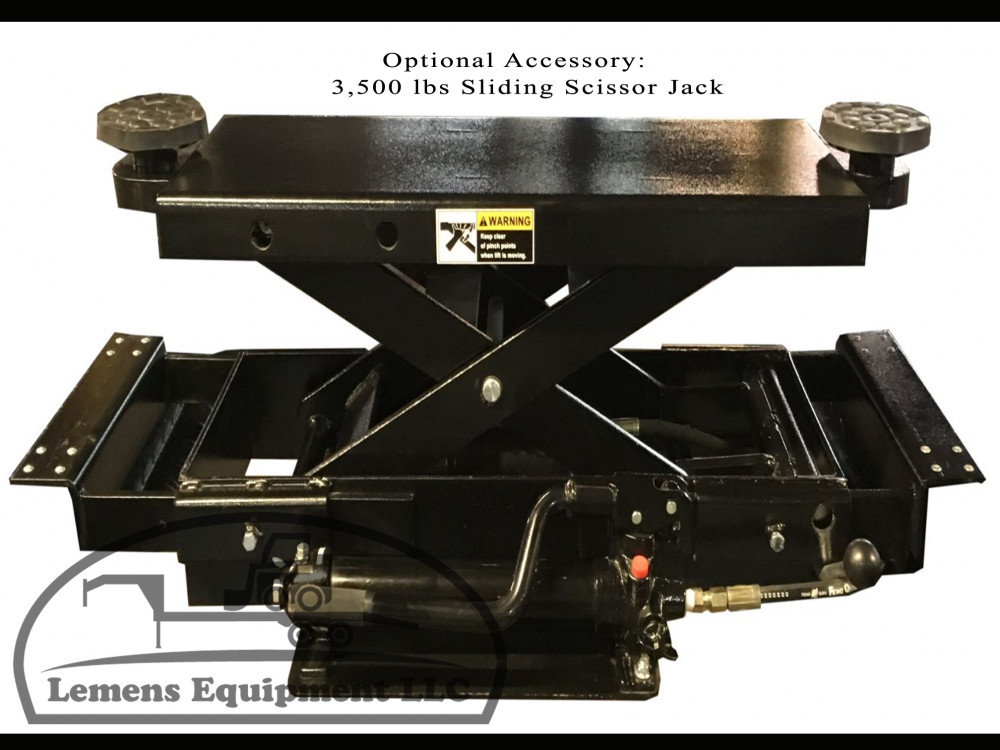

-Add-on accessory: 3,500 lbs sliding scissor jack ($1,261)

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

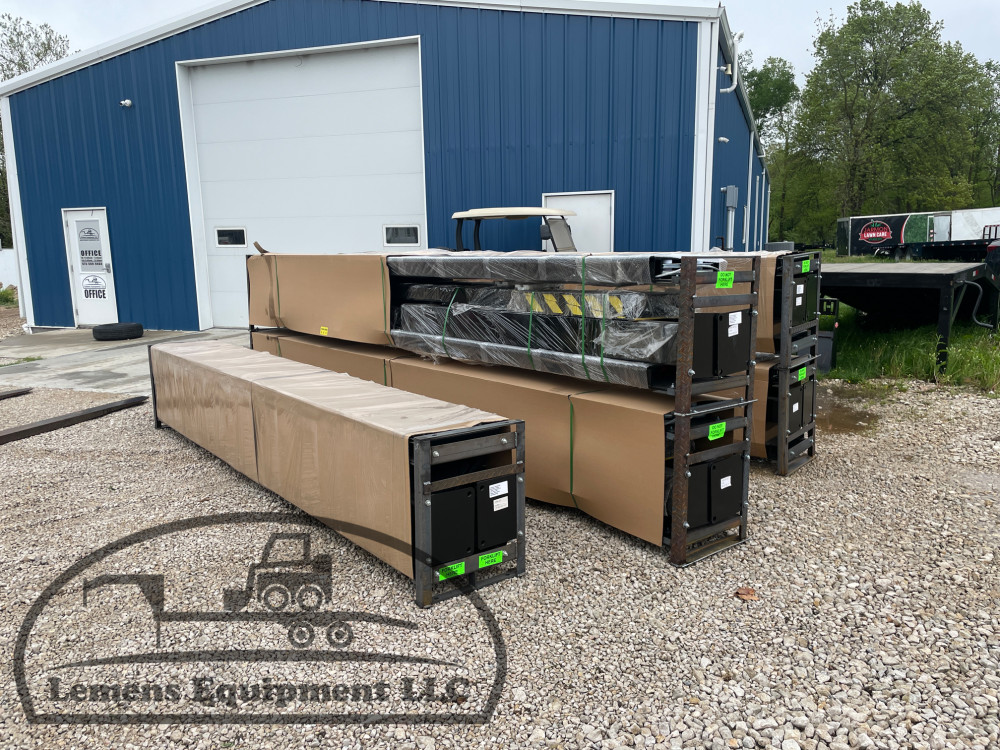

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselfs via LTL.
