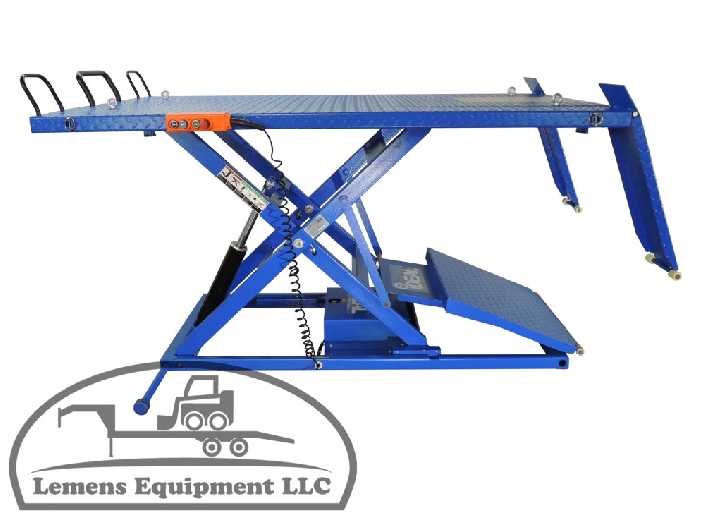

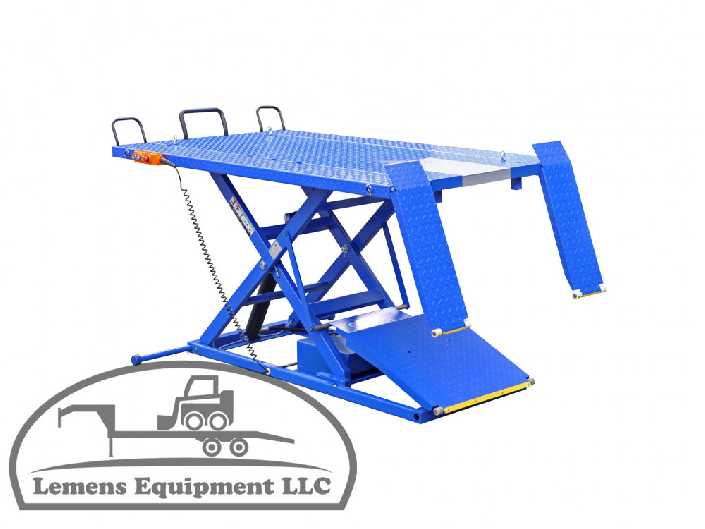

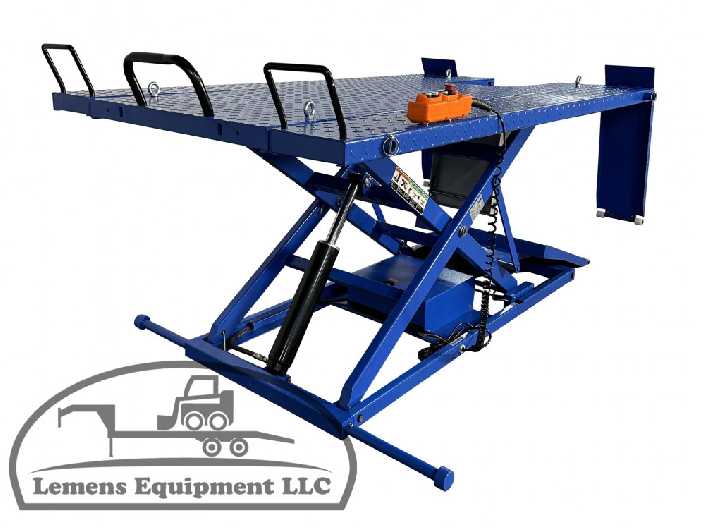

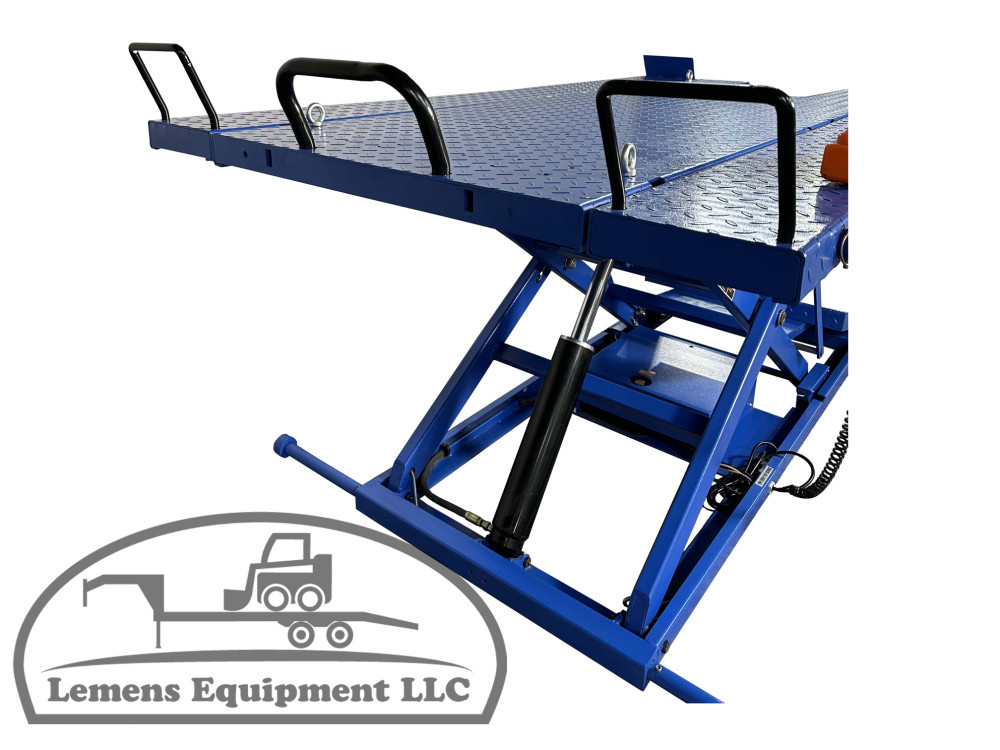

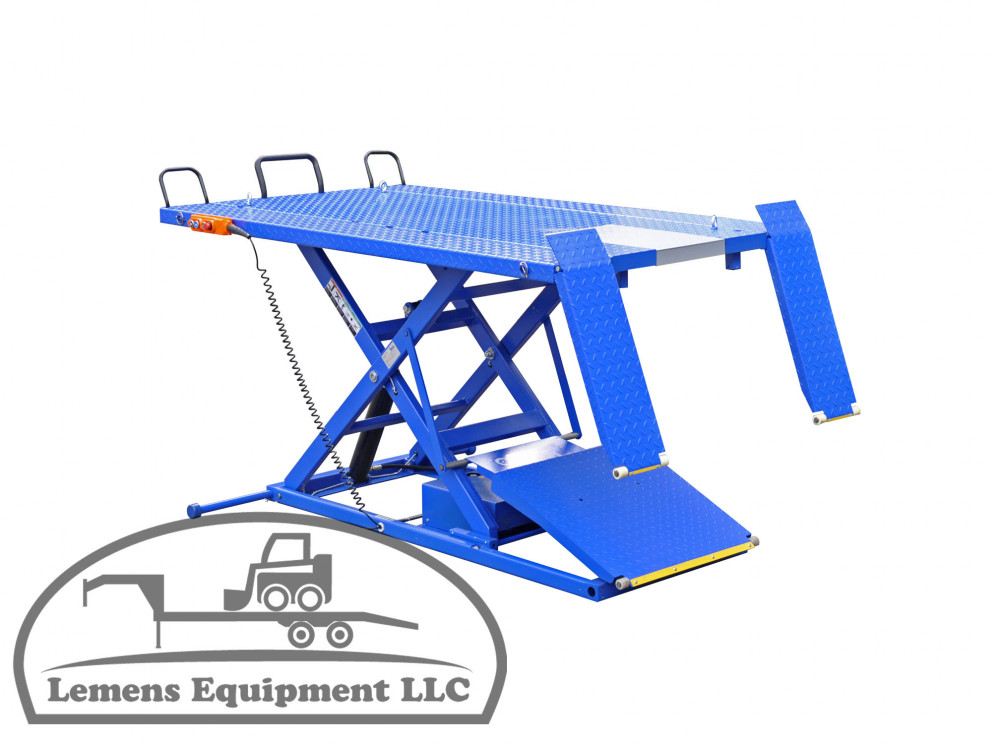

The A-2200IEH-XR is up to the challenge of lifting all ATV’s on the market today. In addition to our new and innovative retractable ramp system the A-2200IEH-XR has pivot approach ramps that fold out of the way as the lift raises and become wheels stops. Keeping the technician in mind these features limit injury, save time and space which makes your shop area more productive. Our single point hand held pendant fully controls the lift; lifting, lowering into locks and lowering without the use of hands or feet to disengage manual safety latches.

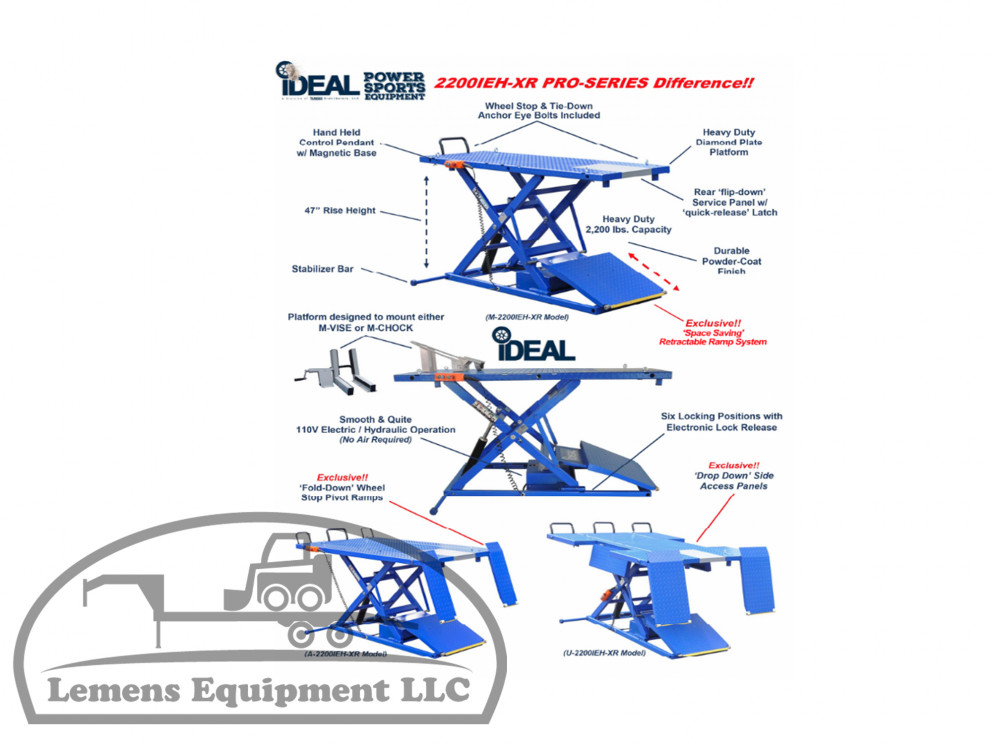

General
-Capacity: 2,200 lbs

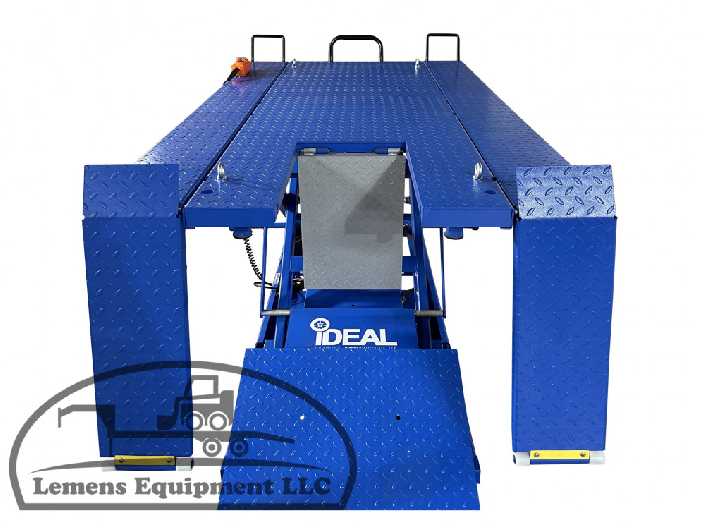

-Exclusive ‘full width’ retractable ramp system

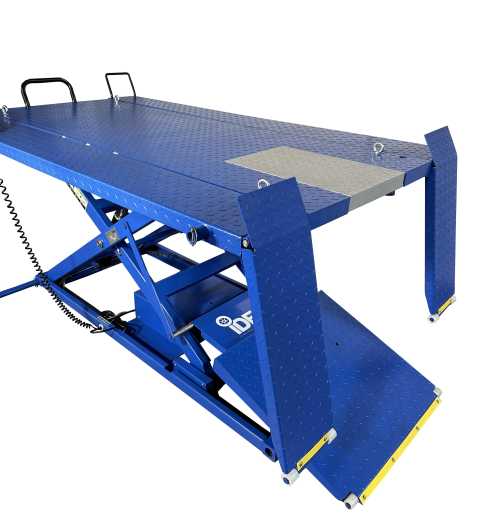

-Pivot approach ramps
-47" rise height
-110V integrated electric/hydraulic power unit

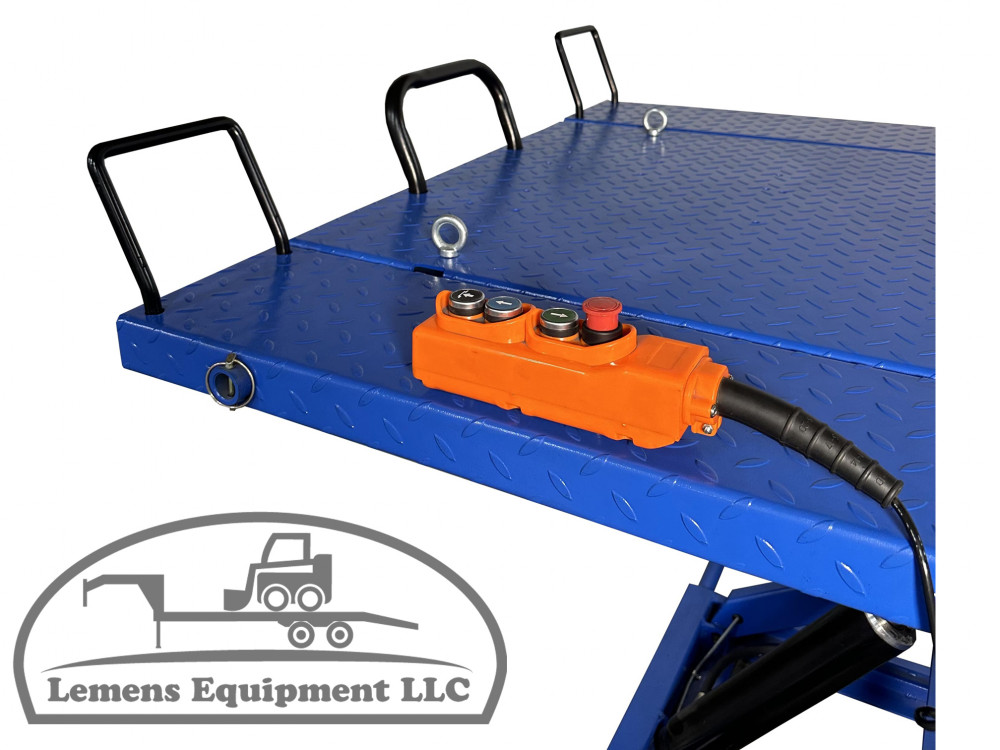

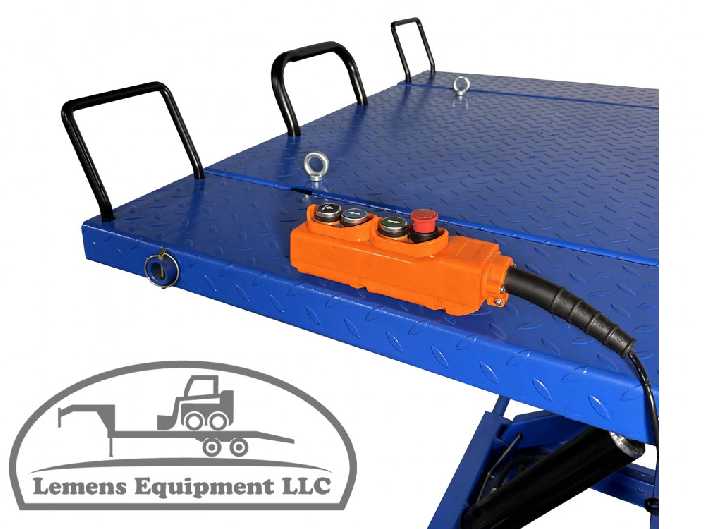

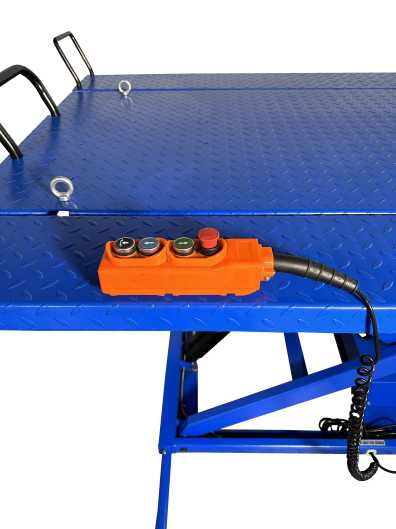

-Hand held control pennant
-Magnetic lock release with 6 locking positions
-Quick release/fold down rear service panel
-Stabilizer Bar

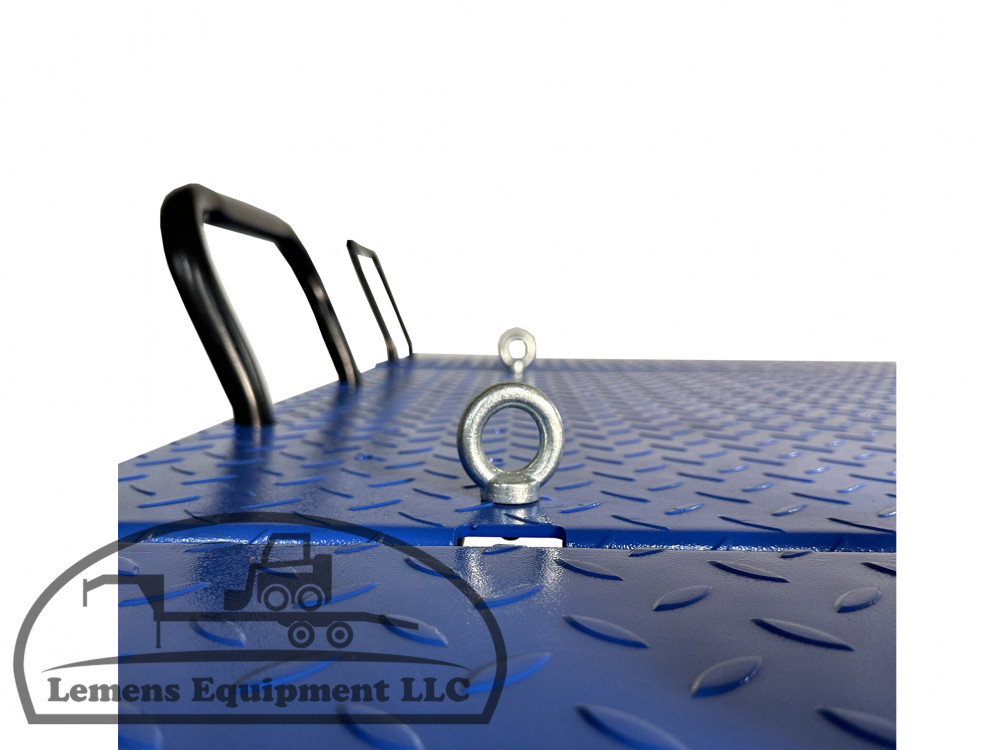

-Tie-down anchor eye bolt
s and wheel stops included
-Platform designed to mount optional m-vise or m-chock
-Extended 27.5" long full width approach ramp
-50" x 88.6" table

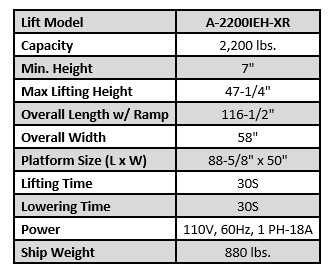

Construction
-Lifting Height (max): 47.2"
-Lifting Height (min): 7"
-Width Overall: 58.5"
-Length Overall: 116.5" (fully lowered)
-Platform Length: 88.6"
-Platform Width: 50"
-Power Supply: 110V, 60Hz, 1 Phase, 18A
-Lifting Time: 30 sec
-Lowering Time: 30 sec
-Gross Weight: 980 lbs

Optional Accessories
-Vise
-Chock
-Dolly Kit

Warranty
-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

Thank You!
We do high volume at low prices, take lots of pictures and videos, and give detailed descriptions and specs so you KNOW you are getting a quality lift. Thank you to all current and future customers who appreciate the hard work we have put into this and choose to do business with us. Spend less time figuring out what you are buying, and more time enjoying it!

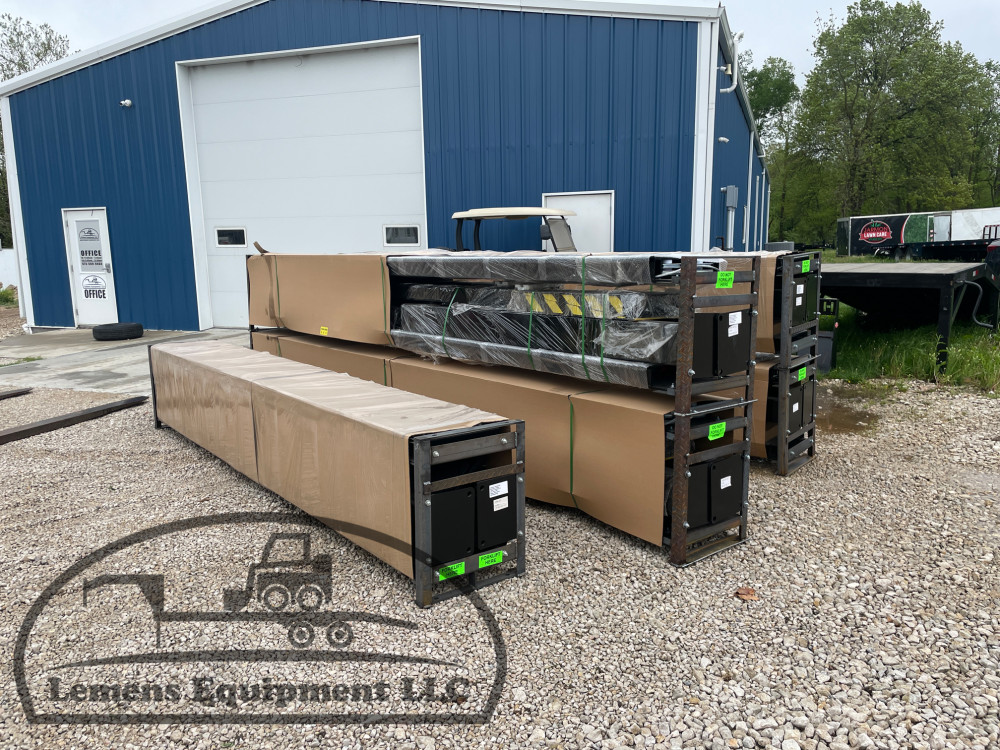

Delivery
We can deliver to you, anywhere in the USA! Forklift or skid steer with forks will be required to unload, optionally we can bring that also and unload it for you. If you pick it up from us here in Eldon MO, we can load it on your trailer, then you could unassemble it at home off your trailer piece by piece without the
need for a fork lift.
