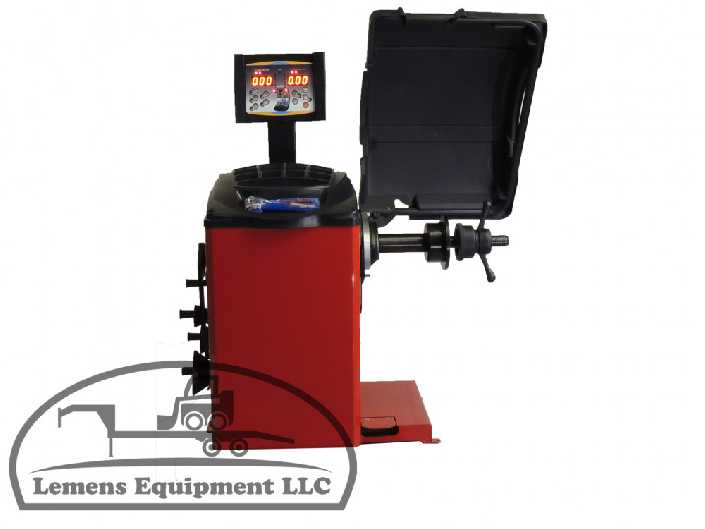

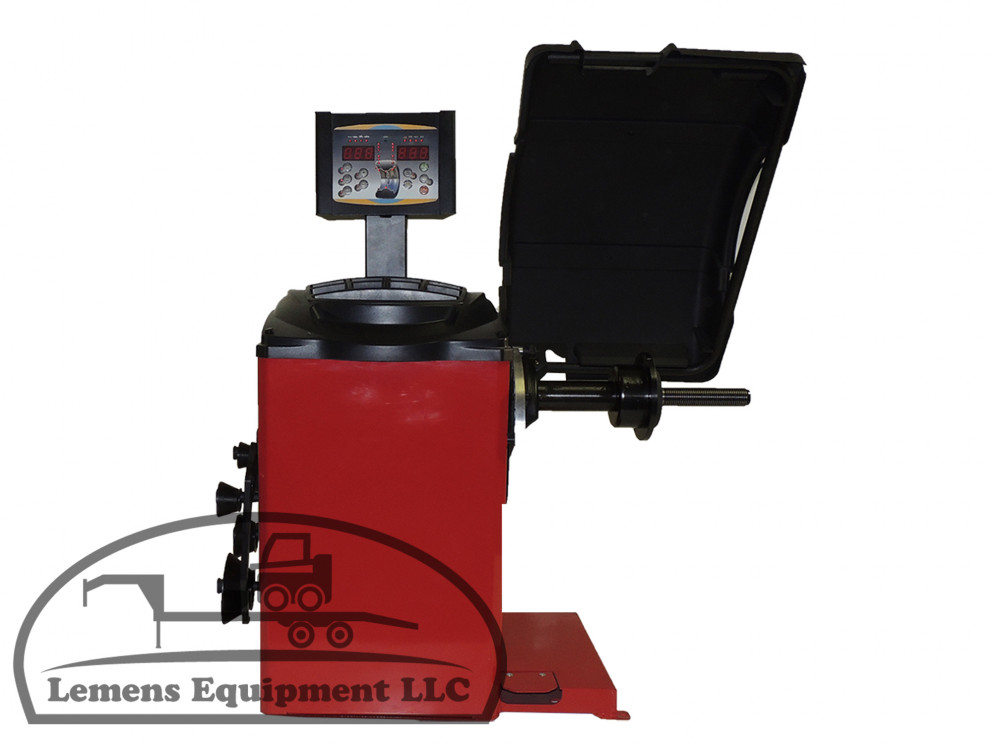

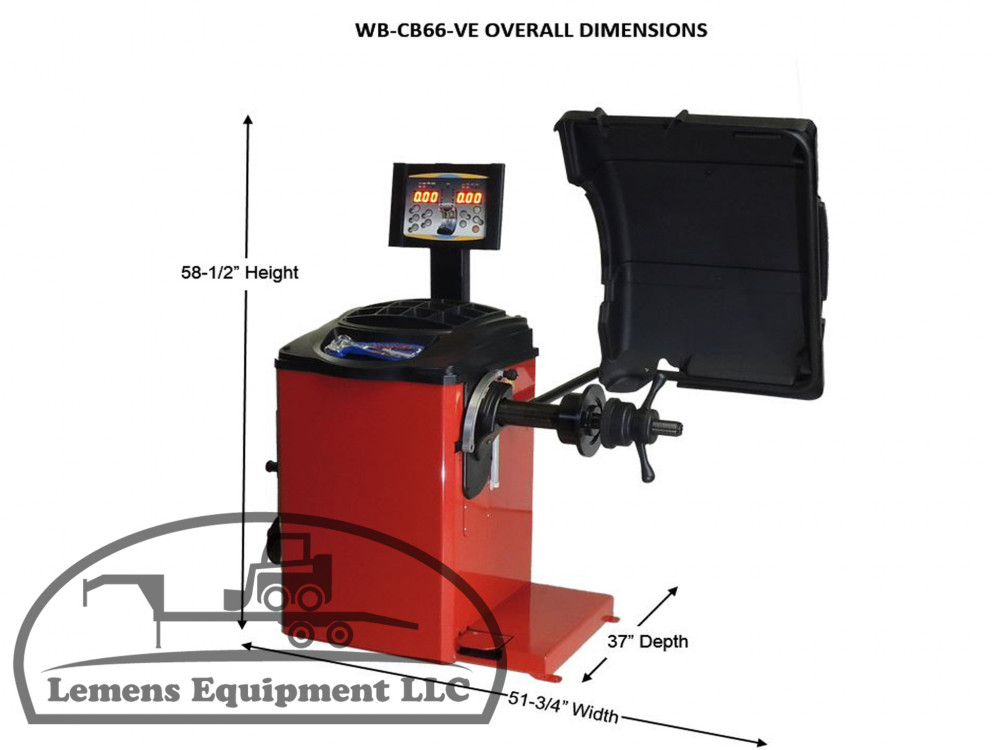

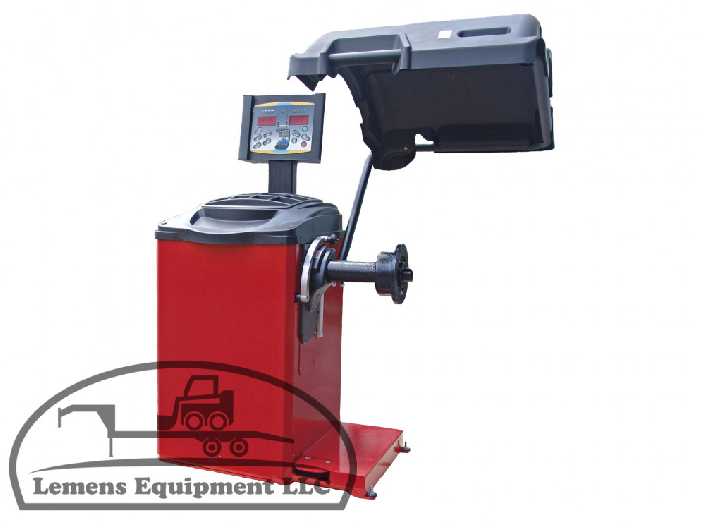

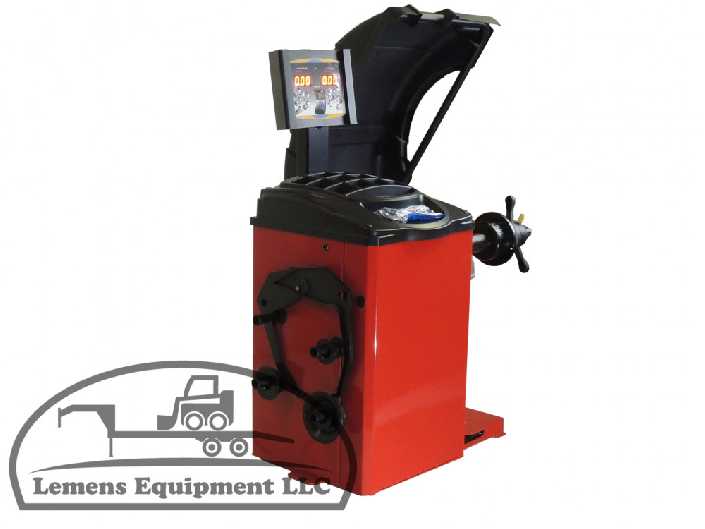

Wheel Balancer WB-CB66-VE

+$2,125 MSRP
+$180 freight it took to get it here
+$132 tax (6.225%)
$2,437 out the door (cash, check and venmo. Cards there is a 2.9% merchant fee)

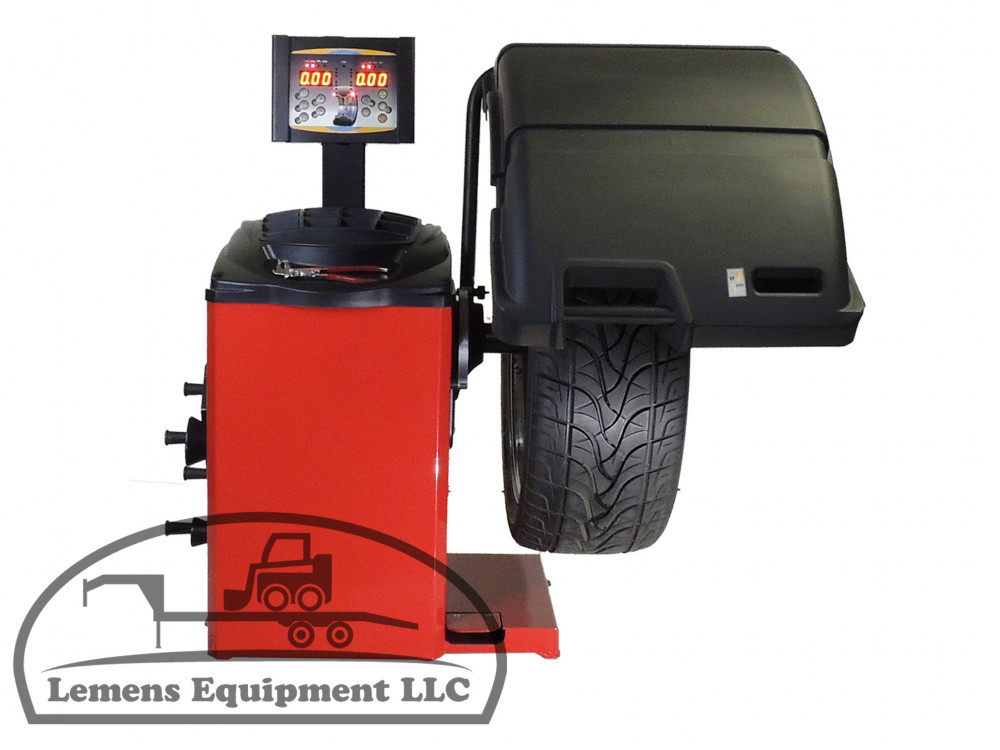

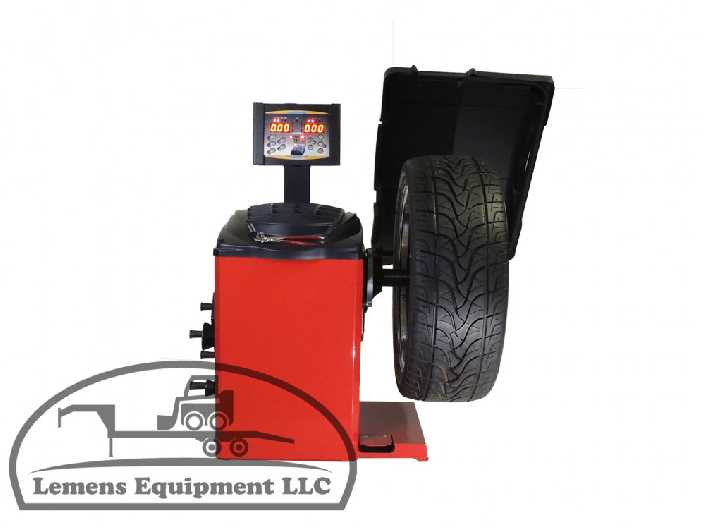

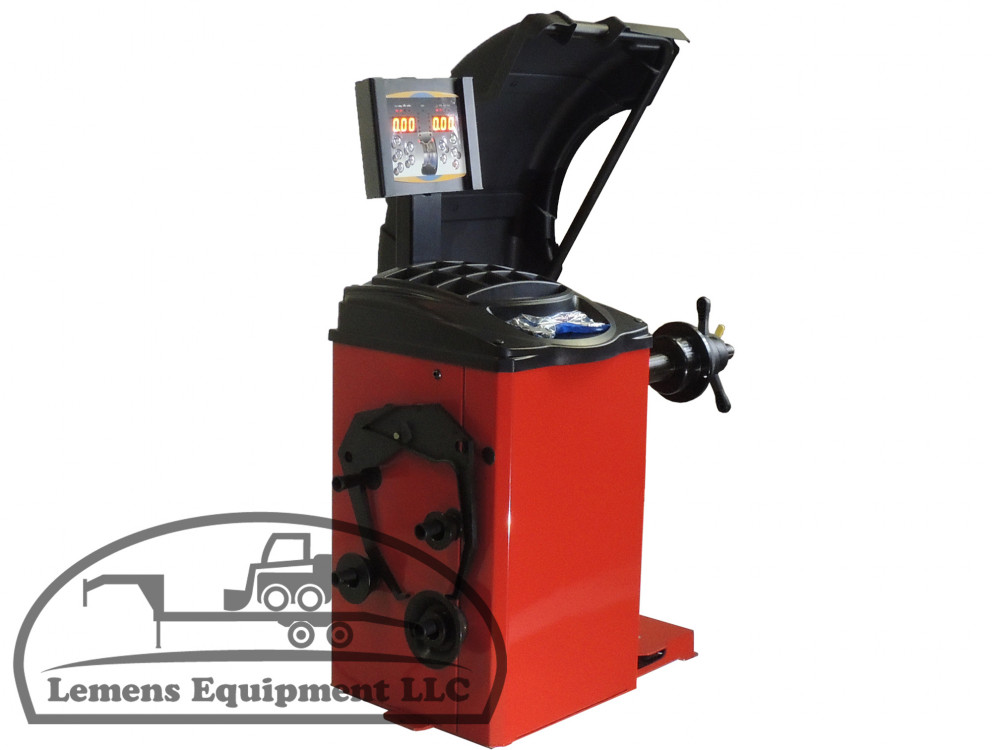

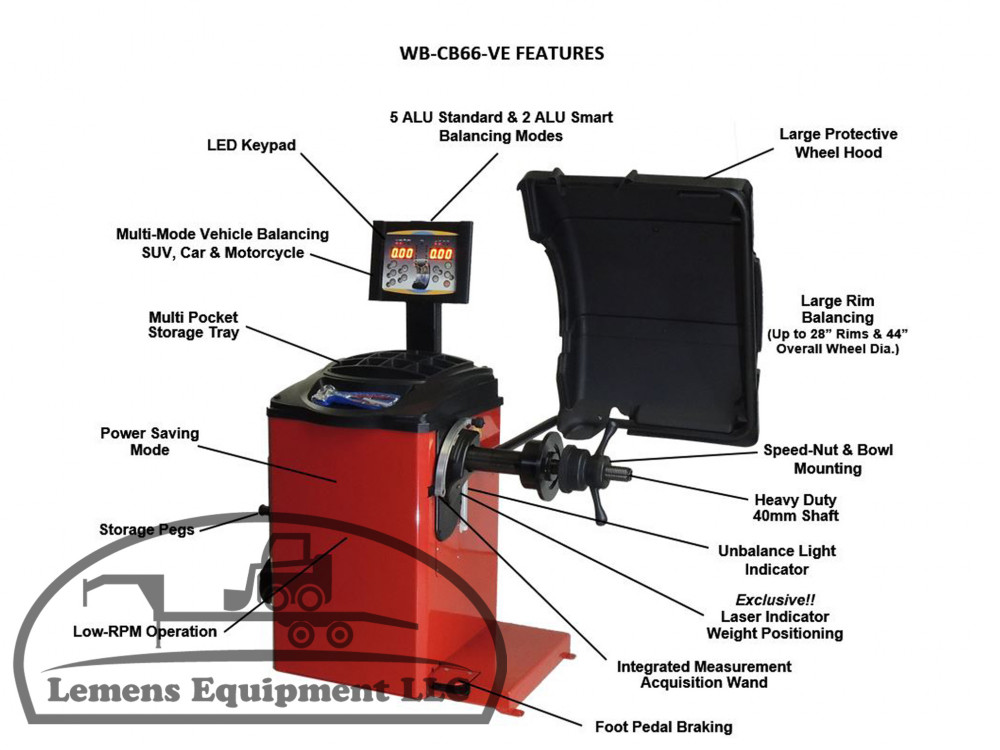

The CB66-VE Wheel Balancer is a highly accurate and reliable wheel balancing system designed to accommodate large rims up to 28" in diameter and overall wheel diameters up to 44". A 40mm balancing shaft provides incredible durability, while the exclusive laser and light feature illuminates the inside of the wheel at the unbalanced weight position, for convenient and precise wheel weight applications. The CB66-VE also comes standard with multi-mode balancing options, along with power saving mode, while allowing the user to choose between 5 standard and 2 ALU smart balancing configurations. A high performance balancer at an unbeatable value!

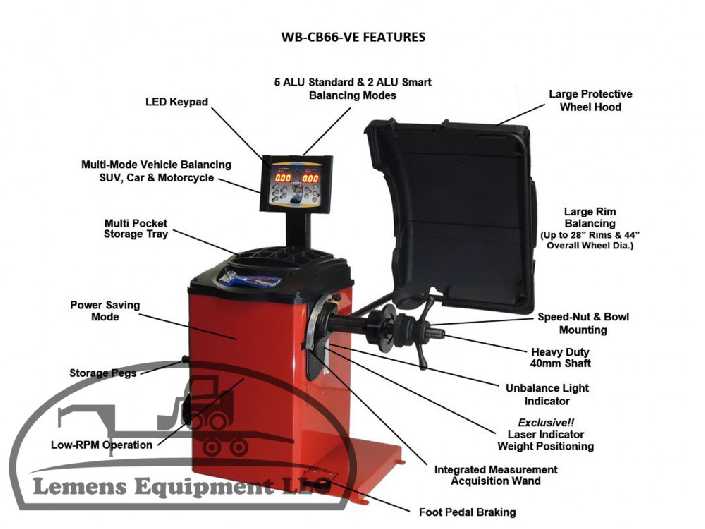

General

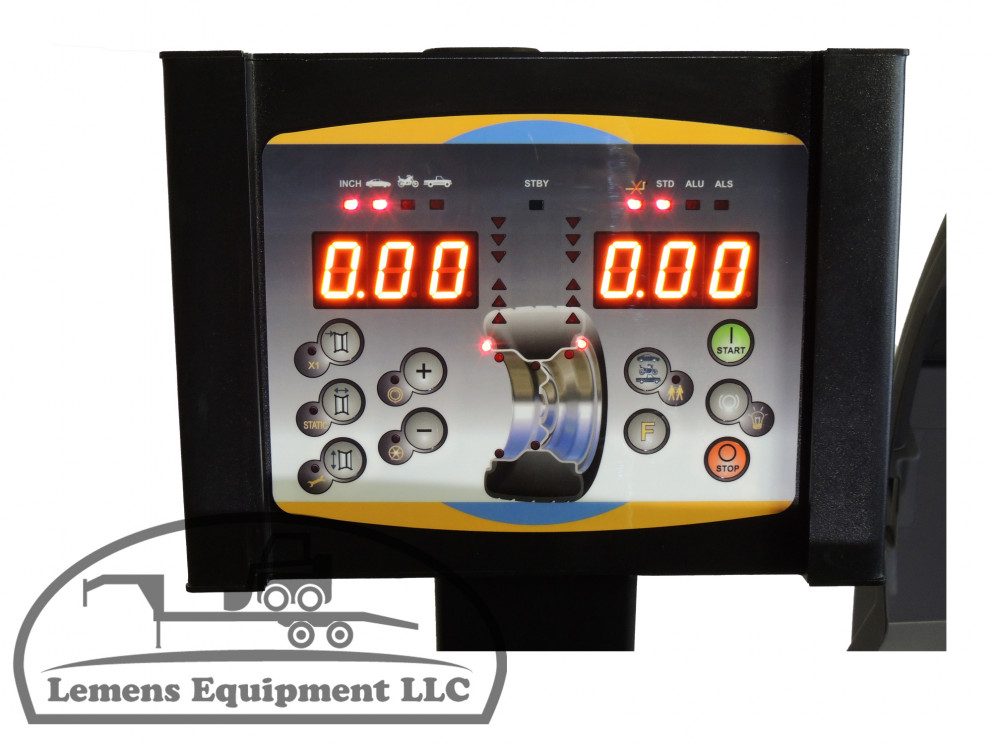

-User friendly operation: LED, touch-panel keypad with easy to read icons assisting operators utilizing all balancing functions
-Large rim diameter balancing: able to balance up to 28" rim diameter and 44" overall wheel diameter
-Multi-mode vehicle balancing: standard with suv, car, and motorcycle balancing modes
-Low-RPM operation: at 140 RPM, the balancer’s life is further extended for sensitive electronics and moving components, all while providing highly accurate wheel balancing
-Ease-of-use: with manual measurement input for distance and diameter with 5 ALU standard modes and 2 ALU smart modes
-Exclusive laser indicator: lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position
-Integrated measurement indicator: allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine
-Light indicator : illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications
-Foot pedal braking system: conveniently secures the wheel in the unbalanced position to accurately apply balanced wheel weights

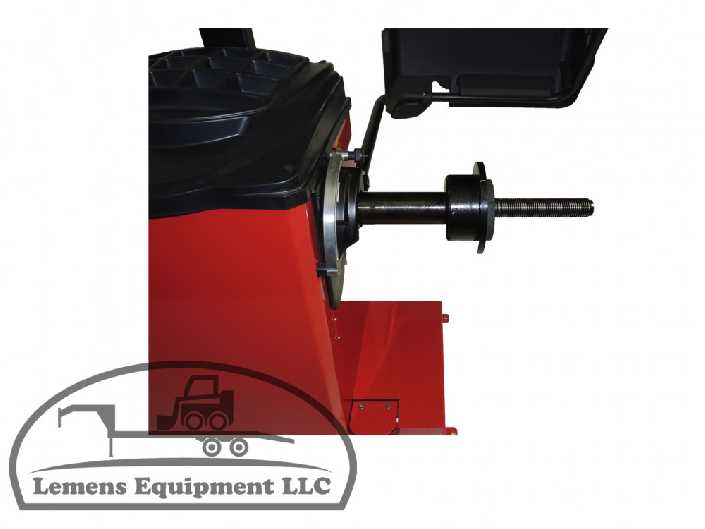

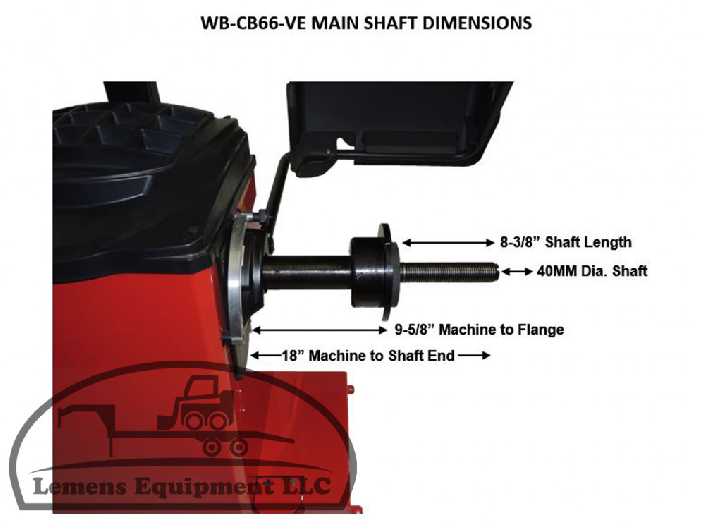

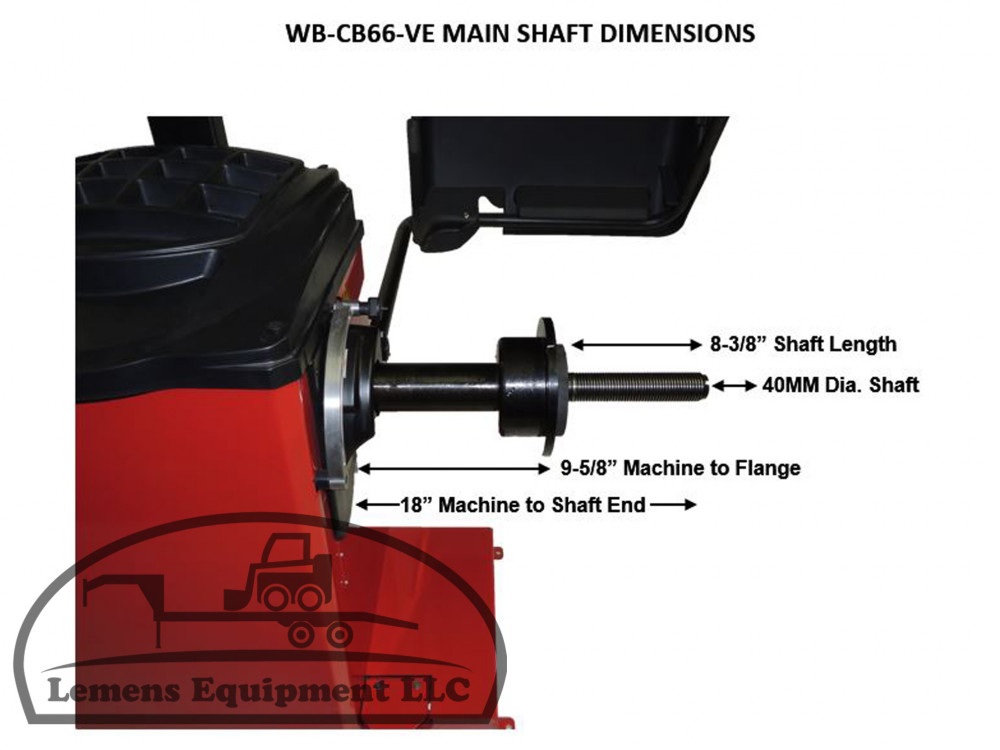

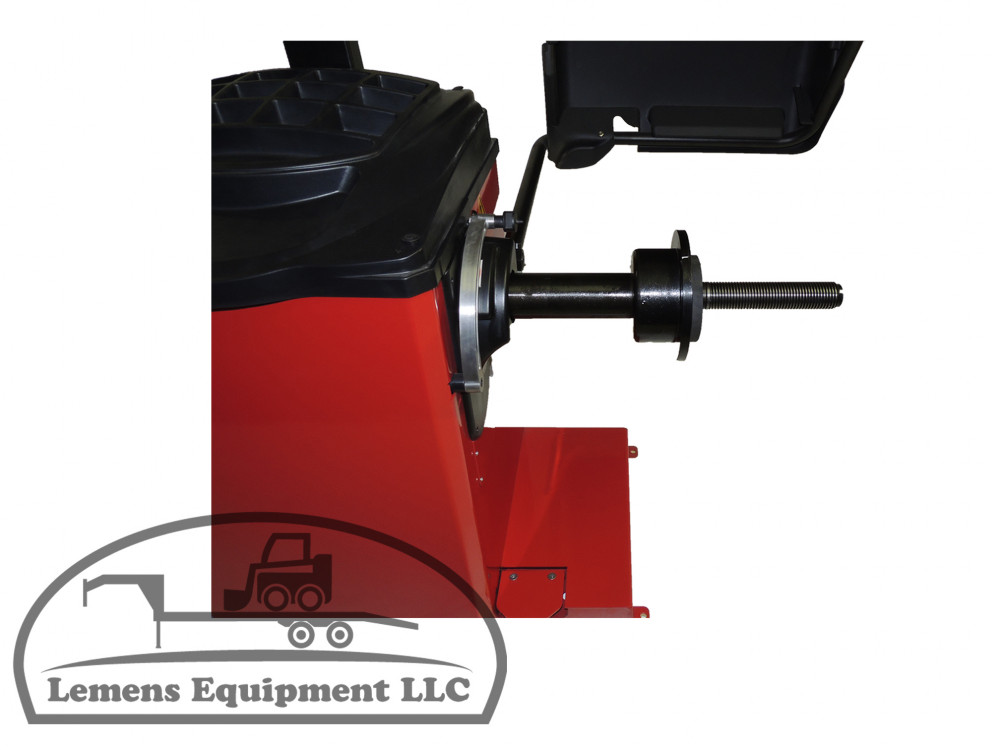

-Extra long, heavy duty balancing shaft: the 12" long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes and shapes

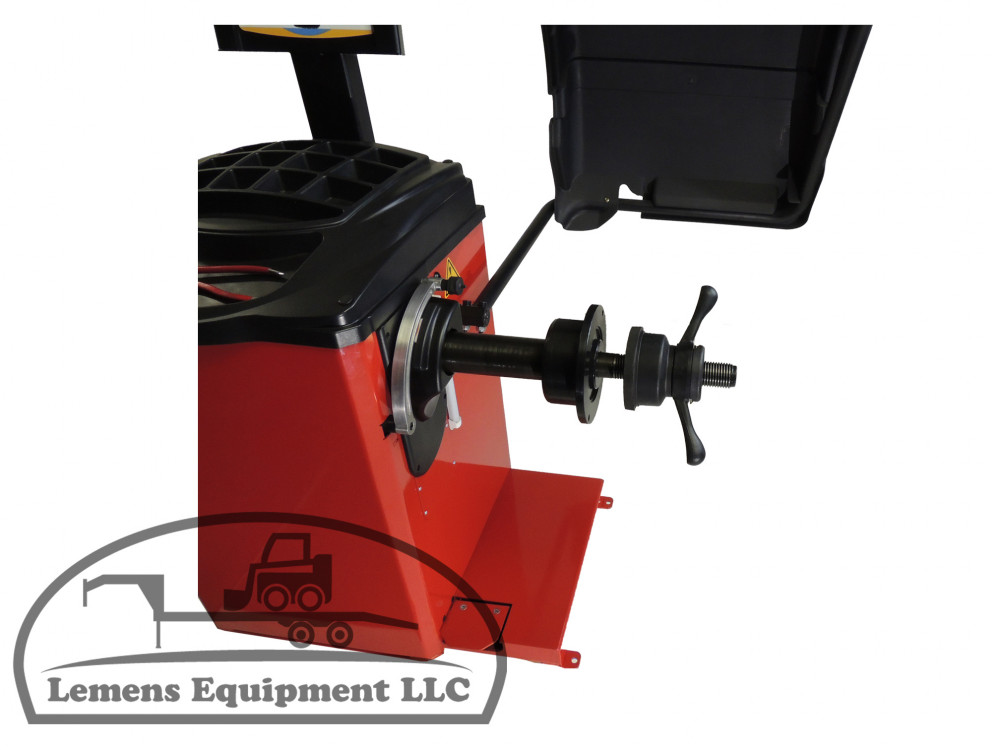

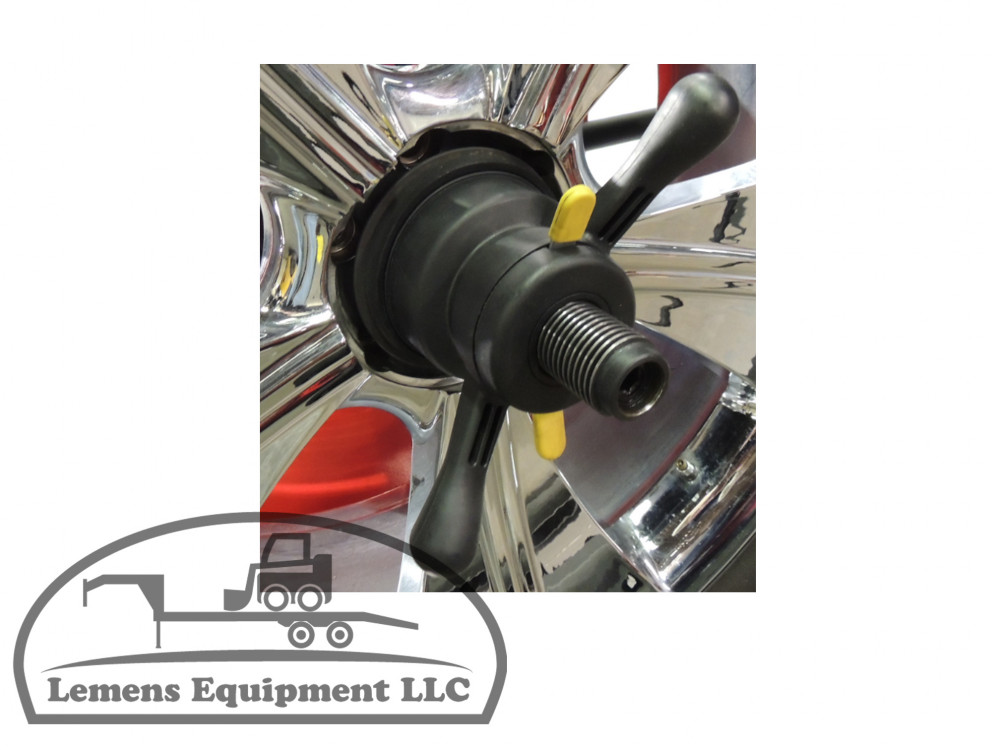

-Speed-nut mounting: the speed-nut allows for quick and efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw
-Multi pocket wheel weight shelf: 14 articulated pockets, over 1.5" deep, allowing plenty of storage for weights and tooling

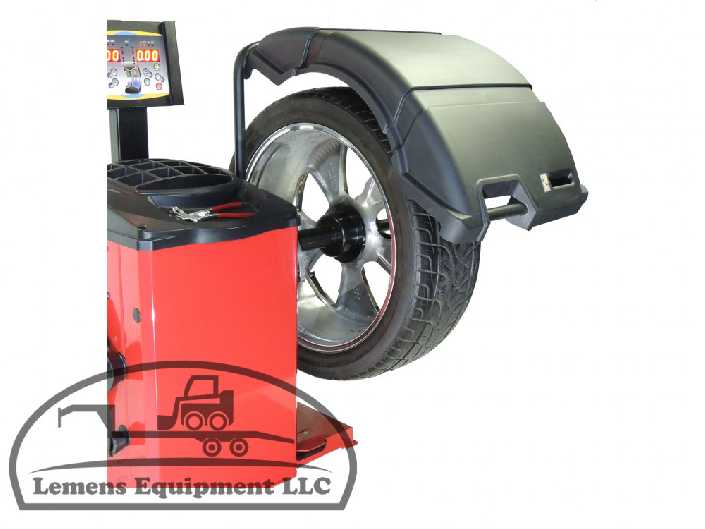

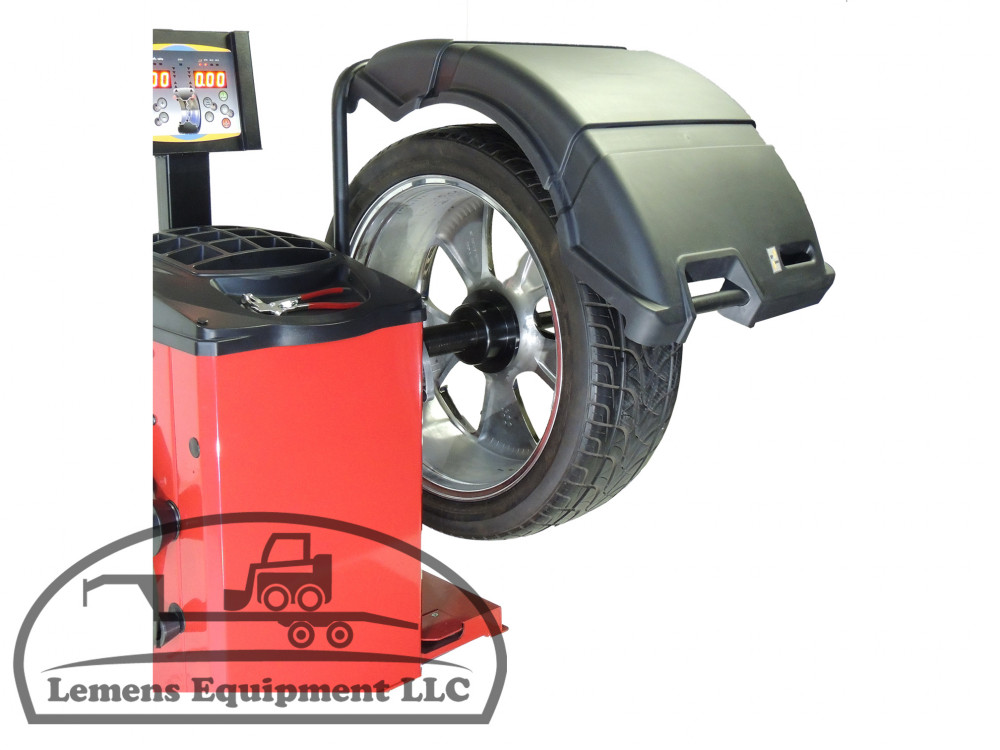

-Large wheel hood: the large 38" hood/shroud presents debris from flying off the tire while in use
-Power saving mode: automatically puts machine in stand-by mode after 5 minutes of non-usage

Construction

-Data entry: Keypad

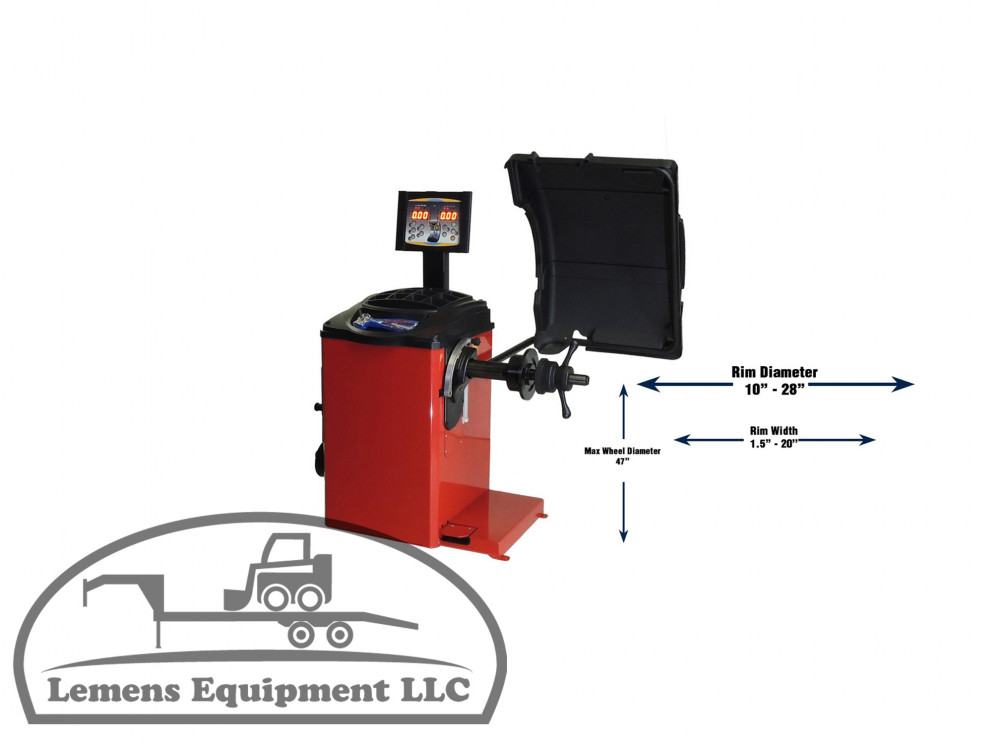

-Max wheel diameter: 44"
-Rim width: 1.5" - 20"
-Rim diameter: 8" - 28"
-Wheel weight capacity: 150 lbs
-Accuracy: 1 gram
-Power: 110 VAC/60HZ
-Balancing time (sec): 5 to 7 secs
-RPM: 140
-Ship weight: 352lbs

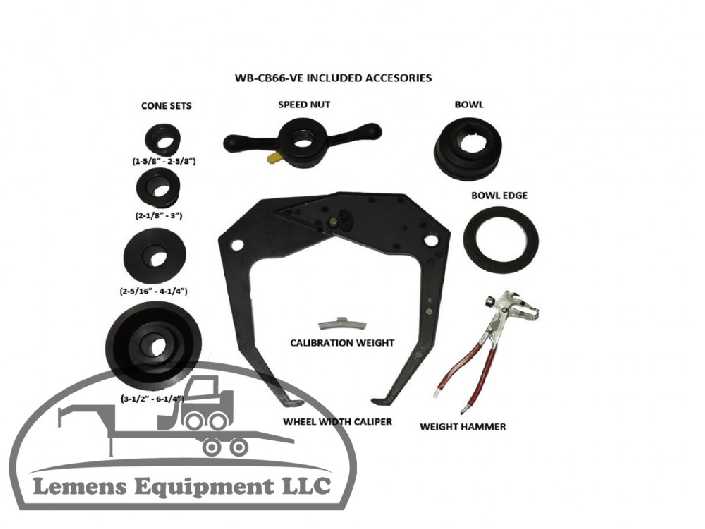

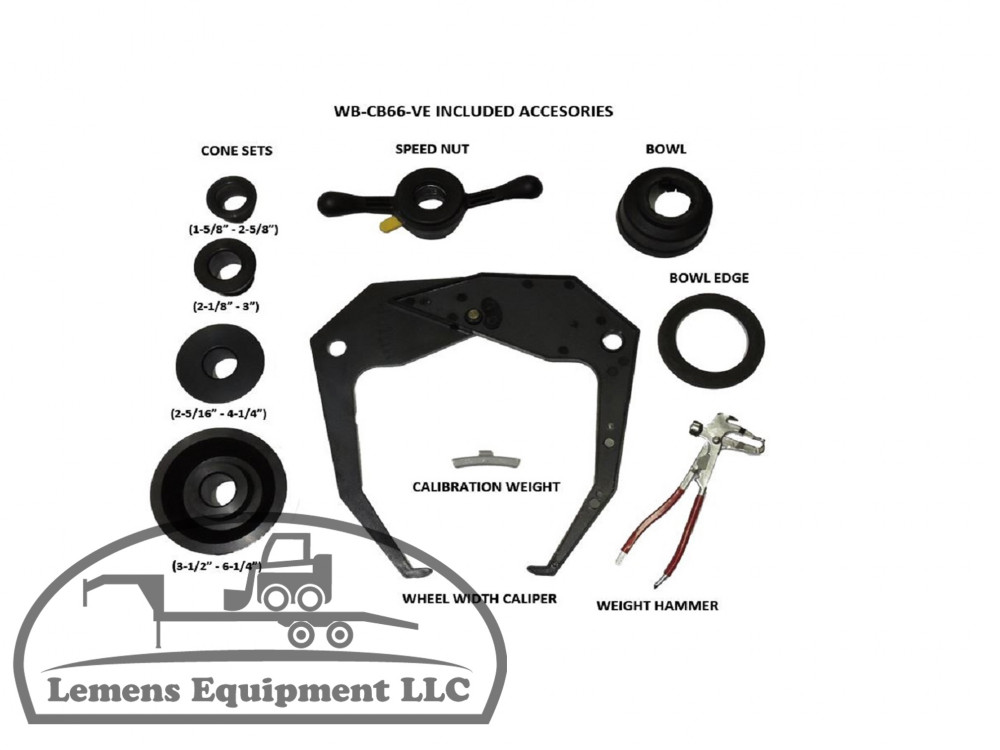

Standard Accessories

-50g weight
-Weight hammer/application tool
-Wheel caliper
-Clamp bowl/bowl edge
-Cone sets - small, medium, and large sizes
-Speed-nut assembly

Optional Accessories

-Motorcycle adaptor kit 16mm - 34mm
-40mm Universal adaptor plate - hole diameter 95mm - 280mm
-Light truck cone set (40mm)

Warranty

- 5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam

- Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.

-This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

Thank You!
We do high volume at low prices, take lots of pictures and videos, and give detailed descriptions and specs so you KNOW you are getting a quality lift. Thank you to all current and future customers who appreciate the hard work we have put into this and choose to do business with us. Spend less time figuring out what you are buying, and more time enjoying it!

Delivery

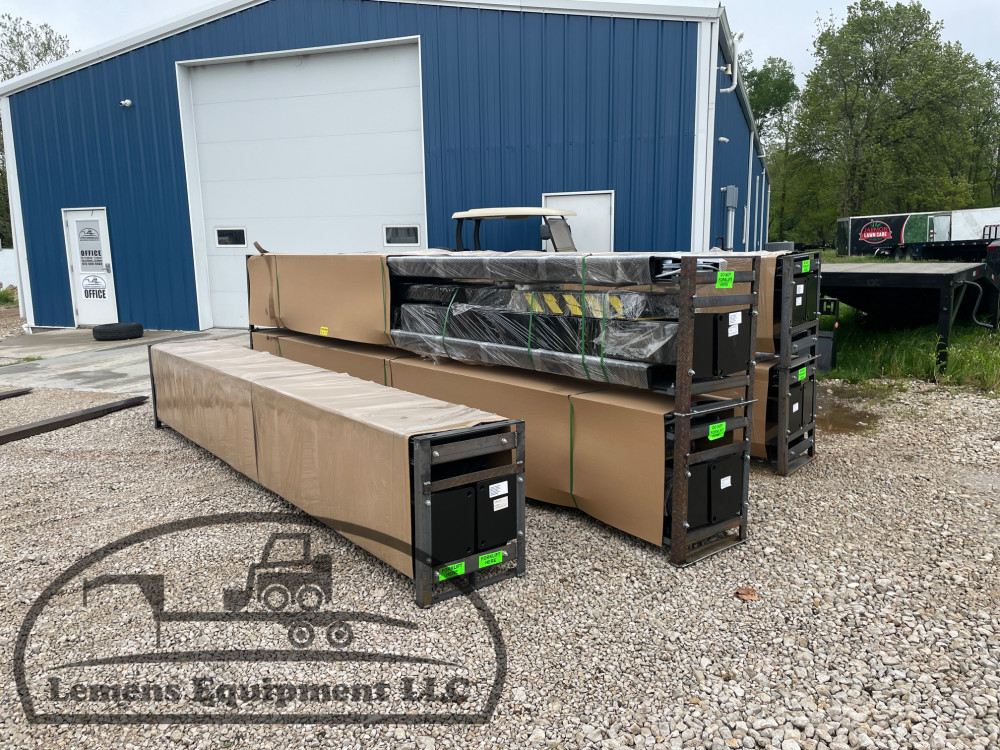

We can deliver to you, anywhere in the USA! Forklift or skid steer with forks will be required to unload, optionally we can bring that also and unload it for you. If you pick it up from us here in Eldon MO, we can load it on your trailer, then you could unassemble it at home off your trailer piece by piece without the need for a fork lift.
