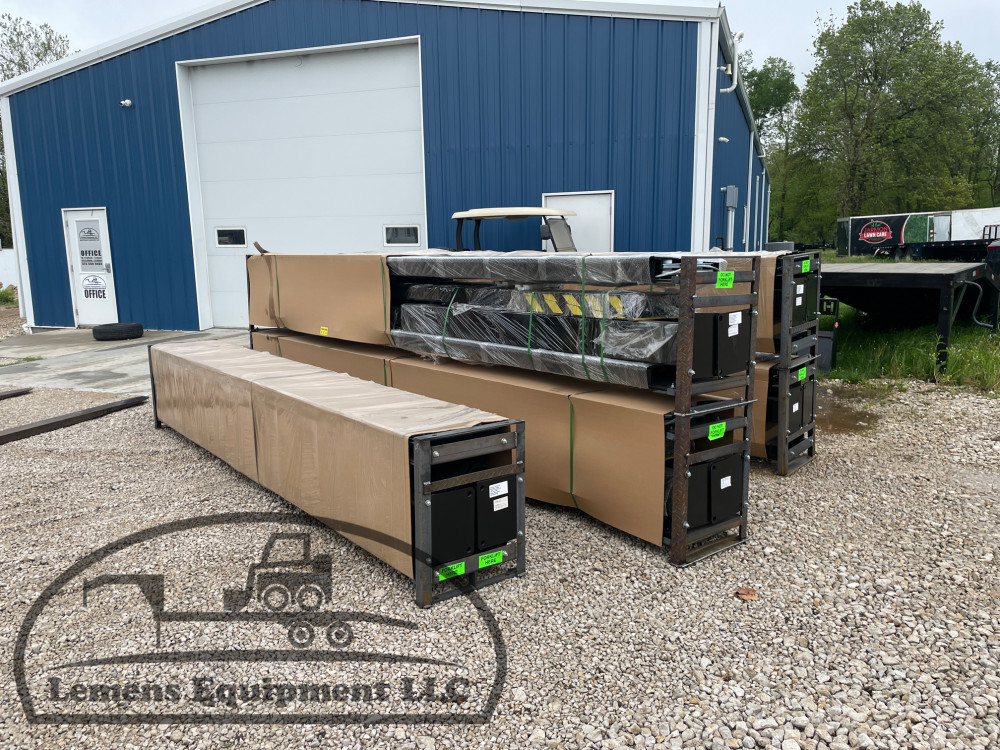

We have been running these lifts for a few years with no issues at Lemens Equipment LLC. We have a comparable, more expensive Challenger lift here that we do not like near as much as these tuxedo/kernel style lifts. We keep this lift in stock here in Eldon MO, it is not being dropped shipped from a warehouse.

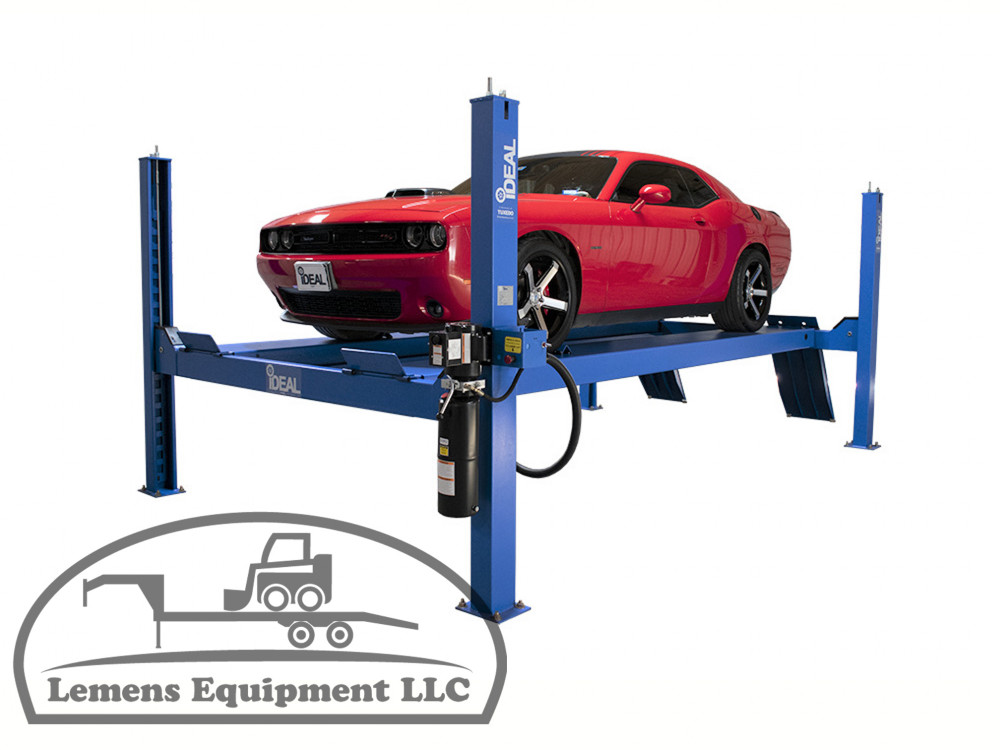

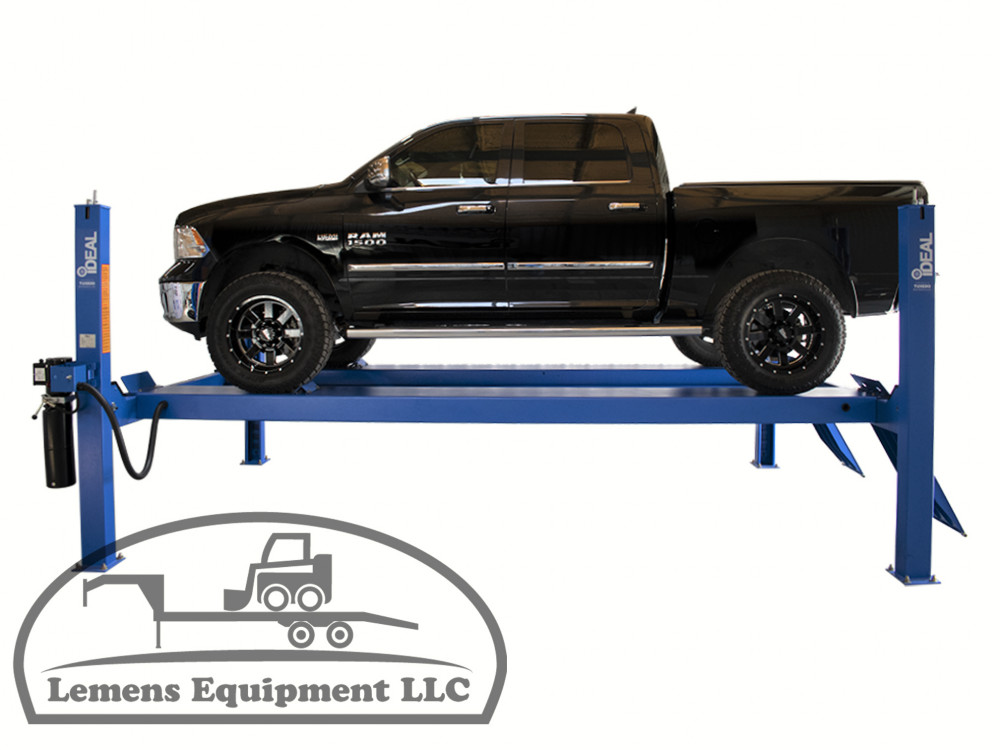

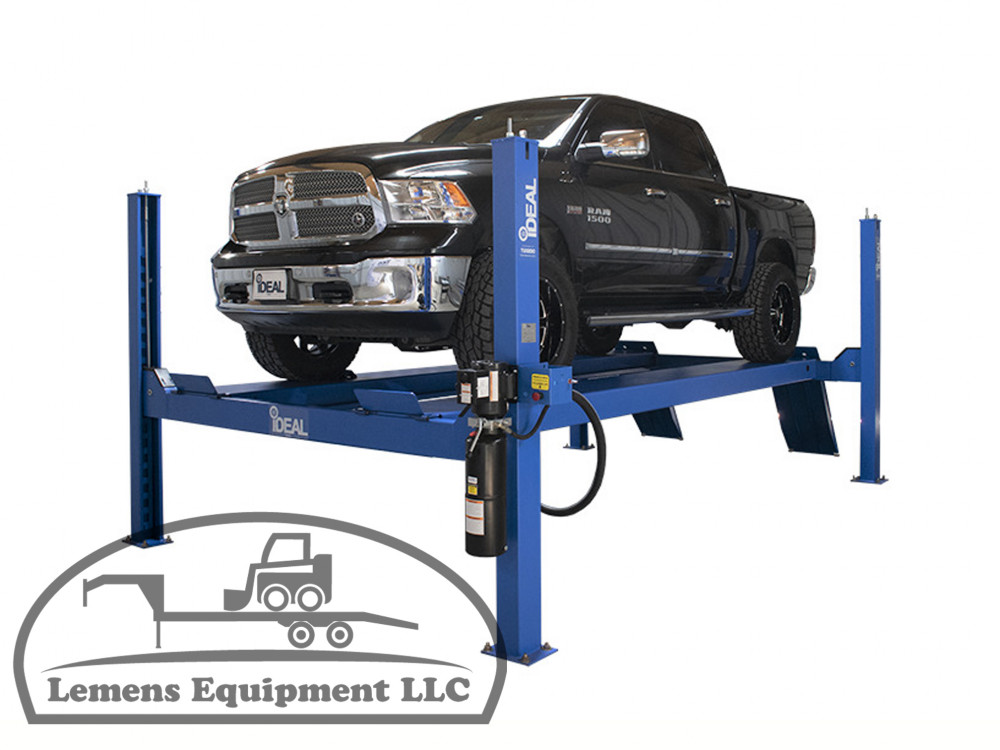

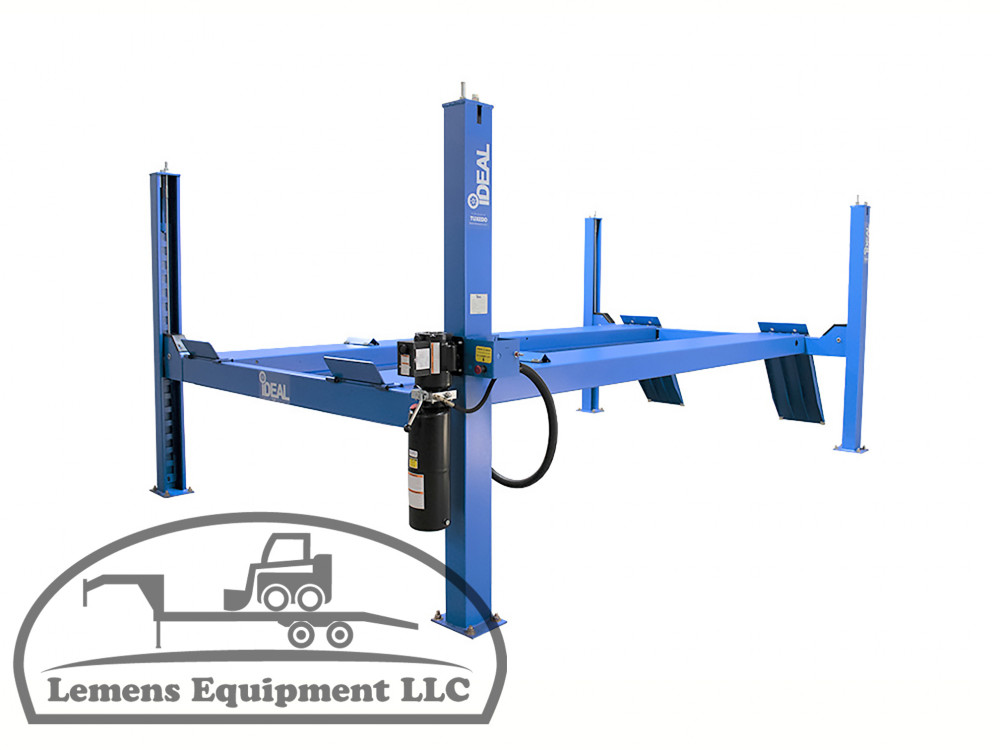

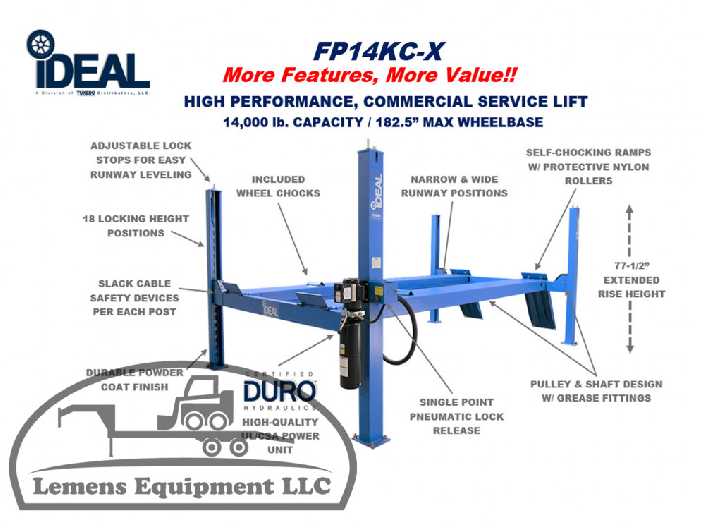

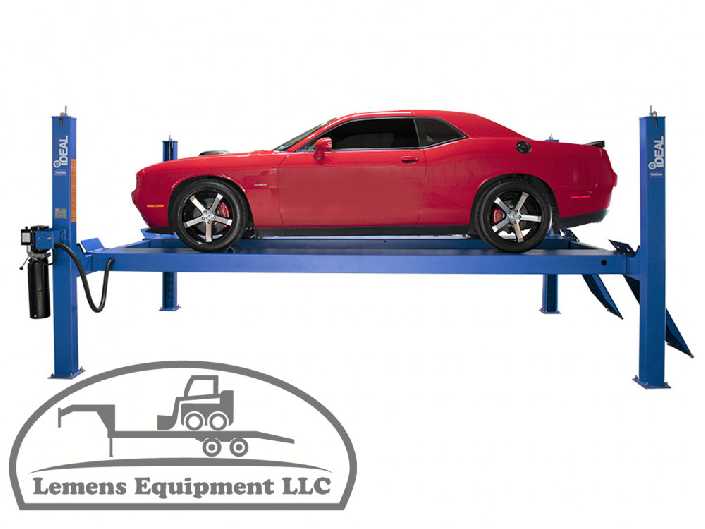

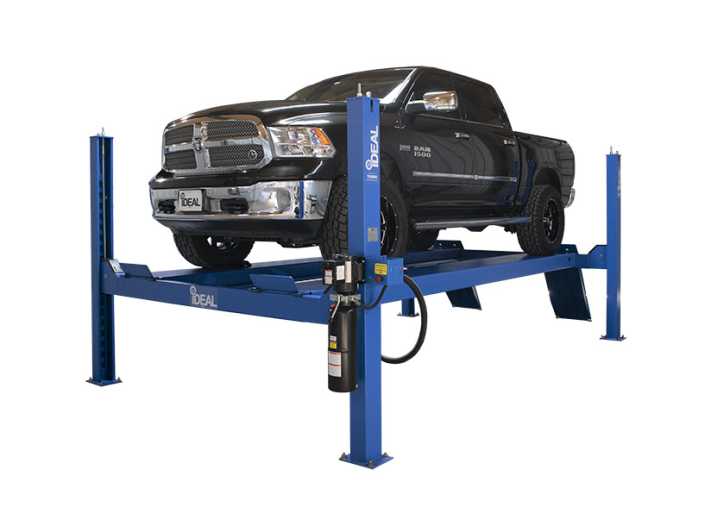

The iDEAL FP14KC-X 14,000 lb. four post commercial service lift is a high-performance closed front, cable pull vehicle lift designed for cars, SUVs, vans and trucks. The FP14KC-X service lift includes the latest in design and safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to extended life of the lift. Easy lift operation is provided with single point pneumatic lock release & high quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KC-X modular design provides the flexibility to extend the runways for servicing longer vehicles, while also providing the ability to convert into a high-quality alignment lift quickly and easily! The standard provided powder coat finish, 20" wide runways, adjustable lock stops for easy runway leveling and optional power unit mount positions complete the package for a premium, high quality service lift, all at an unmatched value!

GENERAL

-Capacity: 14,000 lbs
-High performance commercial service lift
-Durable, high quality, cable lift system
-Extended rise height
-182-1/2" max wheelbase
-18 locking positions
-20" wide runways
-Narrow and wide runway mounting positions
-Single point pneumatic lock release
-Fully adjustable lock stops for easy leveling
-Slack cable safety devices

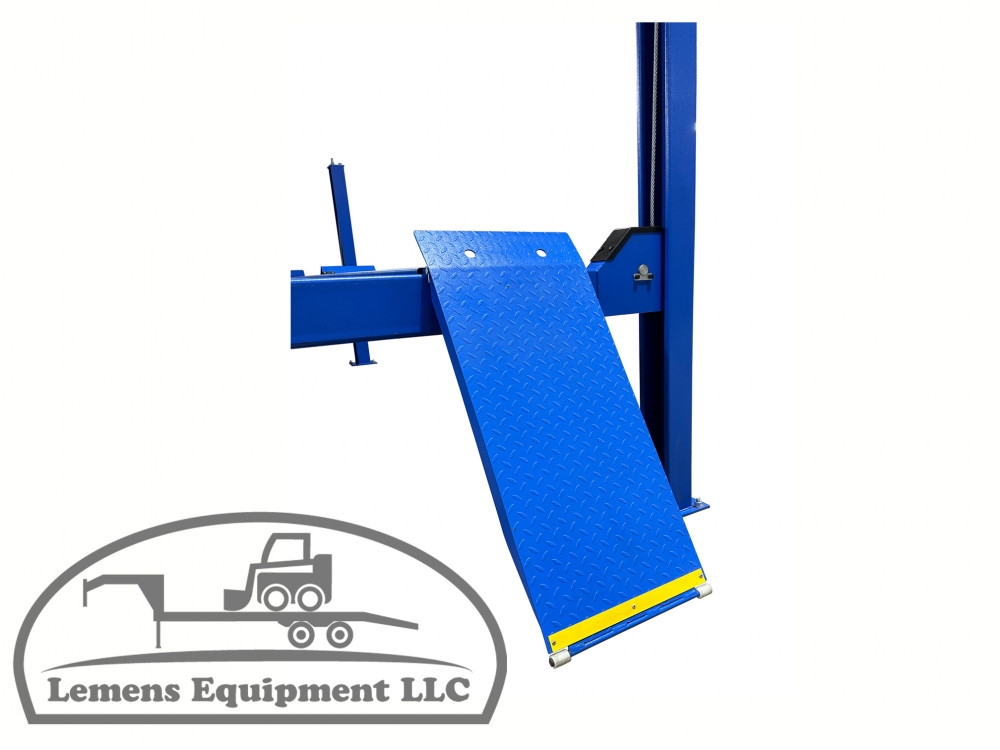

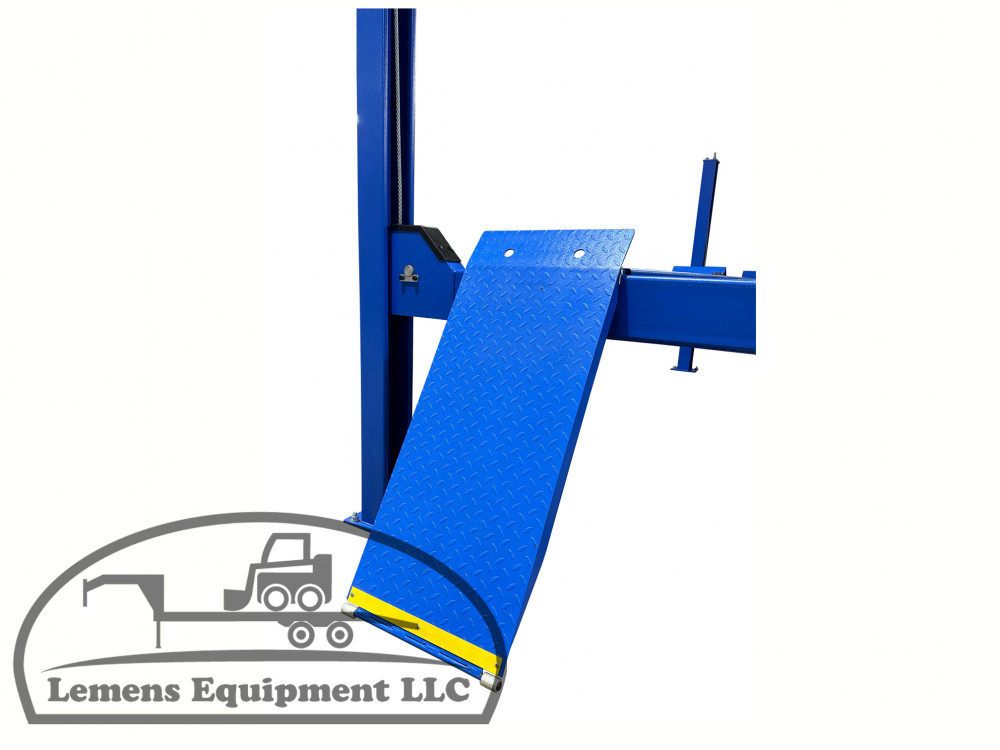

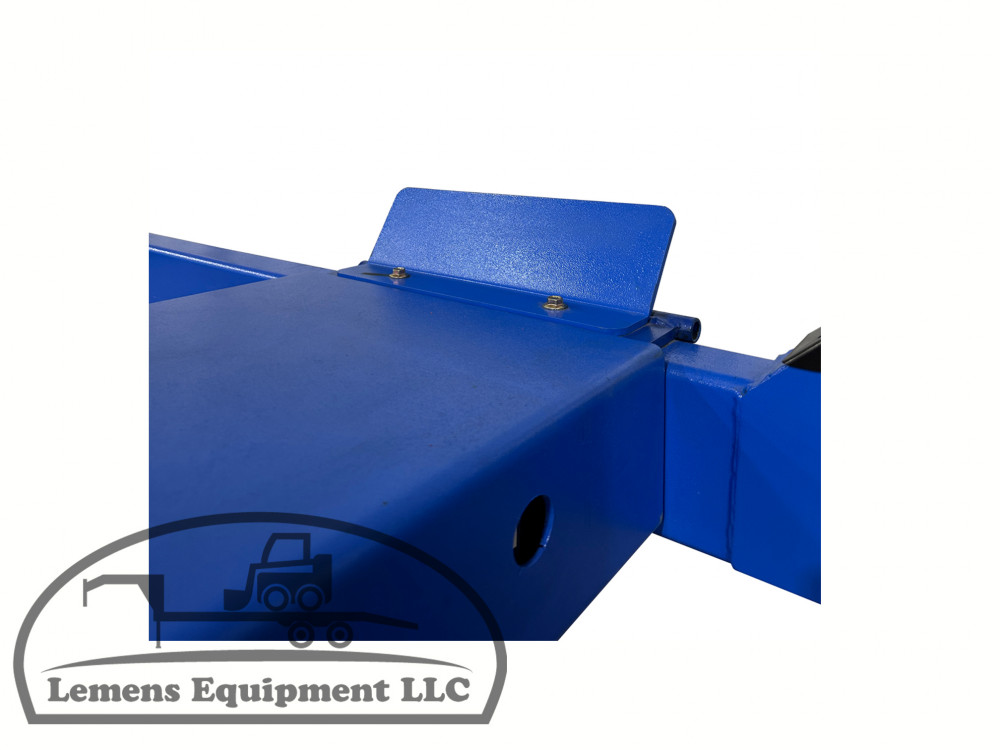

-Self-chocking approach ramps with nylon rollers
-Wheel chocks (1 pair)

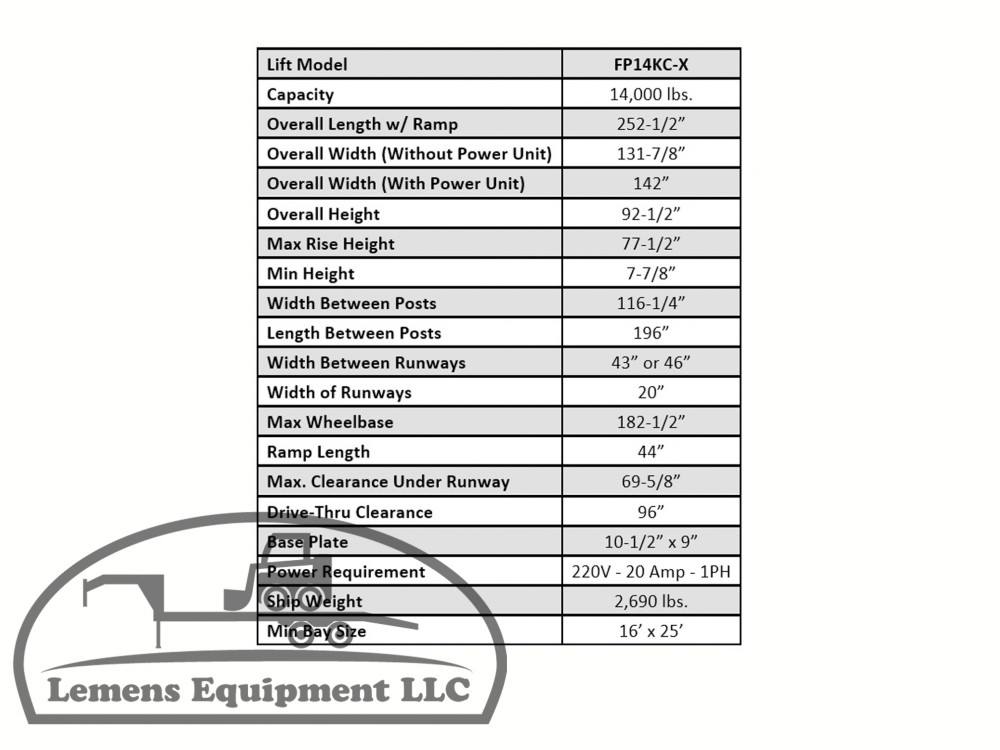

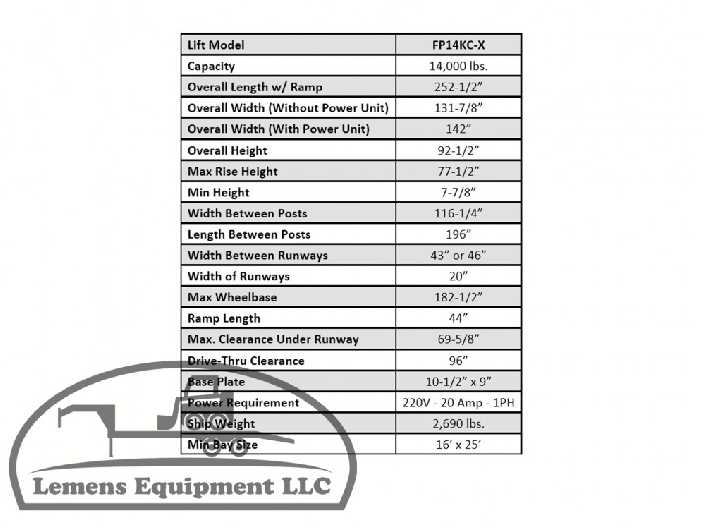

CONSTRUCTION

-Overall Length w/ Ramp: 252-1/2"
-Overall Width (without power unit): 131-7/8"
-Overall Width (with power unit): 142"
-Overall Height: 92-1/2"
-Max Rise Height: 77-1/2"
-Min Height: 7-7/8"
-Width Between Posts: 116-¼"
-Length Between Runways: 196"
-Width Between Runways: 43" or 46"
-Width of Runways: 20"
-Max Wheelbase: 182-1/2"
-Ramp Length: 44"
-Max. Clearance Under Runway: 69-5/8"
-Drive-Thru Clearance: 96"

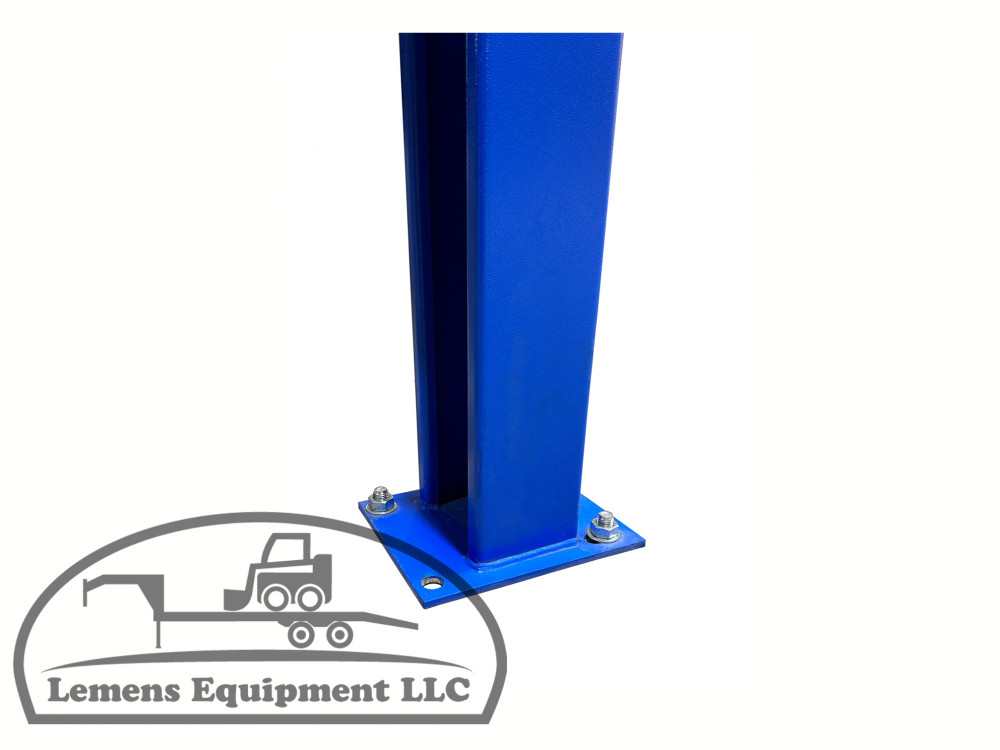

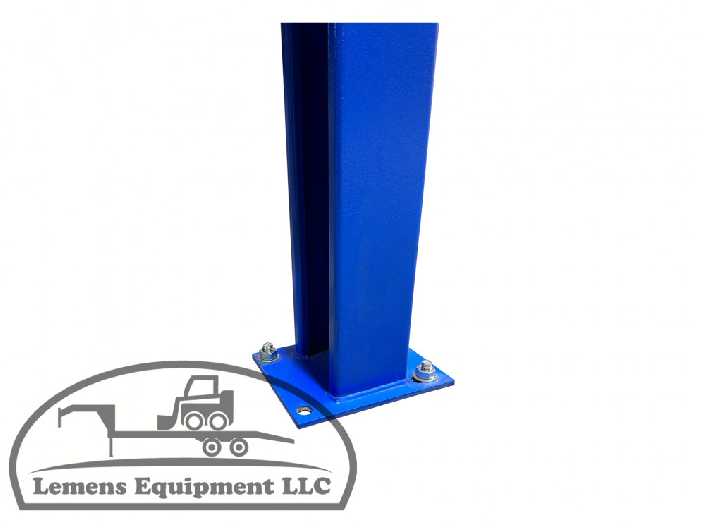

-Base Plate: 10-1/2" x 9"
-Power Requirement: 220V - 20 Amp - 1PH
-Ship Weight: 2,690 lbs
-Min Bay Size: 16’ x 25’

OPTIONAL

Add-on accessories:

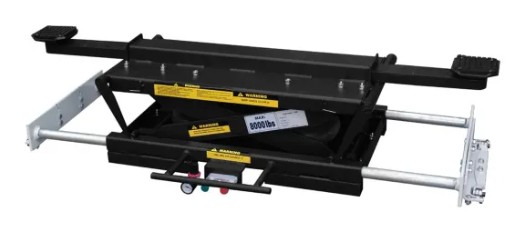

-7k Rolling Air Jack (high mount)
-24" Runway Extension Kit
-Air Line Kit (with filter, regulator, & lubrication)
-Bolt-On Alignment Kit

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day's notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselves via LTL.
