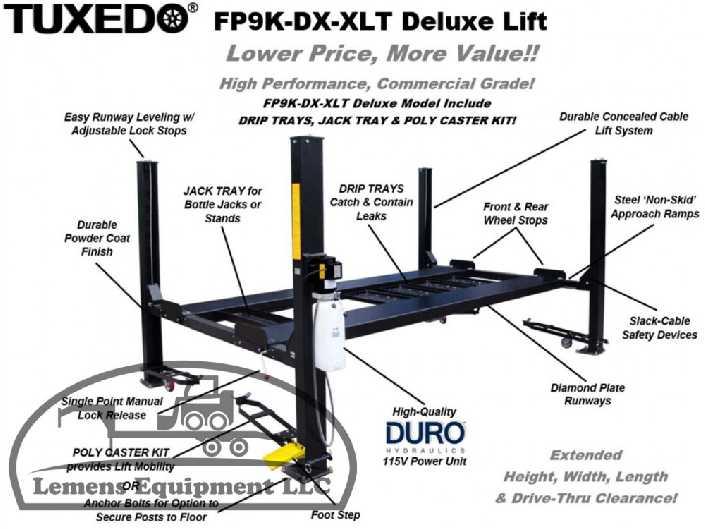

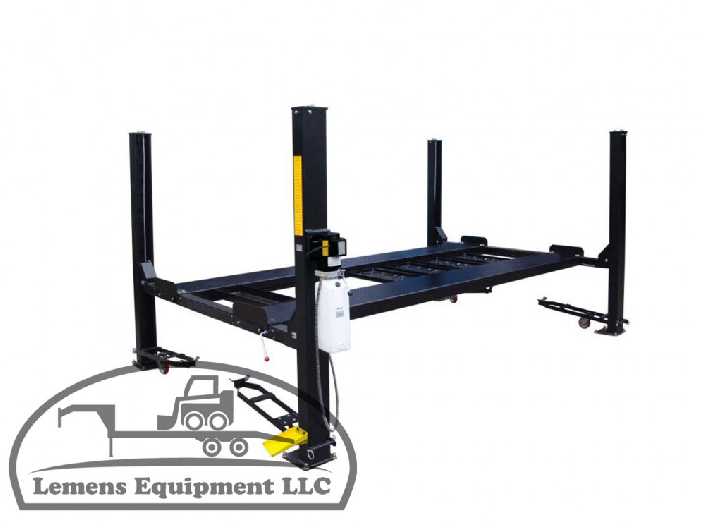

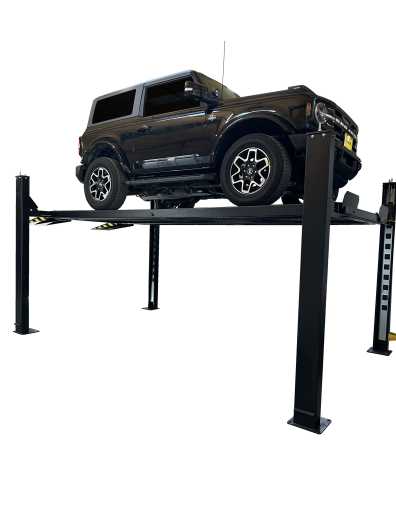

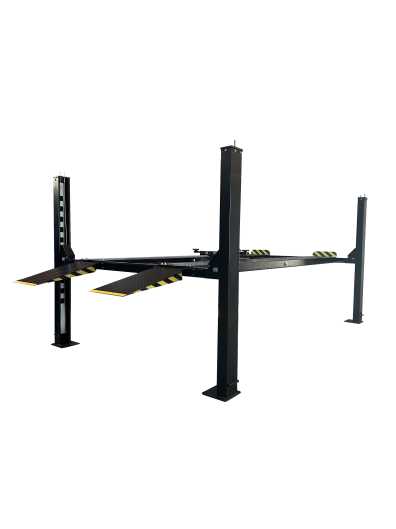

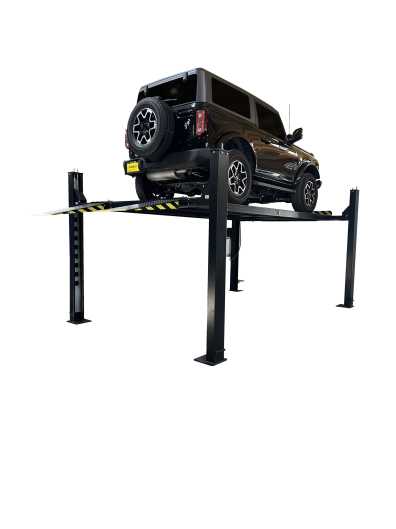

The TUXEDO FP9K-DX-XLT 9,000 lb. Deluxe Four Post Lift is a durable commercial grade
high performance, cable pull vehicle lift, designed for storing, inspecting & servicing larger Cars, SUVs, Vans & Trucks, while also providing space-saving parking solution for most
residential garages & shops.

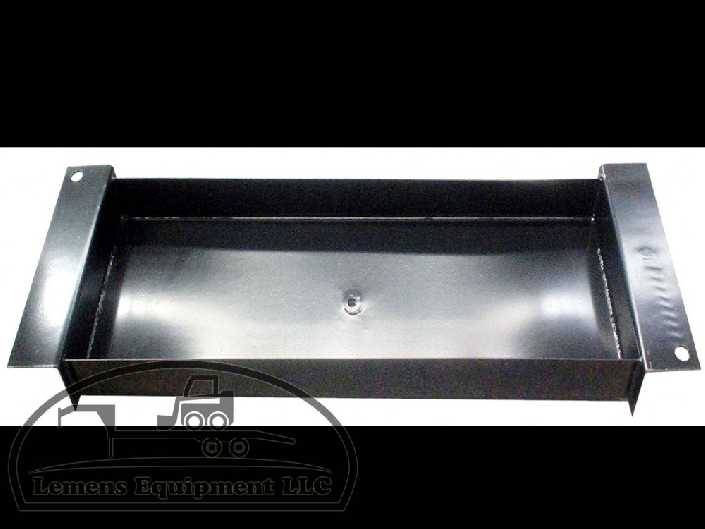

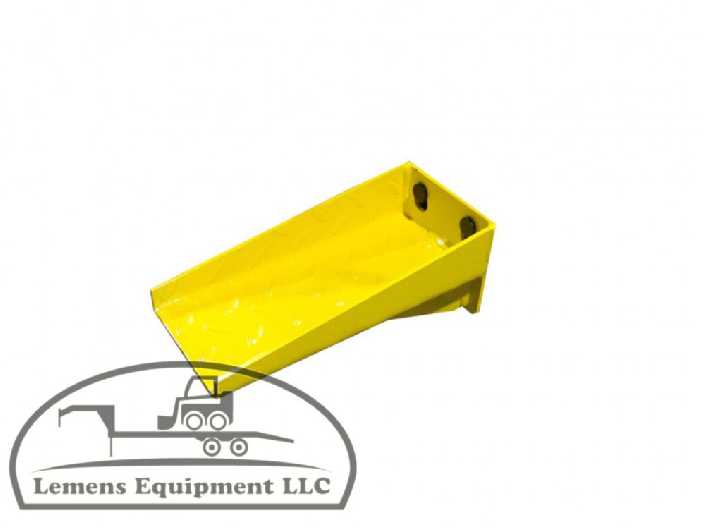

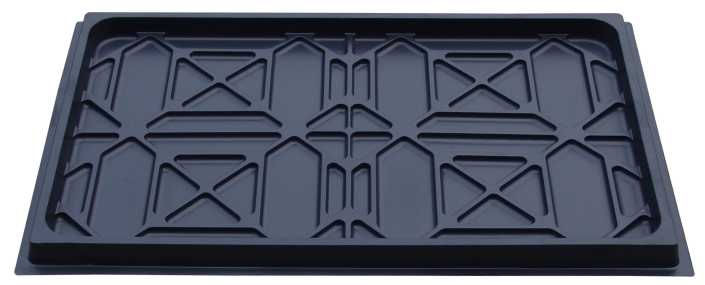

The FP9K-DX-XLT Deluxe model includes Drip Trays, Jack Tray & Poly Caster Kit, while incorporating the latest in design & safety features with reliable hydraulic operation, durable concealed mechanical cable lift system with slack-cable safety devices and cable pulley shaft design with grease fittings to assist extending the life of the lift.

The FP9K-DX-XLT Deluxe Lift provides additional lift height, width, length, capacity, and drive-thru clearance for larger vehicles. Easy lift operation is provided with single point mechanical lock release and a 115V electric/hydraulic high-quality power unit, while also having the option either to anchor the posts to the floor or keep mobile, using the Poly Caster Kit. With durable powder coat finish, wide diamond plate runways, front & rear wheel stops & adjustable lock stops for easy runway leveling, the FP9K-DX-XLT lift is economically priced with all the features, all for an unmatched value!

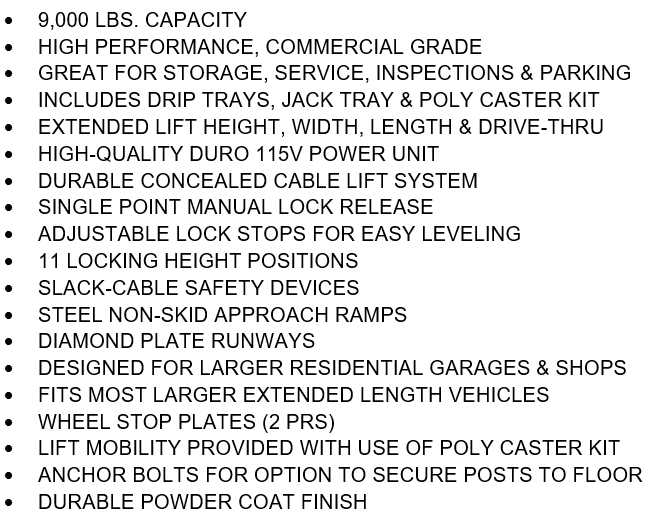

GENERAL

-Capacity: 9,000 lbs
-High performance commercial grade
-Great for storage, service, inspections, and parking!
-Extended lift height, width, length, and drive-thru
-Fits most larger extended length vehicles

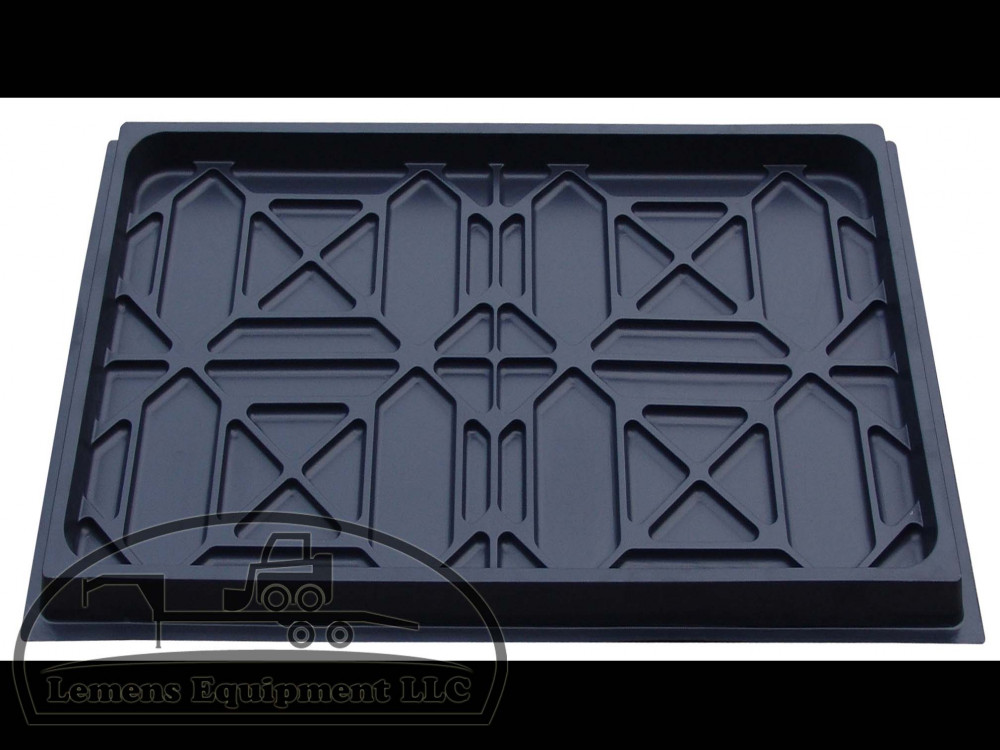

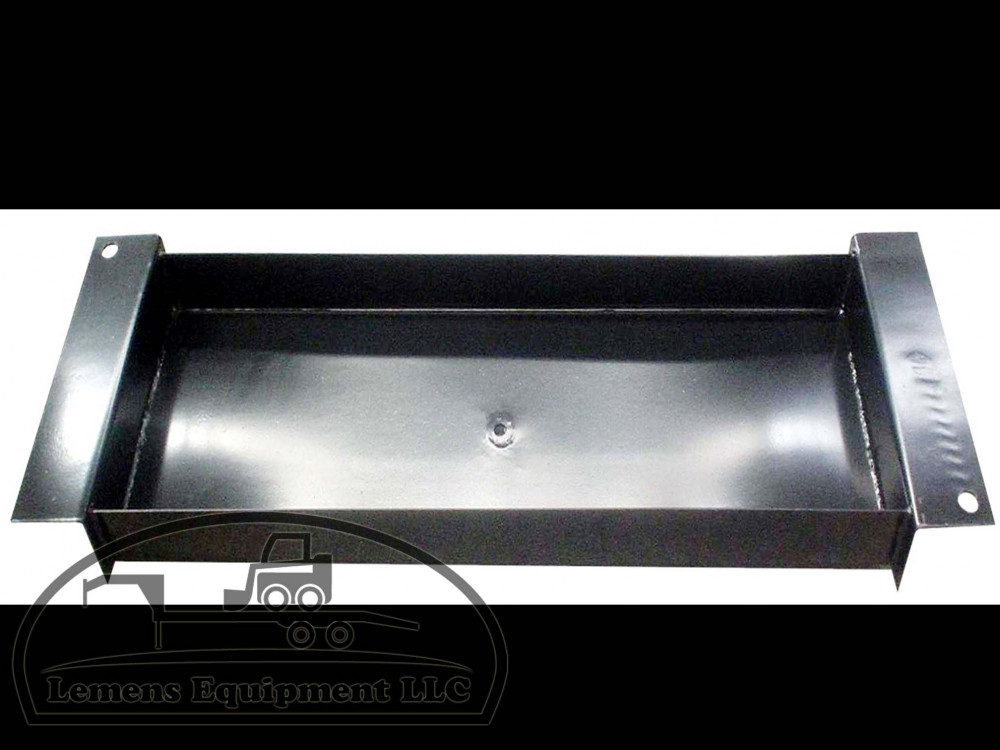

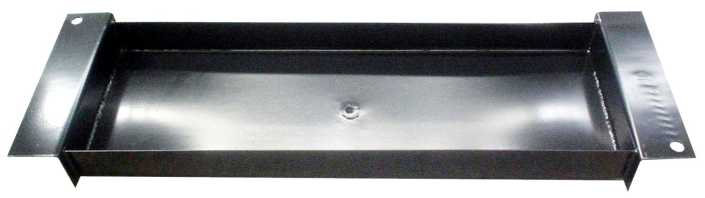

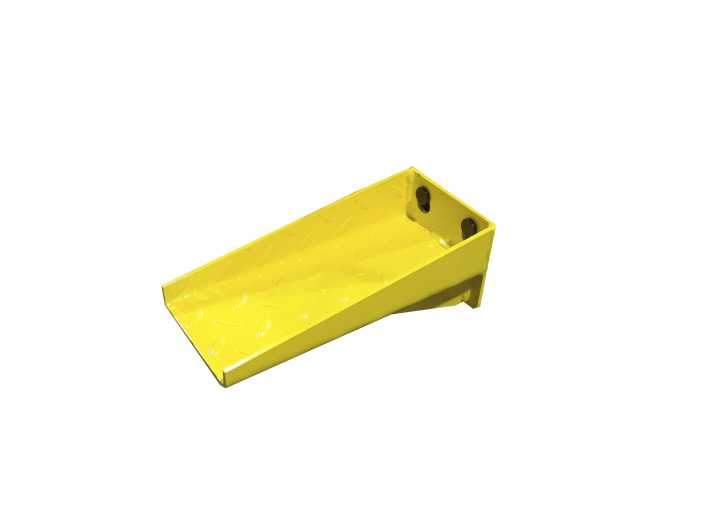

-Includes: Drip Trays, Jack Tray, and Poly Caster Kit
-High-quality Duro 115V power unit
-Durable concealed cable lift system
-Single point manual lock release
-Adjustable lock stops for easy leveling
-11 locking height positions
-Slack-cable safety devices

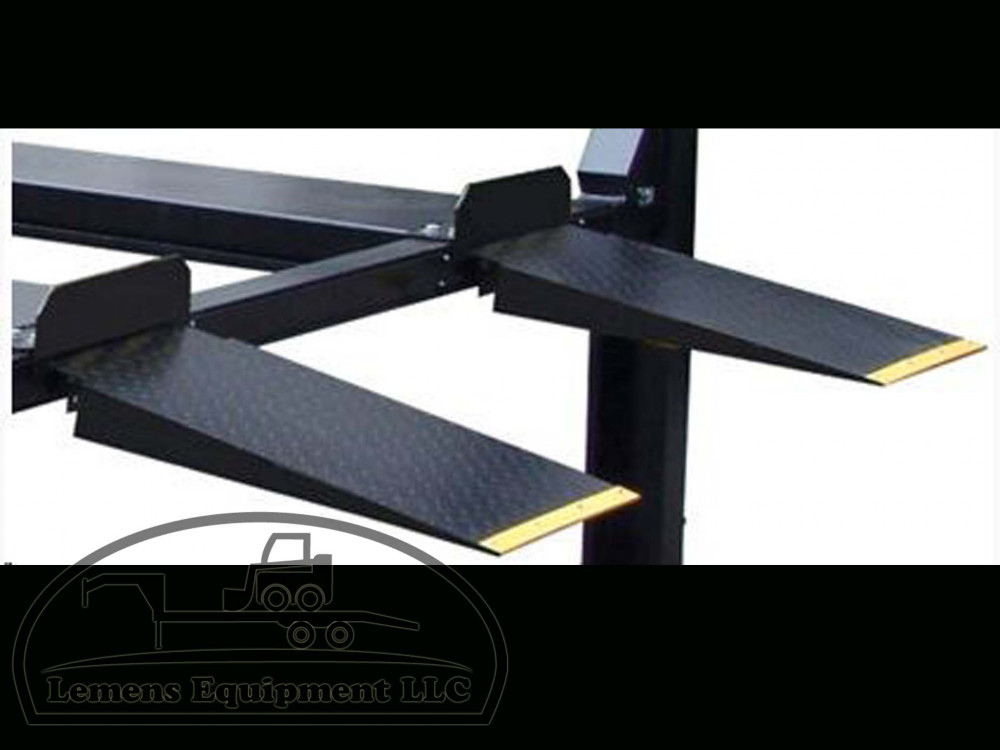

-Steel non-skid approach ramps
-Diamond plate runways
-Front and rear wheel stop plates (2 pair)

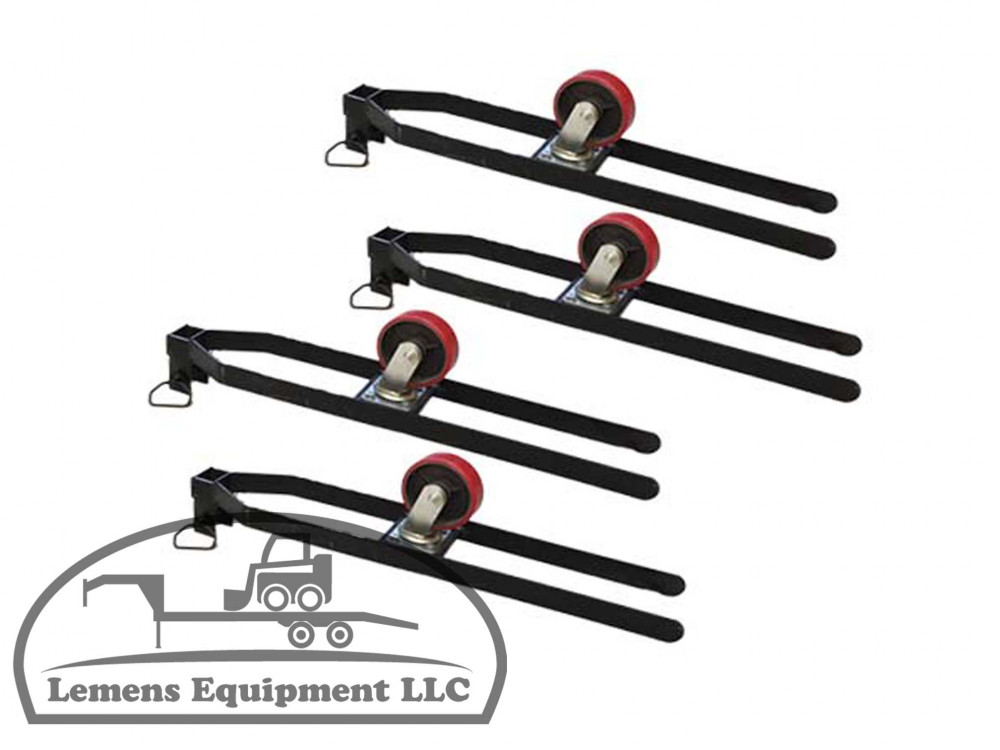

-Lift mobility provided with use of poly caster kit
-Durable powder coat finish

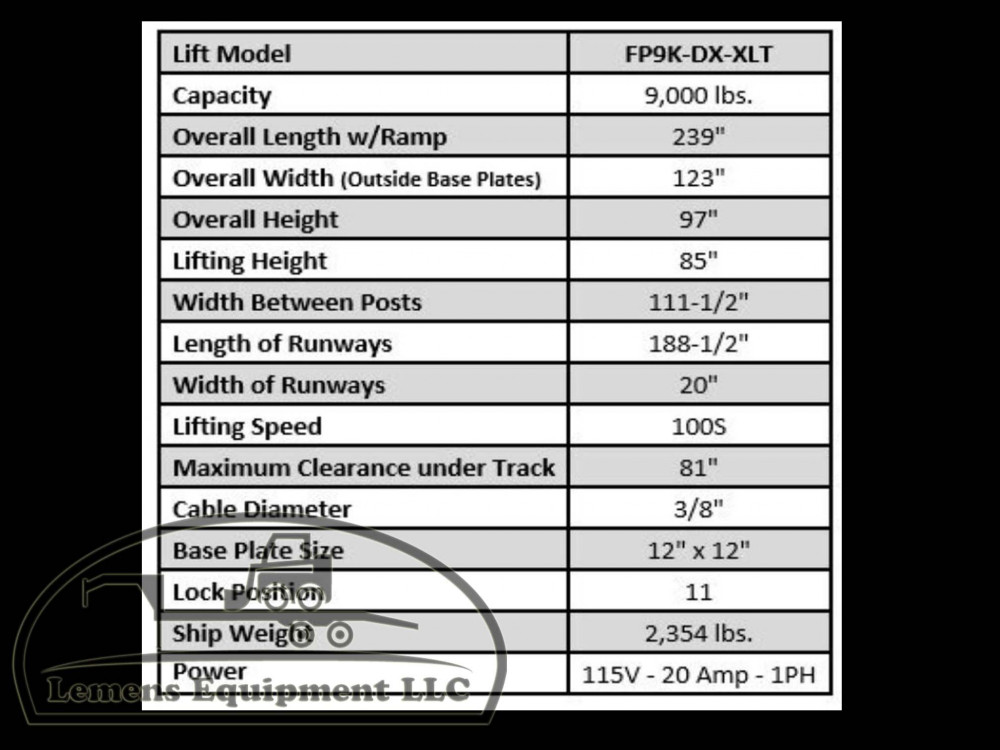

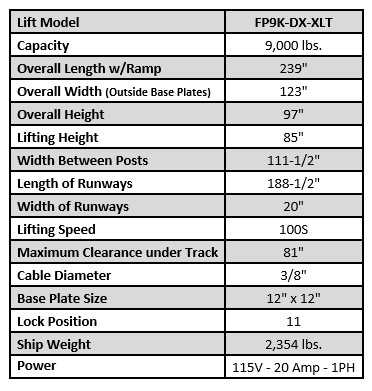

CONSTRUCTION

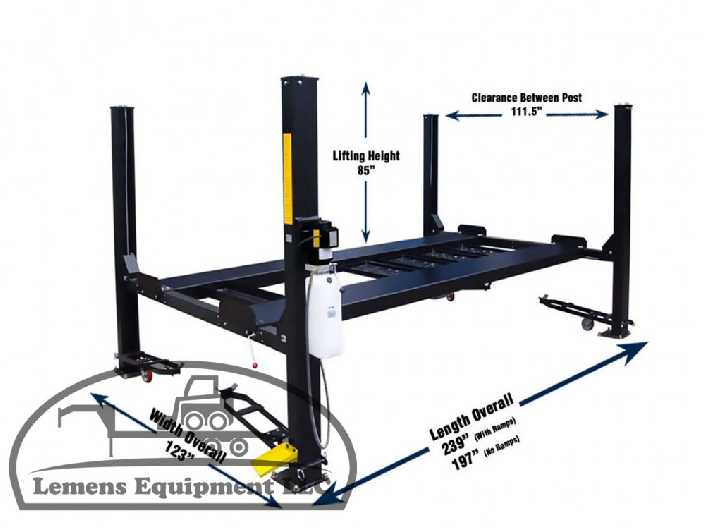

-Overall length with ramp: 239"
-Overall width (outside base plates): 123"
-Overall height: 97"
-Lifting height: 85"
-Width between posts: 111-1/2"
-Length of runways: 188-1/2"
-Width of runways: 20"
-Lifting speed: 100 seconds
-Maximum clearance under track: 81"
-Cable diameter: 3/8"
-Base plate size: 12" x 12"
-Lock position: 11
-Ship weight: 2,354 lbs
-Power: 115V - 20 Amp - 1PH

OPTIONAL

-Comes with anchor bolts to optionally secure posts to floor

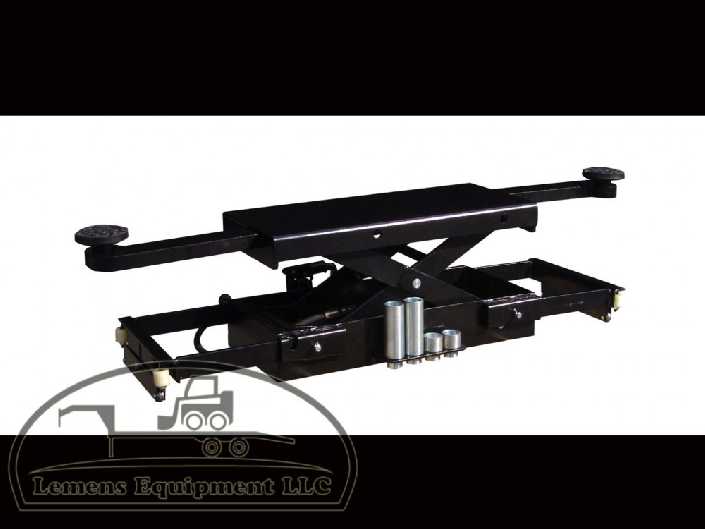

-Add-on accessory: 4,500 lbs rolling scissor jack

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

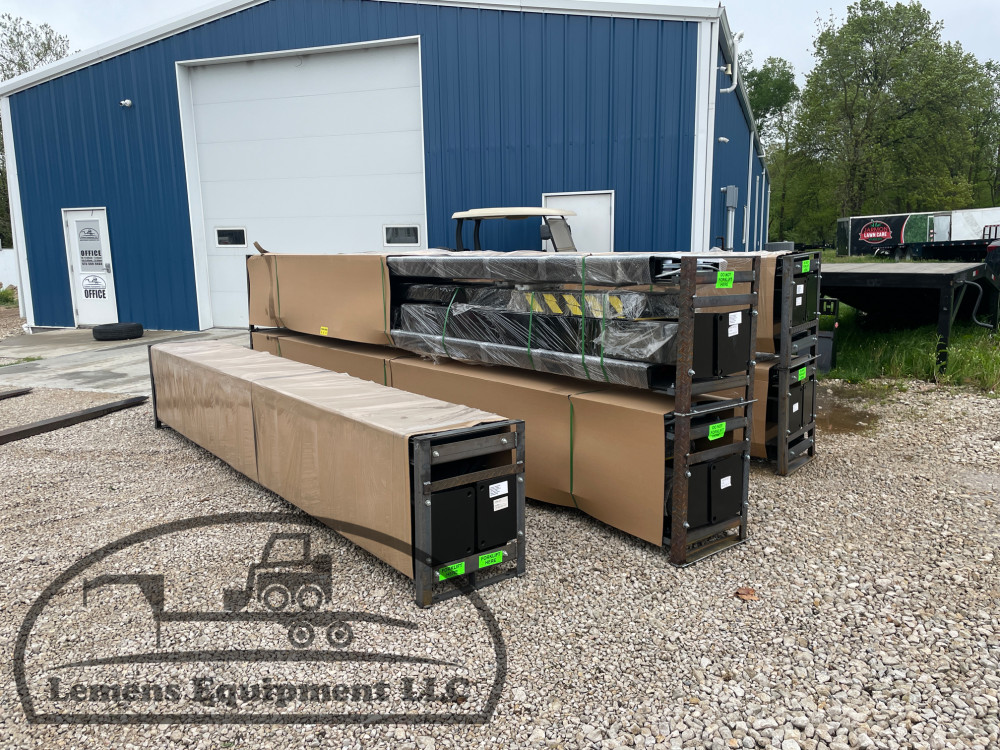

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselfs via LTL.
