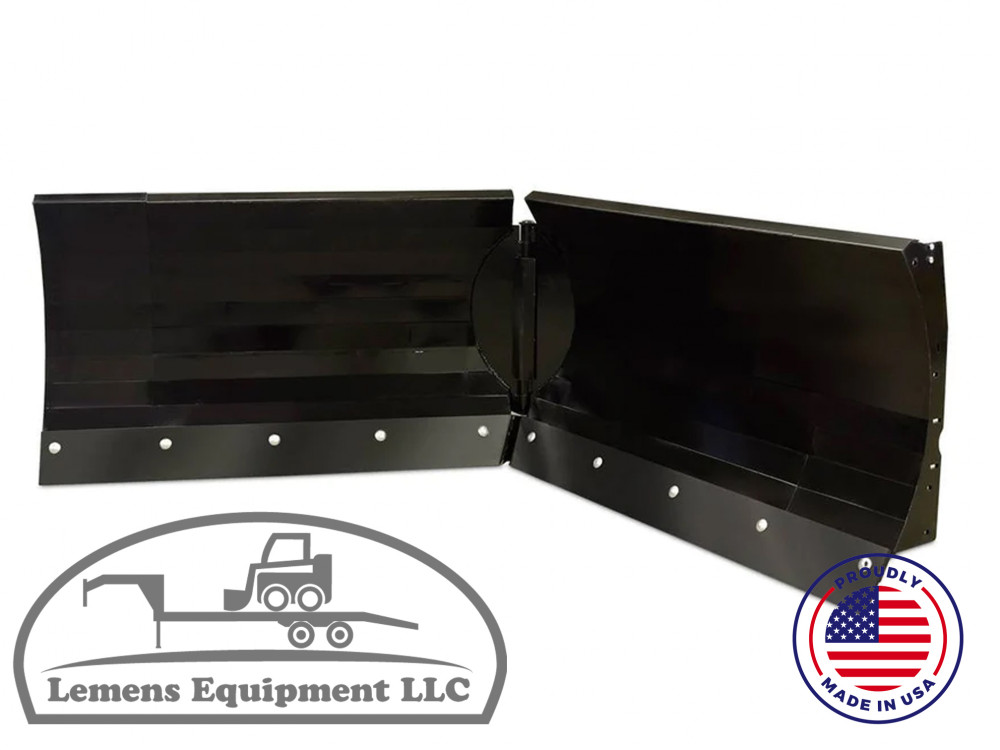

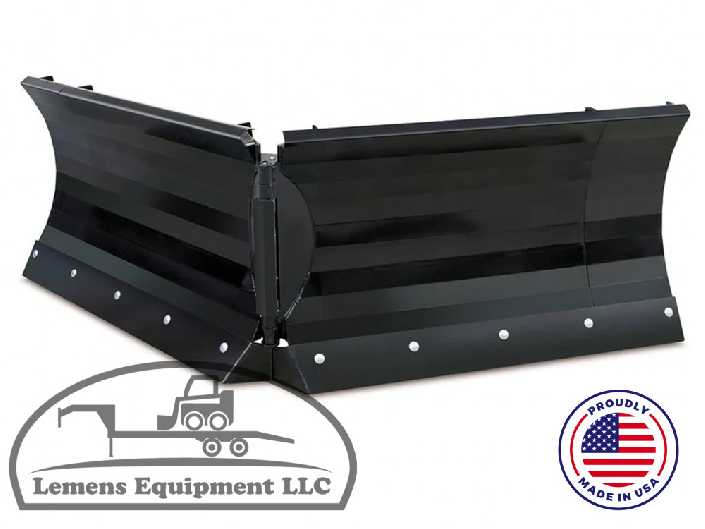

Quick Attach V-Plow - Snow Break 84"
$7,345
The V-Plow puts you in position for highly productive snow removal. V, scoop, left and right positions allow you maximum maneuverability. This attachment is engineered for quality from the ground up.
• Two-Way hydraulic only control provides full moldboard control in V, scoop, left and right positions
• 2" bore x 10" stroke cylinders with 1 1/4" rods and 1 1/4" cylinder pins
• Trip edge utilizing four extension springs
• Floating moldboard and adjustable cast skid shoes
• Central cutting edge bracket is designed to block snow from passing through the blade hinge point
• Straight Blade Width: 86"
• Angled Blade Width: 69"
• V Position Width: 75"
• Scoop Position Width: 63"
• Blade Height: 31.8"
• Blade Angle: +/- 36°
• Amount of Float: +/- 2.5°
• Overall Length: 41.75"
• Moldboard Thickness: .135"
• Bolt-on Cutting Edge: 1/2" x 6"
• Approximate Weight: 840 lb
Options
• Hardened Skid Shoes
• Factory Installed Couplers
QUICK SPECS
Weight: | 840 LBS |
CONDITION: | New |
WARRANTY: | Yes |
