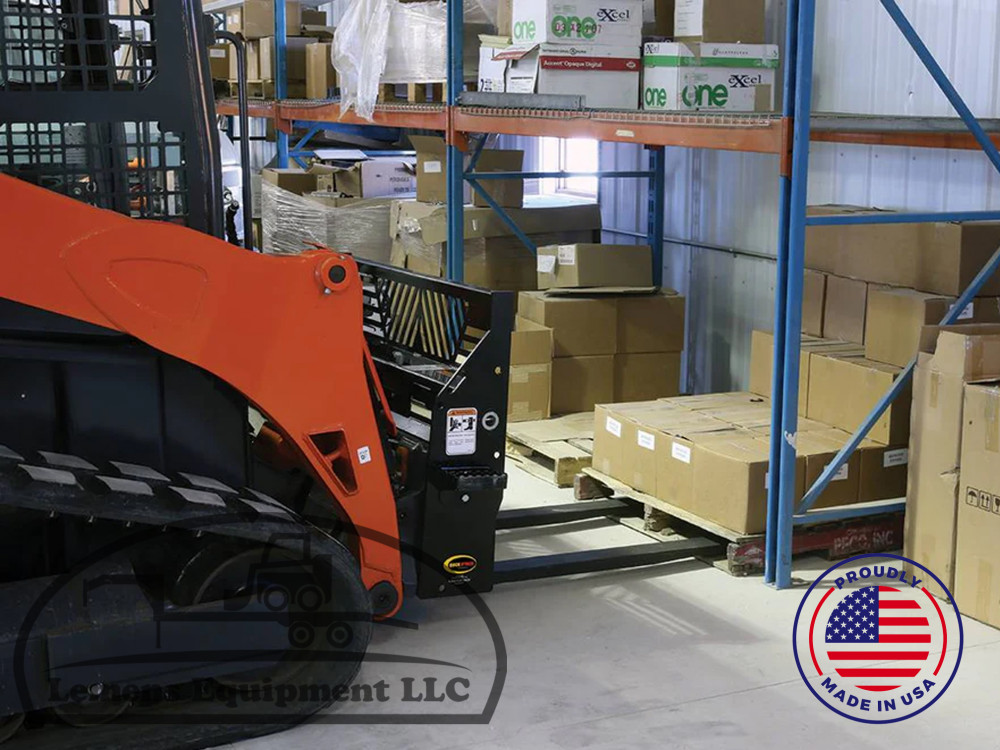

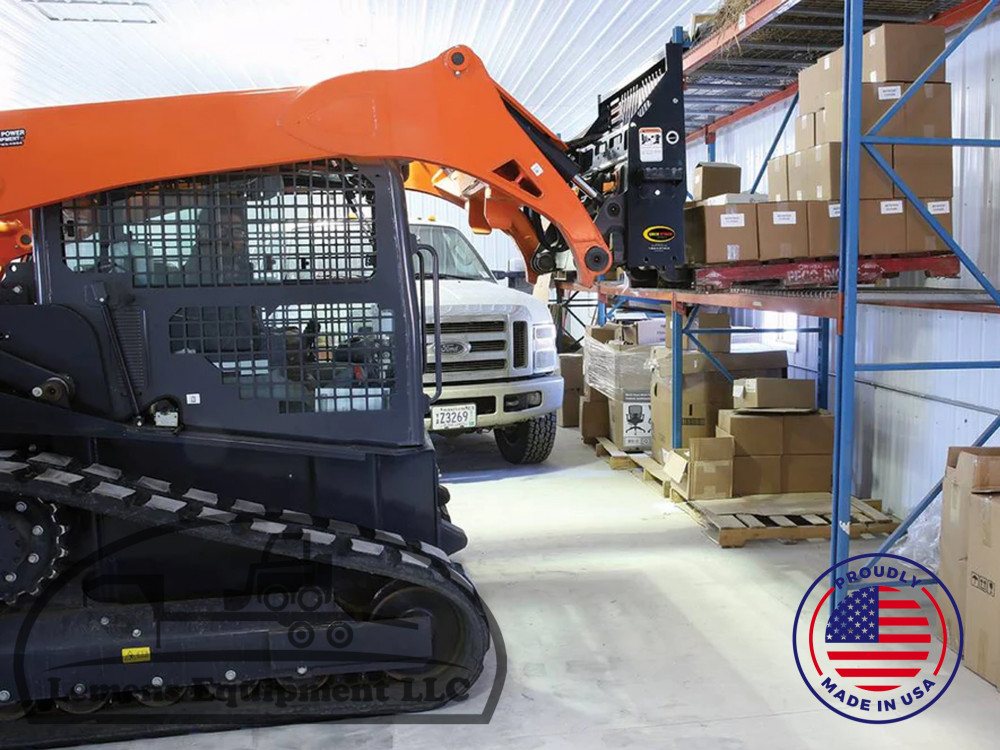

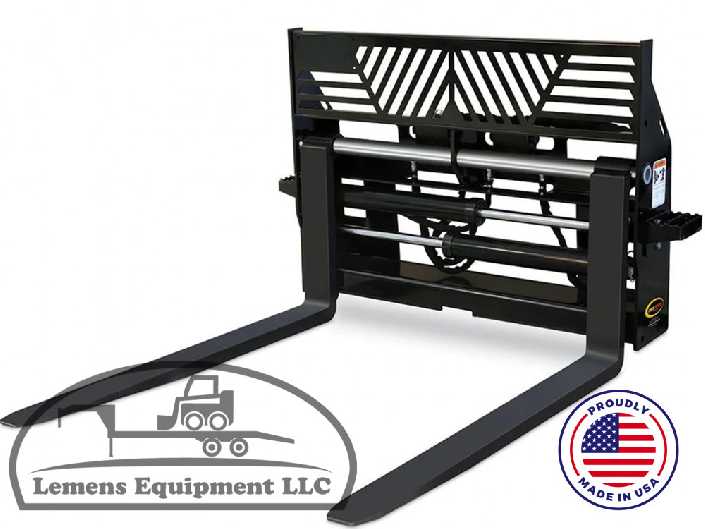

The Hydraulic Pallet Forks use hydraulic power to adjust the width between forks without leaving the operator’s seat. Available with 48" or 60" forks with load ratings of 5,500 lb. at 24".
• Forks move in and out simultaneously
• Bolt-on steps assist in getting in and out of skid steer
• 48" and 60" models available
• Operating Weight: 505 lb
• Frame Width: 45.5"
• Frame Width with Steps: 54"
• Fork Length: 48"
• Overall Height: 35.5"
• Overall Length: 59.25"
• Capacity @ 24" Load Center: 5,500 lb
• Minimum Fork Width: 8.5"
• Maximum Fork Width: 42.75"

Options:
• Factory Installed Couplers
