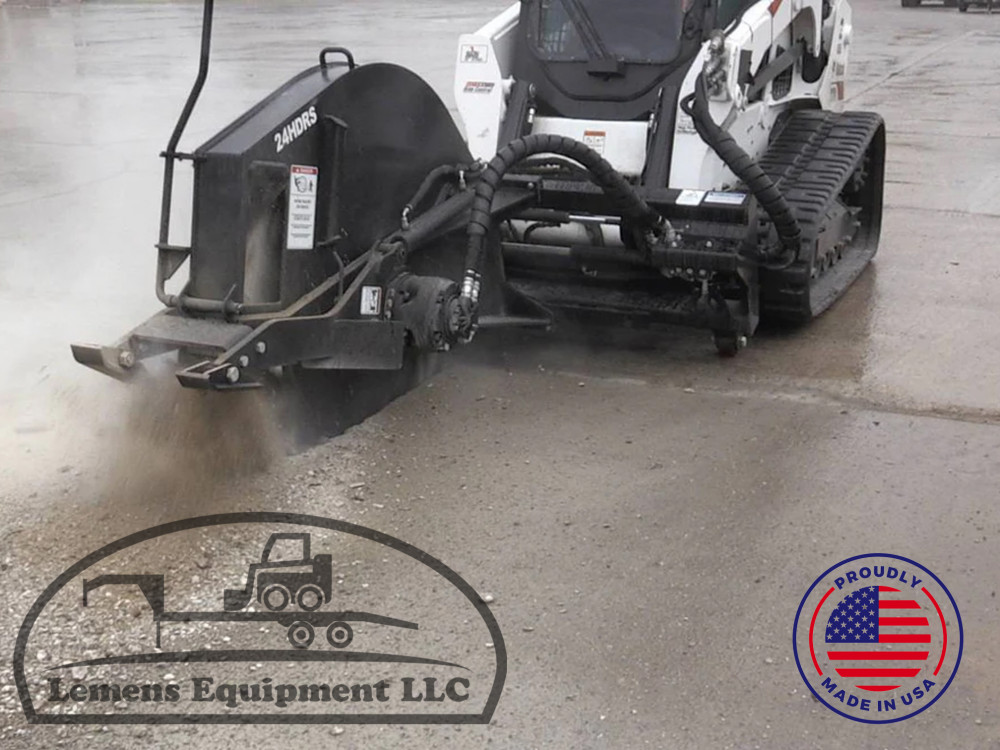

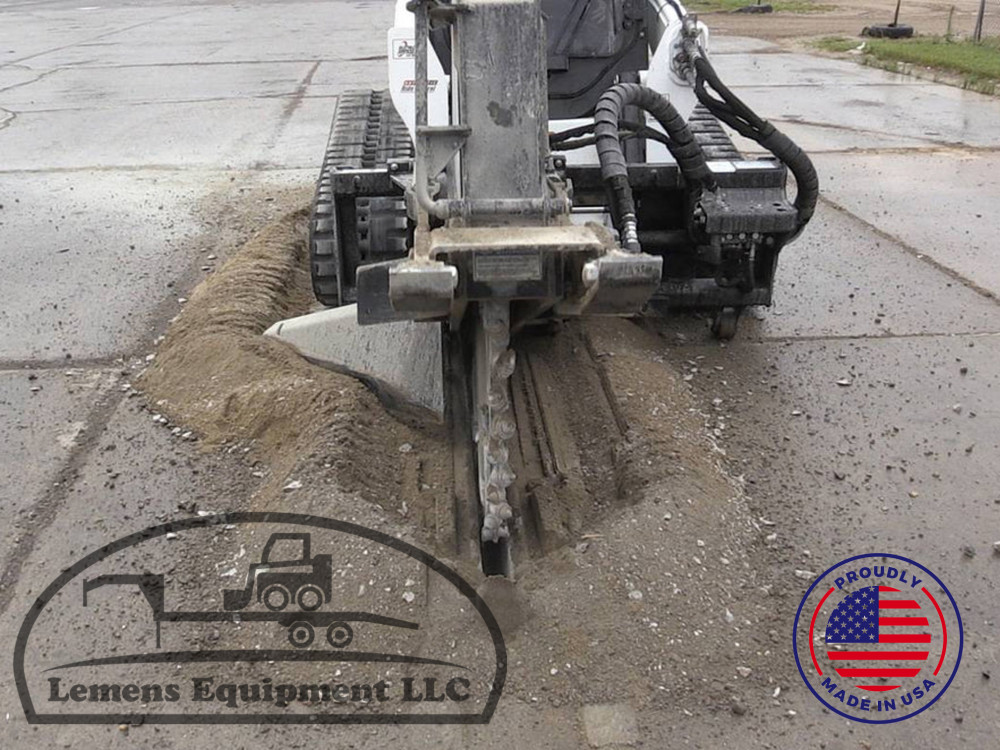

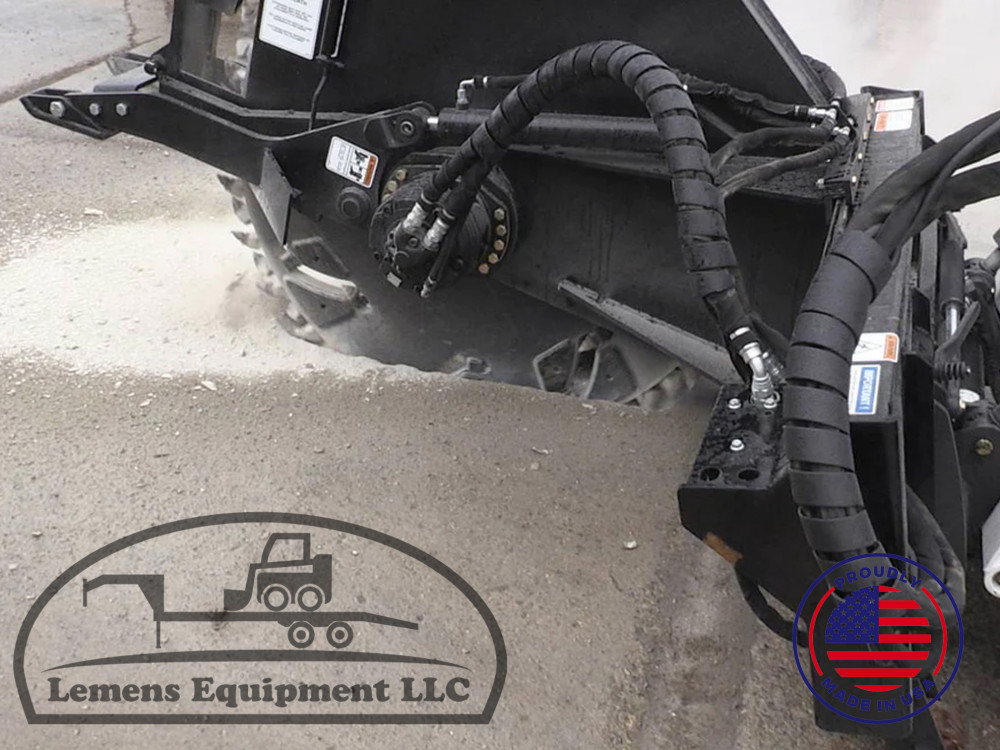

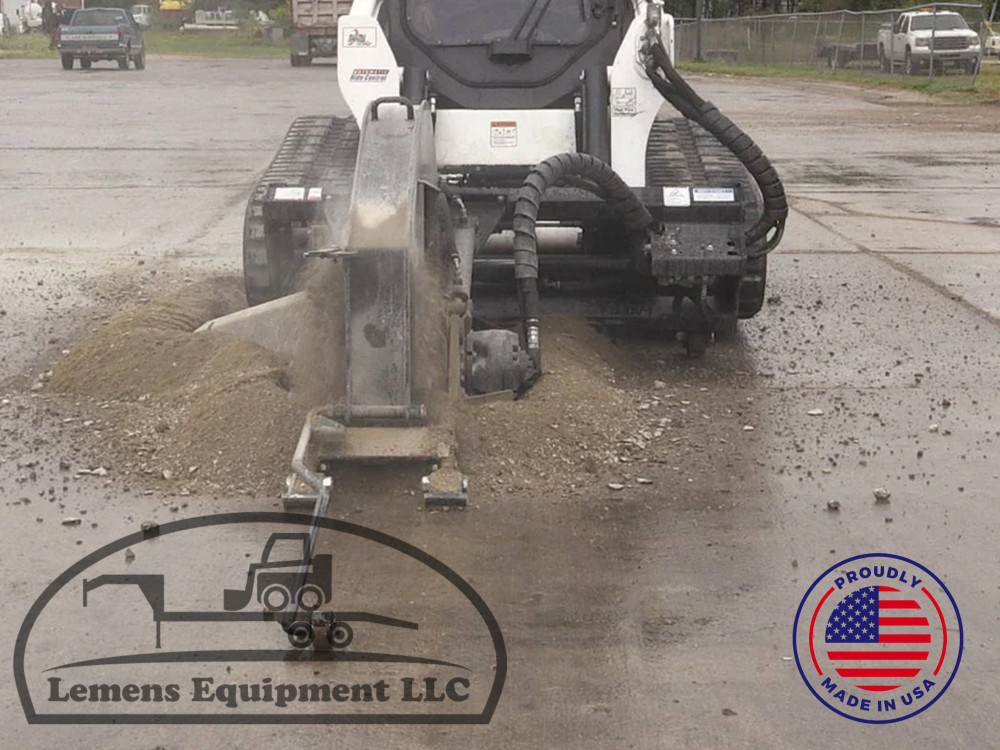

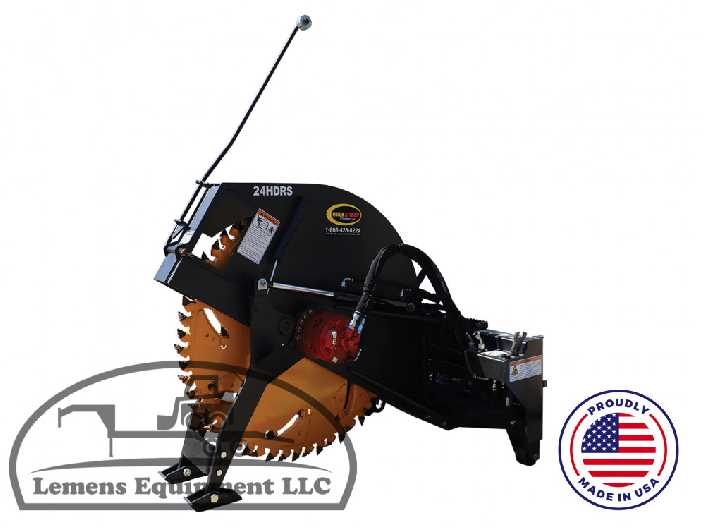

Cut through asphalt and concrete with greater efficiency with the Heavy-Duty Rock Saw. This powerhouse delivers up to 20 FPM cutting speeds. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24" for maneuvering close to buildings and other obstacles from the comfort of your seat. Cut up to 18" or 24" deep. Side cutting teeth, a side motor protection blade, and a floating spoil deflector come standard.
• Max torque of 6640 ftlbs is highest in the industry
• 1" thick support frame is rigid and adds mass
• High performance piston motor
• 1" thick wheel is also rigid and adds mass
• Dual depth control legs improve stability while cutting
• New motor & gearbox provides 33% more available torque than the standard Rock Saw
• Pressure line goes direct to the motor for max efficiency
• Minimum Flow Rate: 25 GPM
• Maximum Flow Rate: 60 GPM
• Maximum Speed: 130 RPM
• Minimum Operating Pressure: 2,200 psi
• Maximum Pressure: 4,800 psi
• Maximum Power Output: 80 HP
• Maximum Torque: 6,640 lb-ft
• Hydraulic Flow Classification: High Flow
• Number of Teeth: 72
• Width of Cut: 2.75"
• Depth of Cut: 24"
• Depth Control: Hydraulic
• Side-Shift Distance: 24"
• Side-Shift Control: Hydraulic
• Overall Width: 66.5"
• Overall Length: 76.2"
• Overall Height: 64"
• Weight: 3,150 lb
• Cutting Speed: Up to 20 FPM

The Pavement Saw is a cost effective alternative to a more cumbersome self-propelled saw unit. With its powerful planetary/motor combination, the 9" cutter wheel depth is ideal for cutting patches, expansion joints and pavement cuts for utility and traffic loops. Planetary drive motor and tungsten carbide teeth eat through asphalt and hard surfaces with ease. The patented electro-hydraulic side-shift enables the Razor Tooth to cut close to walls, curbs and other fixed objects.
• Adaptable to all skid steer loaders with high flow hydraulic capacity and replaces more cumbersome self-propelled saw units
• 9" cutting depth is ideal for cutting patches and expansion joints and making pavement cuts for utility lines and traffic loops
• Electro-Hydraulic side-shift enables the saw to cut close to walls, curbs, and fixed objects
• Built-In shroud retracts as cutting depth increases
• Minimum Flow Rate: 22 GPM
• Maximum Flow Rate: 40 GPM
• Maximum Speed: 180 RPM
• Minimum Operating Pressure: 2,800 psi
• Maximum Pressure: 5,500 psi
• Maximum Power Output: 60
• Maximum Torque: 5,000 lb-ft
• Hydraulic Flow Classification: High Flow
• Number of Teeth: 36
• Width of Cut: 1.5"
• Depth of Cut: 9"
• Depth Control: Hydraulic
• Side-Shift Distance: 24"
• Side-Shift Control: Hydraulic
• Overall Width: 67"
• Overall Length: 59"
• Overall Height: 40"
• Overall Weight: 1,300 lb

Options
• Pistol Grip Control Harness
• Loader Specific Wire Harness
• Factory Installed Case Drain Coupler
• Factory Installed Couplers
• Factory Installed High Flow Couplers
