Quick Attach Tilt Attachment
$5,295

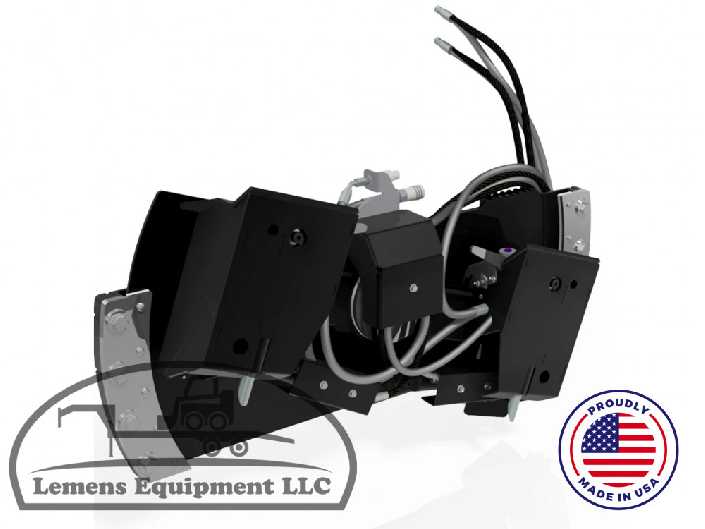

The Quick Tilt-Tach from Quick Attach Attachments, Inc. connects as an adapter between a skid steer loader's quick attach and its attachment. Controlled from the loader seat, the Quick Tilt-Tach permits a skid steer to cut grades, ditches, and swales, and keep attachments level on hilly ground. Unlike other tilt attachments, the Quick Tilt-Tach design provides the lateral stability and tilting accuracy required for smooth machine-control.
• Rotates left or right up to 17 degrees from the skid steer's horizontal centerline, with equal operation and speed when tilting in either direction
• Dual cylinder design provides both smooth operation and superior tilting force
• Perfect for machine control applications using laser or sonic guided equipment
• Replaceable nylon material at wear points means no grease, minimizing maintenance time and costs
• Compatible with skid steer quick attach systems and attachments with universal attachment plates
• Our universal quick attach plates fit most skid steers
• Weight: 470lb
• Width: 57.2"
• Height: 20.9"
• Depth: 11.13"
• Oscillation: +/- 17°
• Cylinders: 2
• Cylinder Bore: 2.5"
• Cylinder Rod: 1.25"
• Cylinder Stroke: 6"
Options
• Hydraulic Control Valve Kit (for secondary functions)
• Pistol Grip Control Harness*
• Loader Specific Wire Harness*
• Mount Frame Spacer
• Factory Installed Couplers
*Required for optional hydraulic control valve kit
QUICK SPECS
Weight: | 470 LBS |
CONDITION: | New |
WARRANTY: | Yes |
