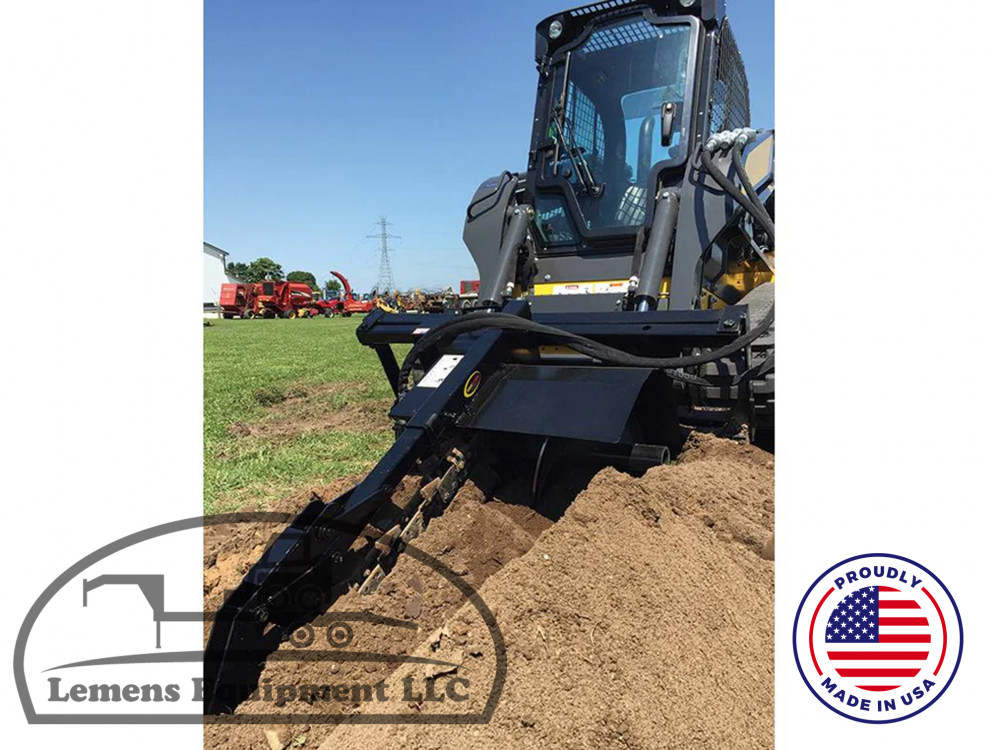

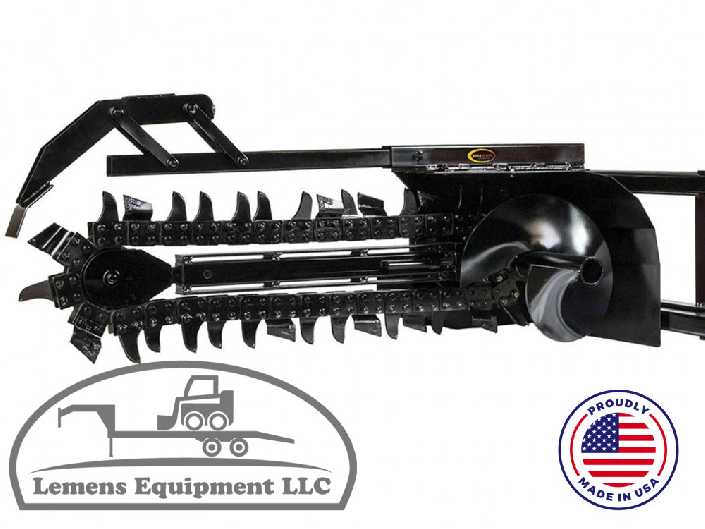

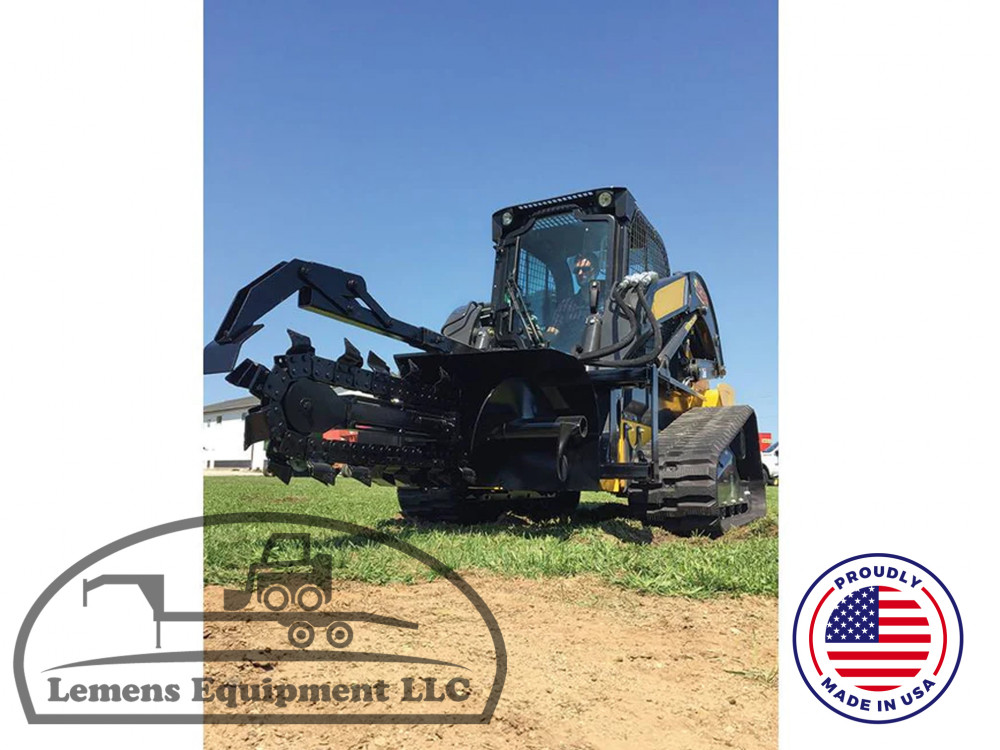

Professional applications require the performance of our Heavy-Duty Trencher. Built for the demands of rigorous trenching jobs, this unit outperforms because of its strength and durability. Avoid costly downtime and project delays by selecting the right tool for the job!
• Manual side-shift comes standard
• Powerful hydraulic motor
• No case drain required
• Heavy-duty planetary drive system eliminates chain reduction
• Replaceable spoil auger
• Built-in skid shoe for auger depth control
• Rated Flow: 20-30 GPM
• Maximum Trench Depth: 4ft
• Trencher Widths: 6", 8", 10", 12"
• Shaft Speed: 120-170 RPM
• Operating psi: 2,500-3,500 psi
• Output Torque: 1,219-1,706 ft-lb
• Chain Station Counts 3ft: 27
• Chain Station Counts 4ft: 33
• Side-Shift: Manual
• Weight (3ft / 6" Double Cup): 1105lb
• Weight (4ft / 6" Double Cup): 1170lb

Options
• Factory Installed Couplers
• Factory Installed High Flow Couplers
