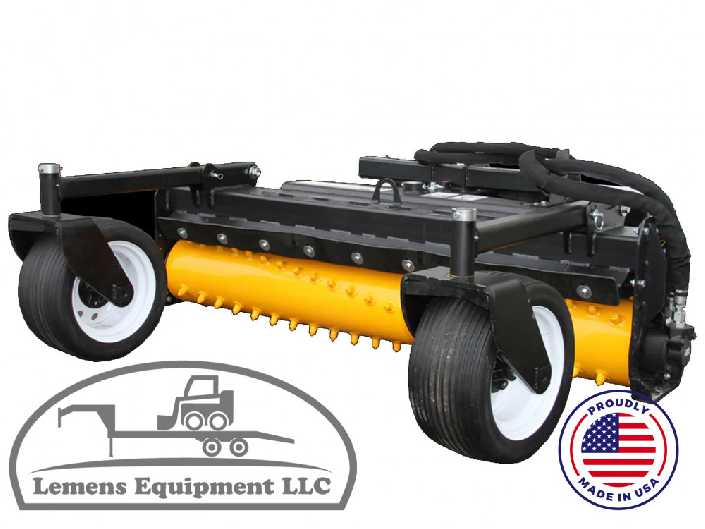

Quick Attach Harley Rake / Soil Conditioner 72"

$10,795

This attachment has all of the benefits of our rigid soil conditioner, plus a unique floating connection option that provides automatic leveling as the unit follows the contour of the ground. Easily rake stones and debris to either side or straight ahead for easy pickup. Achieve greater ground speed with the large-diameter rotor and aggressive teeth that pulverize the soil on the go. The counter-rotating rotor action moves soil ahead while tilling. This allows you to fill in low spots and cut down high spots in one pass. Rake and till as deep as 4" to create the perfect seedbed. This unit separates rocks, tears up sod, and eliminates dirt clods for a truly professional finish.
• Direct-Drive motor turns large 10" rotor
• Rigid Mount or Depth Control on the fly (optional) or

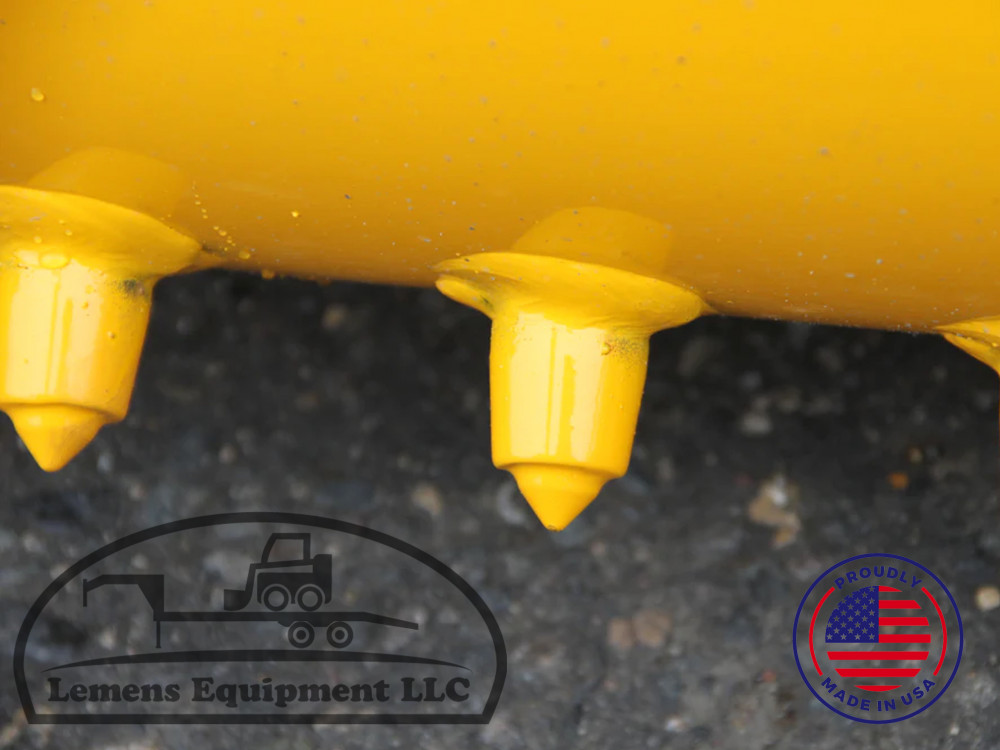

• Tungsten – carbide teeth in a spiraled pattern for more pressure per tooth
• Power angling (optional)
• Large solid rubber tires to eliminate flats and downtime
• Optional box end plates (Wing Kit)
• Rotor Width: 72"
• Overall Width: 79.5"
• Angling: Manual 25 degree
• Angled Rotor Width: 65.25"
• Hydraulic Angling: Optional
• Wheels/Tires: 18" x 8.5"
• Tire Construction: Polyurethane (Available in Solid Rubber also)
• Teeth: 88 Carbide Tipped
• Recommended Hyd. Flow: 15-33 GPM
• Operating Weight: 1100lb

Options
• Hydraulic Power Angling
• Wing Kit
• Pistol Grip Control Harness*
• Loader Specific Wire Harness*
• Factory Installed Couplers
*Applies to hydraulic model only

QUICK SPECS


Weight: 1100 LBS
CONDITION: New
WARRANTY: Yes
