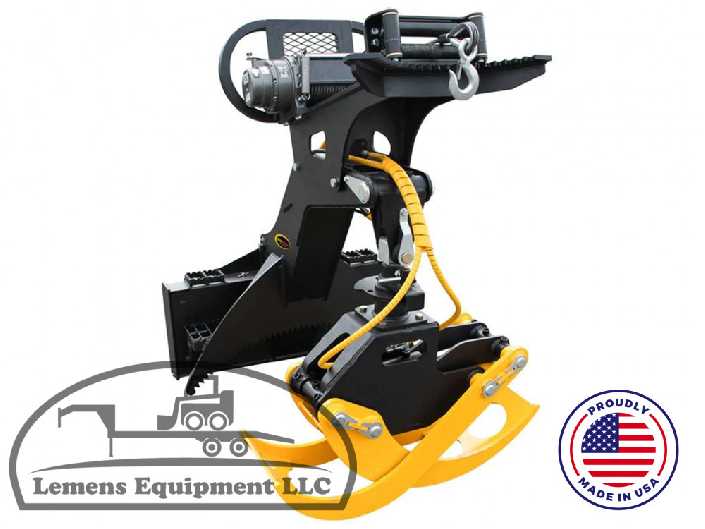

Quick Attach Knock Around Grapple 60"
$9,795

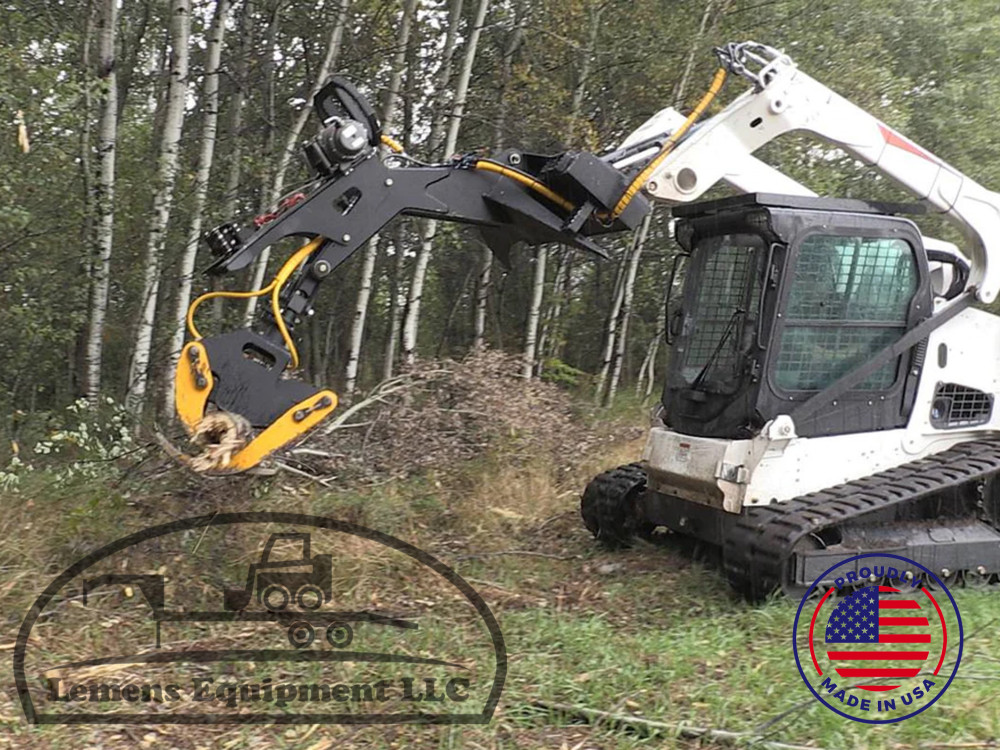

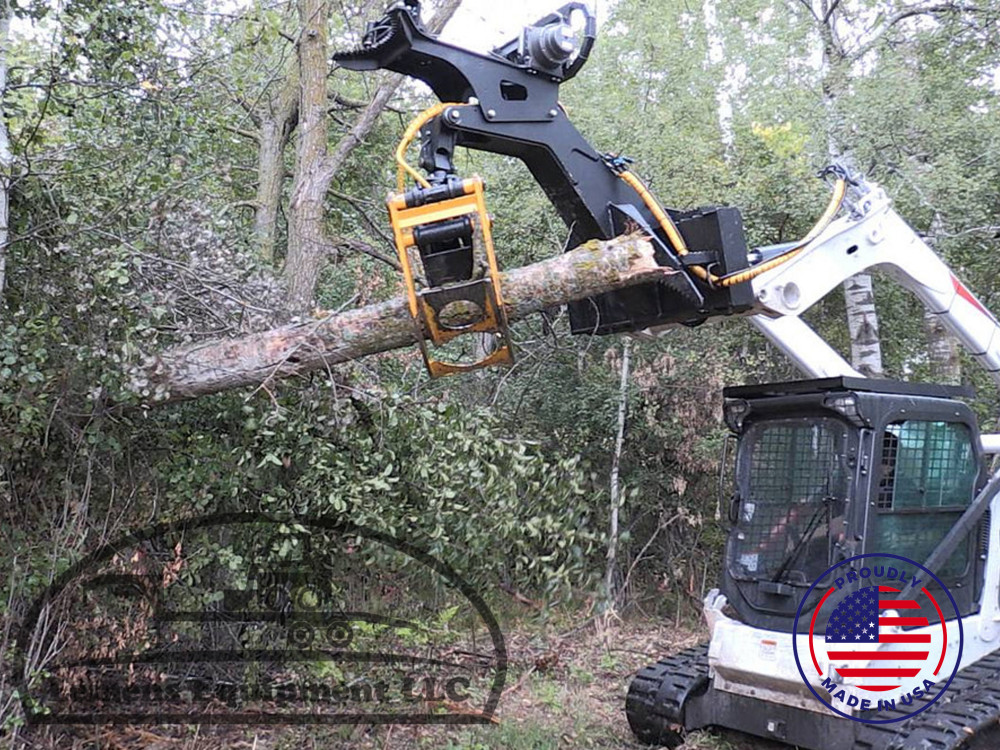

Boost productivity – Works on Both Front of Skid Steers, Tractors, and can also be mounted to the rear 3 point of tractors. Great for moving trees, boulders and large wood piles. With the Multi-Purpose Grapple, trees and debris can be delicately removed, repositioned, or loaded without damaging the surrounding landscape.
Includes skid steer mount and 3-point hitch Cat I and II
Two steel steps for traction
3-inch bore cylinder
Closes to less than 3 inches
Heavy-duty push bar

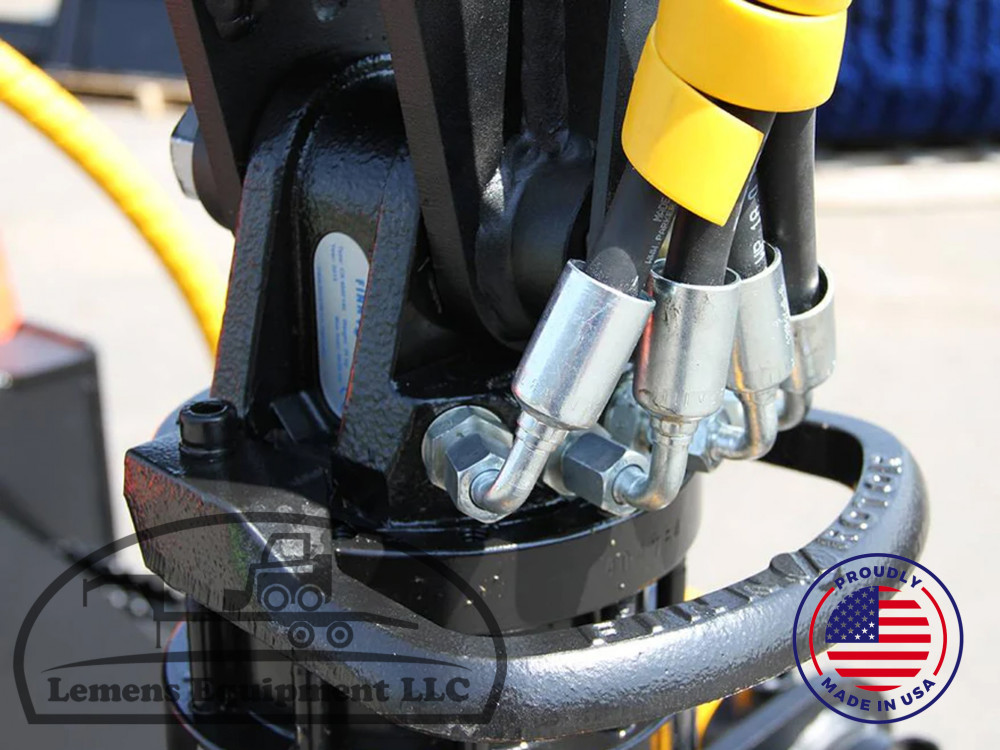

Optional 360 hydraulic rotation
Optional winch
• Mounting Plate: Universal, Cat I 3-Point, Cat II 3-Point
• Hydraulic Pump Capacity Requirements: 10 - 25 GPM
• System Pressure: 2,000 - 3,000 psi
• Maximum Jaw Opening Width: 60"
• Minimum Jaw Closing Diameter: 3"
• Boom and Rotator Capacity: 9,000 lb.
• Grapple Cylinder Bore: 3"
• Winch Capacity (optional): 12,000 lb.
• Winch Cable Length (actual / usable): 100ft / 85ft
• Operating Weight: 1,183 lb.
Options
• Hydraulic Rotation
• Toplink Cylinder
• Winch
• Pistol Grip Control Harness*
• Loader Specific Wire Harness*
• Factory Installed Couplers
*Applies to hydraulic model only
QUICK SPECS
Weight: | 1183 LBS |
CONDITION: | New |
WARRANTY: | Yes |
