Quick Attach Harley Rake / Soil Conditioner Mini 48"

$7,595

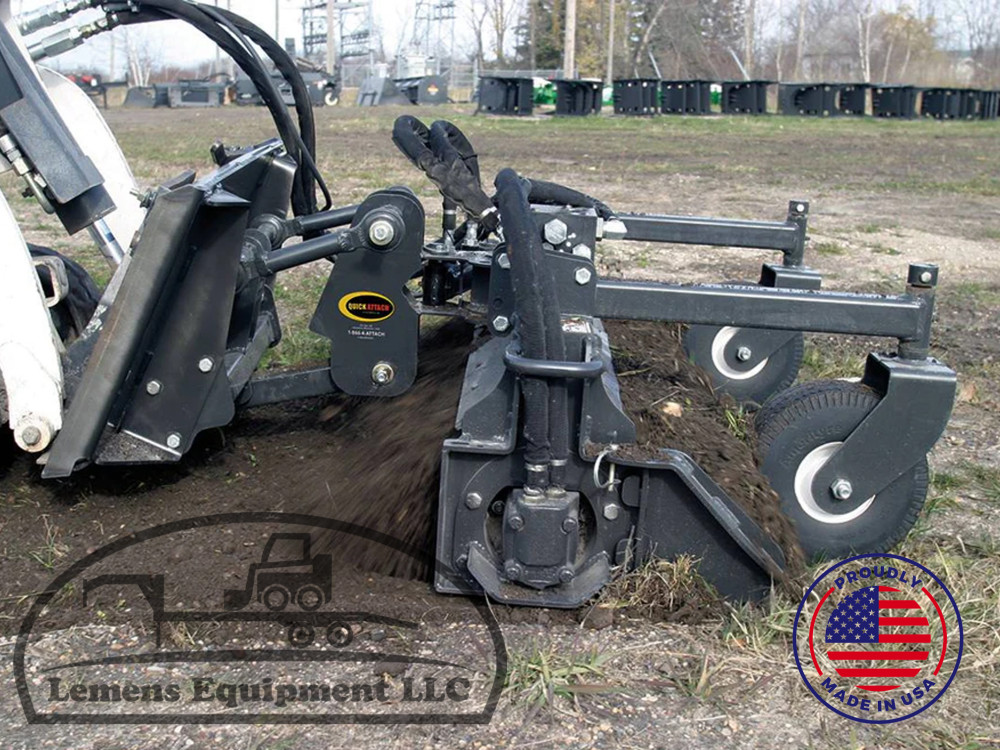

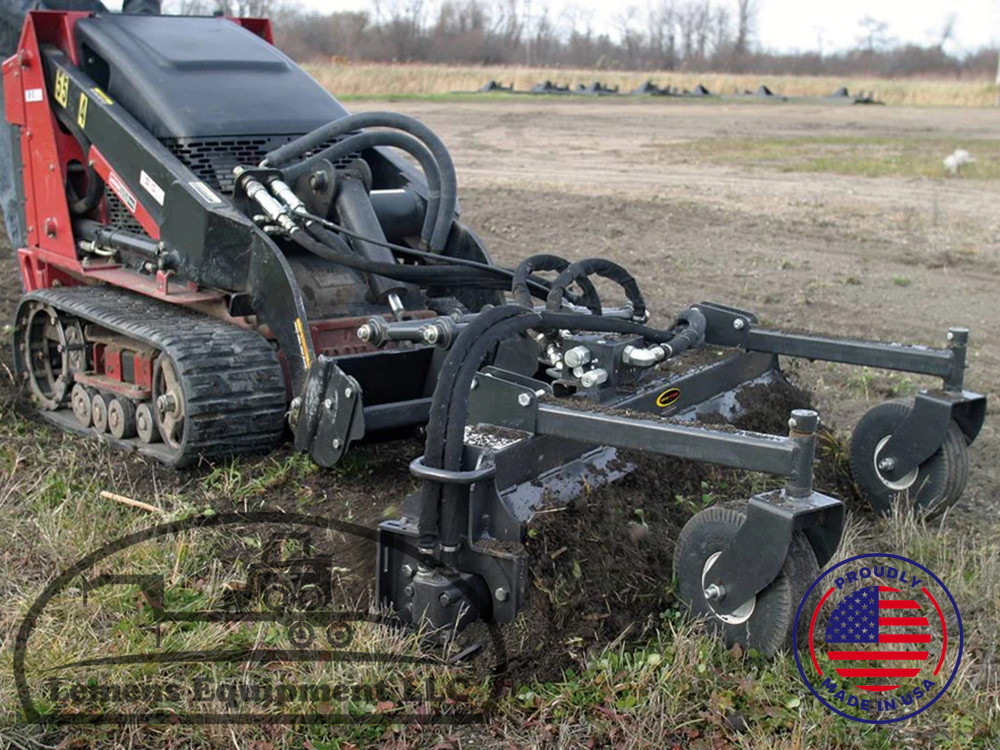

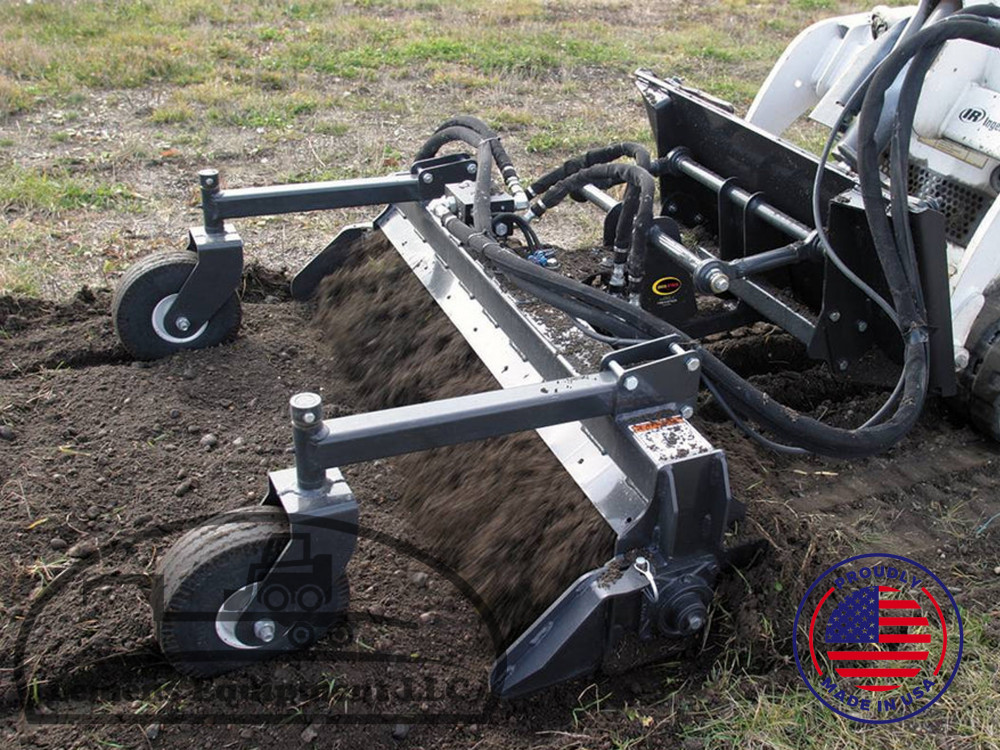

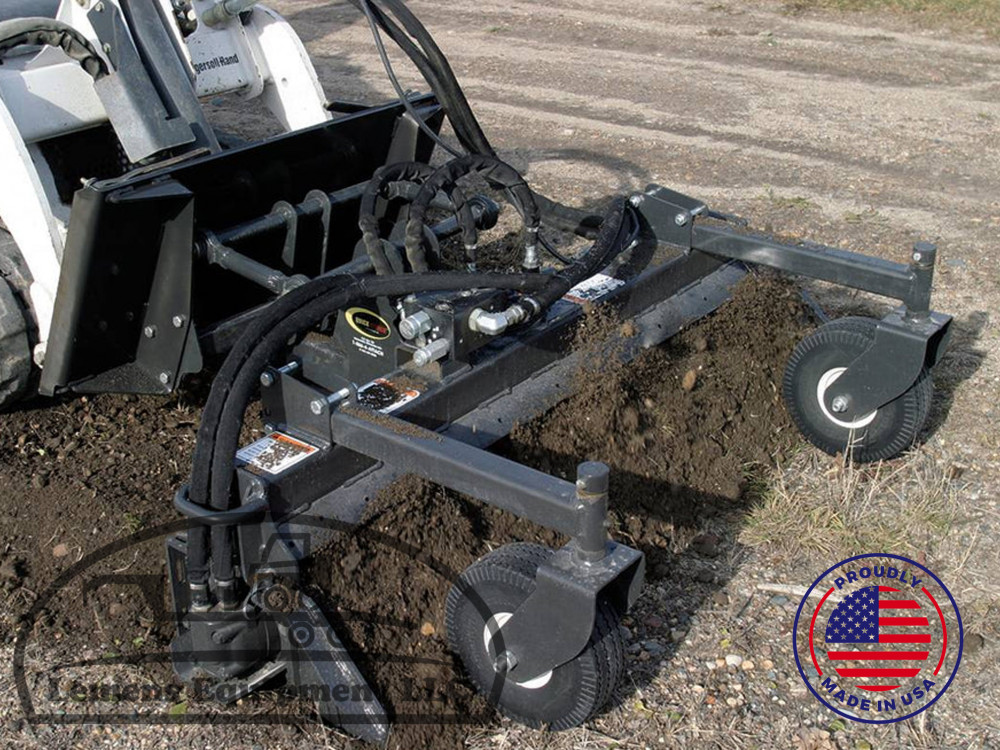

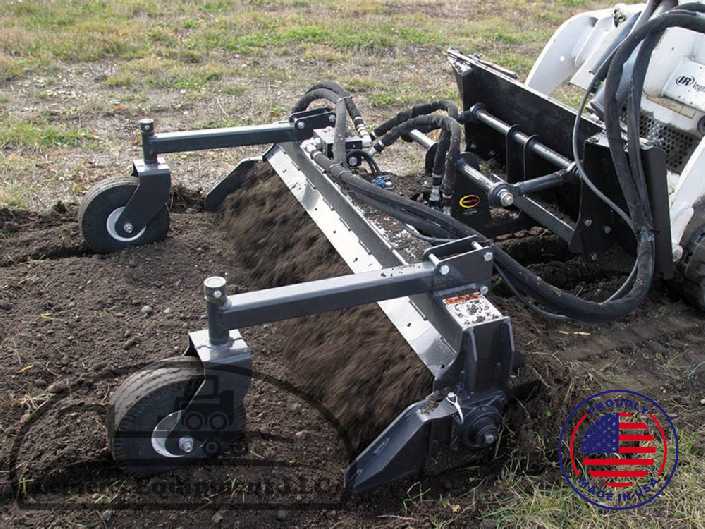

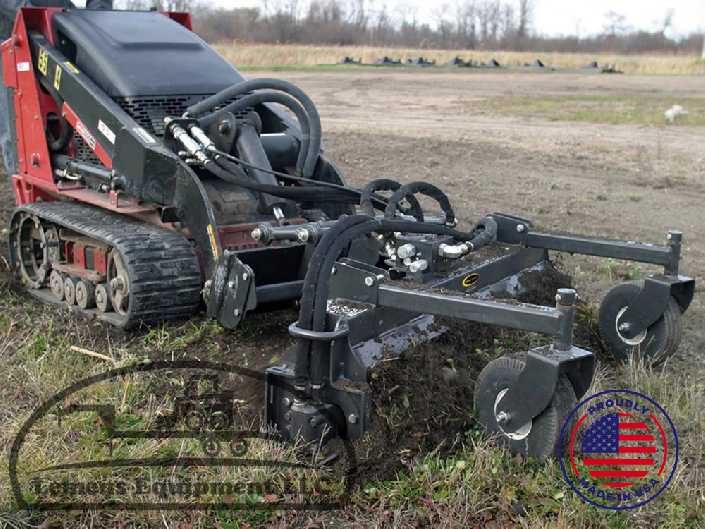

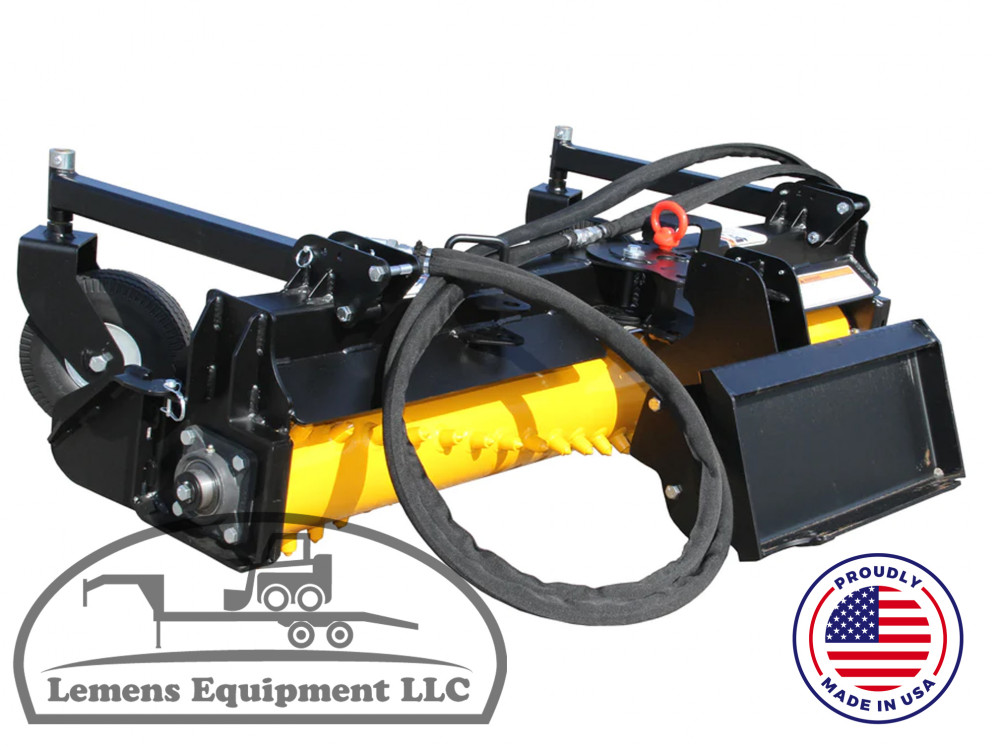

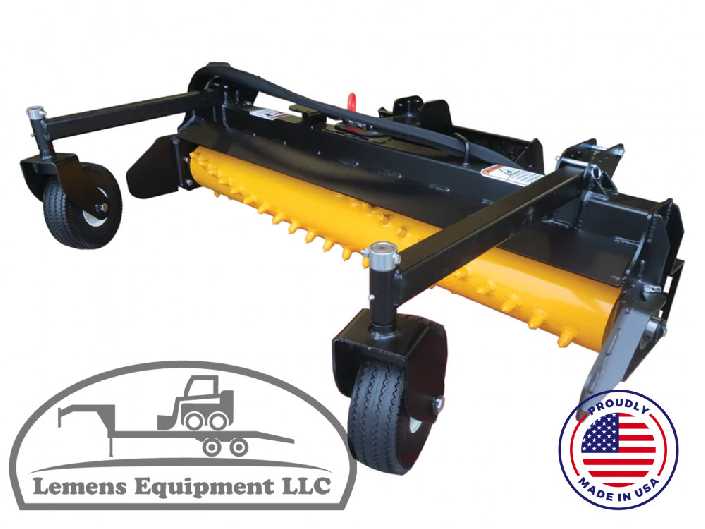

This attachment pays for itself in a very short amount of time, replacing your hand labor work crew. The versatile unit rakes stones and debris to either side or straight ahead for easy pickup. Aggressive teeth on the large diameter rotor pulverize soil like an ordinary tiller, with the benefit of faster ground speed. The counter-rotating rotor moves soil ahead of it as it tills, filling in low spots and chewing off high. It creates perfect seedbeds and windrows. The Mini Soil Conditioner separates rocks, tears up sod, and pulverizes dirt clods.
• Largest Drum In It's Class @ 7"
• 3/8" Thick Drum Wall Thickness
• Direct-Drive design
• Float mount design for a more efficient operation
• Depth changes on the go
• Tungsten - carbide teeth
• Solid rubber wheels; with one pin can be raised out of the way for serious digging
• Side plates are adjustable and removable
• Spiraled teeth for windrowing
• Angling: Manual
• Working Width: 48"
• Working Depth: 0-2.5"
• Max. Angle (both ways): 25 degrees
• Overall Width: 56.75"
• Angled Rotor Width: 43.5"
• Overall Length: 55.5"
• Rated Flow: 9-15 GPM
• Weight: 385lb
• Mounting Kit Configurations: ASV/Terex (RC/PT30), Bobcat (MT-52/55, 463/S70), Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi, Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow)

Options
• Hydraulic Power Angling
• Toggle Control Harness
• Loader Specific Wire Harness
• Factory Installed Couplers

QUICK SPECS


Weight: 385 LBS
CONDITION: New
WARRANTY: Yes
