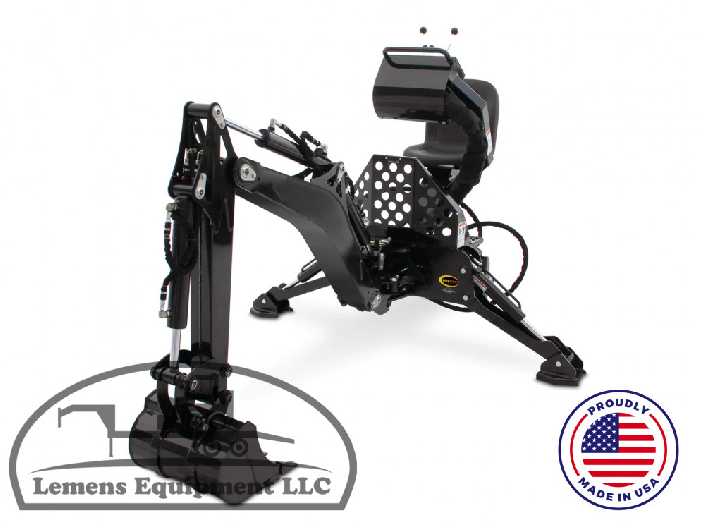

Quick Attach Backhoe - Excavator Style BH780

$16,495

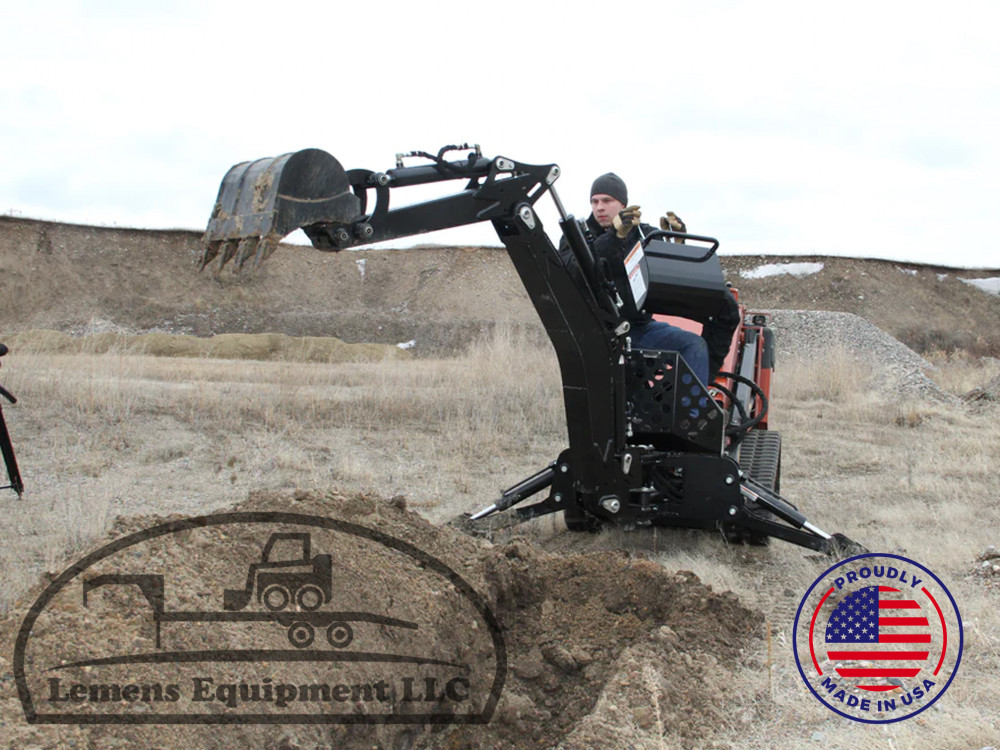

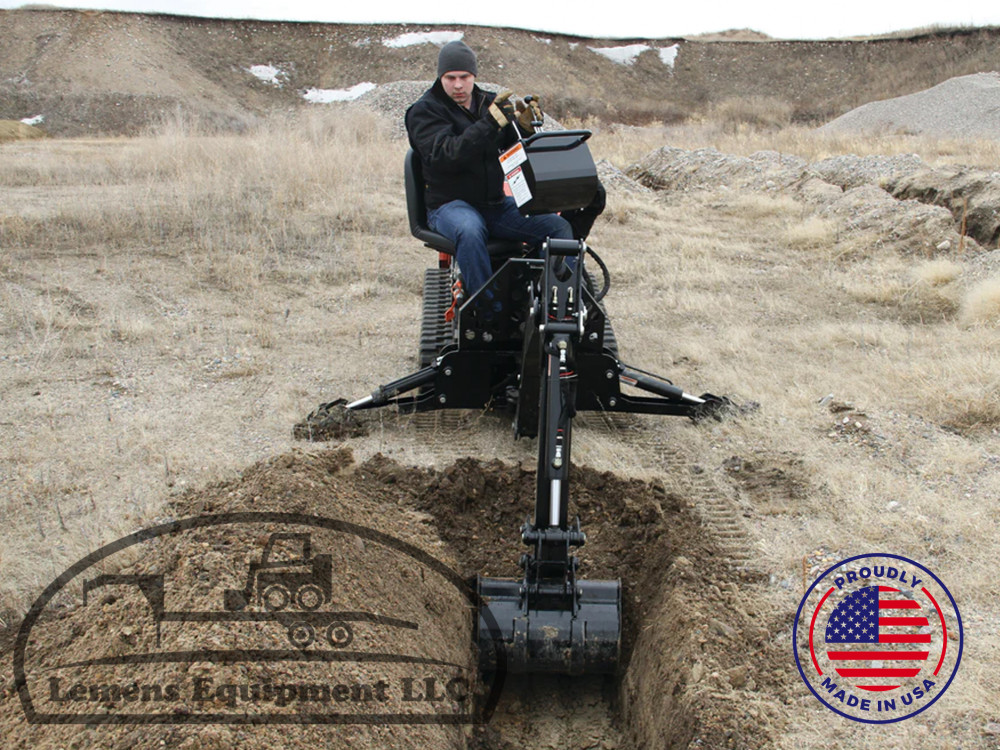

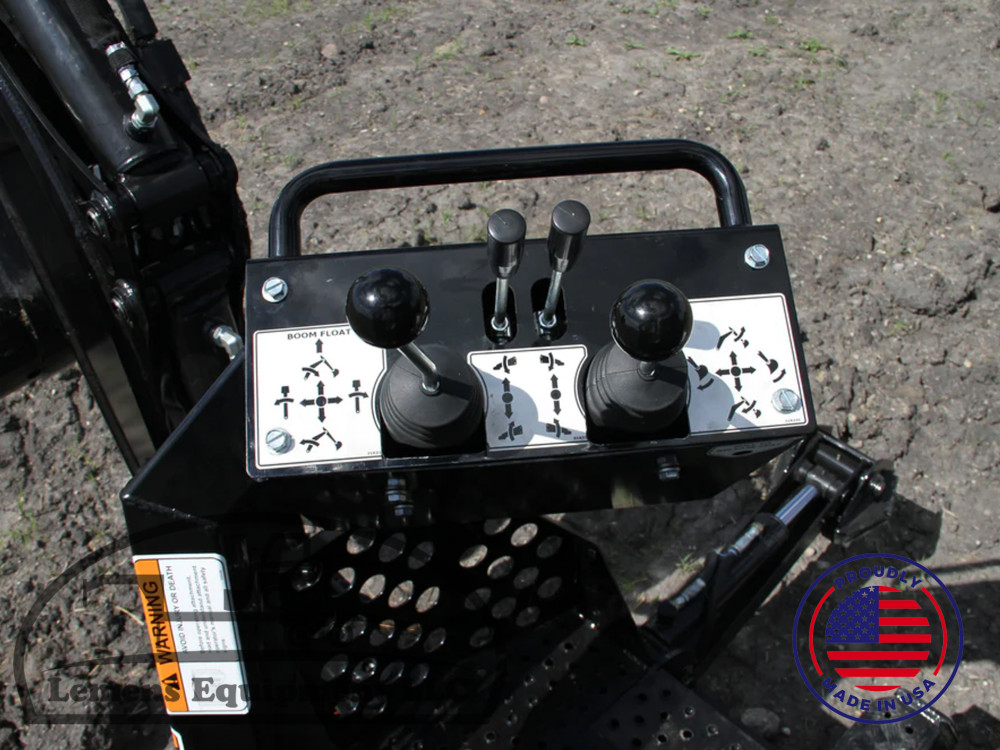

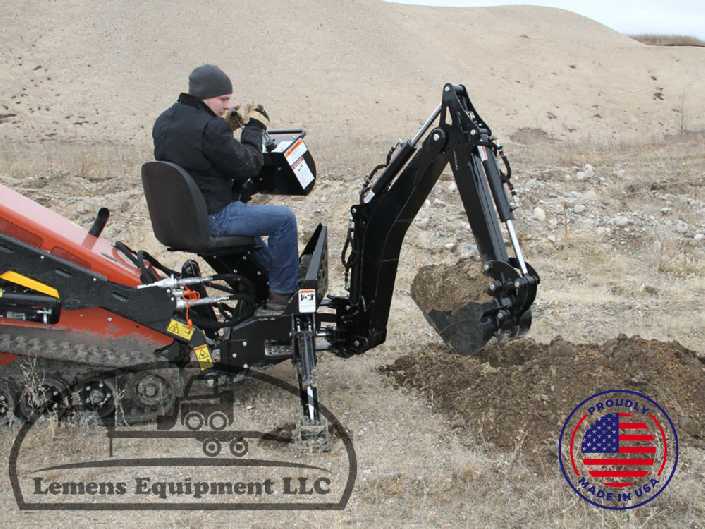

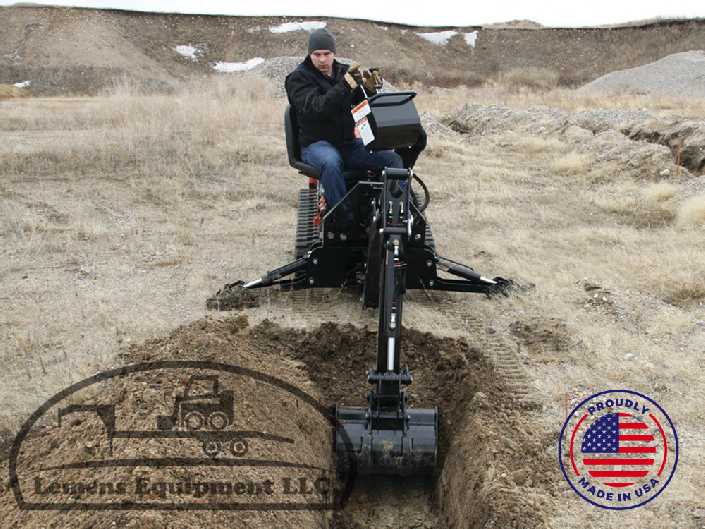

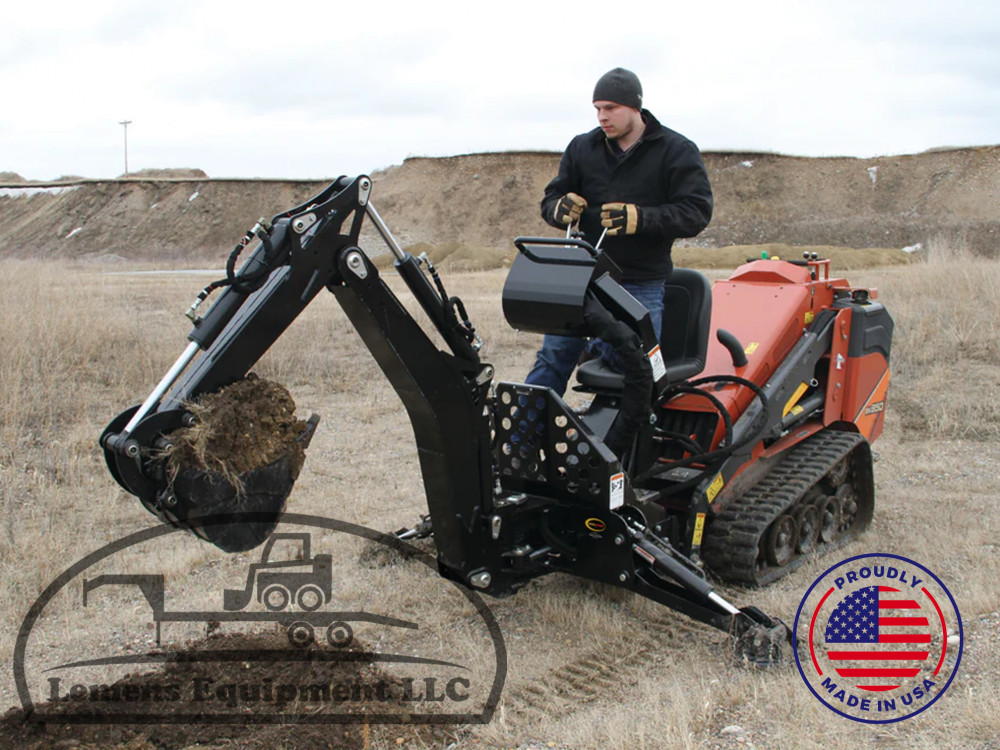

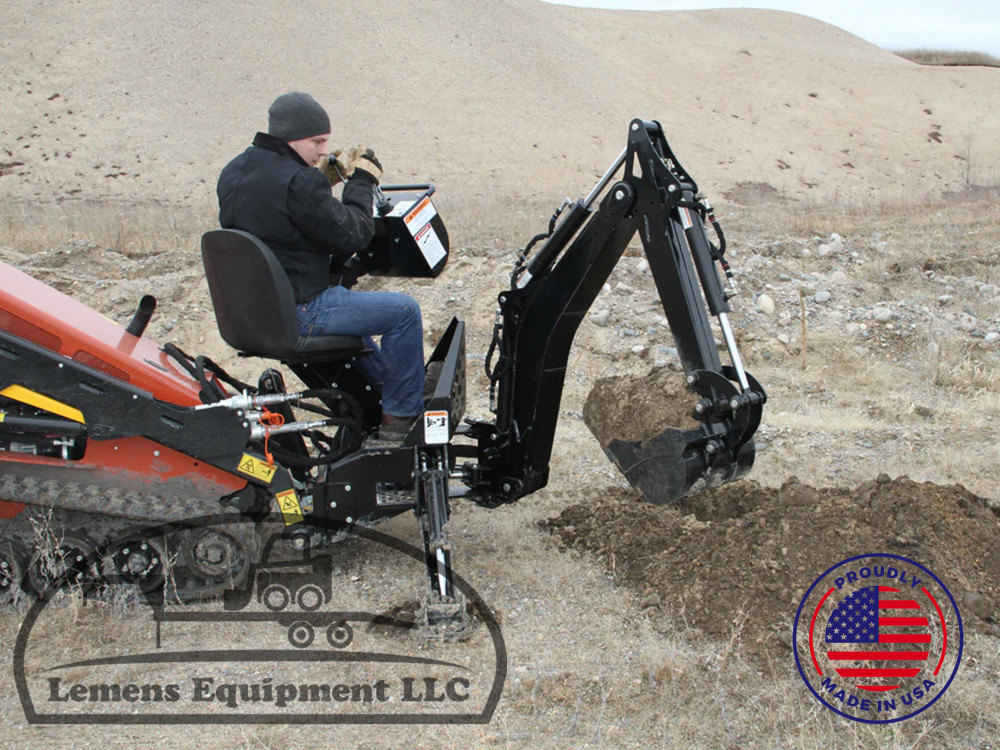

The versatile curved-boom Backhoe attachment fits your machine and your property. This is a rugged backhoe that's ready to sink its teeth into any task you give it, from landscaping to concrete footings. The responsive controls give you precision and power at your fingertips. Running deep with features, the Backhoe will turn a mountain of a job into a molehill.

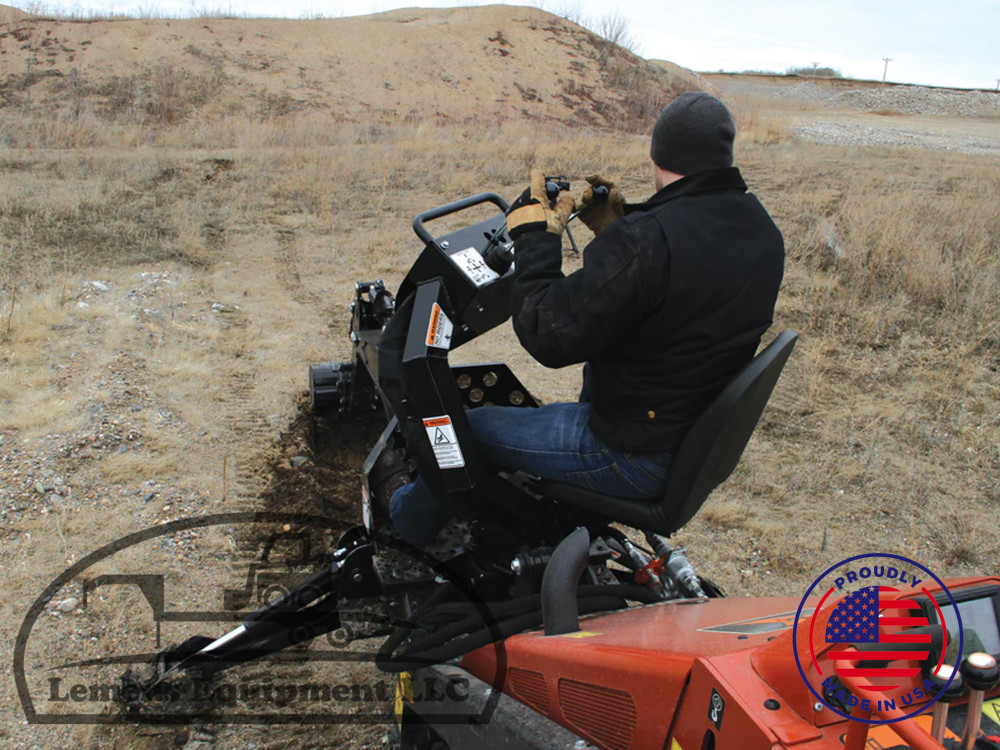

• Operator seat swings for better visibility of work area
• Optimum performance with 5-7 GPM hydraulic system
• Dual cylinder swing provides maximum swinging power
• All main pivot points greaseable for easy maintenance. Full width replaceable bronze bushings on all wearable pivot points
• Boom & rotation lock for transport
• 9", 12" (3 teeth), 15", 18" (4 teeth), 24" (5 teeth) and 24" ditching bucket (no teeth)

• Transport Height (fully retracted): 68"
• Transport Width (stabilizers up): 36"
• Transport Length: 64"
• Transport Weight: 675lb
• Ground Clearance: 7.5"
• Digging Depth (2 ft. flat bottom): 78"
• Overall Operating Height (fully raised): 91"
• Loading Height (bucket at 60 degrees): 63"
• Reach from Swing Post: 104"
• Bucket Rotation: 180 degrees
• Swing Arc: 180 degrees
• Stabilizer Width (spread position): 81"
• Stabilizer Width (transport): 36"
• Stabilizer (below grade): 10"
• Operating Pressure: 2,250 psi
• Dipper Stick Digging Force SAE: 1,890 lb
• Bucket Digging Force SAE: 3,450 lb
• Boom Lift Capacity: 515 lb
• Hydraulic Volume Requirements: 5-7 GPM
• Main Boom Cylinder Diameter: 2.25"
• All Other Cylinder Diameter: Dipper 2.25", Rest 2"

Options
• Tie Back Kit
• Bucket 9", Bucket 12", Bucket 12" Ditching, Bucket 15", Bucket 18", Bucket 18" Ditching, Bucket 24", Bucket 24" Ditching
• Street Pads (pair)
• Mechanical Thumb
• Hydraulic Thumb
• Factory Installed Couplers
• RH Support Valve (for Volvo, JCB, Case, New Holland, Gehl)

QUICK SPECS


Weight: 675 LBS
CONDITION: New
WARRANTY: Yes
