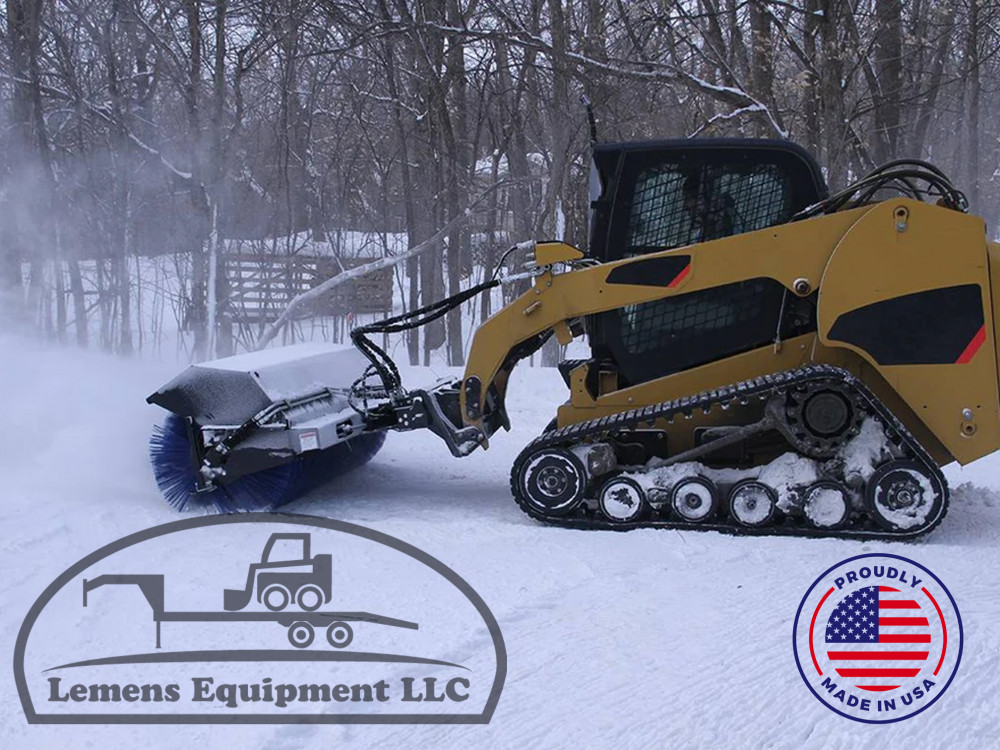

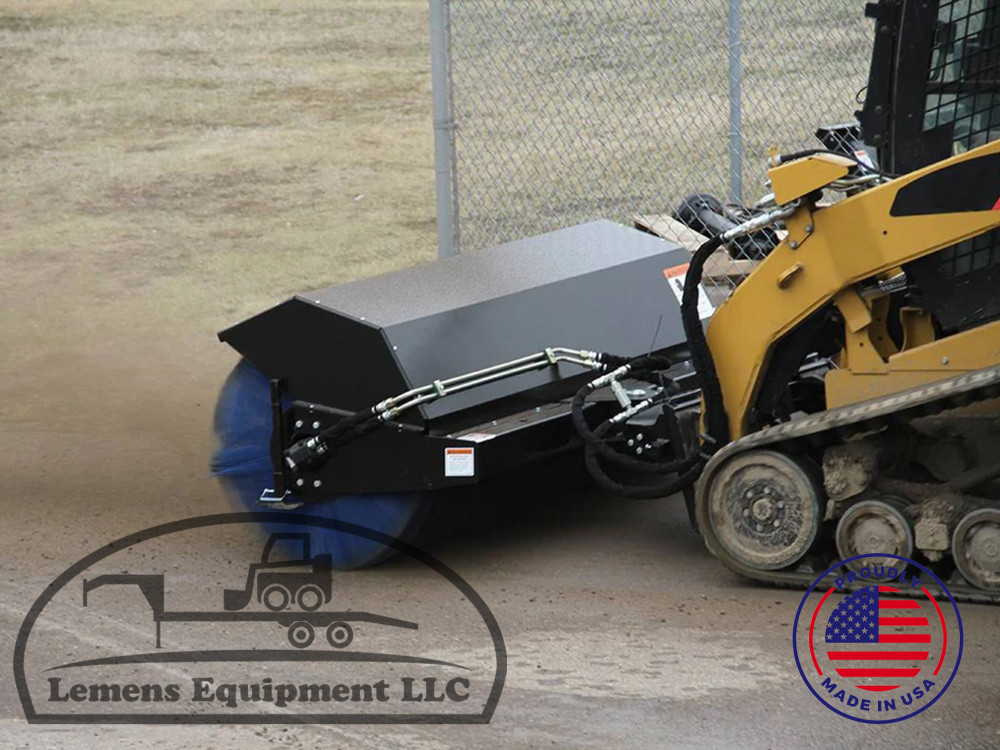

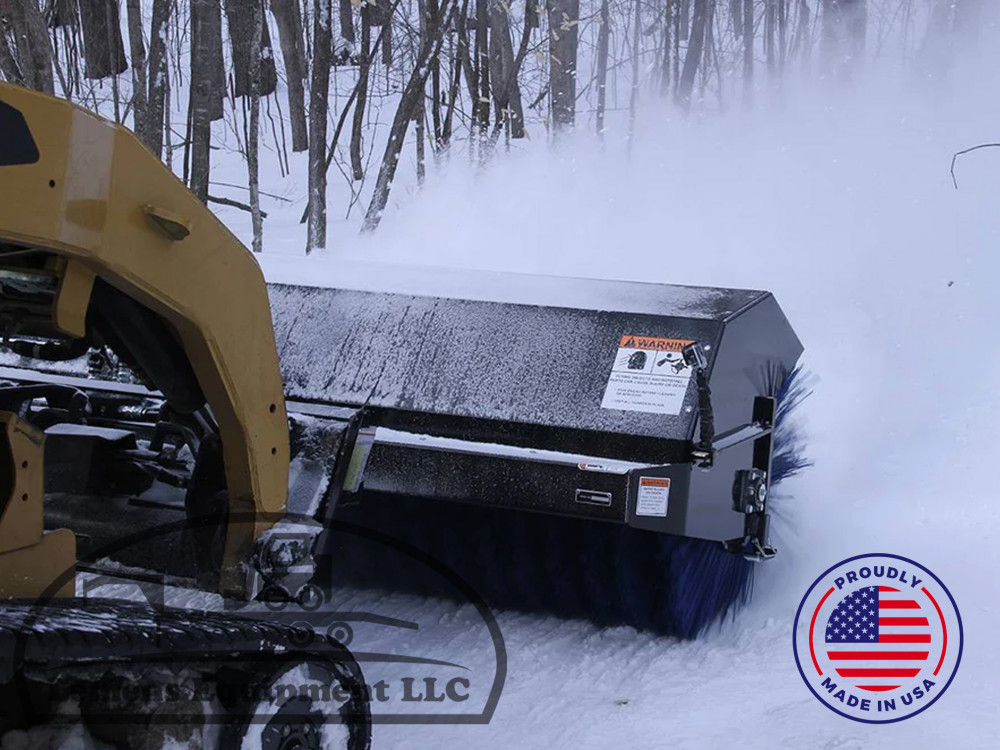

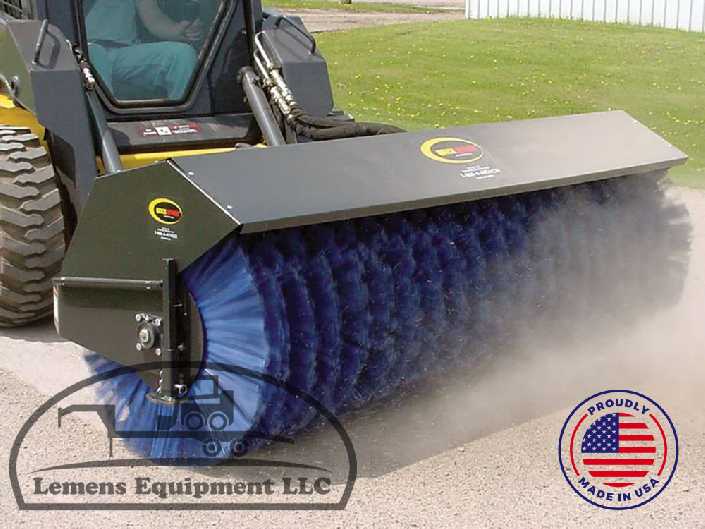

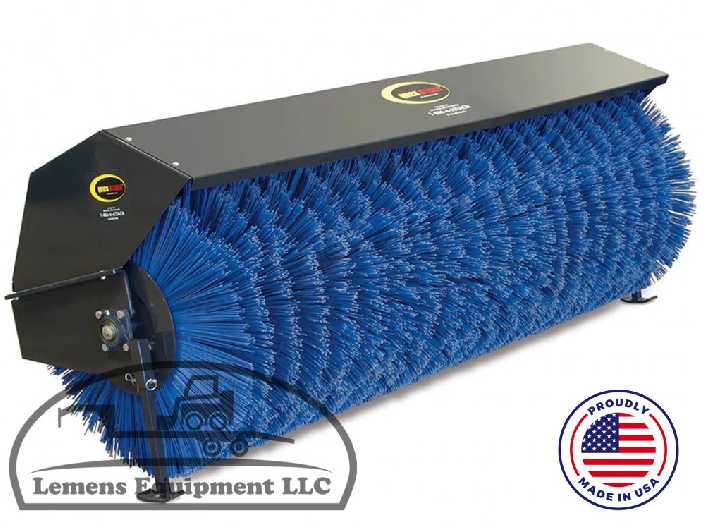

The Power Angle Broom is designed for heavy-duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your skid steer or tractor loader. Featuring a 68", 84" or 96" width, optional hydraulic angle change, and the exclusive Floating Torsion Suspension System™.
• Exclusive Torsion Float Suspension assists the operator in keeping consistent and correct bristle down pressure, reducing excessive wear on the bristles.
• Fast wafer change time
• 25° right and left angle (manual or optional hydraulic)
• Greaseable bearings for longer wear life
• Hydraulic drive motor (no chains)
• Width: 68"
• Width Fully Angled: 63" @ 25°
• Broom Angling: Manual 25° / Hyd 25° / Hyd 25°
• Drive System: Hydraulic Motor Direct-Drive
• Skid Steer Flow Range: 13-24 GPM
• Wafer Diameter: 32"
• Wafer Sections (number): 33 zig-zag
• Operating Weight: 715lb
• Reversible Valve Block: Included w/XL model

The Pavement Saw is a cost effective alternative to a more cumbersome self-propelled saw unit. With its powerful planetary/motor combination, the 9" cutter wheel depth is ideal for cutting patches, expansion joints and pavement cuts for utility and traffic loops. Planetary drive motor and tungsten carbide teeth eat through asphalt and hard surfaces with ease. The patented electro-hydraulic side-shift enables the Razor Tooth to cut close to walls, curbs and other fixed objects.
• Adaptable to all skid steer loaders with high flow hydraulic capacity and replaces more cumbersome self-propelled saw units
• 9" cutting depth is ideal for cutting patches and expansion joints and making pavement cuts for utility lines and traffic loops
• Electro-Hydraulic side-shift enables the saw to cut close to walls, curbs, and fixed objects
• Built-In shroud retracts as cutting depth increases
• Minimum Flow Rate: 22 GPM
• Maximum Flow Rate: 40 GPM
• Maximum Speed: 180 RPM
• Minimum Operating Pressure: 2,800 psi
• Maximum Pressure: 5,500 psi
• Maximum Power Output: 60
• Maximum Torque: 5,000 lb-ft
• Hydraulic Flow Classification: High Flow
• Number of Teeth: 36
• Width of Cut: 1.5"
• Depth of Cut: 9"
• Depth Control: Hydraulic
• Side-Shift Distance: 24"
• Side-Shift Control: Hydraulic
• Overall Width: 67"
• Overall Length: 59"
• Overall Height: 40"
• Overall Weight: 1,300 lb

Options
• Pistol Grip Control Harness*
• Loader Specific Wire Harness*
• Factory Installed Couplers
*Applies to Hydraulic Models Only

There are dozens of variations of this broom available, let us know what you need and we can get it.
